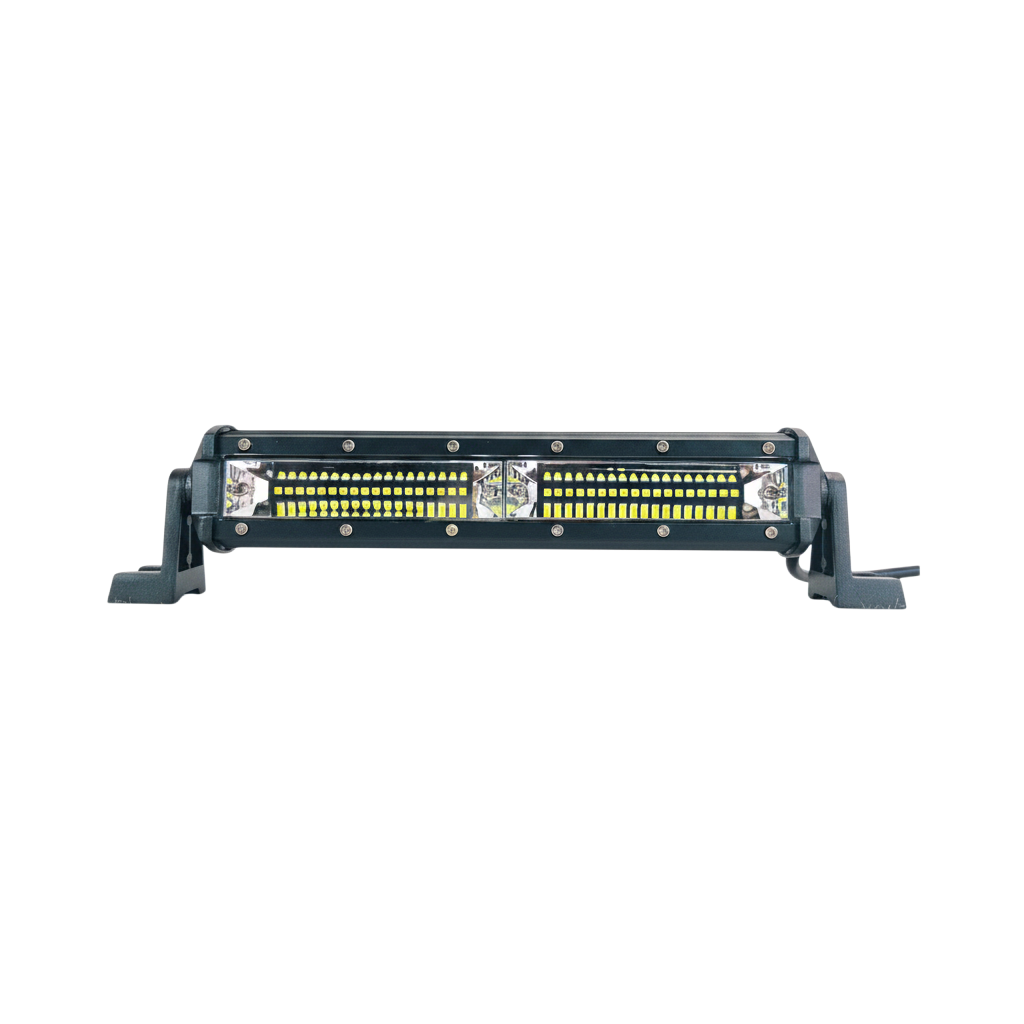

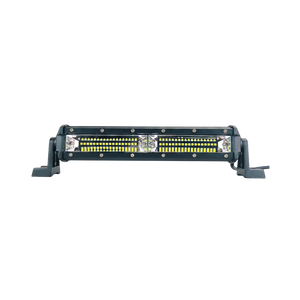

Truck Comfort LED Light Bar 108W – Powerful 4320 lm Output and Durable IP67 Protection

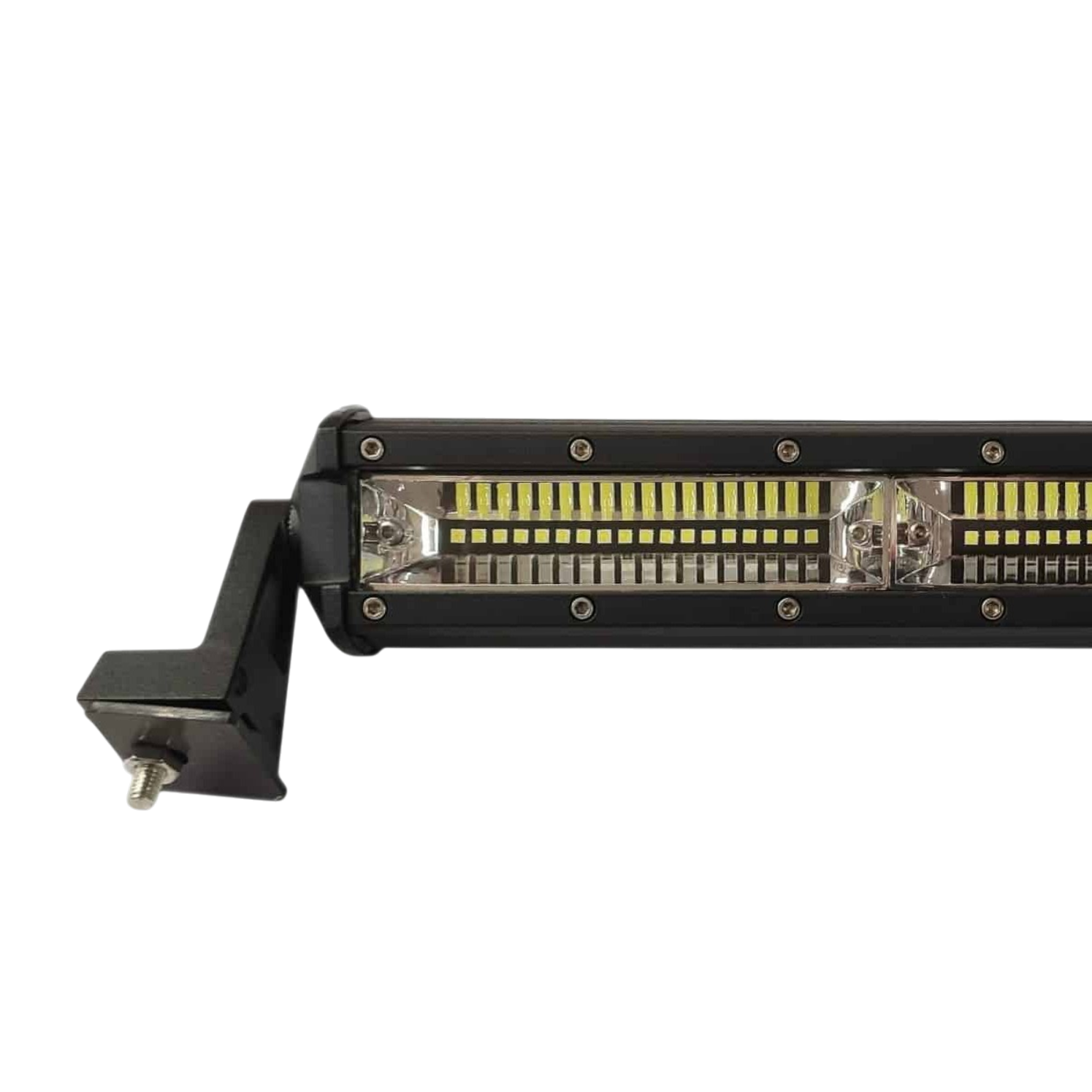

Get reliable additional lighting where you need it with this compact LED Light Bar. Its 36 × 3W LEDs deliver 108W of power and a 4320 lumen light output for effective illumination around your vehicle.
Designed for trucks, lorries, tractors, off-road vehicles and other vehicles, the 9–32V DC operating range provides versatile installation options. The aluminium housing features a finned design and IP67 protection for demanding vehicle applications.
Key Benefits
- Powerful 108W output: equipped with 36 × 3W LEDs.
- 4320 lumen light output: provides strong supplementary illumination for working around your vehicle.
- 9–32V DC operating range: suitable for a variety of vehicle electrical systems.
- IP67 protection: designed to provide protection against dust and water.
- Aluminium housing: finned construction supports effective heat dissipation.
- Compact dimensions: the light unit measures just 260 mm wide.
Applications

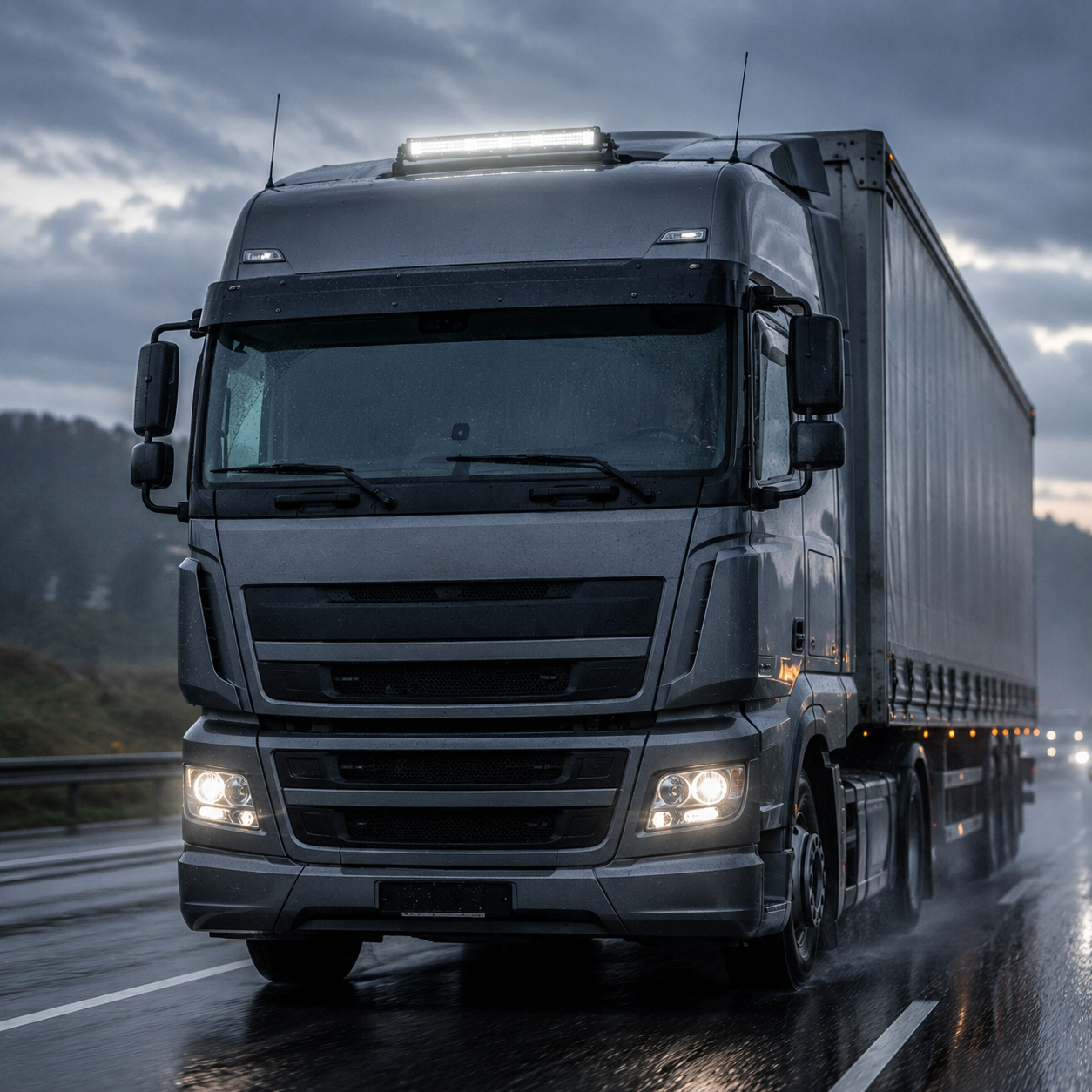

This LED Light Bar is designed as additional work lighting for trucks, lorries, tractors, off-road vehicles and other compatible vehicles. Its compact format makes it practical where powerful supplementary illumination is required.
Technical Specifications
- Power: 108W
- LED configuration: 36 × 3W LED
- Operating voltage: 9–32V DC
- Light output: 4320 lm
- Colour temperature: 6000–6500K
- Light colour: White
- Protection rating: IP67
- Operating temperature: -40°C to +80°C
- Cable length: 60 cm

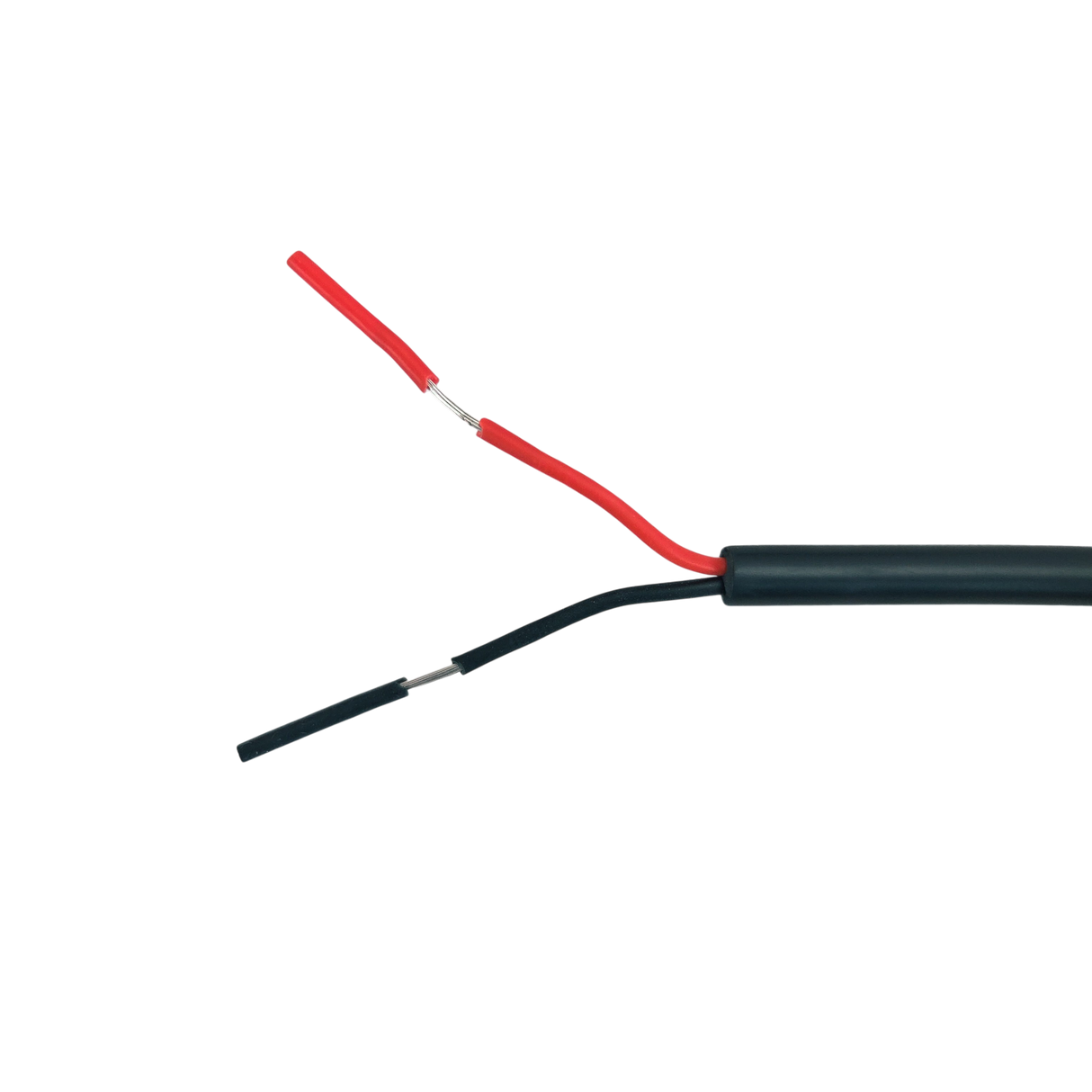

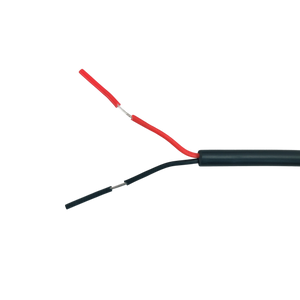

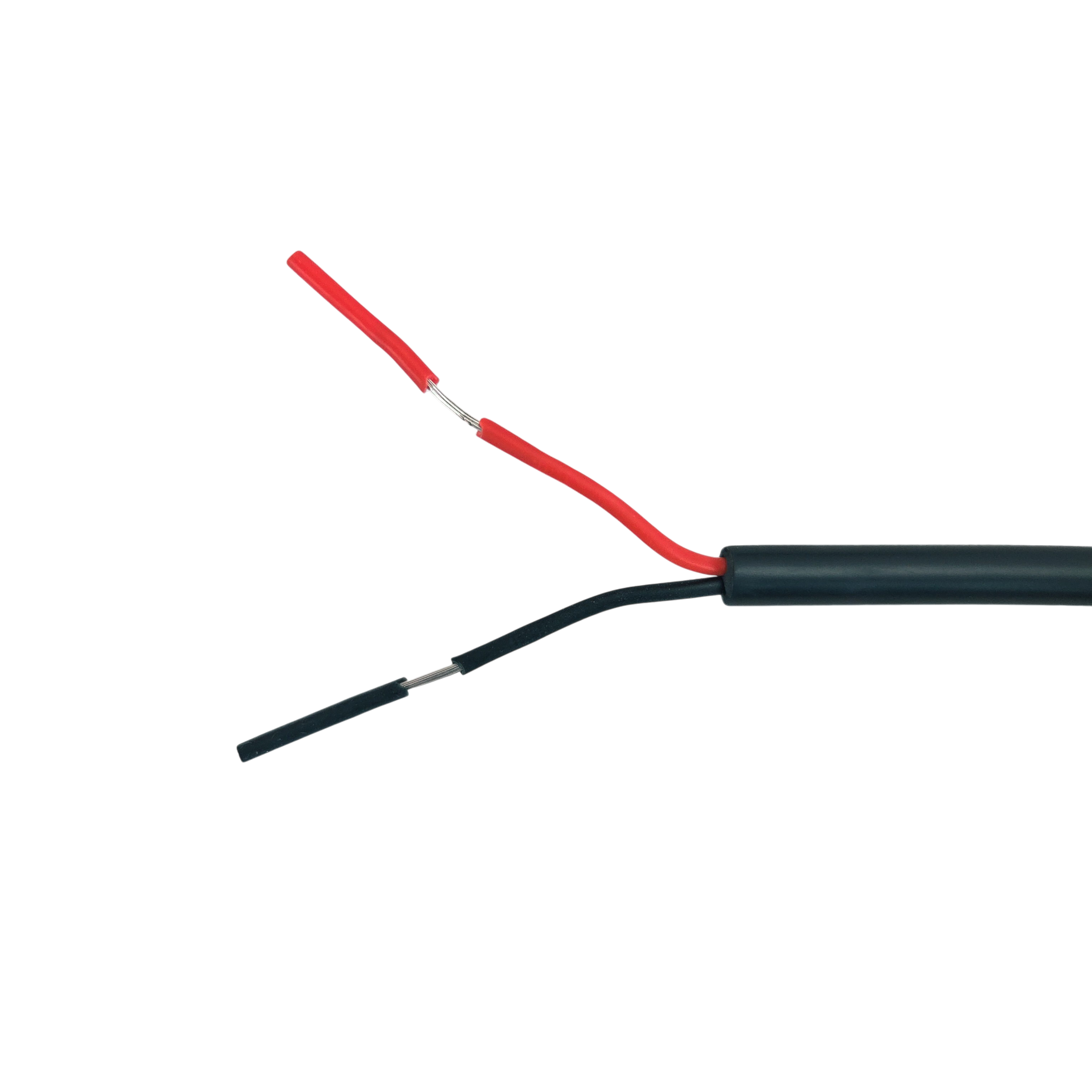

- Cable connection: Bare wire ends

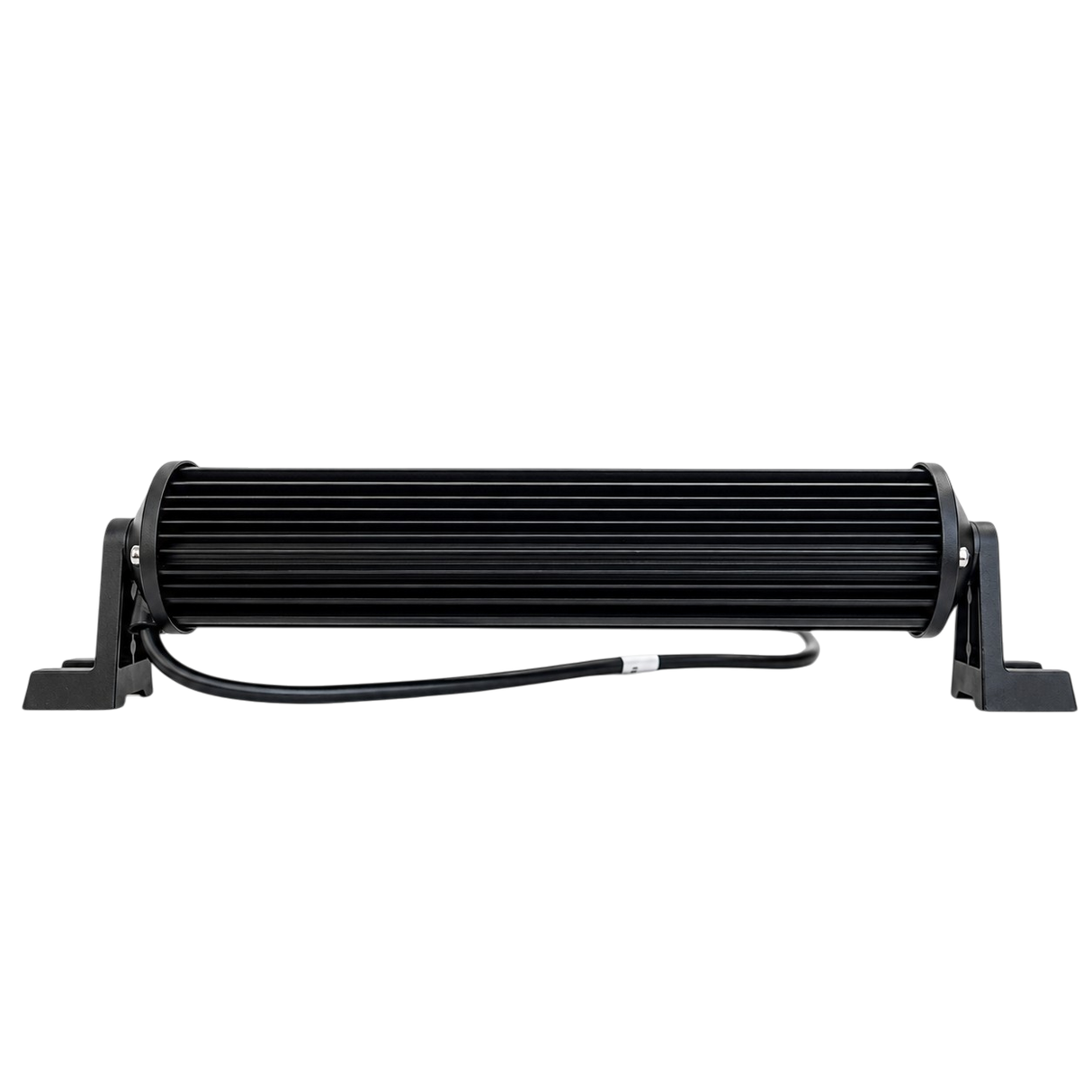

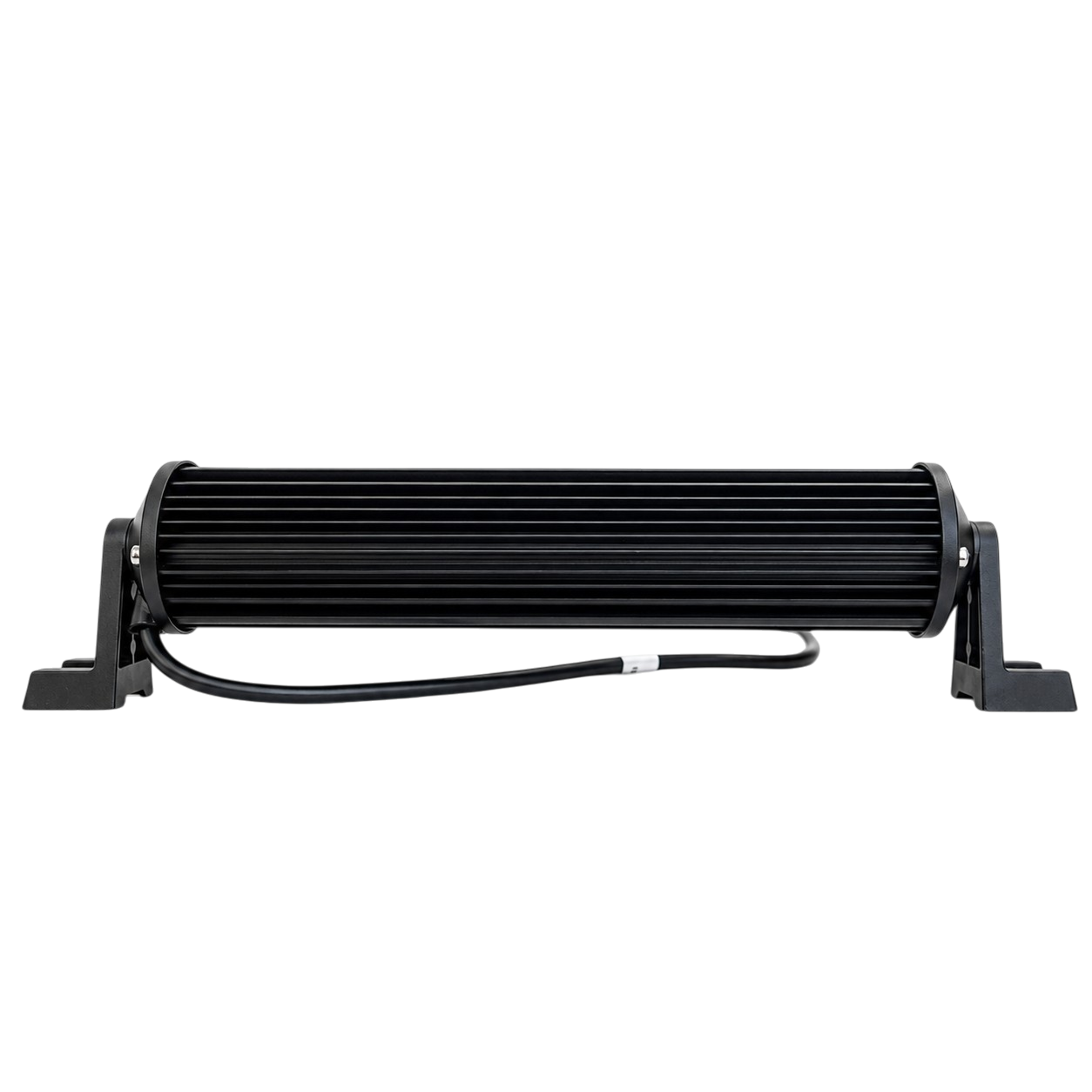

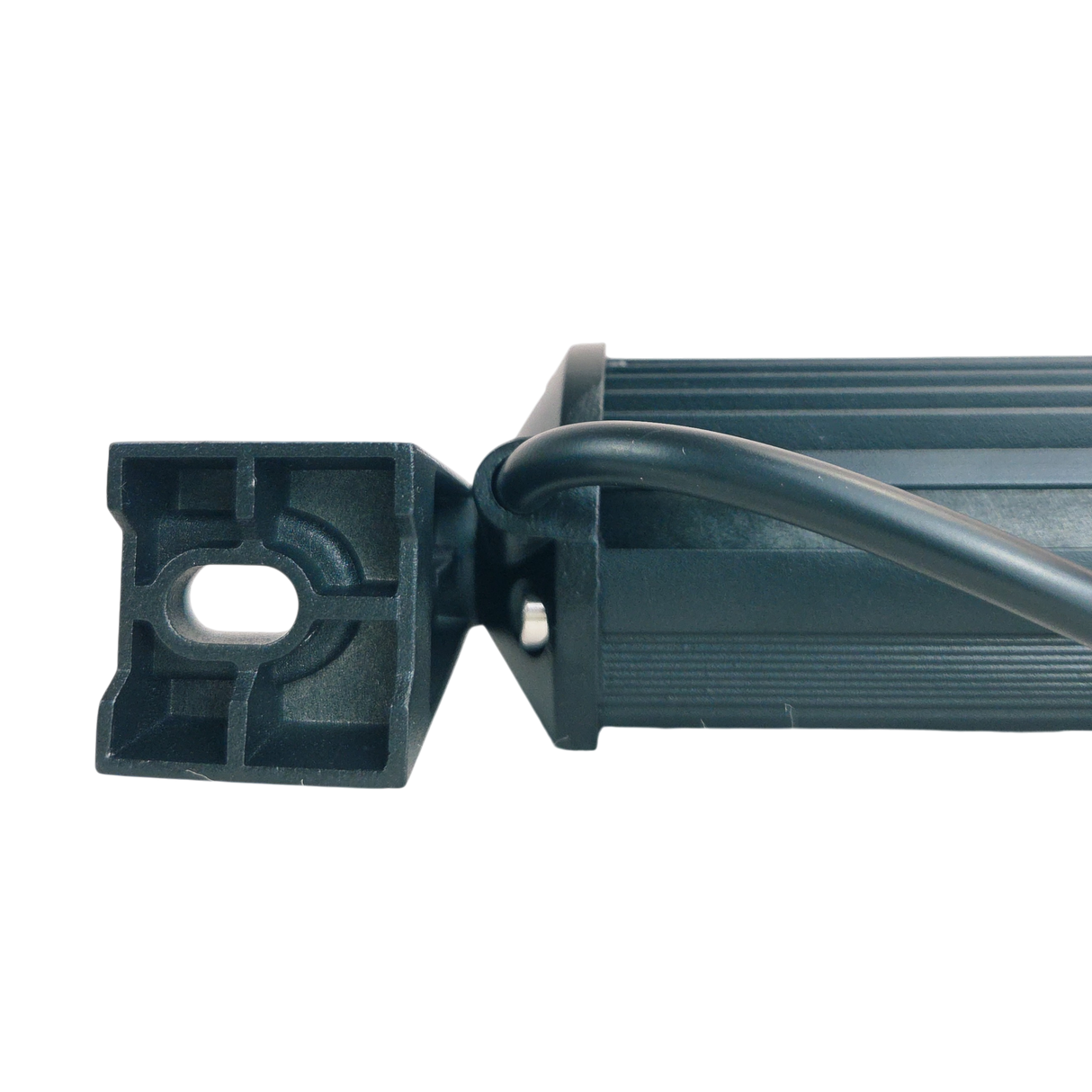

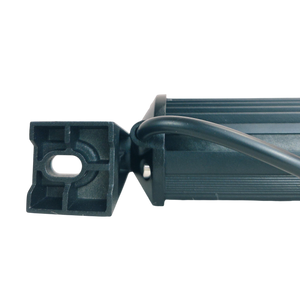

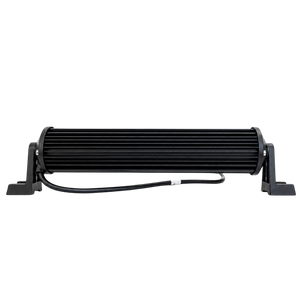

- Housing: Aluminium with cooling fins

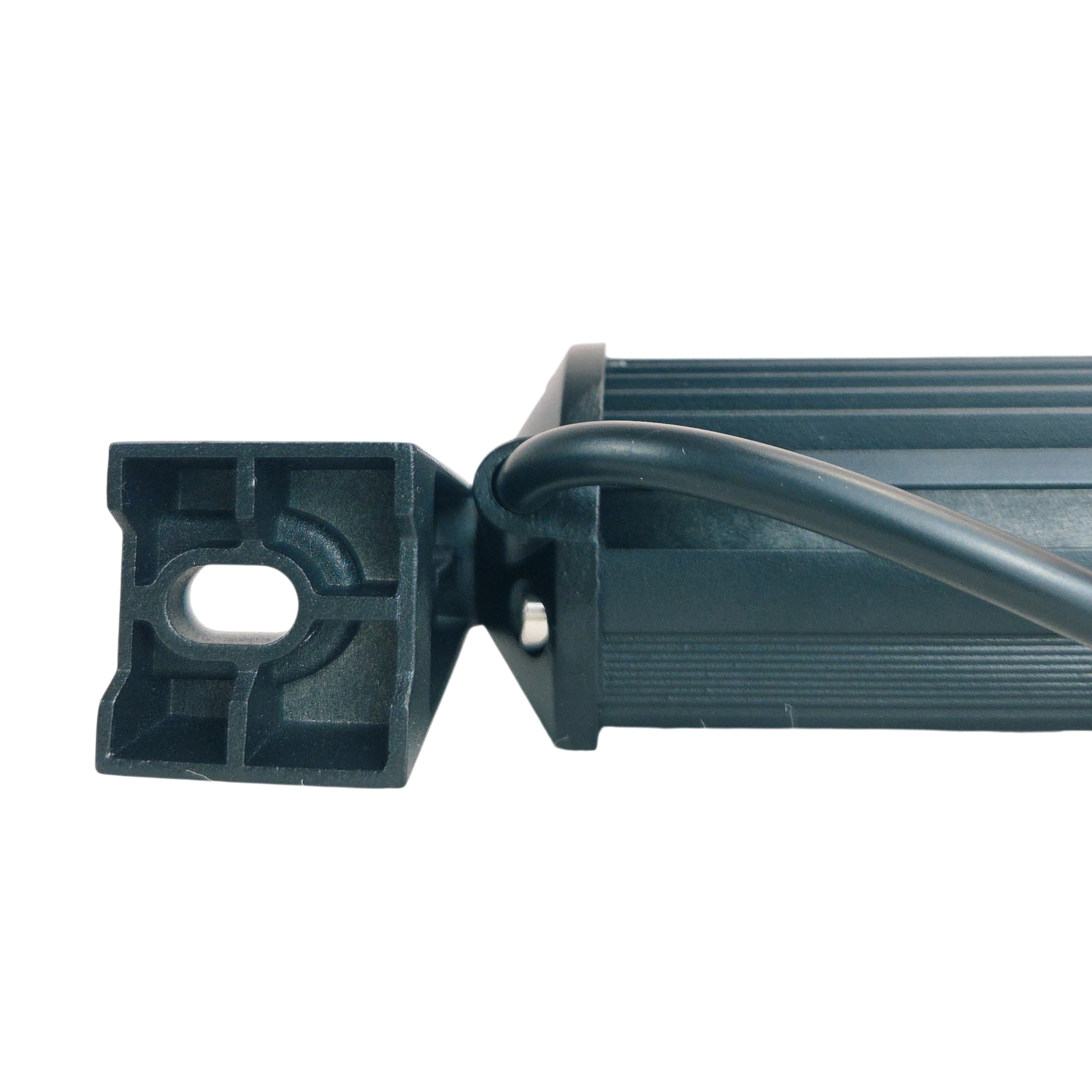

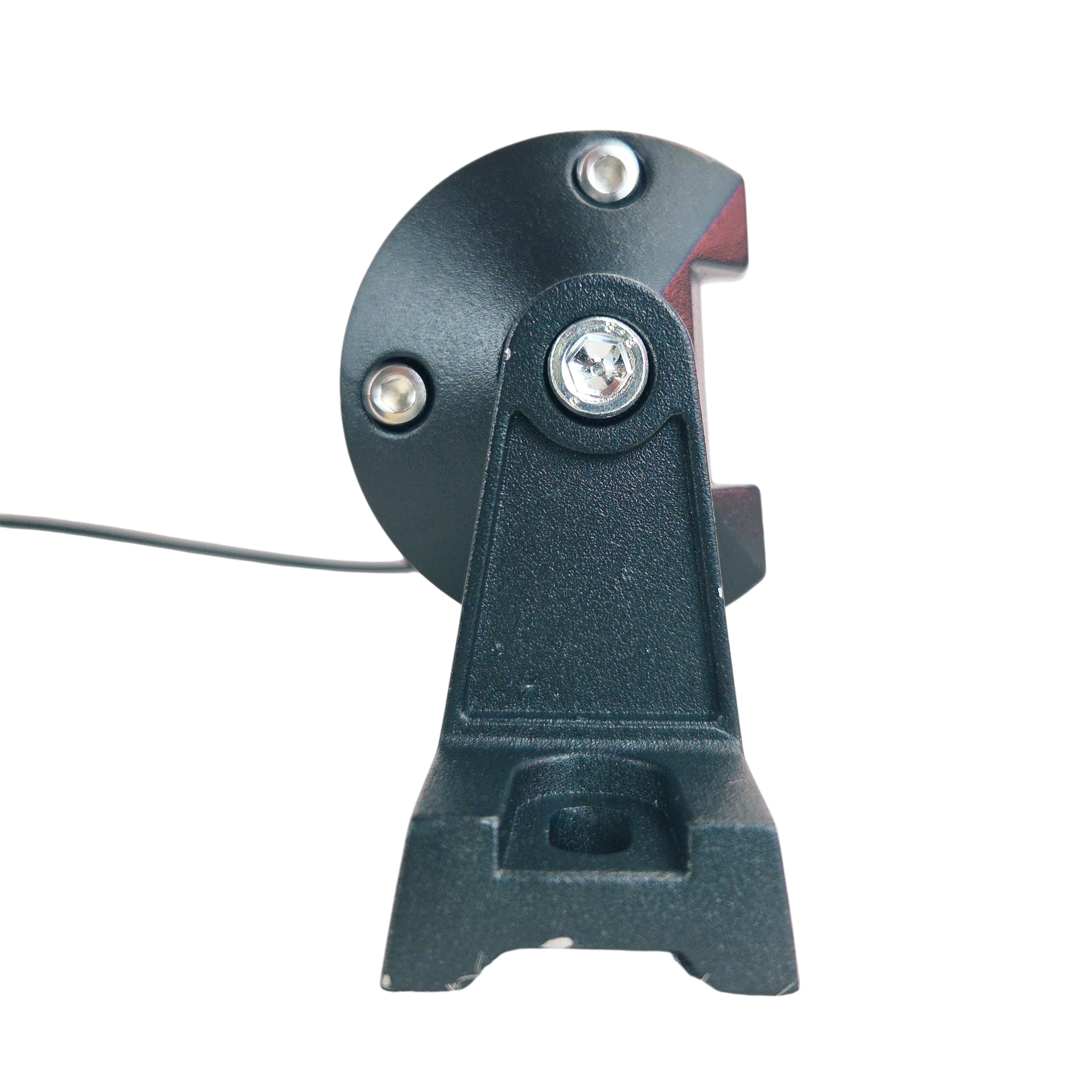

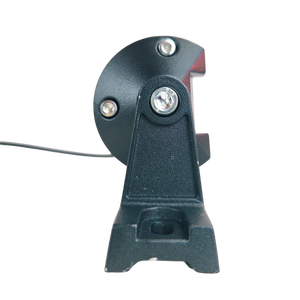

- Bracket material: Aluminium
- Screw material: Steel
- Light width: 260 mm
- Light height: 50 mm
- Light depth: 40 mm
- Width including brackets: 280 mm
- Height including brackets: 75 mm
- Depth including brackets: 40 mm
- Markings: CE, RoHS, FCC
Installation and Use
- Select a suitable and secure mounting position on the vehicle.
- Install the LED Light Bar using the supplied mounting brackets and fixing screws.
- Adjust the position of the light as required and securely tighten the fixings.
- Connect the 60 cm cable with bare wire ends to a suitable 9–32V DC electrical system.
- Check that the light is securely mounted and operating correctly before use.

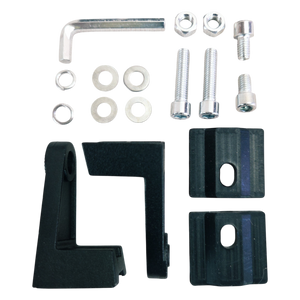

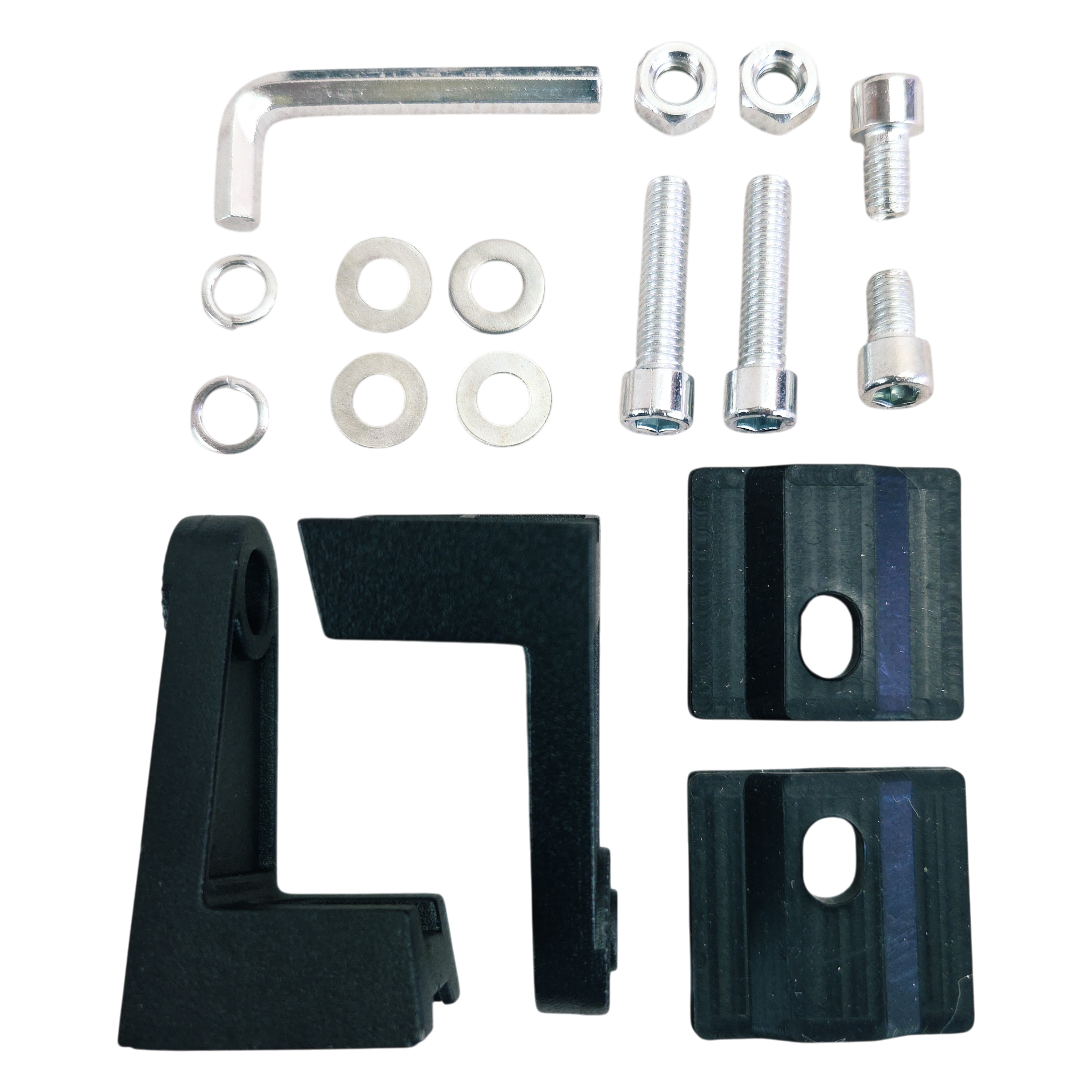

Package Contents
- 1 × LED Light Bar

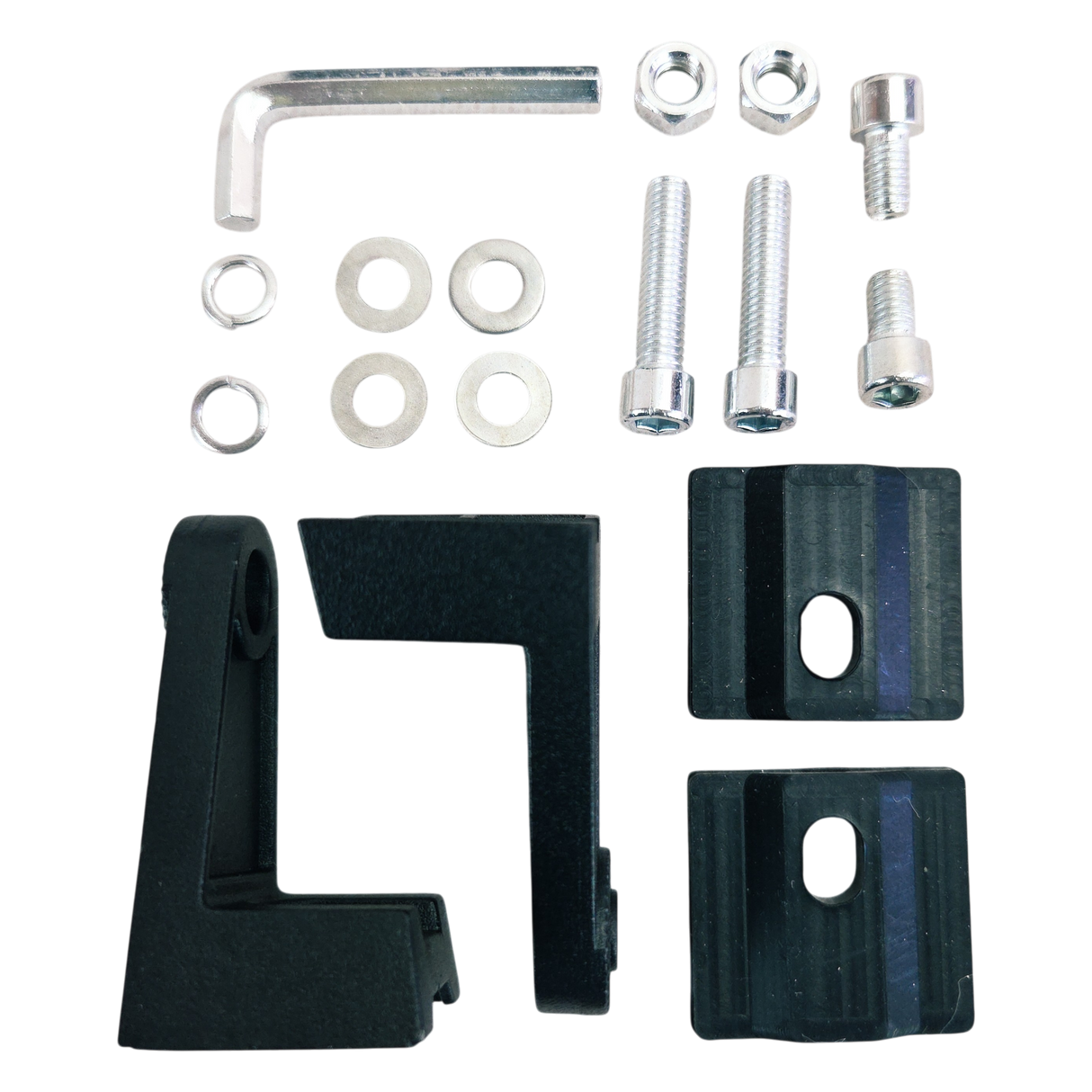

- Mounting brackets
- Fixing screws
Important Information
Beam angle and Spot/Flood configuration are not specified by the supplied documentation. Current consumption at 12V and 24V, rated LED lifespan, net weight and warranty period are also not stated.
No E-mark or ECE road approval information has been provided. Suitability for use on public roads should therefore not be assumed.
Choose this 108W LED Light Bar for a compact combination of 4320 lumen output, IP67 protection and a versatile 9–32V DC operating range for dependable additional vehicle work lighting.
