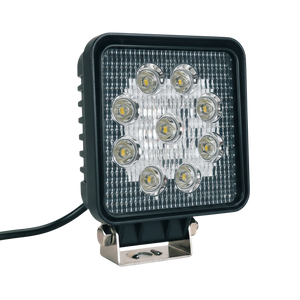

LED Work Light Square Flood 27W 12/24V Blue

Truck Comfort LED Work Light – Powerful 2200 lm Output and Wide Flood Illumination

The Truck Comfort 27 W LED Work Light provides powerful auxiliary lighting for vehicles and machinery. Its flood beam is designed to illuminate a wide working area, making it suitable for demanding work applications.

Nine 3 W LEDs deliver a total output of 2200 lumens. With a 9–32 V DC operating range, this LED work light is suitable for both 12 V and 24 V vehicle electrical systems.

Key Benefits

• 2200 lm light output: Powerful auxiliary illumination for working areas.
• Wide flood beam: Designed to illuminate a broad area around the vehicle or machine.
• 9–32 V DC operation: Suitable for both 12 V and 24 V electrical systems.
• IP67 protection: Dustproof and water-resistant construction.

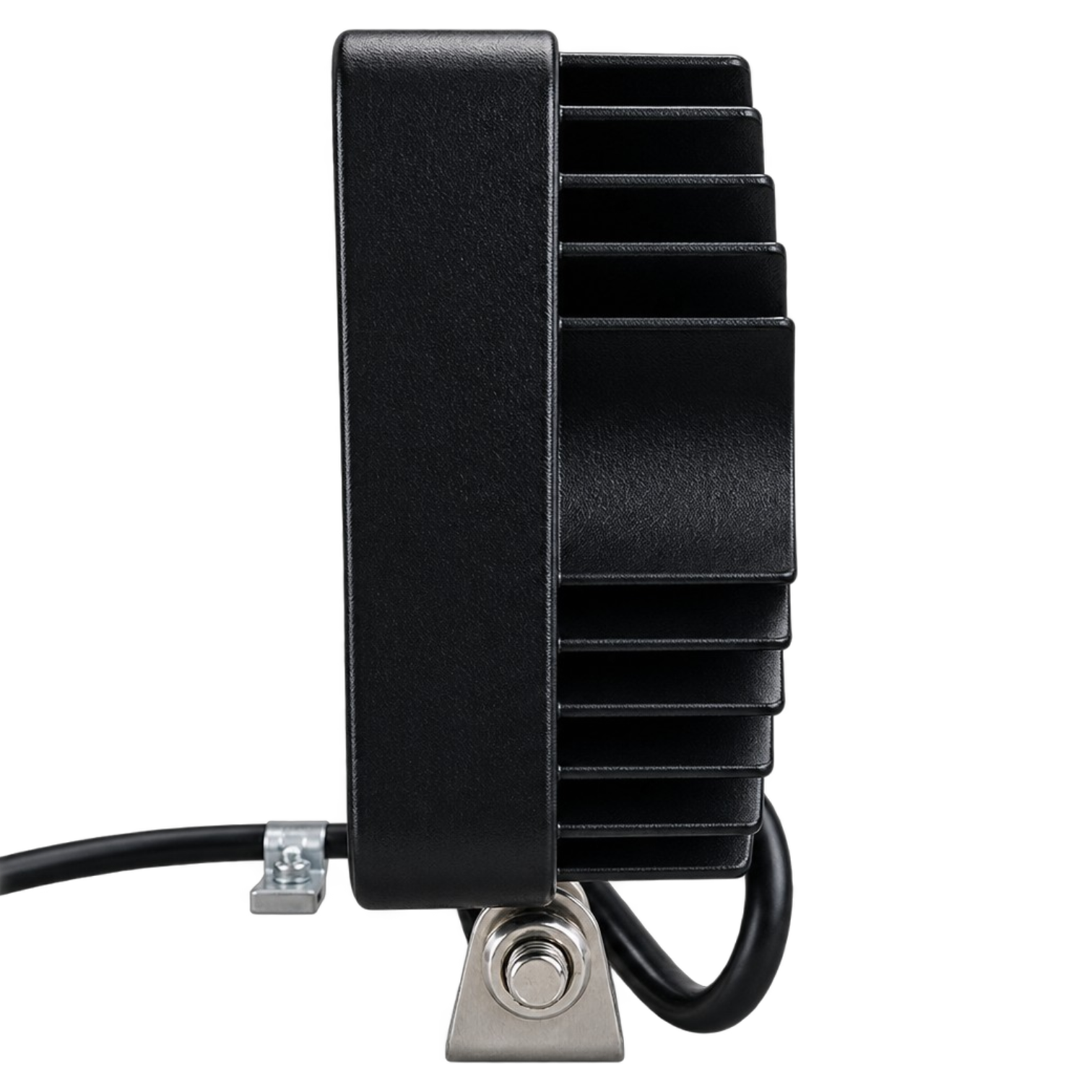

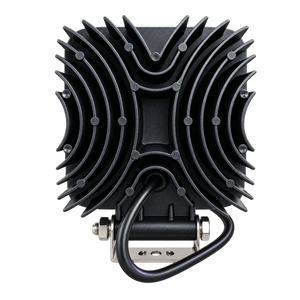

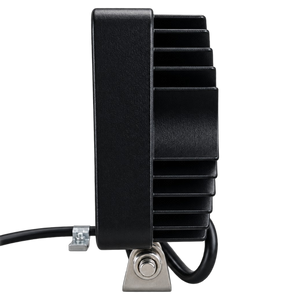

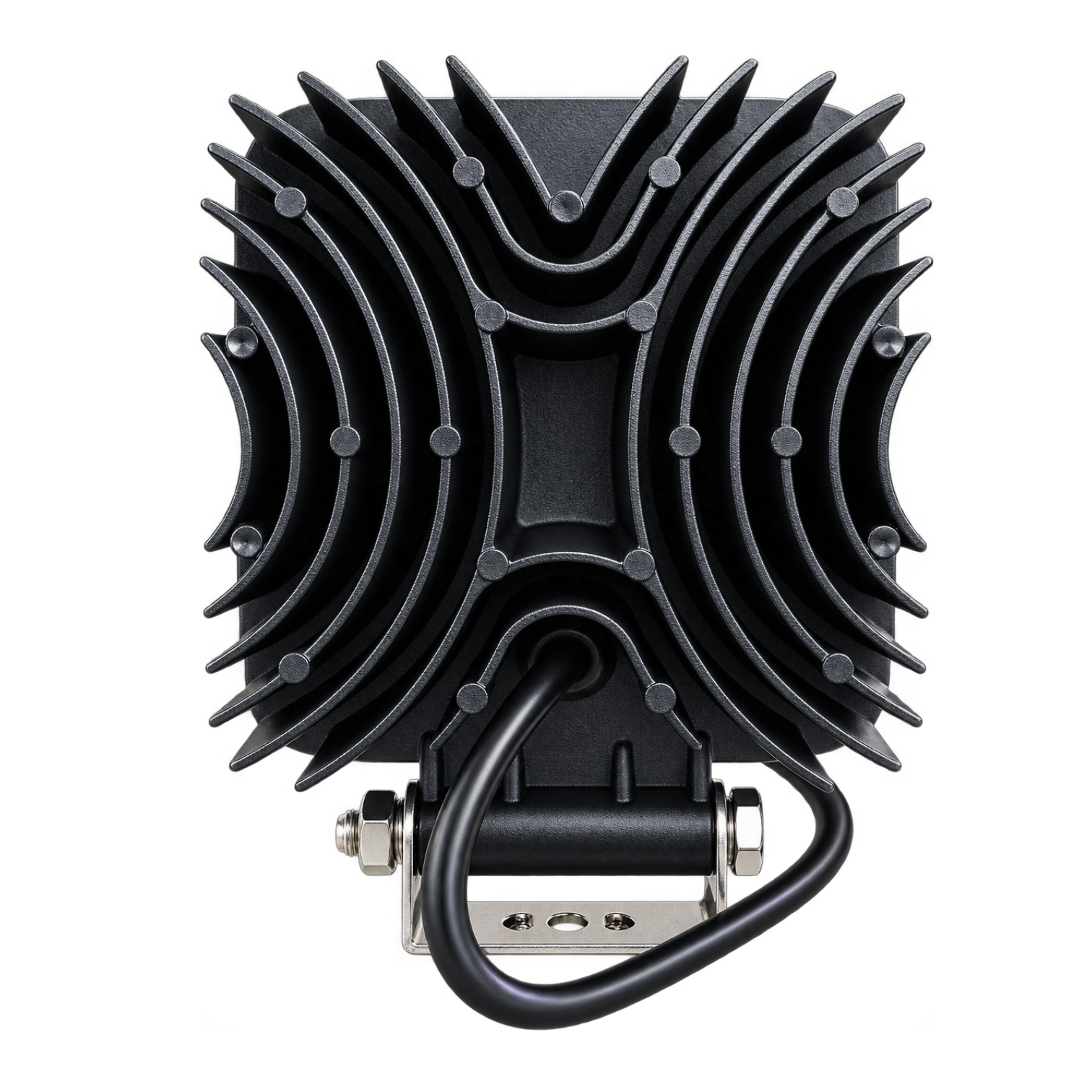

• Aluminium housing: Finned design helps provide effective heat dissipation.
• Polycarbonate lens: Durable construction for demanding working environments.

Applications

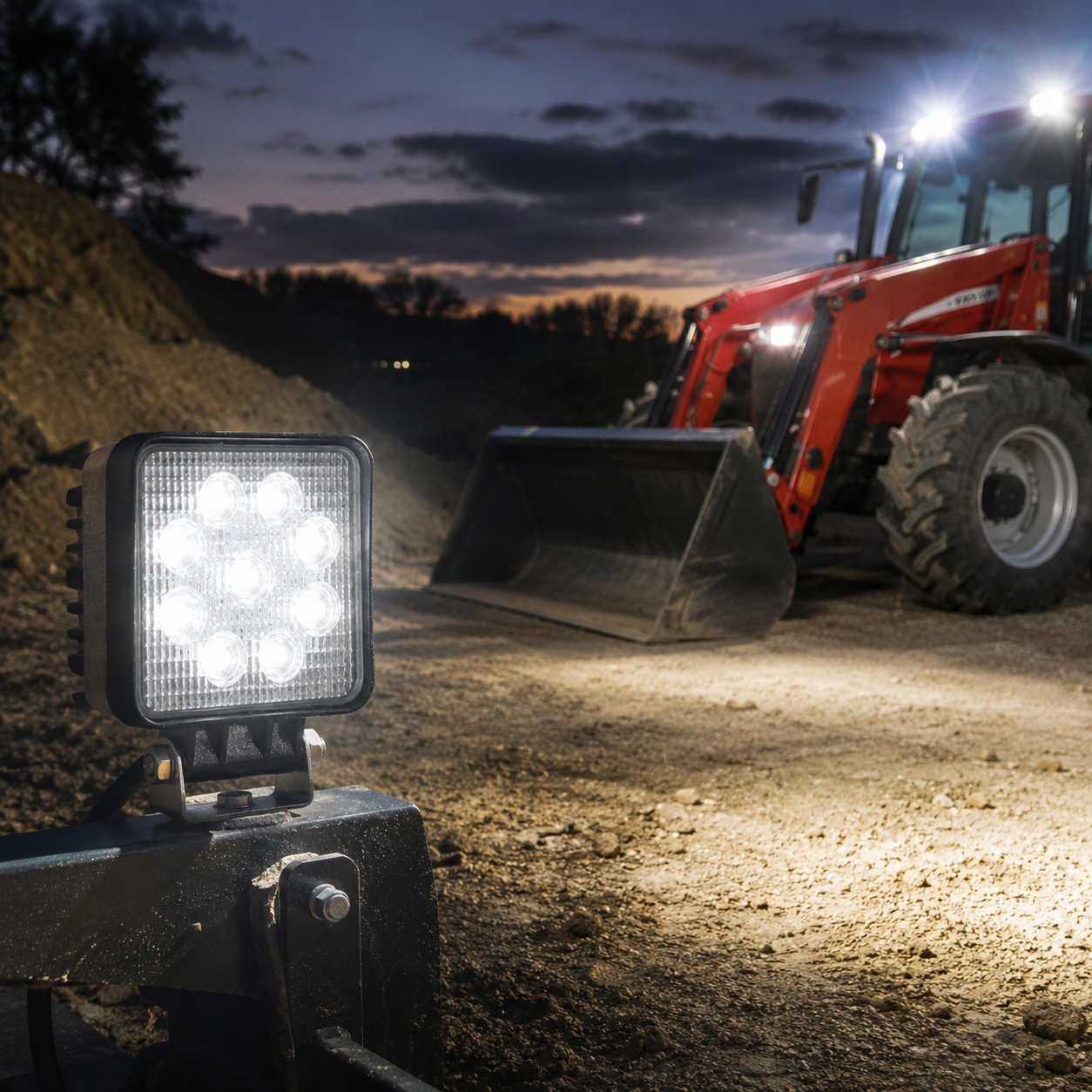

This LED Work Light is designed for auxiliary work-area lighting on trucks, lorries, tractors, off-road vehicles, other 12/24 V vehicles and machinery.

Technical Specifications

• Type: Square LED work light
• Beam pattern: Flood
• Power: 27 W

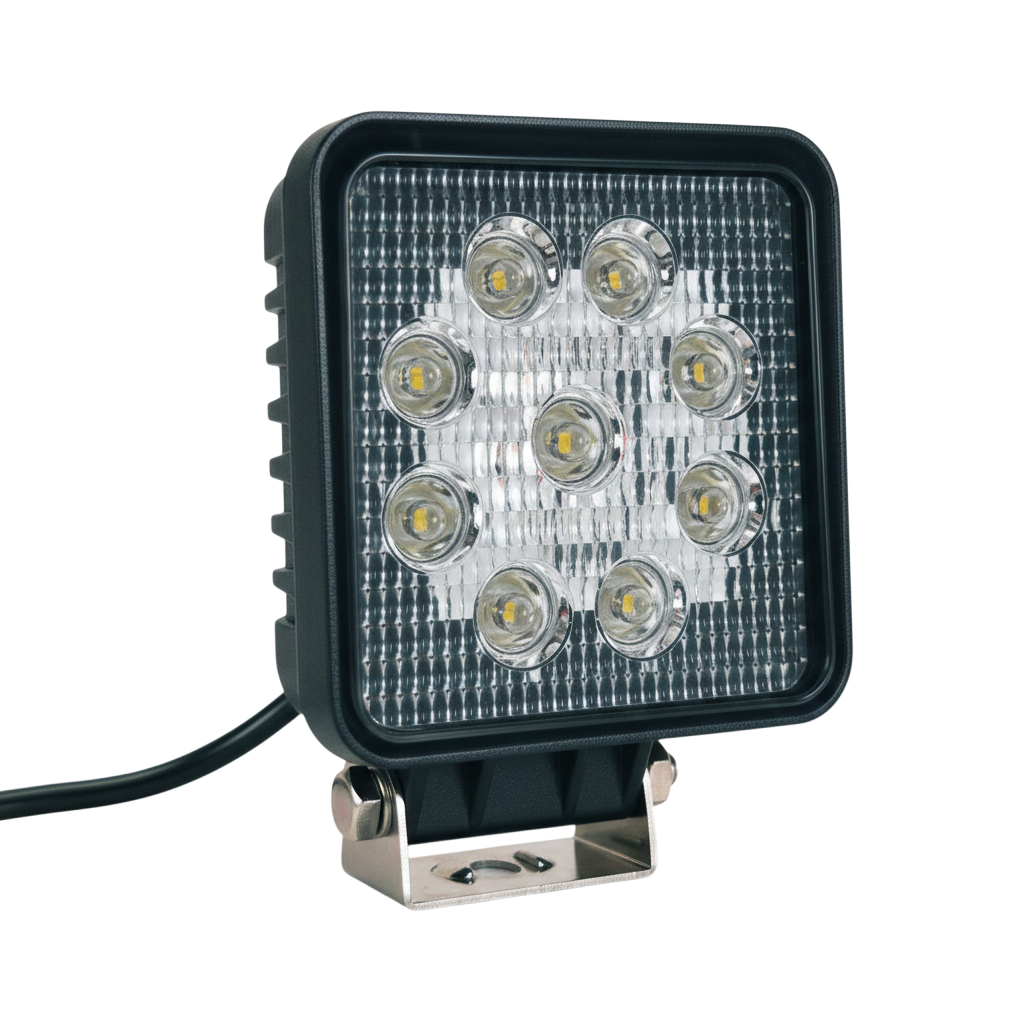

• LEDs: 9 × 3 W
• Operating voltage: 9–32 V DC
• System compatibility: 12 V and 24 V
• Luminous flux: 2200 lm
• Colour temperature: 6000–6500 K
• Protection rating: IP67
• Dimensions: 110 × 62 × 135 mm
• Housing material: Aluminium
• Lens material: Polycarbonate
• Cable length: 40 cm

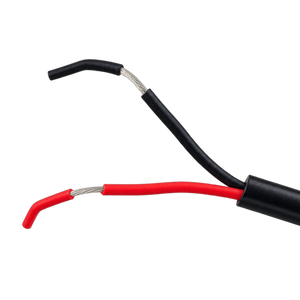

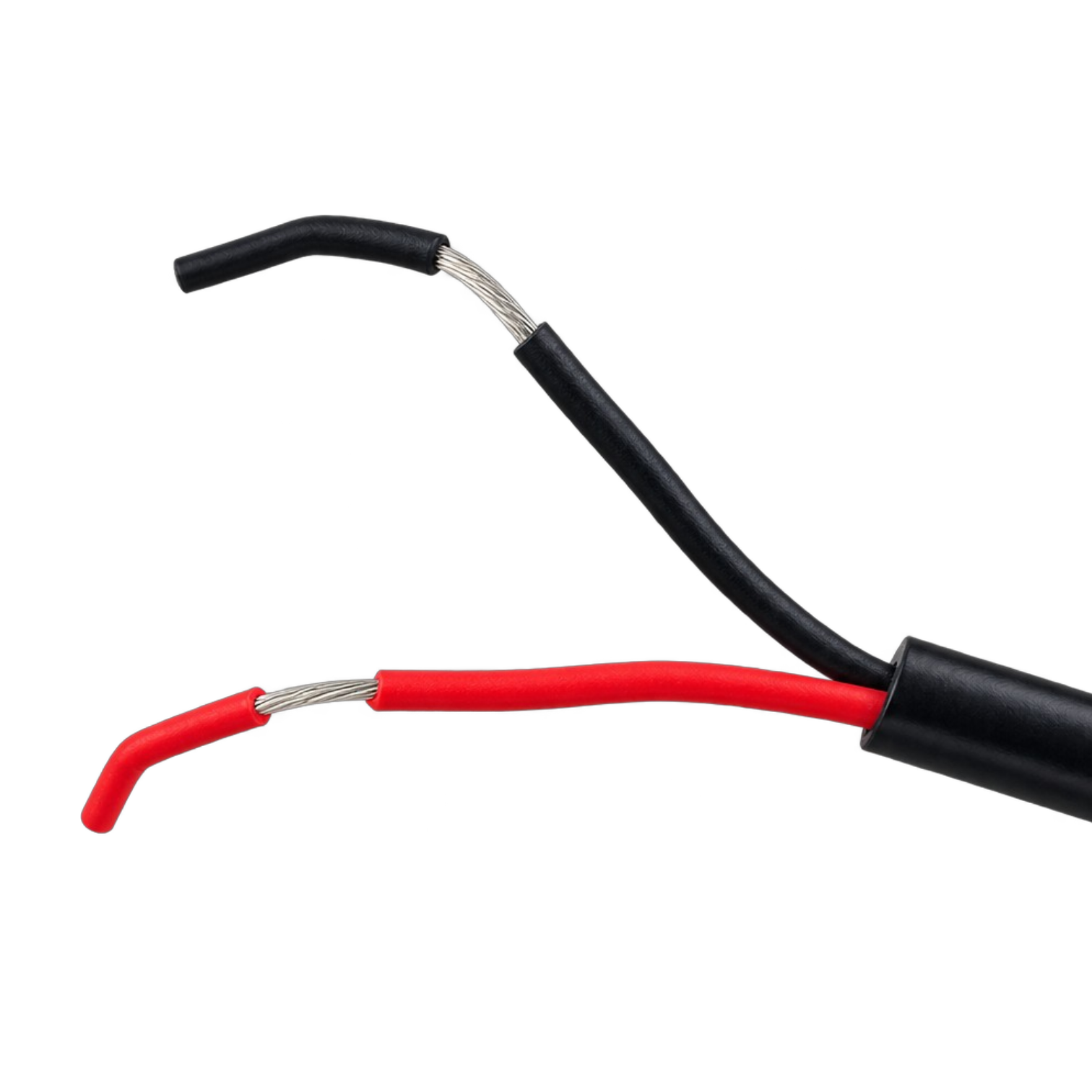

• Connection: Bare wire
• Operating temperature: -40 °C to +80 °C

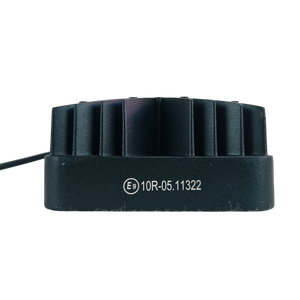

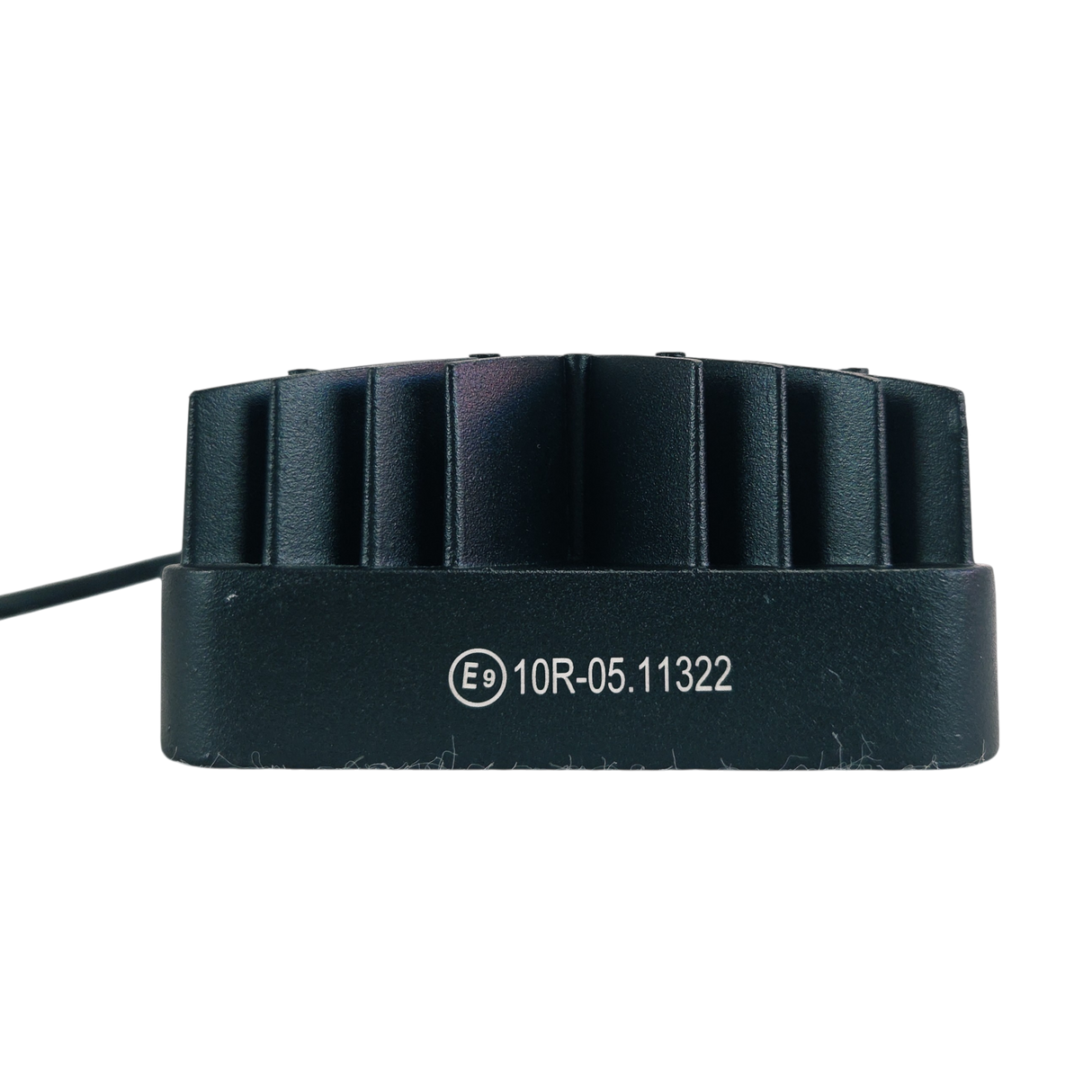

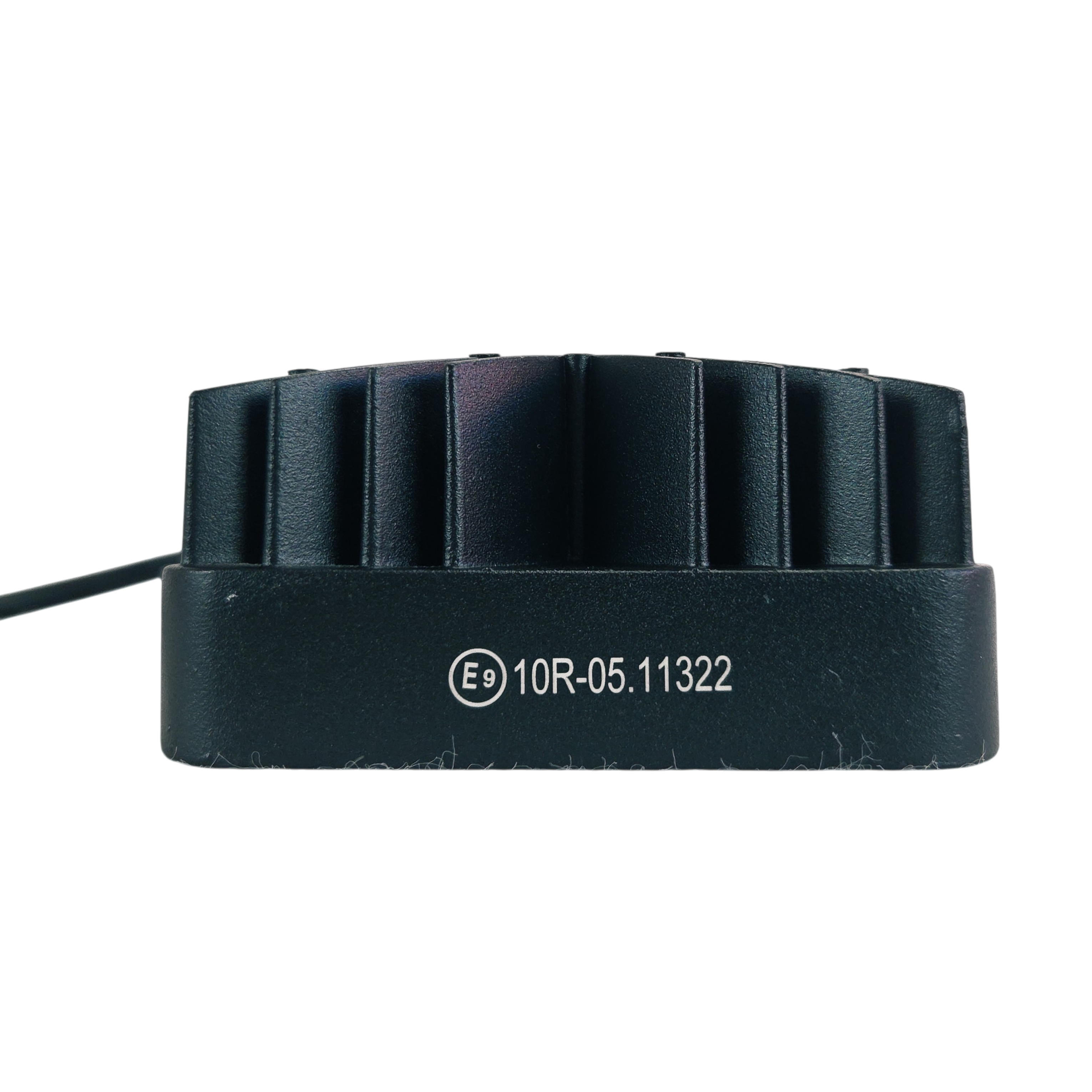

• Markings/certifications: E9, CE, RoHS, FCC, IP67

Installation Guide

1. Secure the LED work light in the required position using the supplied mounting bracket and screws.
2. Connect the 40 cm bare-wire cable to the appropriate 12 V or 24 V electrical system.
3. After installation, adjust the light so the flood beam illuminates the required working area.

Package Contents

• 1 × Truck Comfort 27 W square LED Work Light
• Mounting bracket
• Screws

Important Information

This LED work light is designed for a 9–32 V DC operating range and uses a bare-wire connection. The specified operating temperature range is -40 °C to +80 °C.

Choose the Truck Comfort 27 W LED Work Light for powerful 2200 lm output, wide flood illumination and versatile 12 V or 24 V vehicle and machinery applications.
