Amber Beacon for Windscreen – 24 LED Warning Light with 19 Flash Patterns
Make your vehicle clearly visible when extra warning is required. This windscreen-mounted Amber Beacon uses 24 LEDs to provide a strong, highly visible amber warning signal for cars, vans and trucks.
With 19 selectable flashing and lighting functions, the warning pattern can be adapted to different situations. The 12/24 V design, adjustable light angle, 3-metre cable and choice of mounting methods make it a practical and flexible warning light for different vehicles.
Key Benefits
- 24 powerful LEDs: provide a strong and clearly visible amber warning signal.
- 19 selectable functions: choose between different flashing and lighting patterns to suit the situation.
- 12/24 V operation: suitable for use in cars, vans and trucks.
- Adjustable light angle: allows the position of the light to be adjusted to suit the angle of the windscreen.

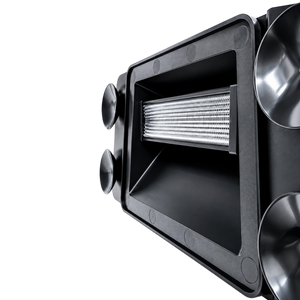

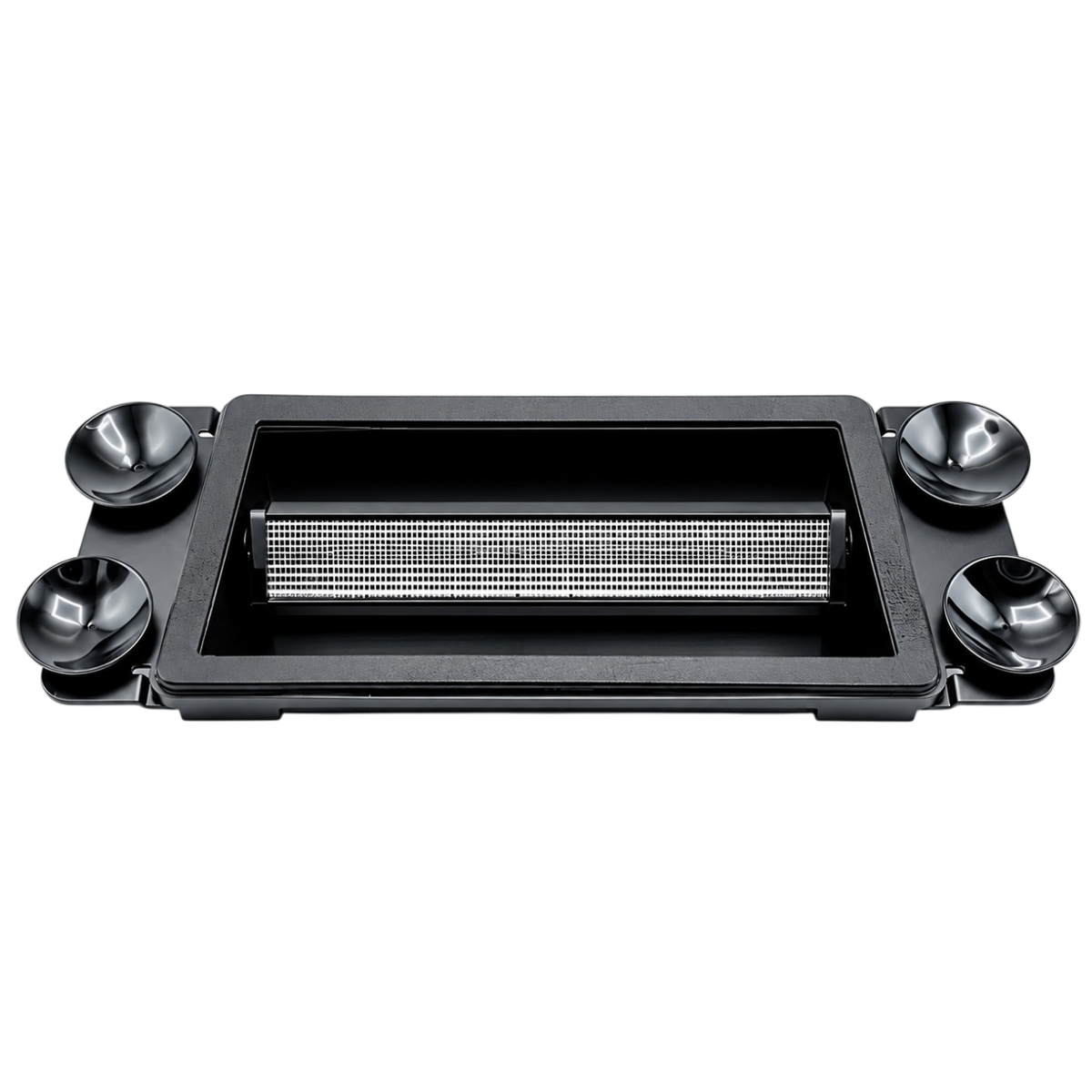

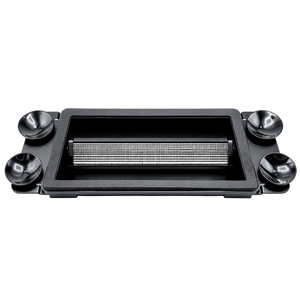

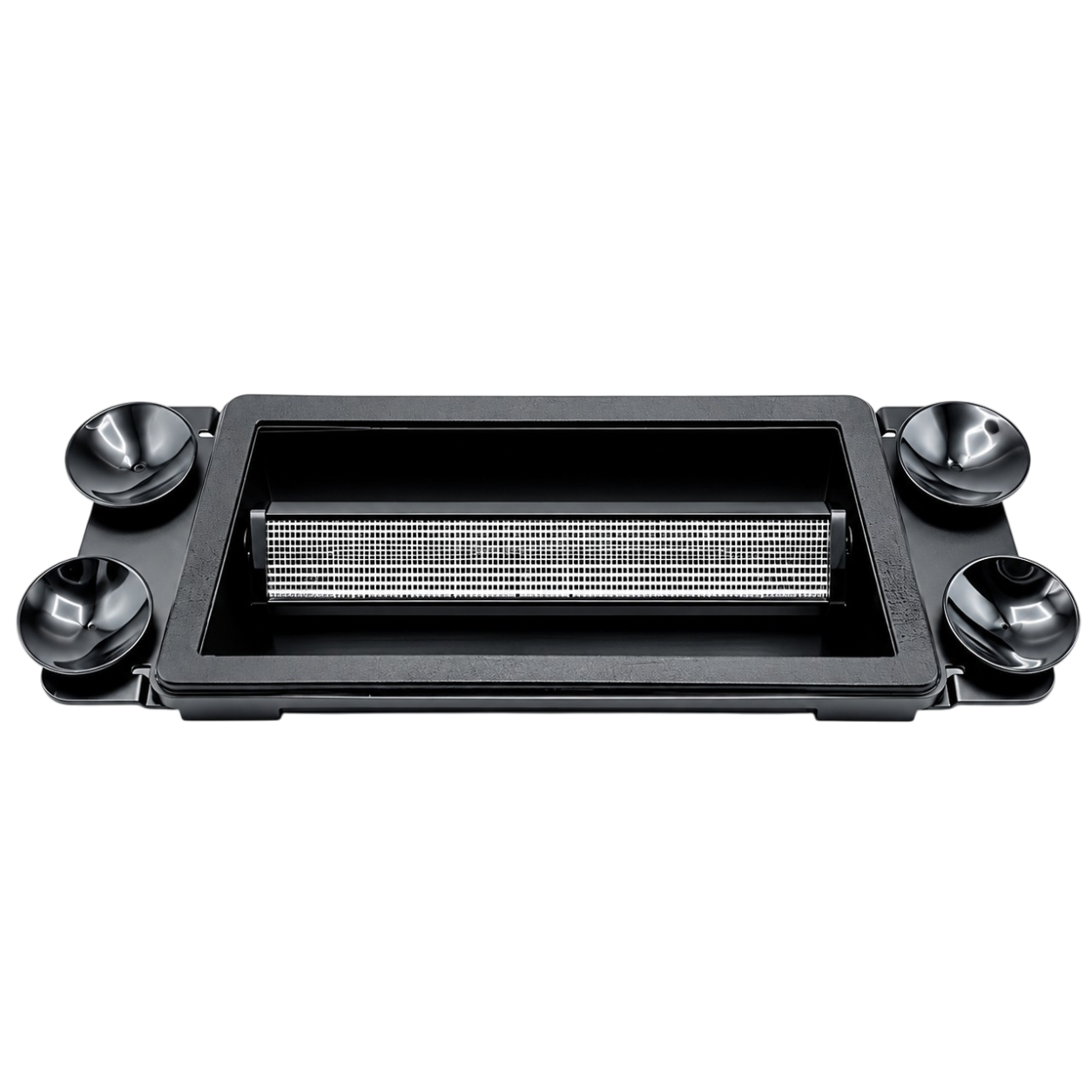

- Two mounting options: use the 4 suction cups for removable installation or the supplied adhesive strips for a more stable mounting solution.

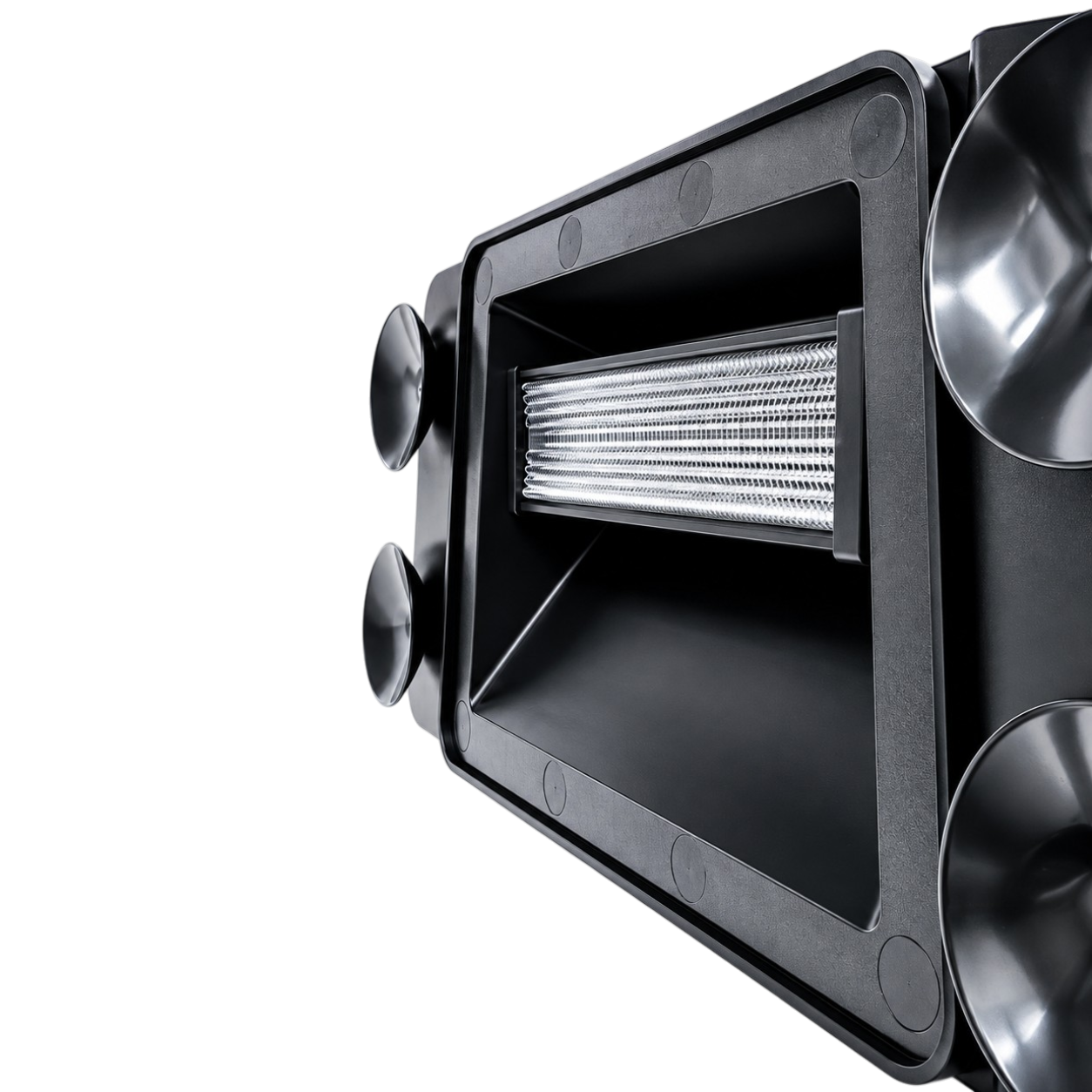

- Shielded design: the housing closes off the illuminated area towards the vehicle interior, helping to reduce distracting light for the driver and passengers.
Applications
This Amber Beacon is designed for situations where a vehicle or working area needs a clearly visible warning signal. It can be used in cars, vans and trucks, providing a practical warning light solution for different vehicle types.
It can be used for applications such as work areas or roadside warning. As the light is positioned behind the windscreen, there is no need to place the unit on the vehicle roof.
The suction cup mounting system is particularly useful when the warning light is not required permanently. It can be installed and removed when needed, making it a practical option when the same light may be used in different vehicles.
Technical Specifications
- Light colour: amber
- Number of LEDs: 24
- LED power: 24 × 1.5 W
- Rated voltage: 12/24 V
- Flashing and lighting functions: 19
- Light angle: adjustable
- Removable mounting: 4 suction cups

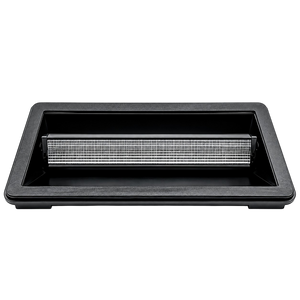

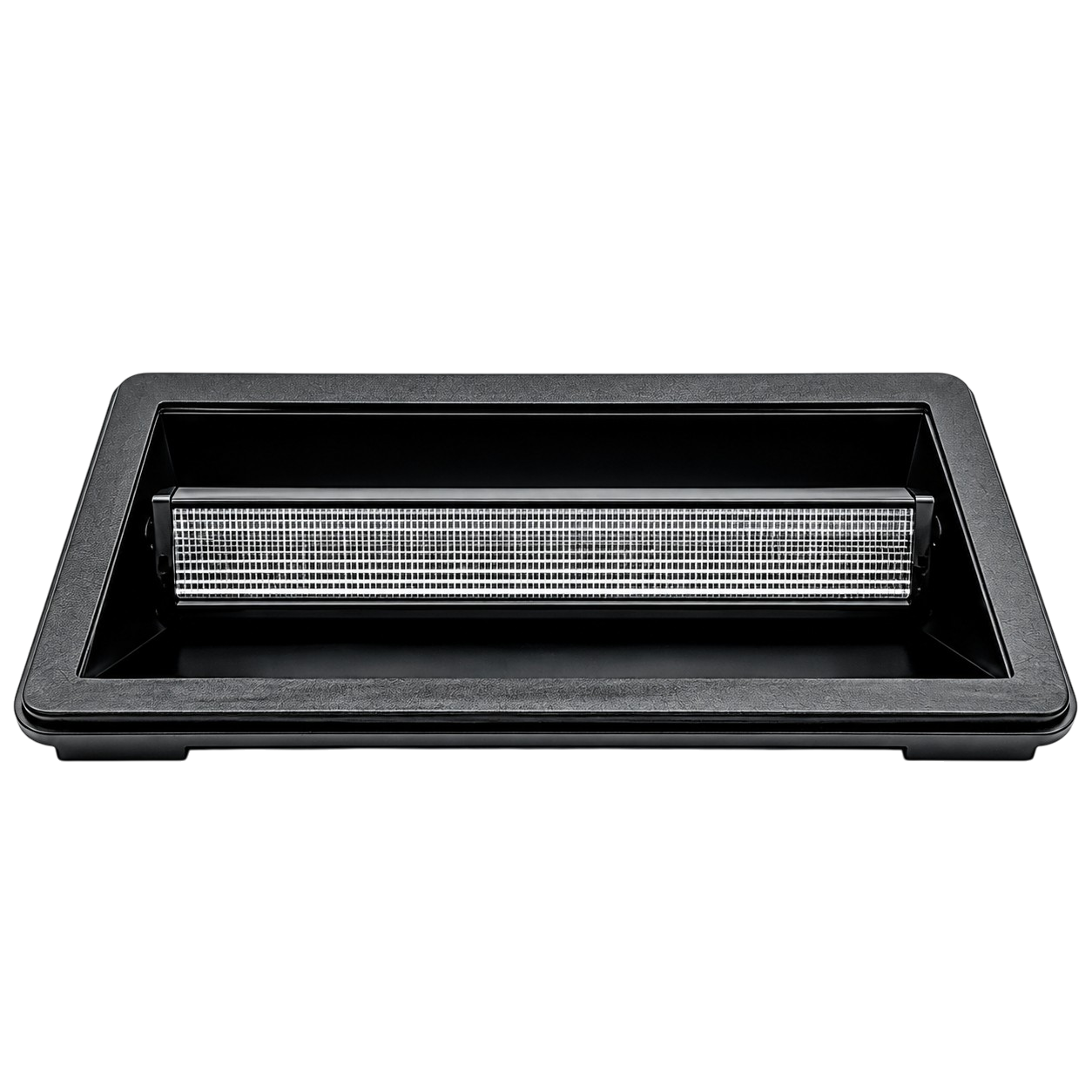

- Alternative mounting: adhesive strips
- Dimensions with suction cups: 332 × 116 × 76 mm
- Dimensions without suction cups: 245 × 116 × 76 mm
- Cable length: 3 m
- Connection: cigarette lighter plug
- Operating temperature: -30°C to 60°C
- Certifications: SAE J595 Class 1, ECE R10, CE, UKCA, CISPR 25 Class 3, ECE R65 XA1
How to Use

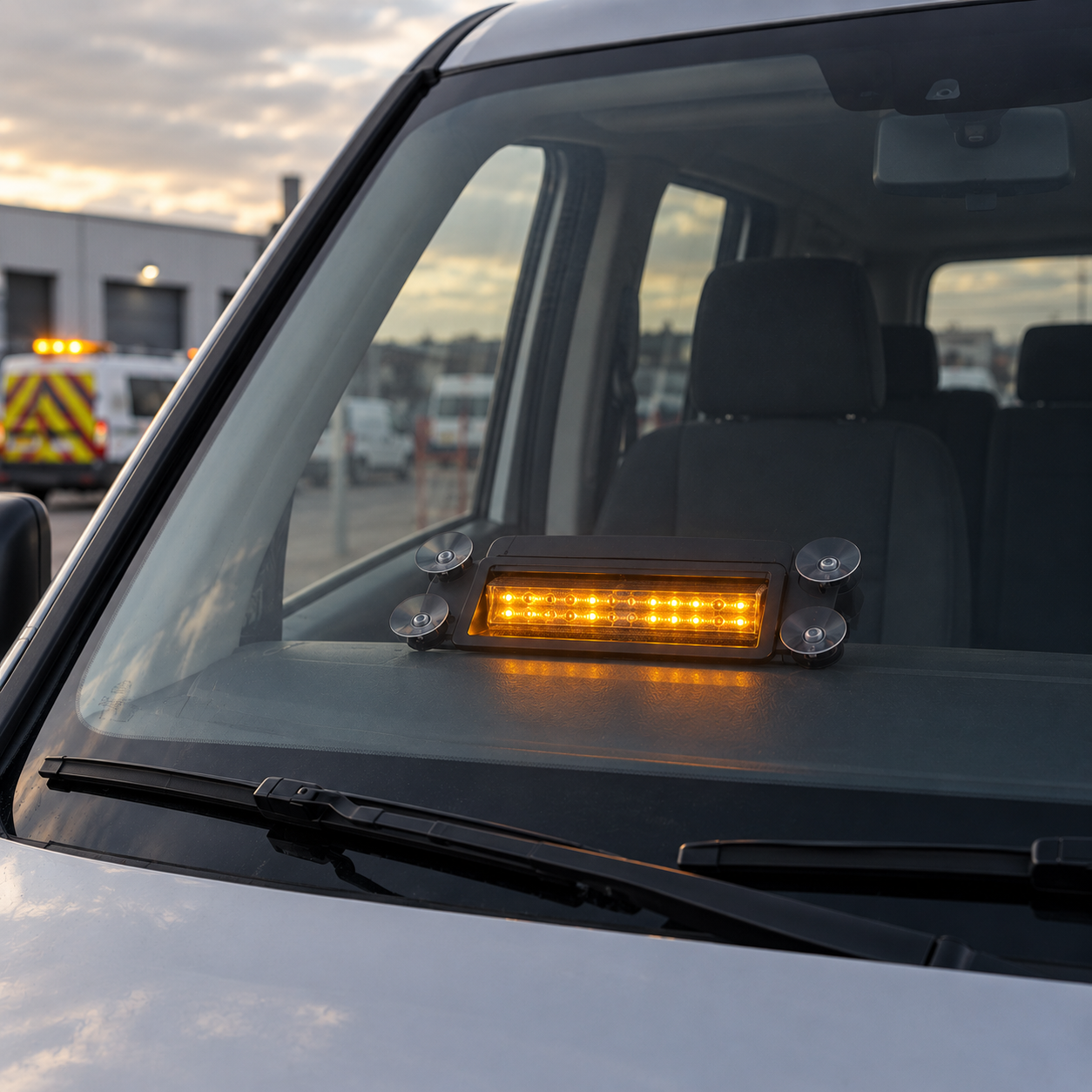

- Choose a suitable position for the warning light behind the vehicle windscreen.
- For removable installation, secure the unit using the 4 supplied suction cups.
- For a more stable installation, use the supplied adhesive strips.

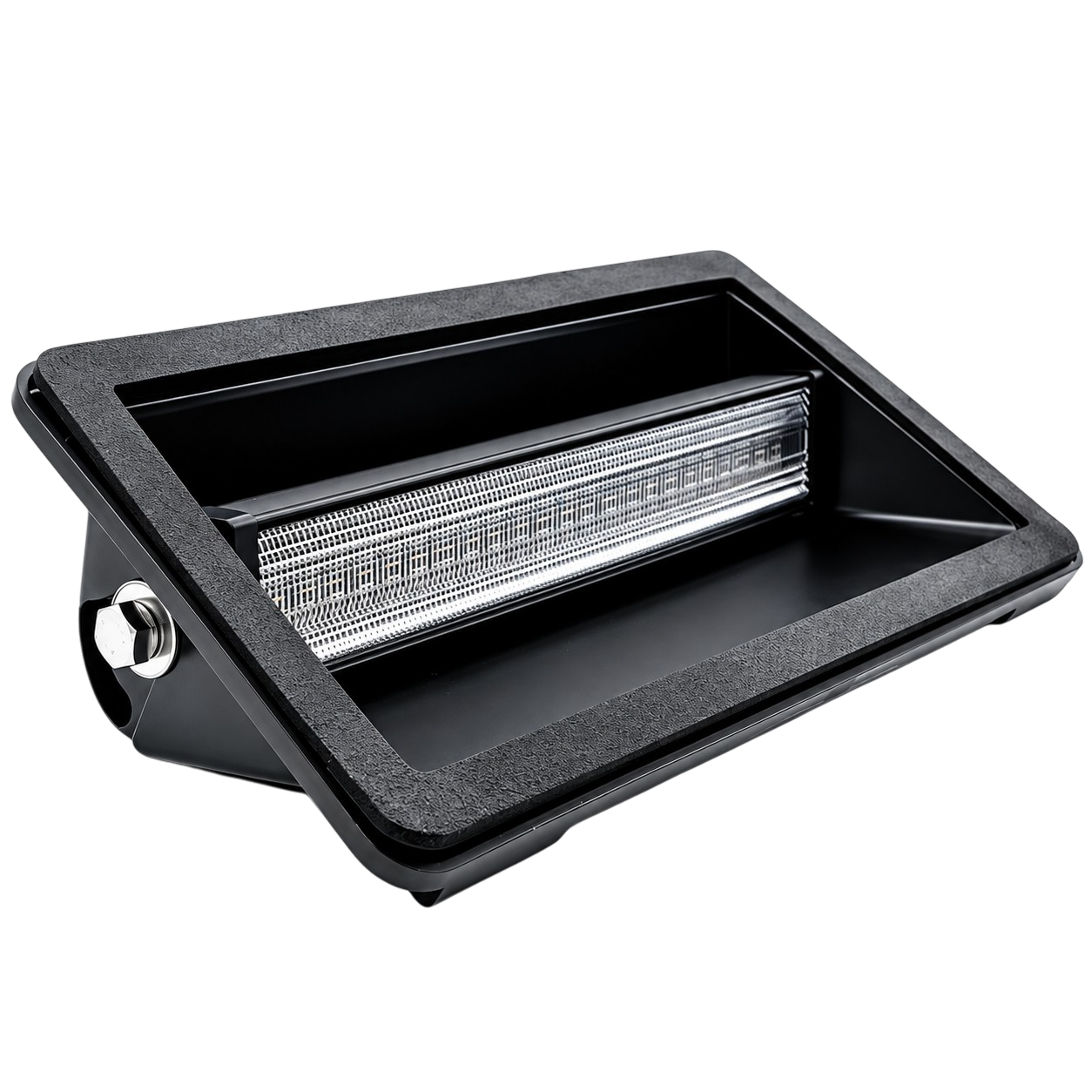

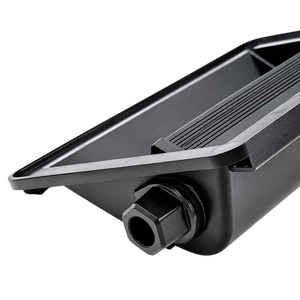

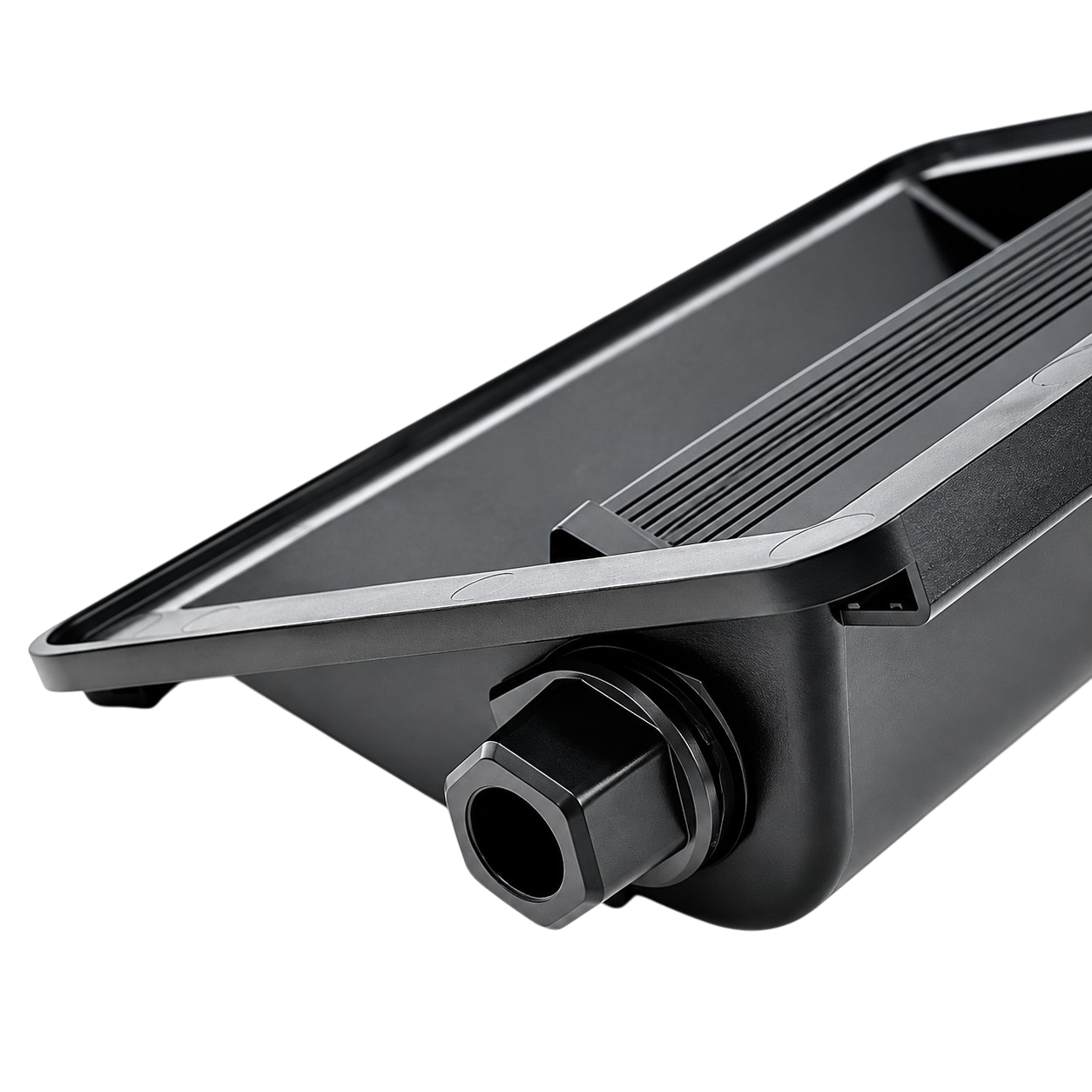

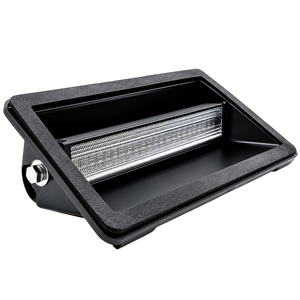

- Adjust the angle of the light using the external adjustment screw to suit the angle of the windscreen.
- Route the 3-metre cable so that it does not interfere with driving.
- Connect the unit to the vehicle's cigarette lighter socket.
- Use the controls on the cigarette lighter plug to switch the light on or off and select from the available flashing and lighting functions.

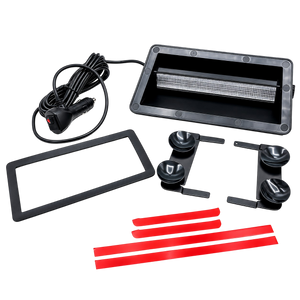

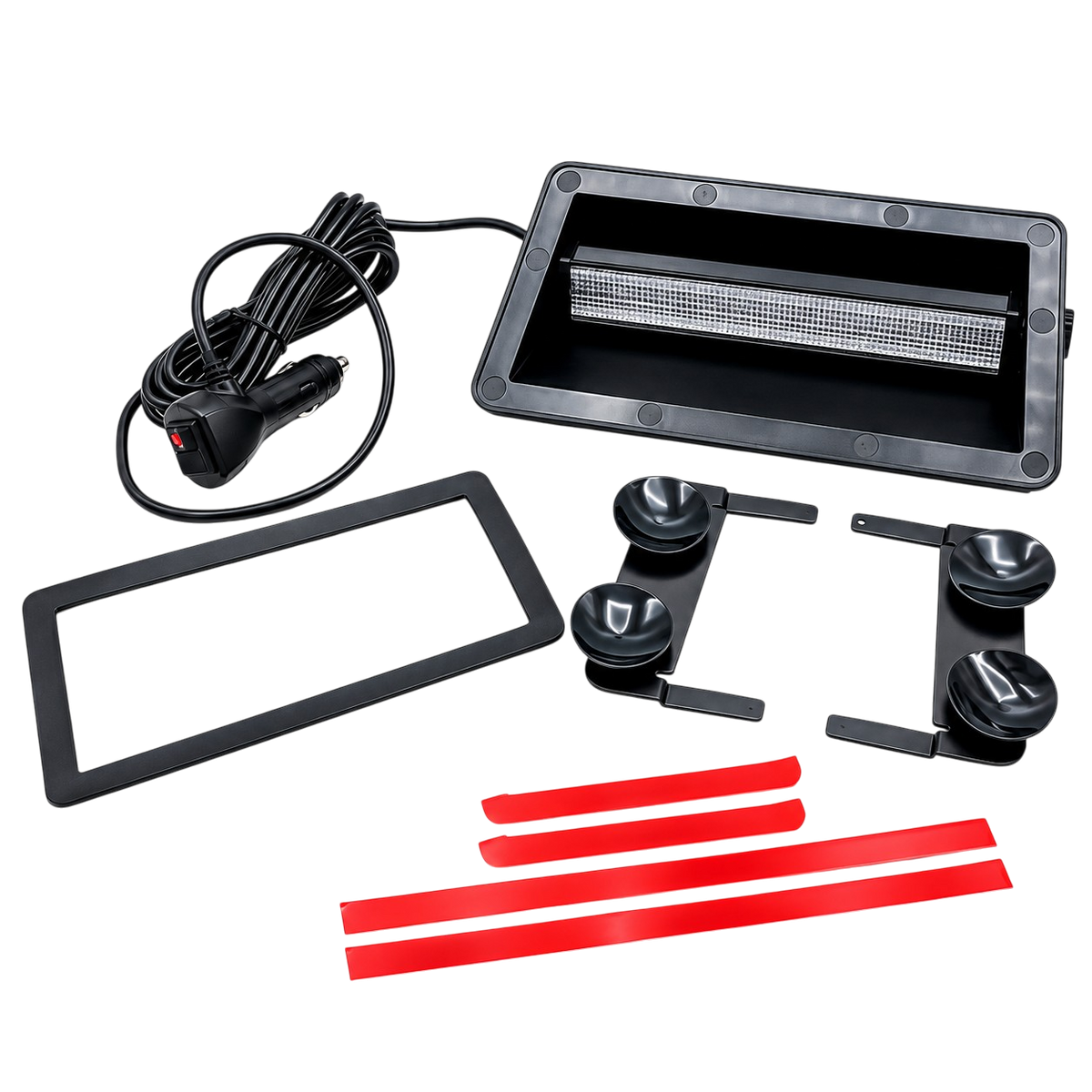

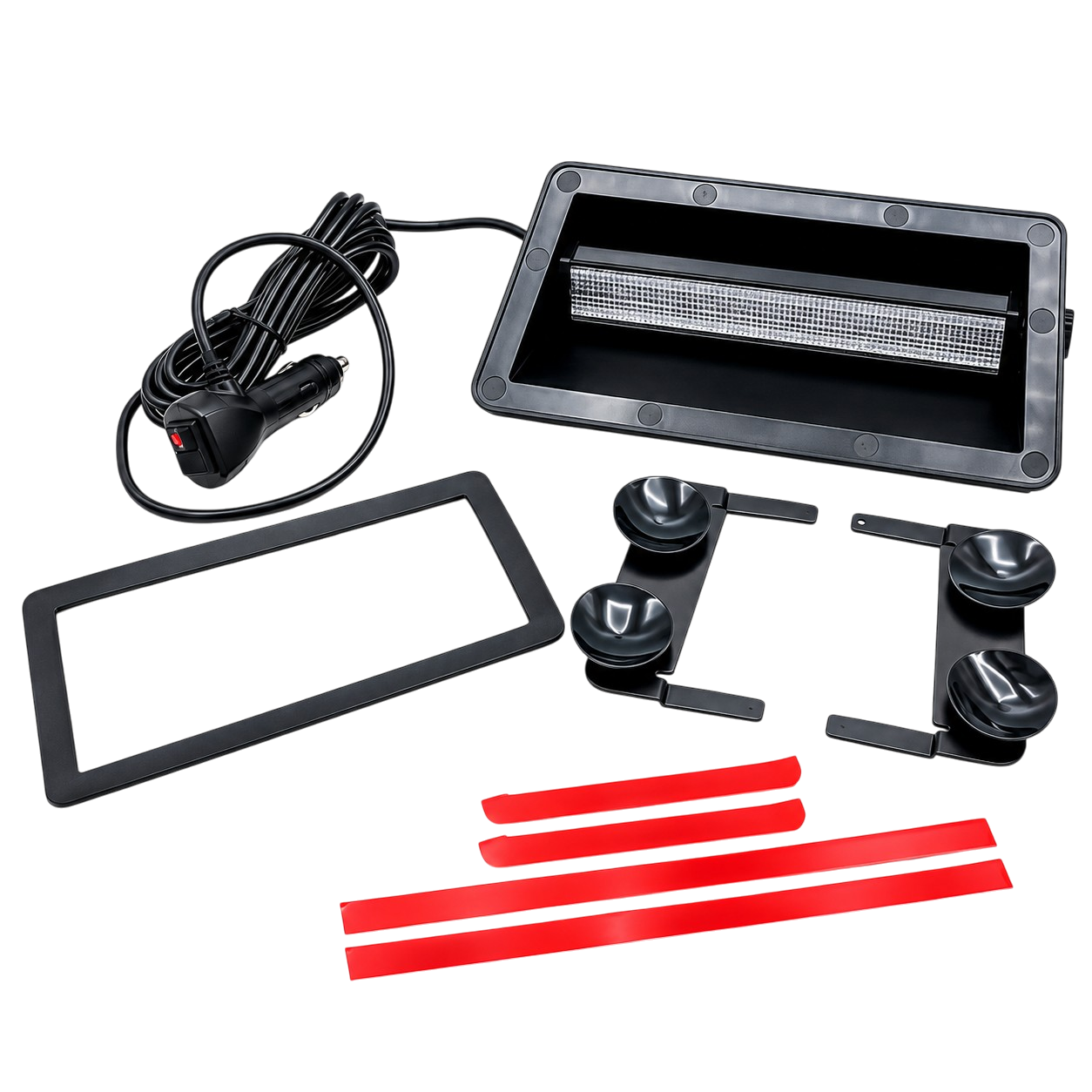

Package Contents
- 1 × 24 LED amber warning light
- 4 × suction cups
- Adhesive strips
- 3 m cable with cigarette lighter plug
Important Information
The warning light is designed for 12/24 V vehicle electrical systems. Before installation, choose a position where the light remains clearly visible without obstructing the driver's view.
The adjustable angle allows the unit to be positioned according to the angle of the windscreen. Correct adjustment helps direct the warning light towards the required area.
The housing is designed to shield the illuminated area towards the vehicle interior, helping to reduce reflected light that could otherwise distract the driver or passengers during operation.
The product carries SAE J595 Class 1, ECE R10, CE, UKCA, CISPR 25 Class 3 and ECE R65 XA1 certifications.
Strong visibility, flexible installation and straightforward operation in one compact warning light. With 24 LEDs, 19 selectable functions, adjustable positioning and 12/24 V operation, this Amber Beacon is a practical choice for cars, vans and trucks requiring a clearly visible amber warning signal.
