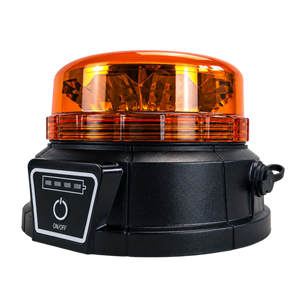

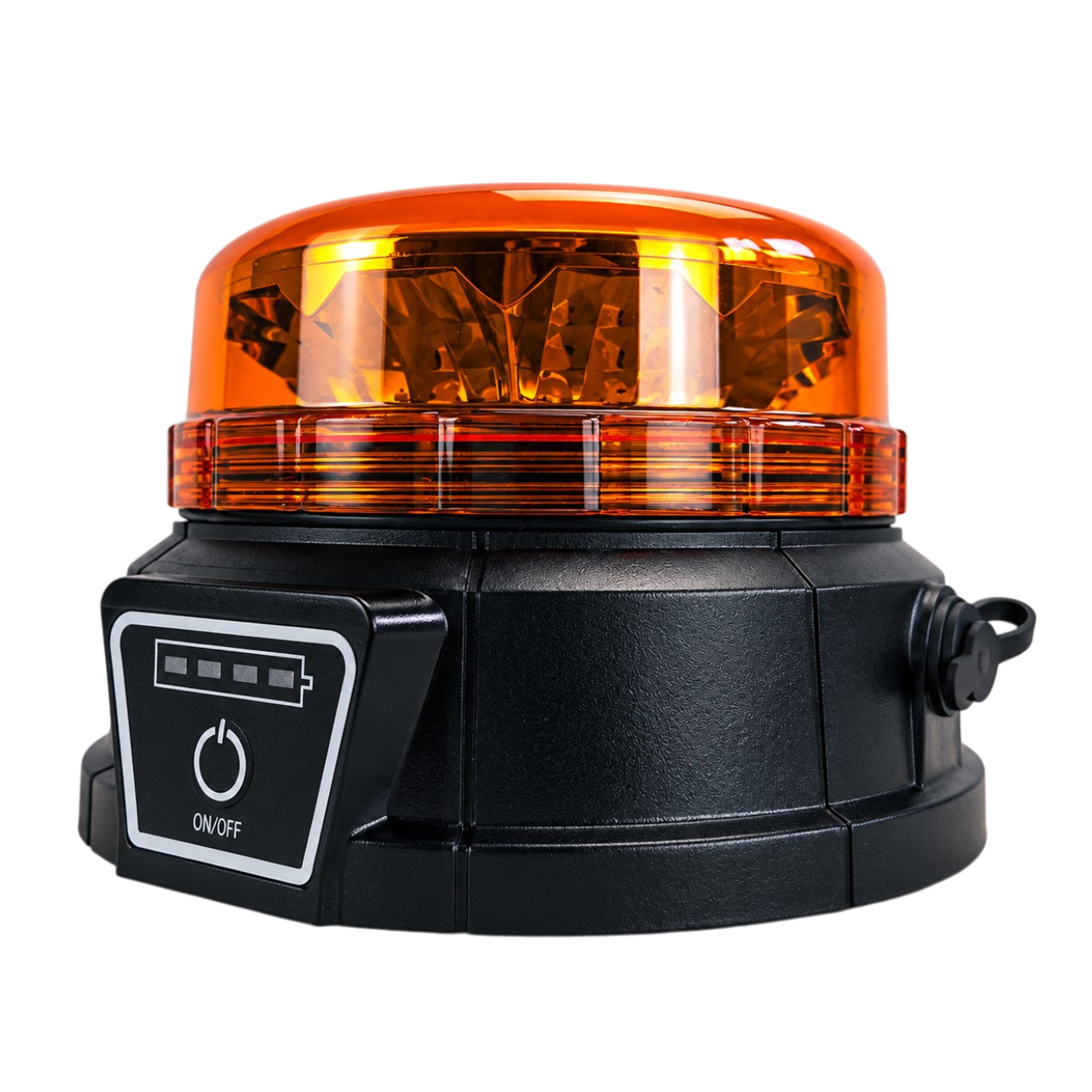

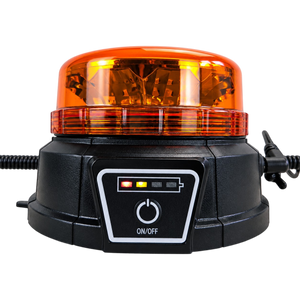

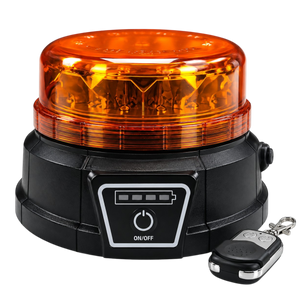

Amber flashing beacon ultra slim LED with remote control and rechargeable battery

Amber Flashing Beacon ultra slim LED with remote control and rechargeable battery

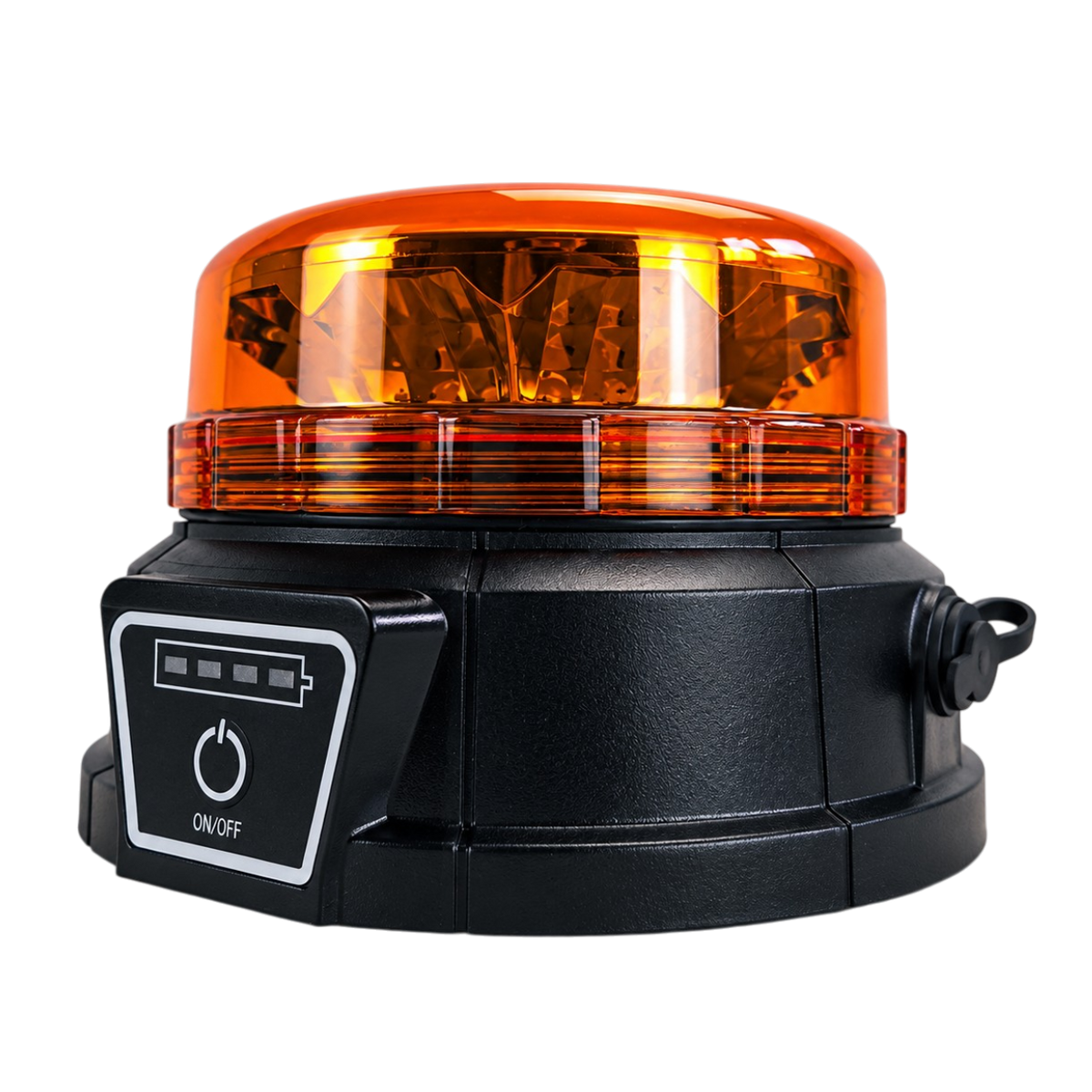

Warning light when you need it, without permanent wiring. This ultra slim Amber Flashing Beacon combines a built in rechargeable battery, wireless remote control and magnetic suction mounting for convenient use on trucks, vans and commercial vehicles.

Choose from 3 warning light patterns and control the beacon directly or from up to 10 metres away with the supplied remote. The built in 2200 mAh 18650 Li ion battery allows cordless operation, while the supplied 12/24 V vehicle cable provides an additional power option.

Key benefits

• Cordless operation: the built in 2200 mAh rechargeable battery allows the beacon to operate without a continuous external power connection.
• Wireless remote control: switch the beacon on or off and change the warning pattern remotely, with a specified maximum range of 10 metres.
• 3 warning patterns: select single flash, double flash or rotating light mode to suit the situation.
• Quick magnetic mounting: the magnetic suction base allows fast positioning on a suitable vehicle surface.
• Up to approximately 4 hours of battery operation: rotating mode provides approximately 4 hours of operation, while single and double flash modes provide approximately 3 hours.
• IP65 protection: designed with protection against dust and water jets.

Applications

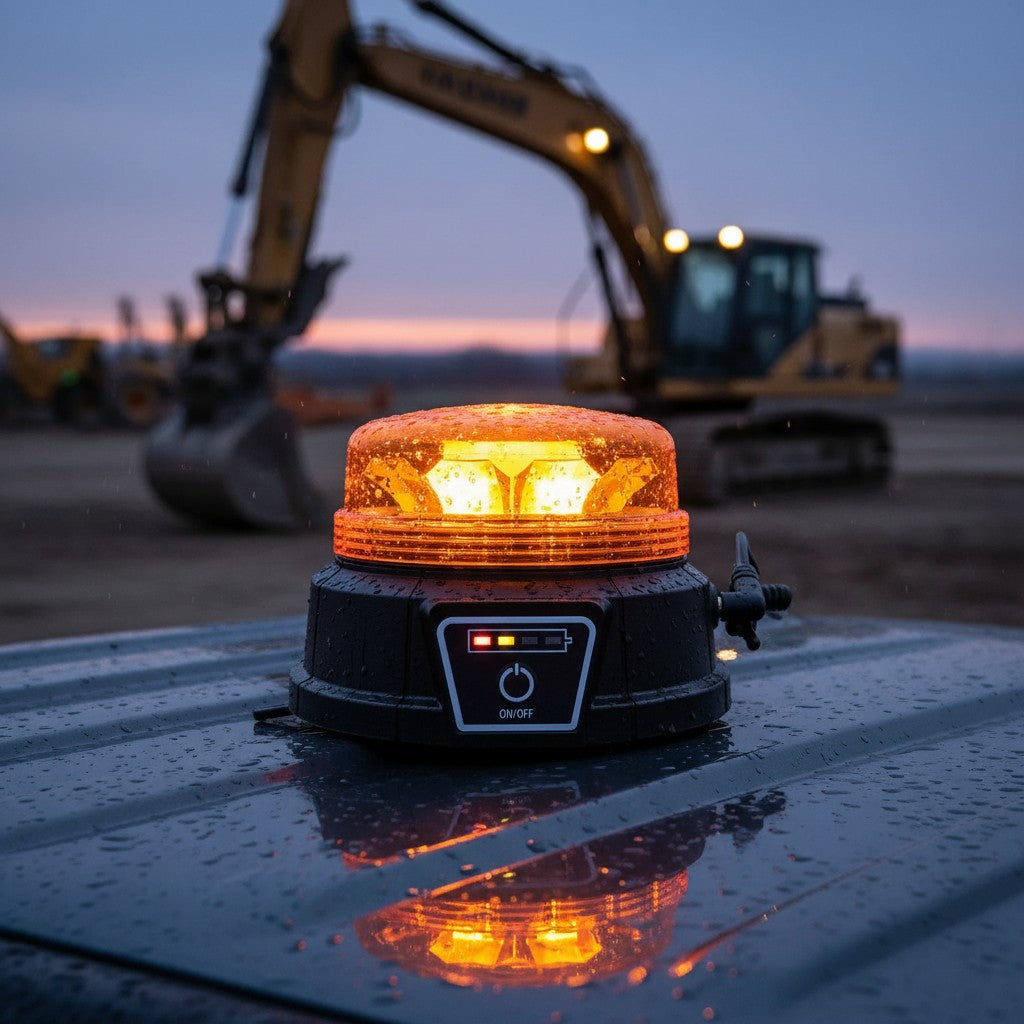

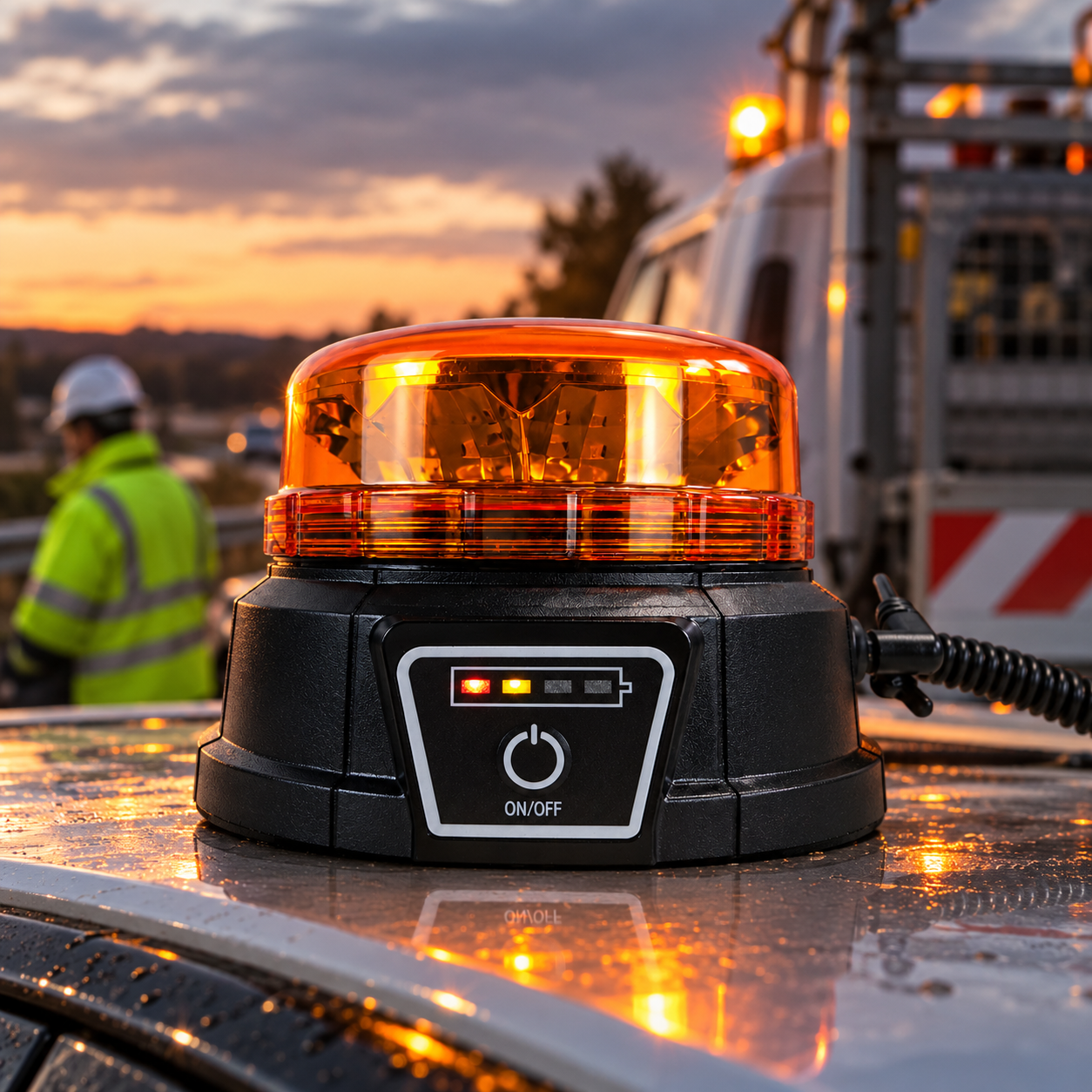

This Amber Flashing Beacon is designed for use as a warning light on trucks, vans and commercial vehicles. Its compact construction and magnetic suction mounting make it practical when a warning beacon needs to be positioned quickly without permanent installation.

The rechargeable design provides additional flexibility when an external power source is not being used. According to the supplied manufacturer documentation, operation from the built in battery is intended for emergency use.

The beacon can also be powered from a suitable 12/24 V vehicle socket using the supplied cigarette lighter cable. This gives you the flexibility of both rechargeable battery operation and vehicle supplied power in one compact unit.

Always use the warning beacon in accordance with the laws and regulations applicable to the vehicle, location and intended application.

Technical specifications

• Product type: LED amber warning beacon
• Light source: 12 × 3535 LEDs
• Warning patterns: single flash, double flash and rotating light
• Input voltage: 9 to 30 V DC
• Battery type: built in 18650 Li ion rechargeable battery
• Battery capacity: 2200 mAh
• Charging time: approximately 2 to 3 hours
• Single flash battery operating time: approximately 3 hours
• Double flash battery operating time: approximately 3 hours
• Rotating light battery operating time: approximately 4 hours
• Remote control maximum range: 10 m
• Protection rating: IP65
• Operating temperature: -20 °C to +50 °C
• Lens material: PC
• Base material: PC

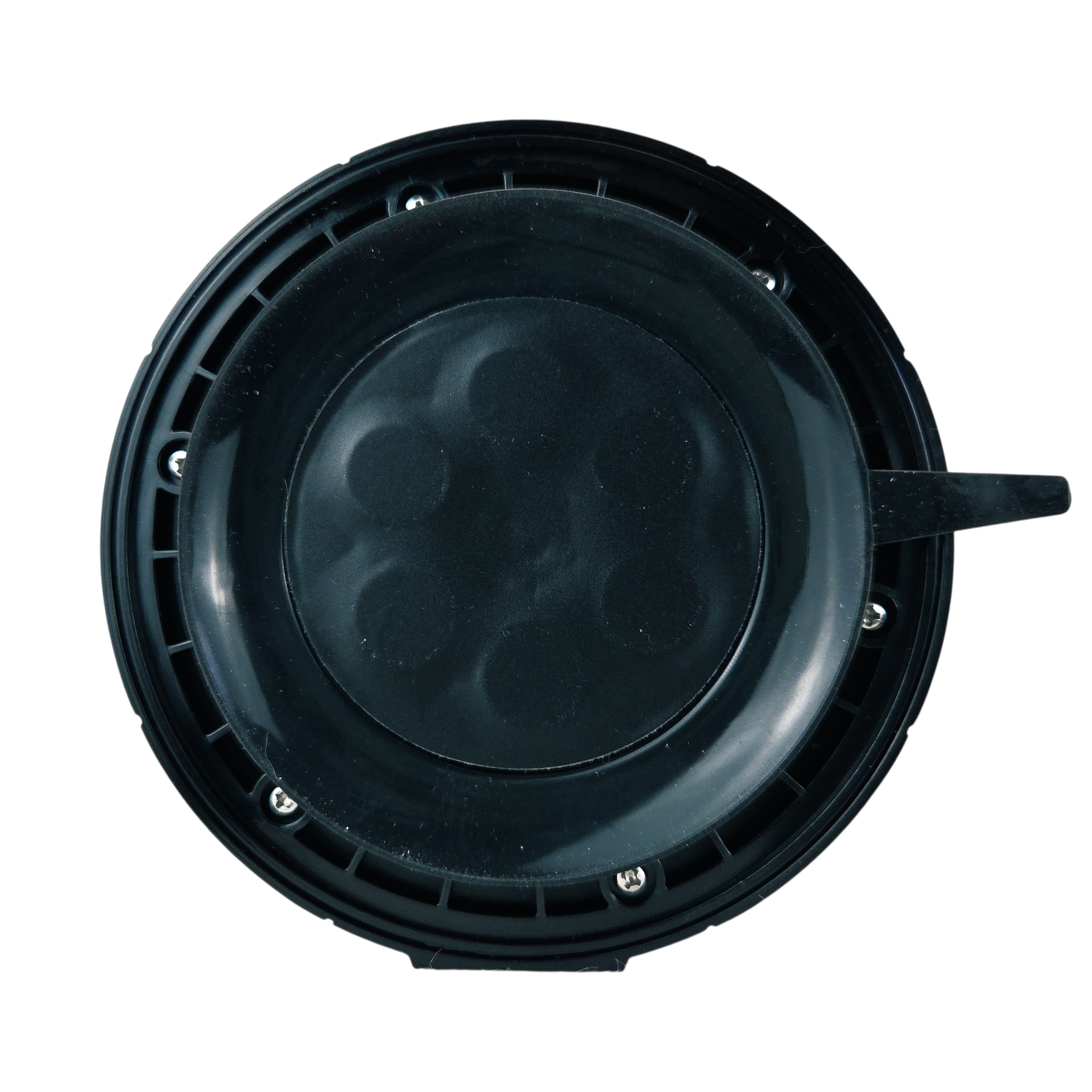

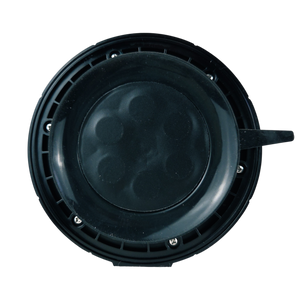

• Mounting: magnetic suction base
• Diameter: 13 cm
• Height: 8 cm
• Beacon weight: 527 g
• Marking: E9

How to use

1. Charge before first use: fully charge the built in battery before operating the beacon for the first time.
2. Check the battery: make sure sufficient charge is available before use.
3. Select a suitable mounting position: choose a vehicle surface suitable for the magnetic suction base.
4. Secure the beacon: position the beacon firmly and check that it is securely attached before driving.

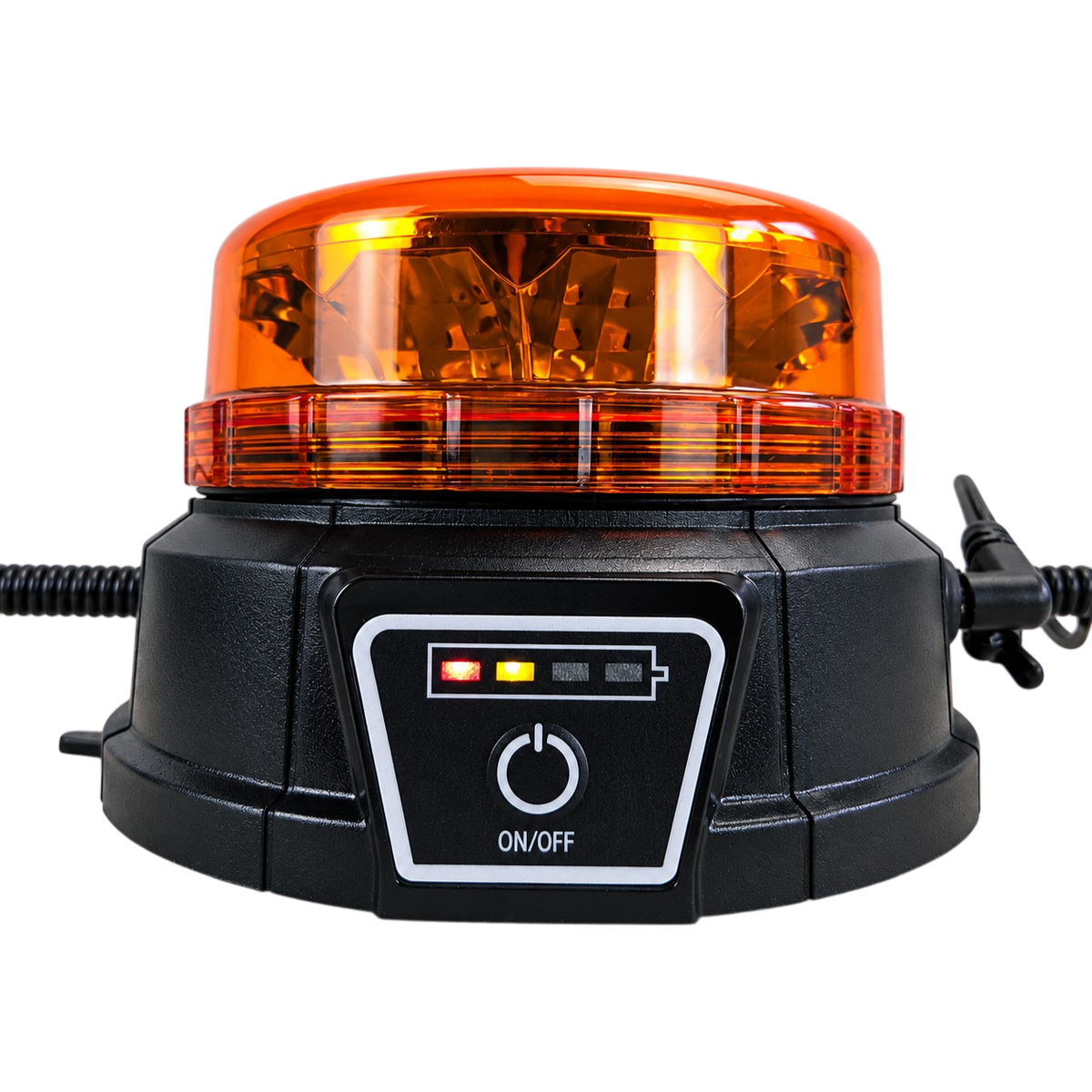

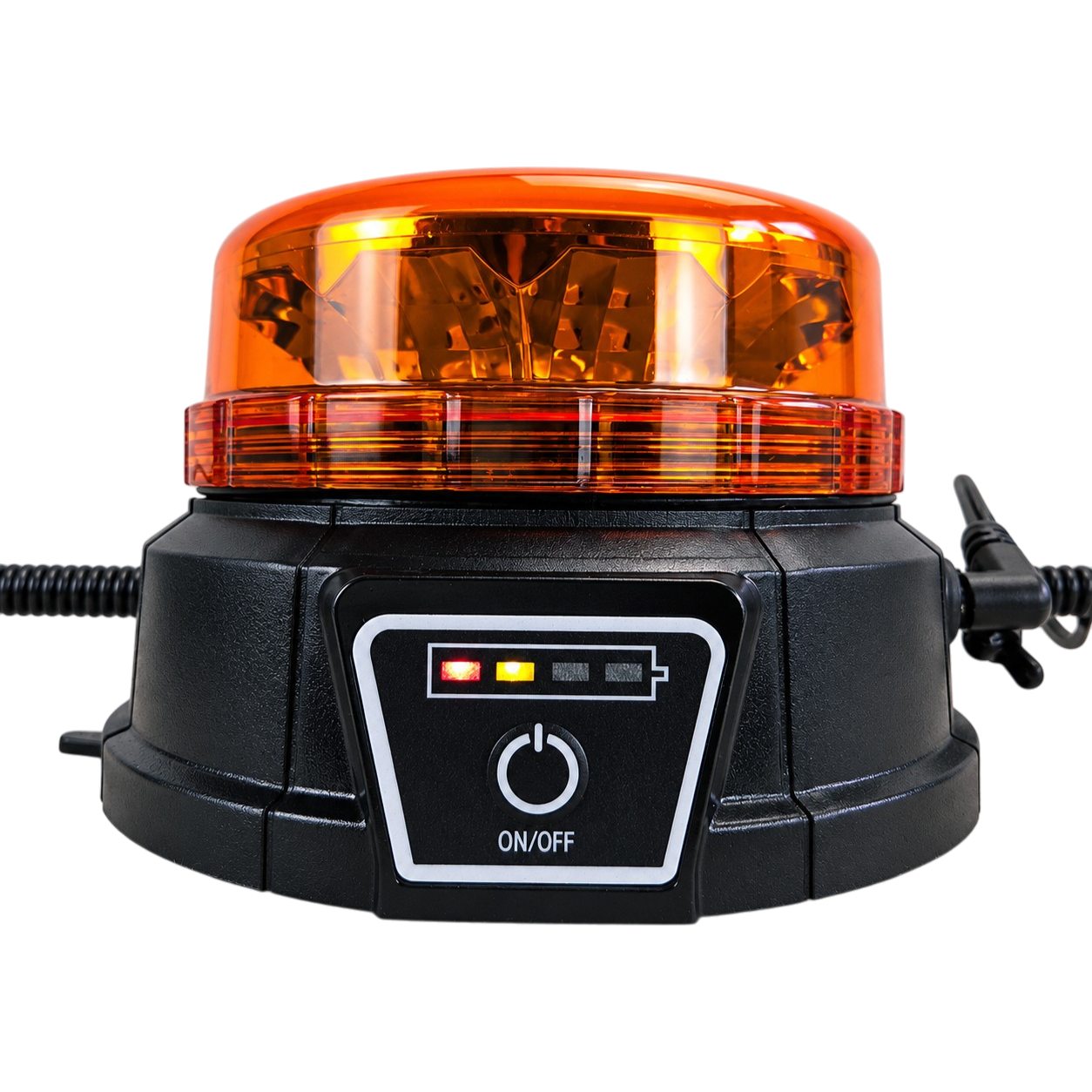

5. Switch on: press and hold the ON/OFF button for approximately 1 second.
6. Select the required pattern: use the function control to switch between single flash, double flash and rotating light modes.

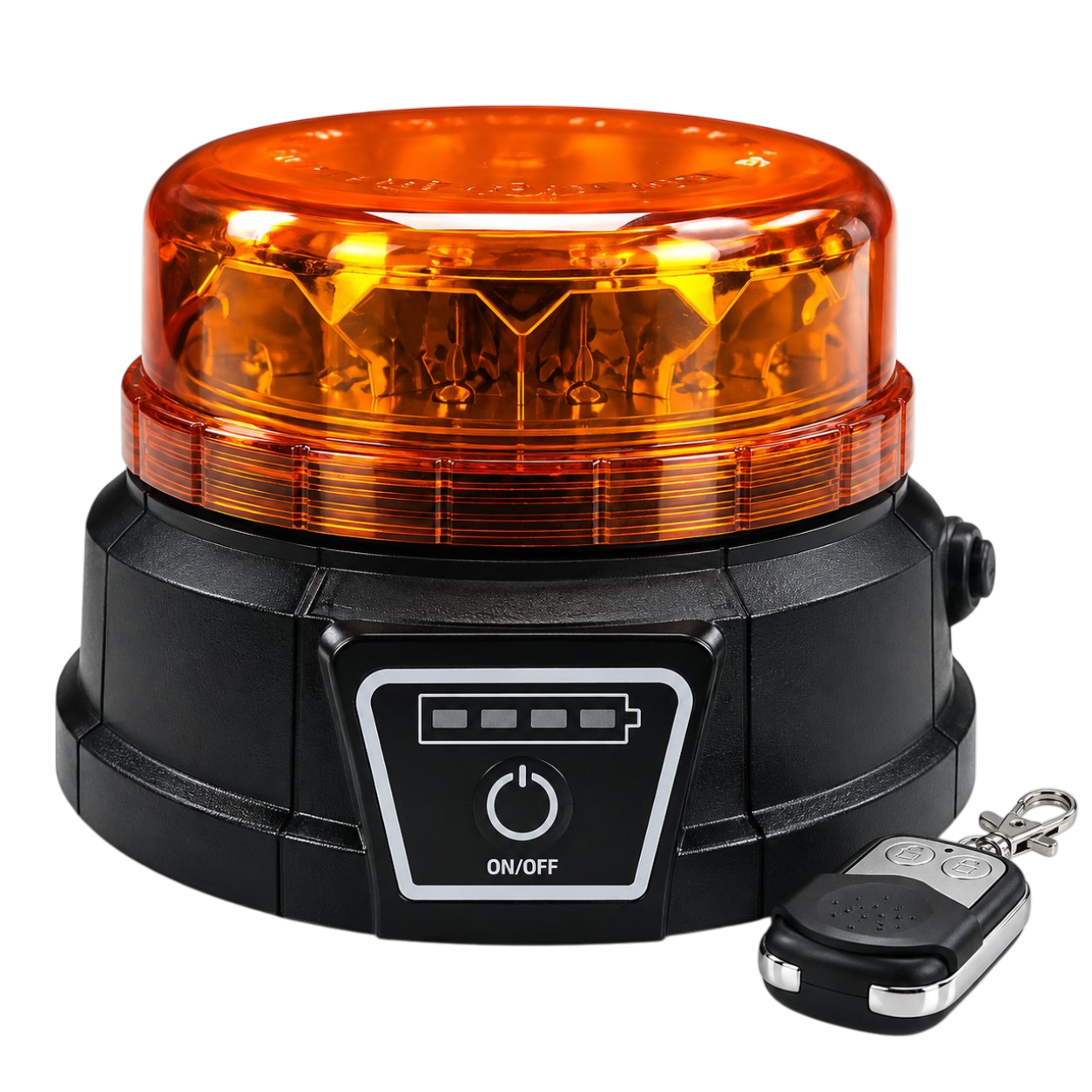

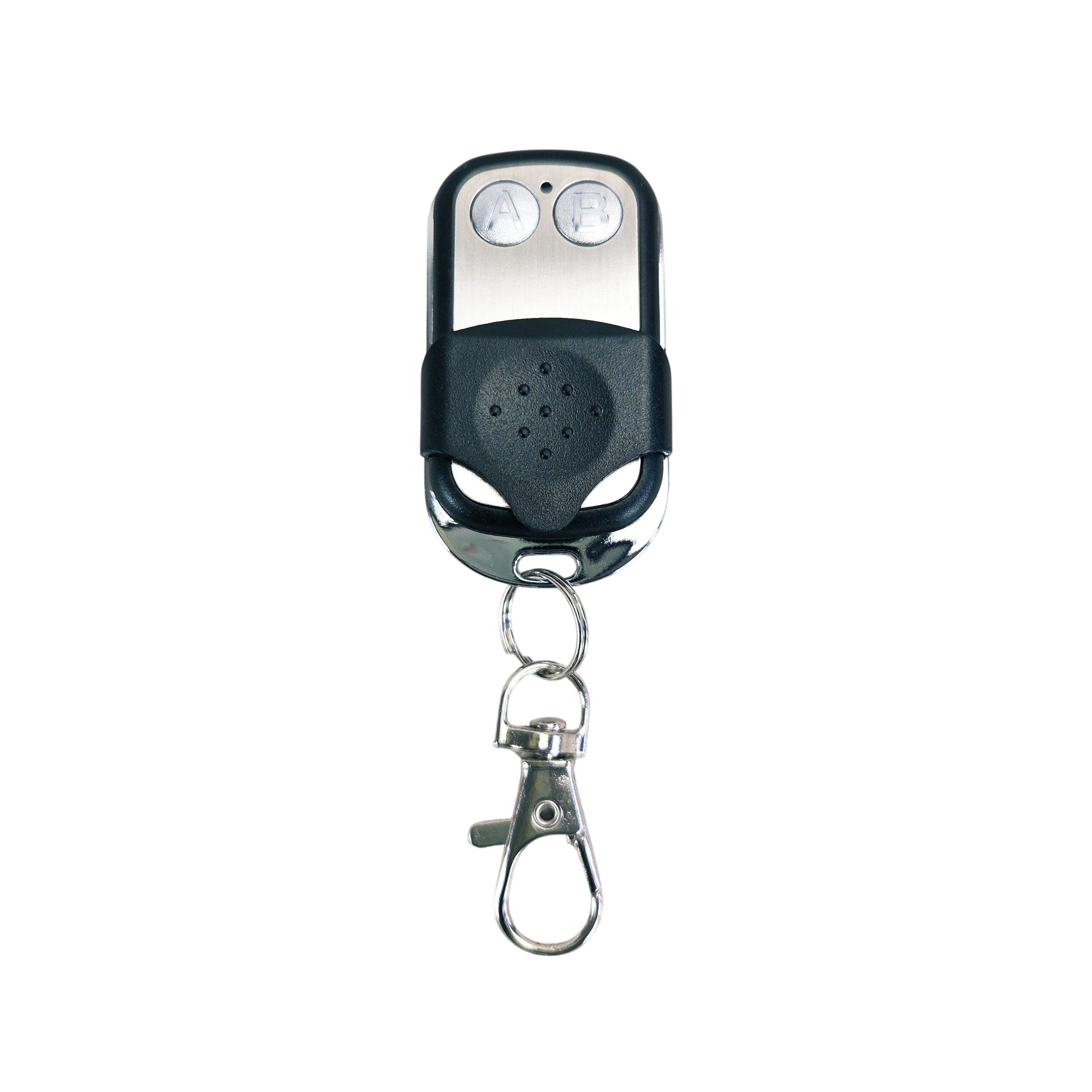

7. Use the remote control: the supplied wireless remote can be used to switch the beacon on or off and change the warning pattern.
8. Check before driving: always confirm correct operation and secure mounting before moving the vehicle.

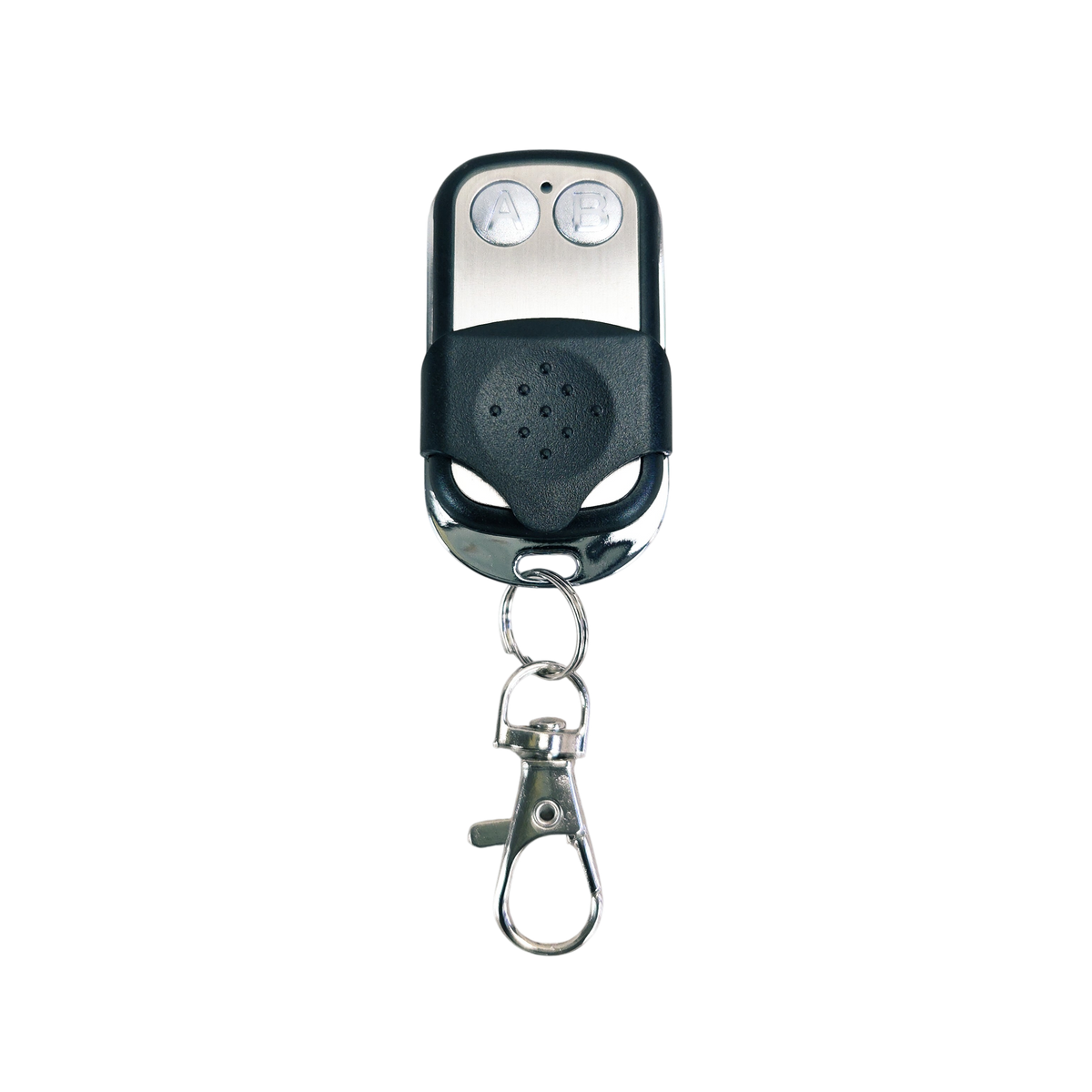

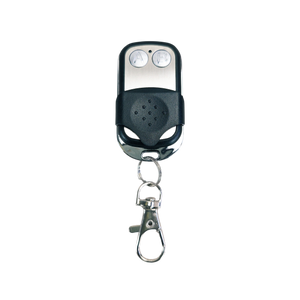

The wireless remote control has a specified maximum operating range of 10 metres. Actual range may vary depending on surrounding conditions.

Up to two remote controls can be paired with the beacon. To pair a remote, ensure that the battery has sufficient charge and press the beacon ON/OFF button five times within 2.5 seconds. When the green indicator illuminates, press any button on the remote once. Pairing is complete when the green indicator switches off.

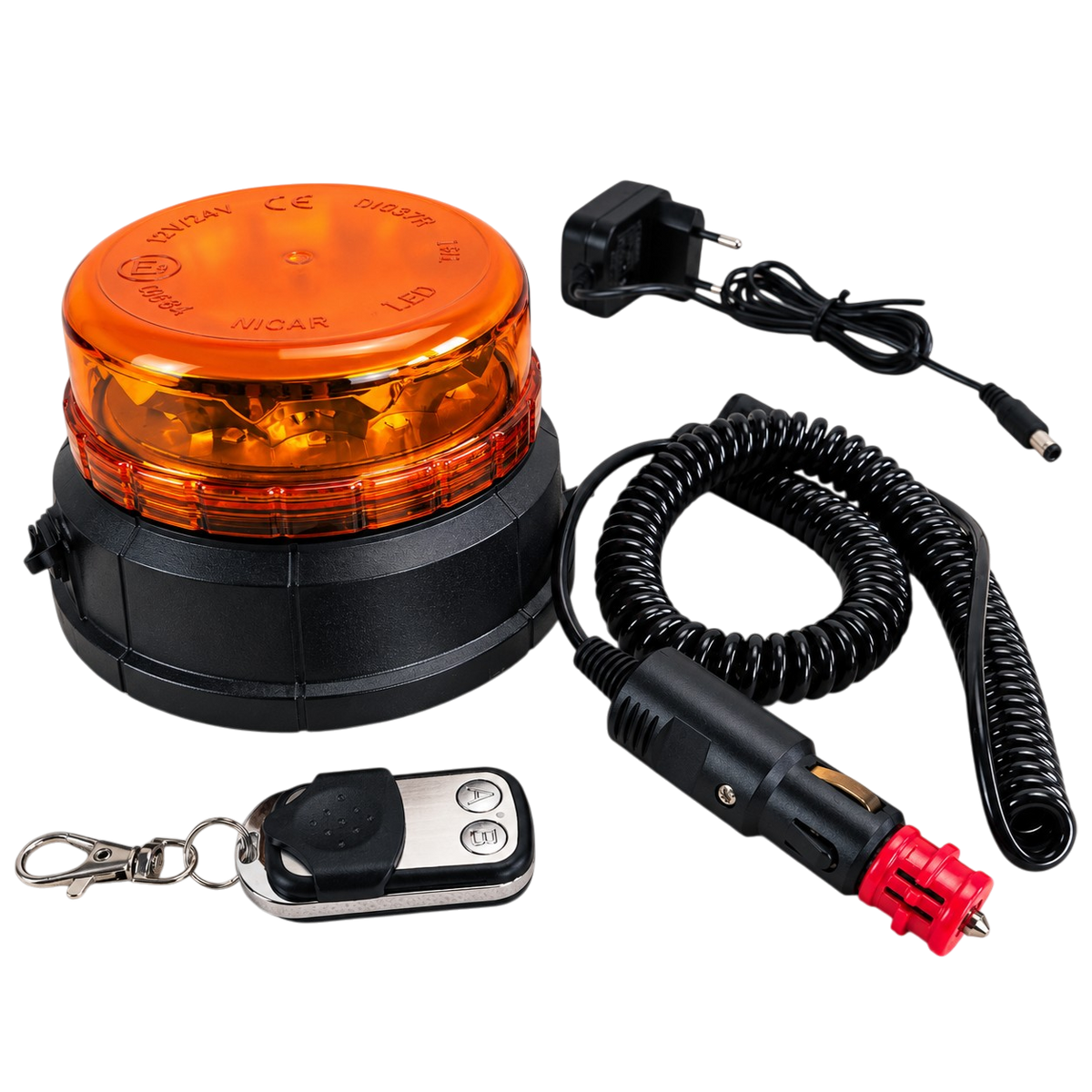

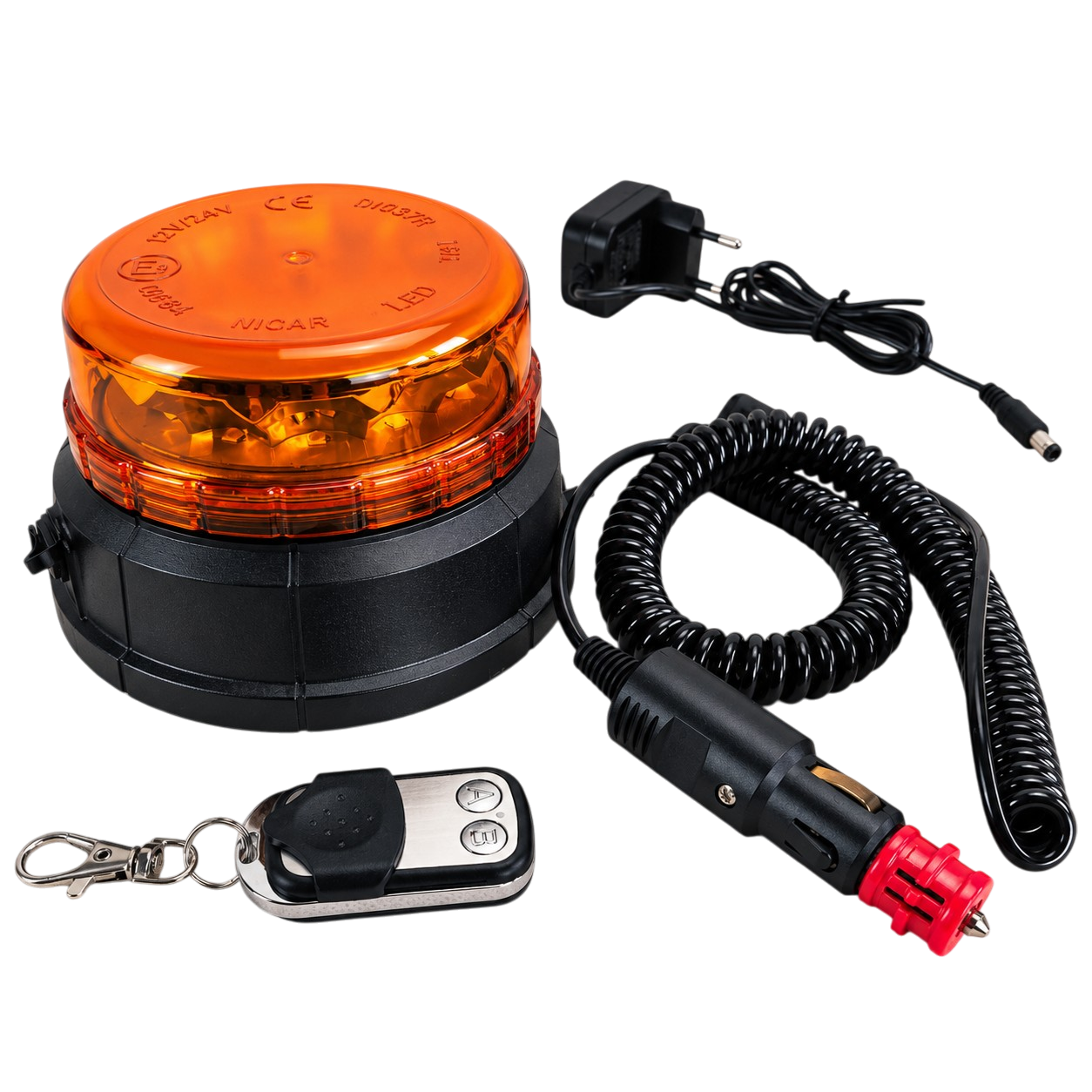

Package contents

• 1 × LED amber warning beacon
• 1 × wireless remote control

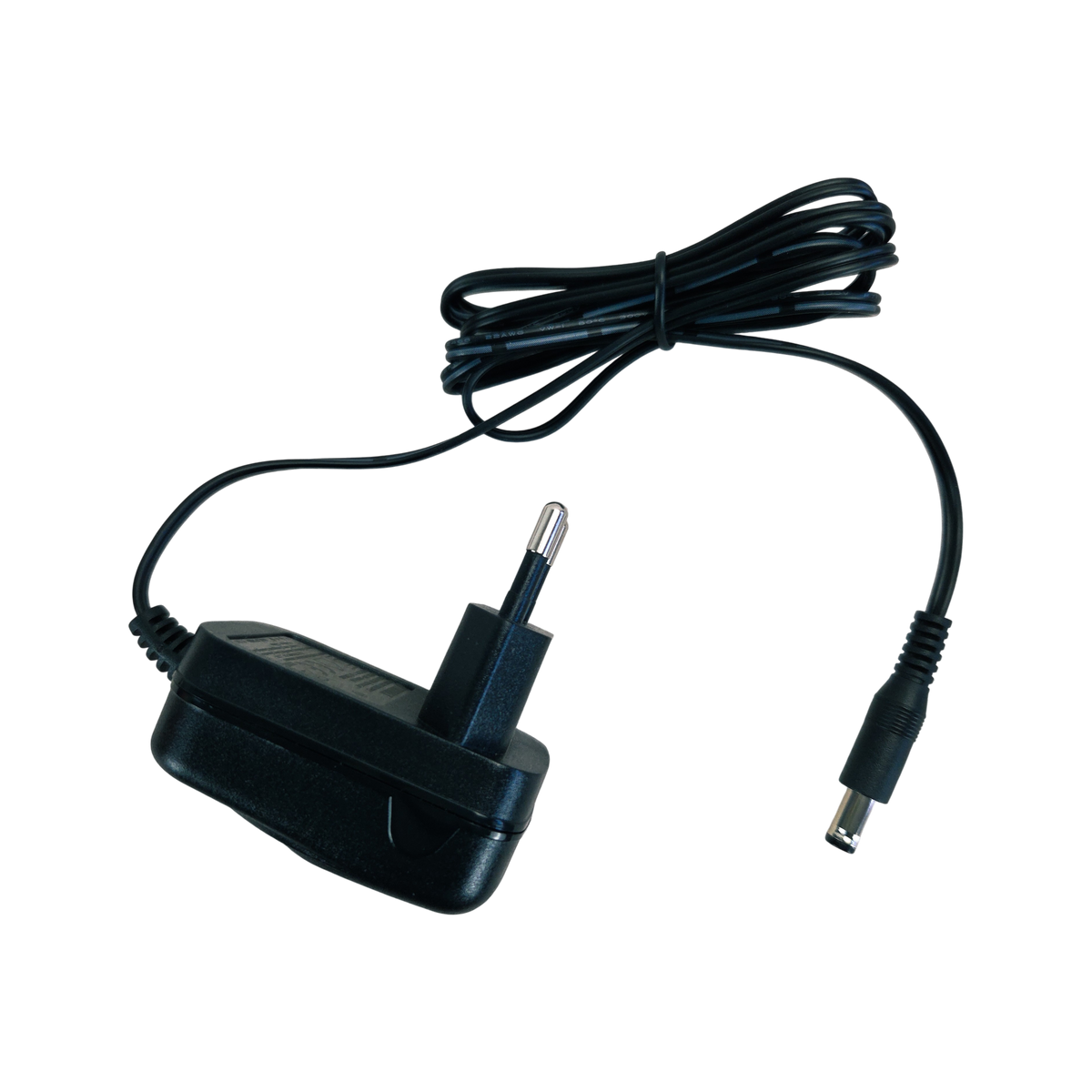

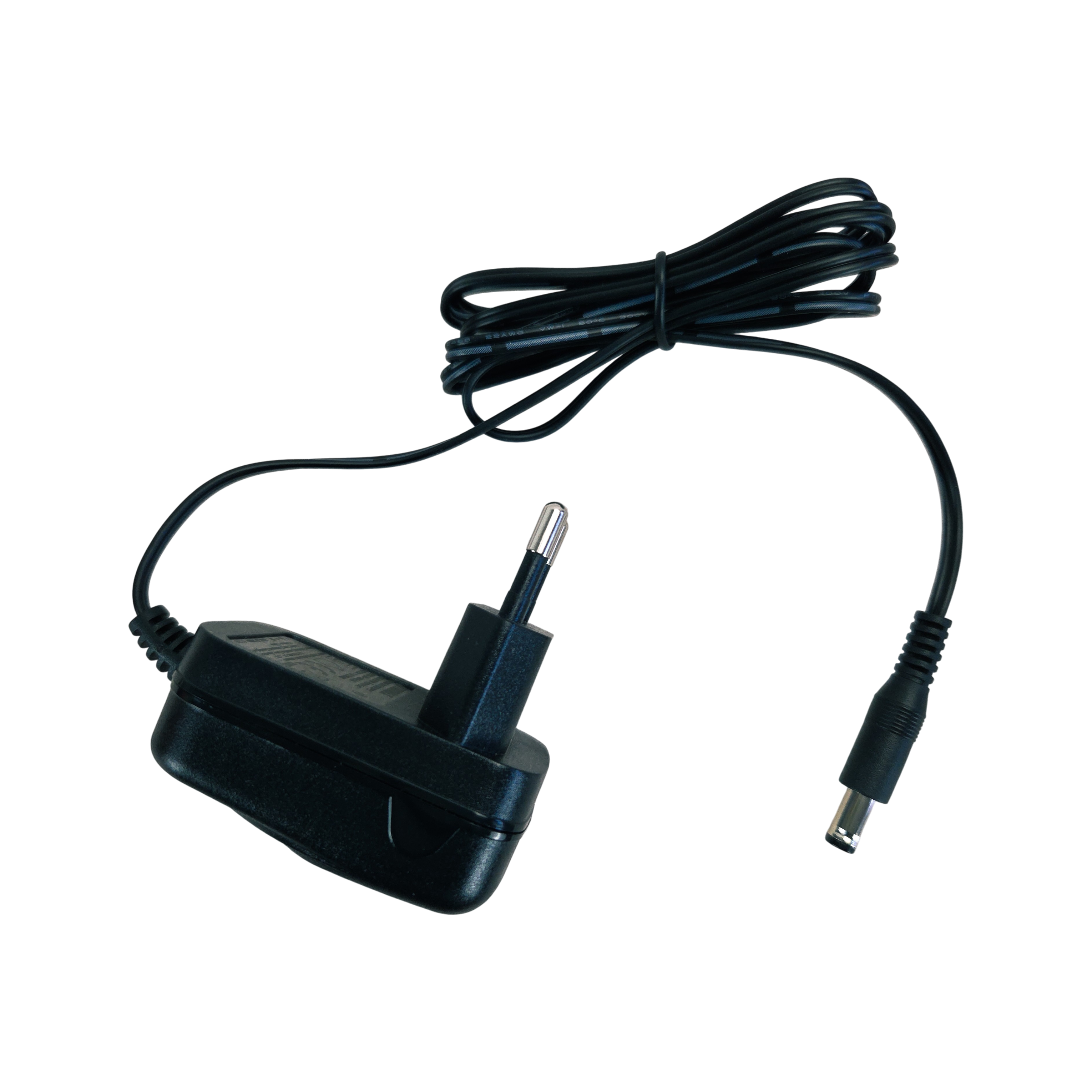

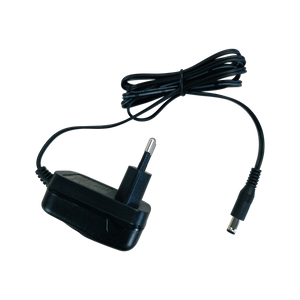

• 1 × 230 V mains charger
• 1 × 12/24 V cigarette lighter vehicle power cable

Important information

• Fully charge the built in battery before first use.
• Check the battery charge level before operation.
• Always check that the beacon is operating correctly and securely mounted before driving.
• Do not exceed 100 km/h with the beacon mounted.
• According to the supplied manufacturer documentation, built in battery operation is intended for emergency use.
• The actual wireless remote control range may vary depending on environmental conditions.
• Keep the charging and power connections clean.
• When the beacon is stored for an extended period, recharge the battery regularly.
• The manufacturer recommends charging the battery at least once per month during extended storage.
• Store and operate the beacon within the specified conditions.
• Always use the product in accordance with applicable laws and regulations.

A practical choice when you need an ultra slim Amber Flashing Beacon with cordless operation, 3 selectable warning patterns, remote control and quick magnetic mounting. Supplied with the remote control, mains charger and 12/24 V vehicle power cable, it provides the essential accessories needed for flexible operation in one package.
