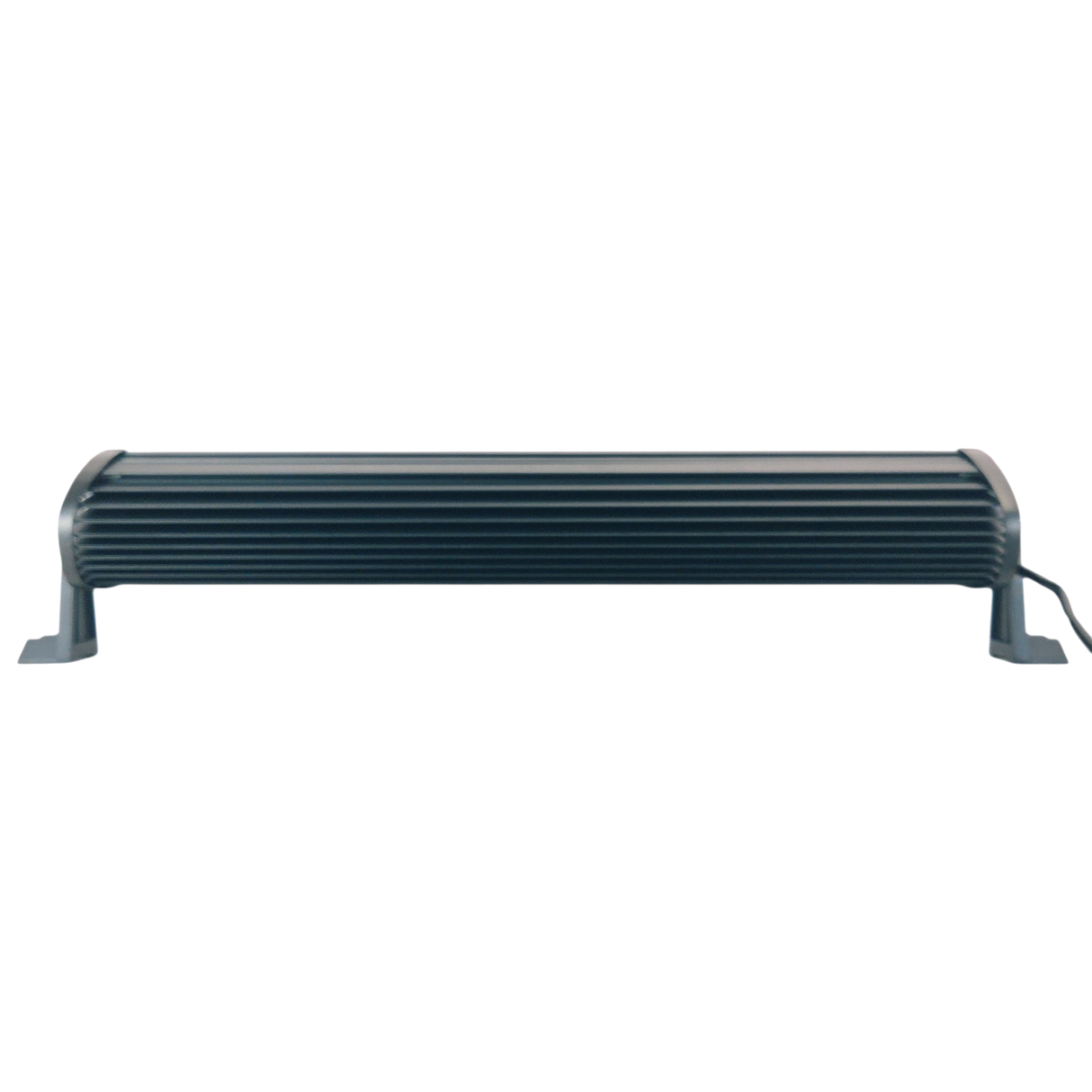

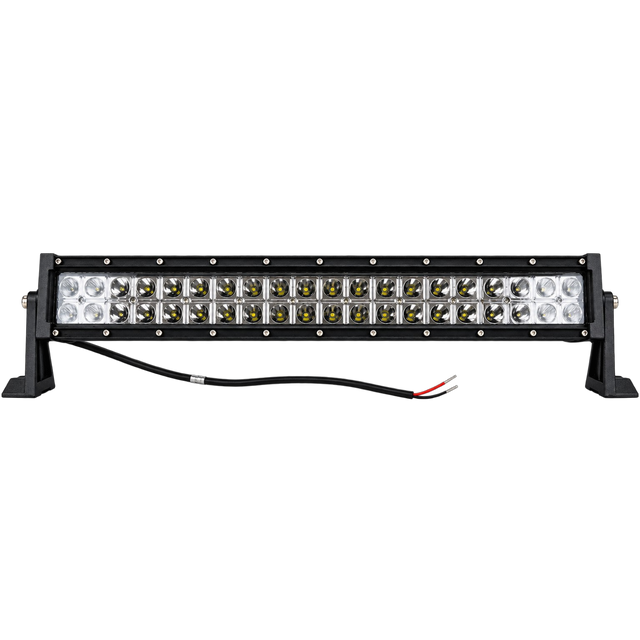

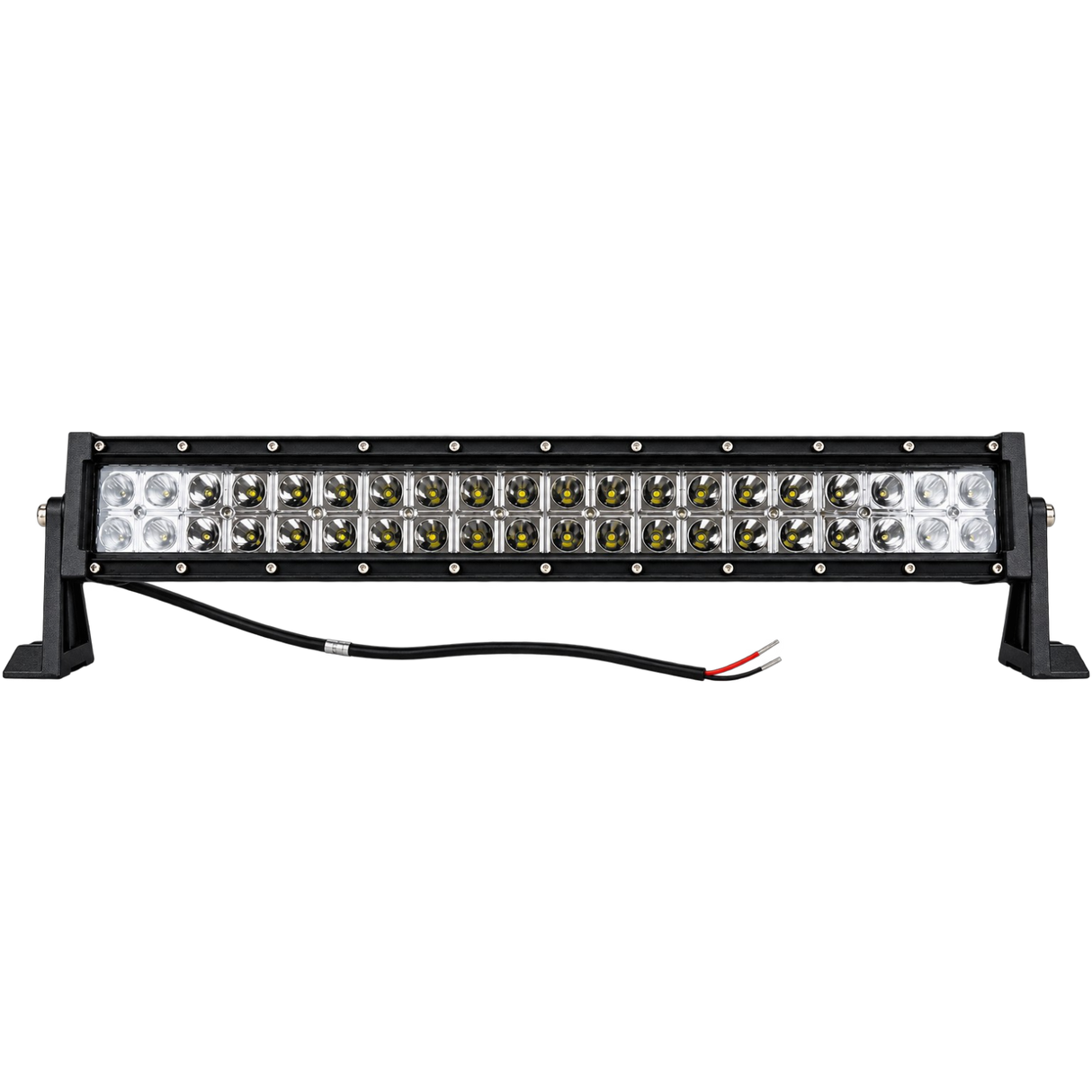

LED Light Bar Dual Row combined flood and spot beam 120W

Truck Comfort LED Light Bar – Powerful 7200 lm Output and Combined Beam for Effective Work Area Illumination

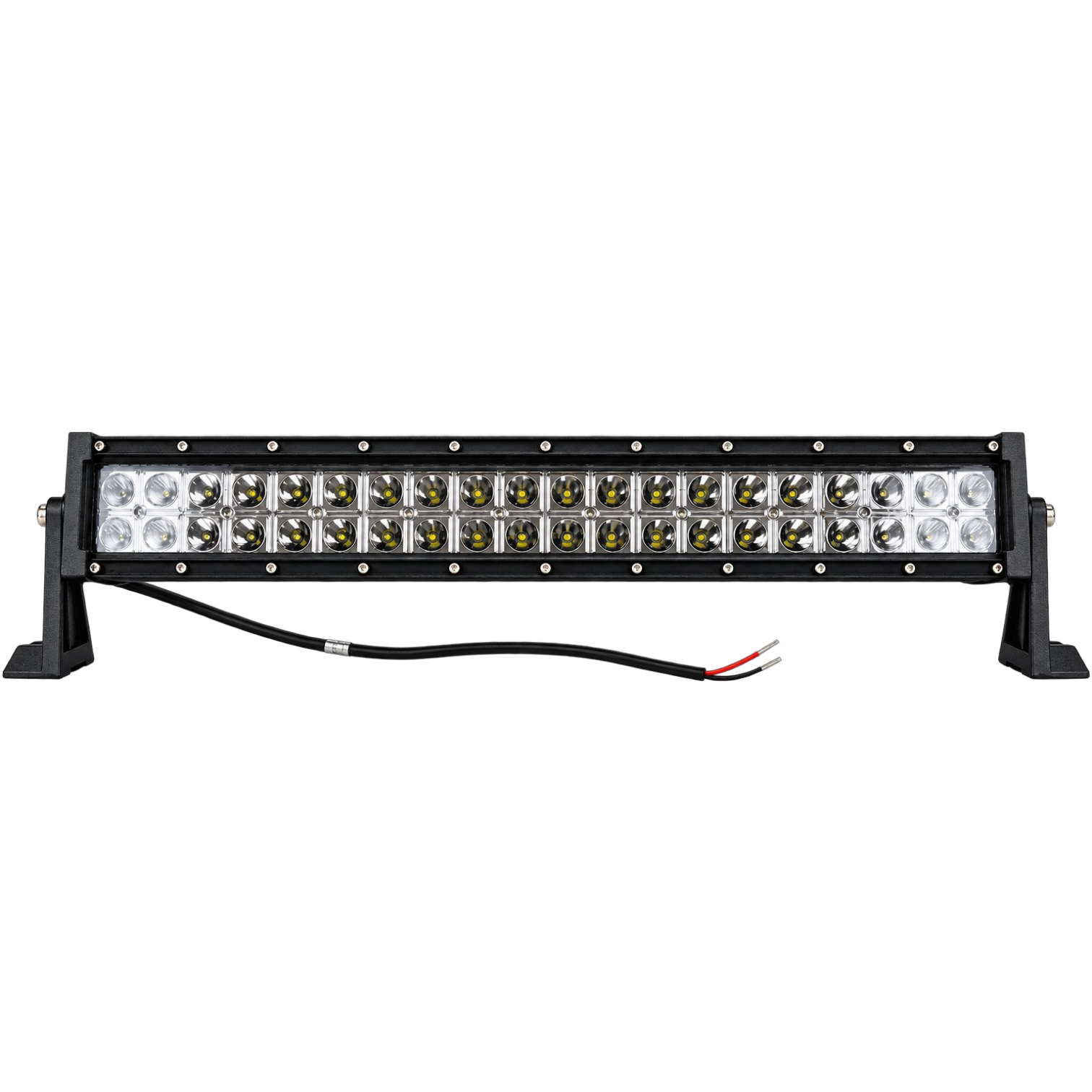

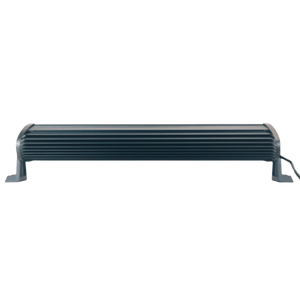

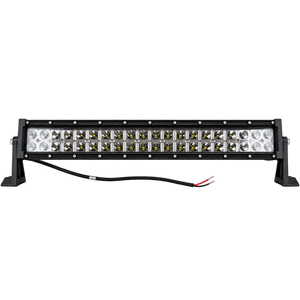

The Truck Comfort LED Light Bar is a high-power, dual-row work light delivering 120 W of power and 7200 lumens. Its combined flood and spot beam provides both wider area illumination and forward-directed light.

Designed for 9–32 V DC operation, this LED light bar is suitable for both 12 V and 24 V vehicle electrical systems. Its aluminium housing, polycarbonate lens and IP67 protection make it suitable for vehicle use in demanding environmental conditions.

Kiemelt előnyök

• 120 W power and 7200 lm output for powerful work area illumination.
• Combined flood and spot beam provides wider coverage together with forward-directed light.
• 9–32 V DC operating range for use with both 12 V and 24 V vehicle electrical systems.
• IP67 protection makes the light suitable for vehicle use in demanding environmental conditions.

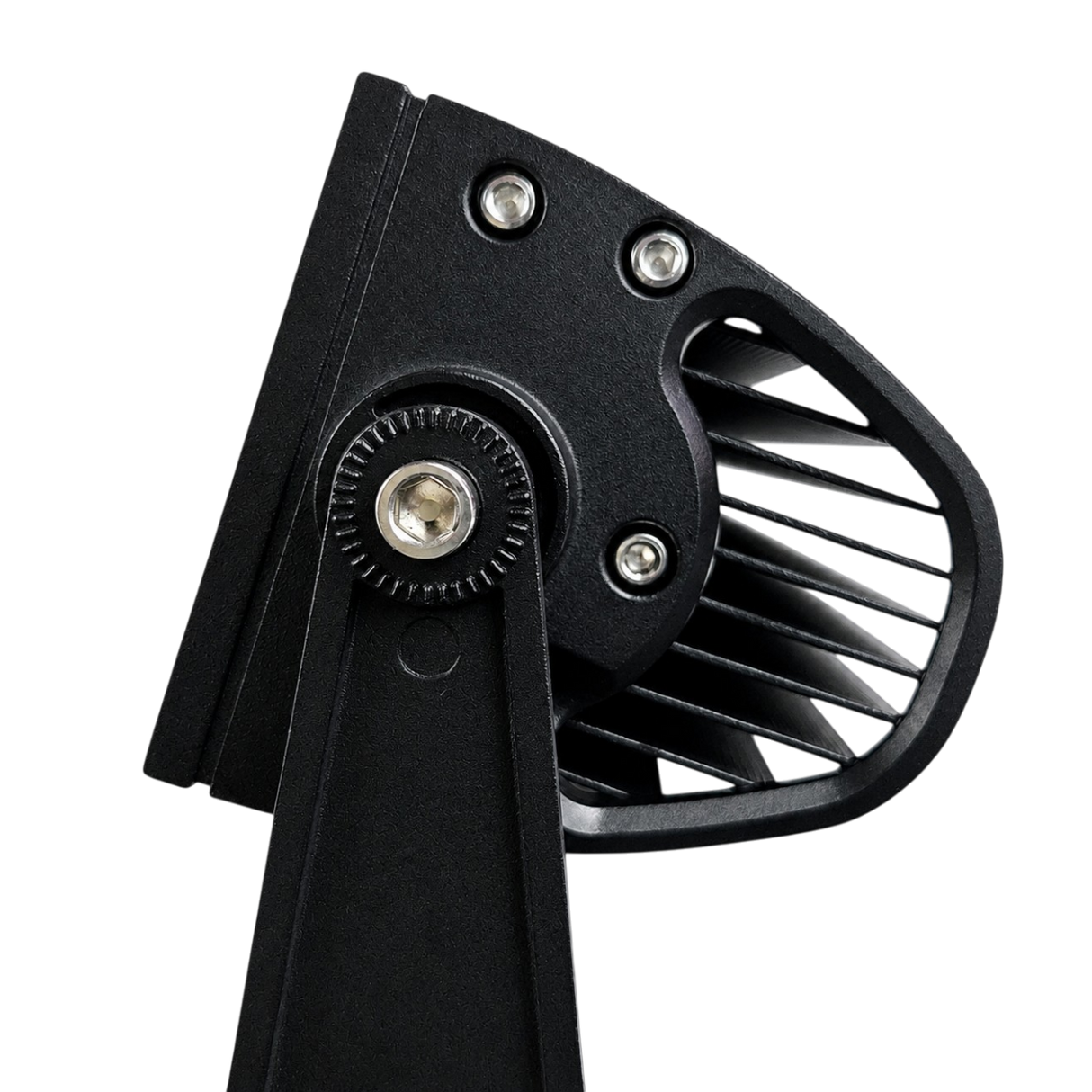

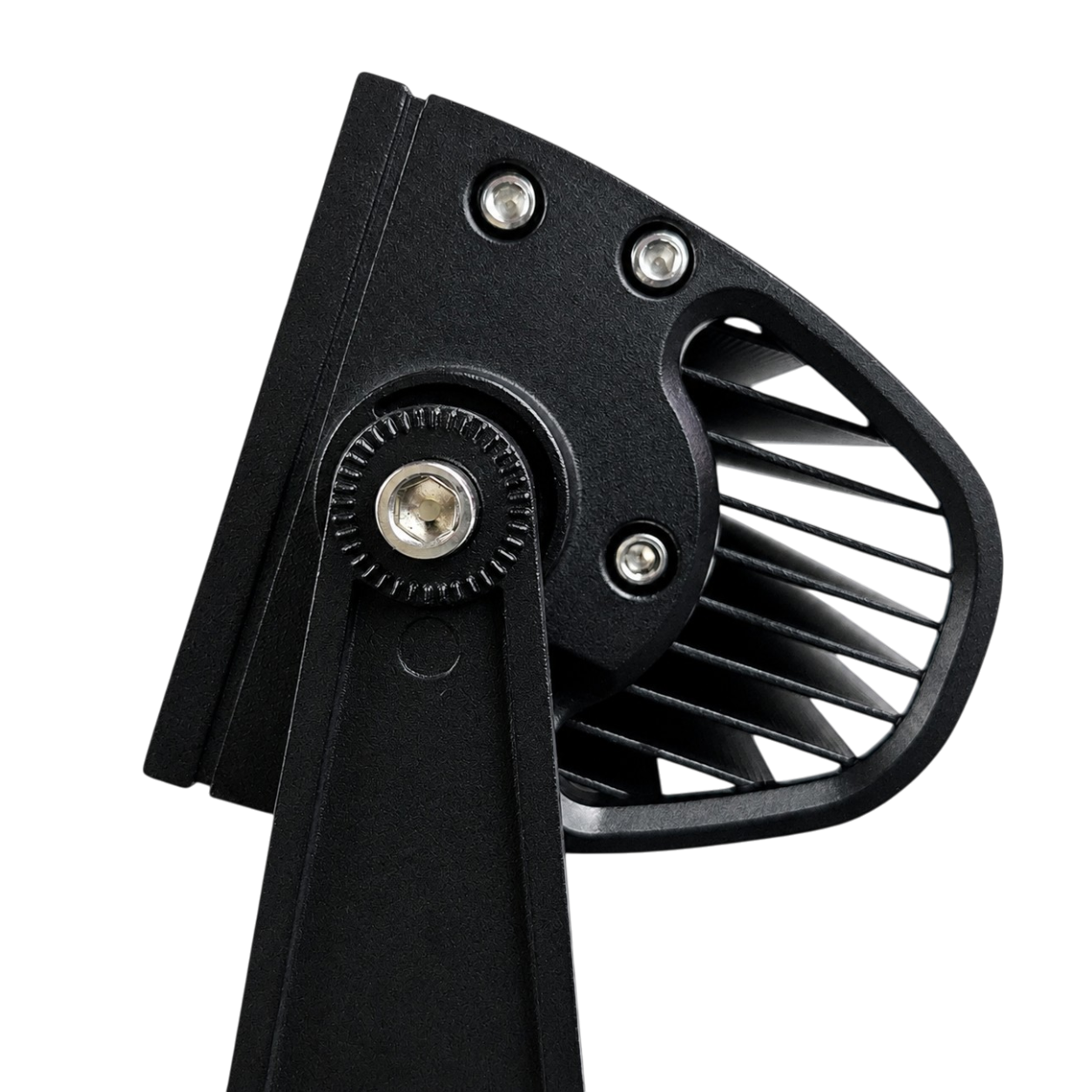

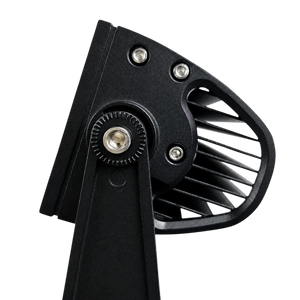

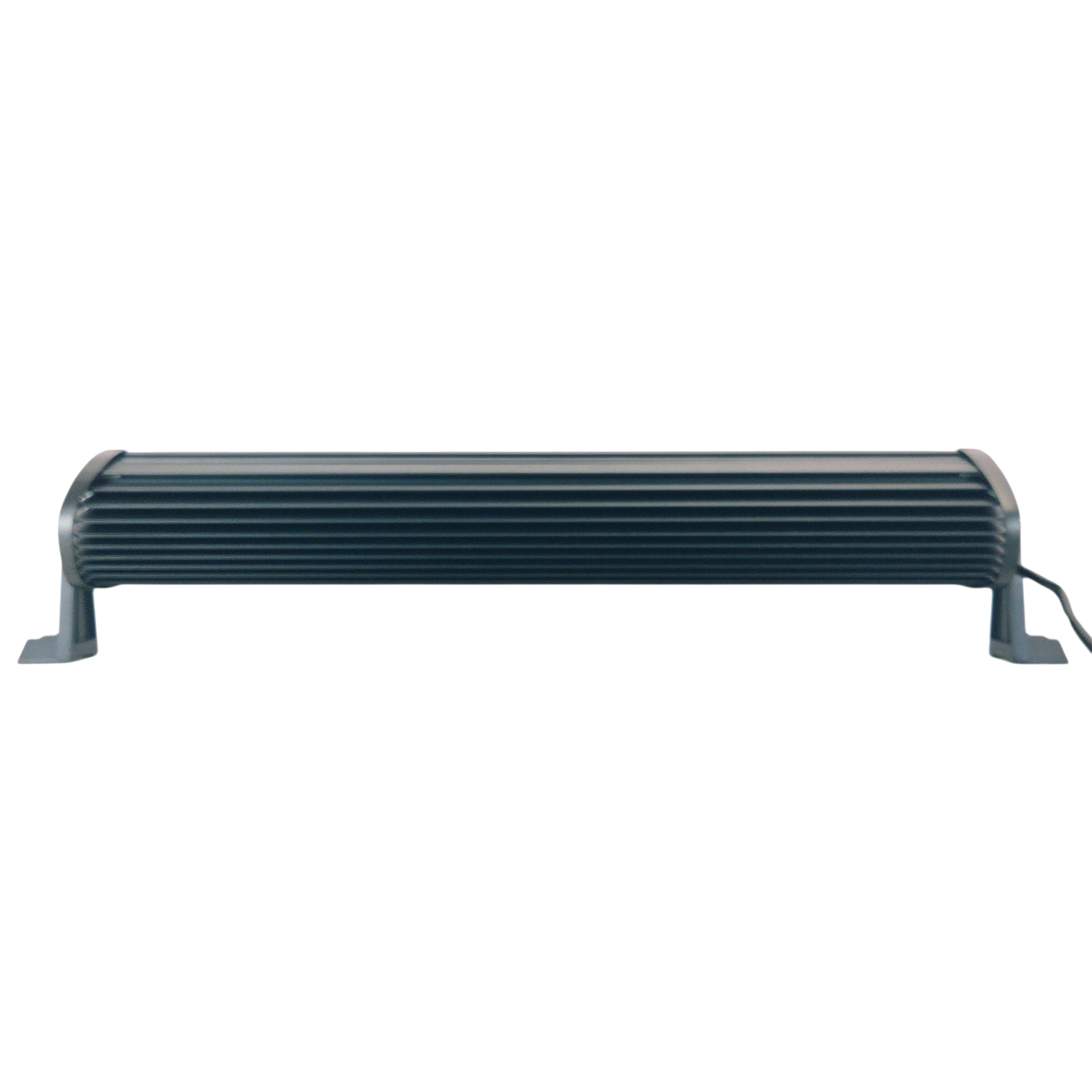

• Durable aluminium housing with a heat-dissipating design and polycarbonate lens.
• 6000–6500 K colour temperature for bright illumination of the working area.

Felhasználási területek

This LED Light Bar is designed for work area illumination on trucks, lorries, tractors, off-road vehicles, pickup trucks and other compatible 12/24 V vehicles.

Műszaki adatok

• Manufacturer: Truck Comfort
• Power: 120 W
• Operating voltage: 9–32 V DC
• Nominal system: 12/24 V
• Luminous flux: 7200 lm
• Beam pattern: combined flood and spot beam

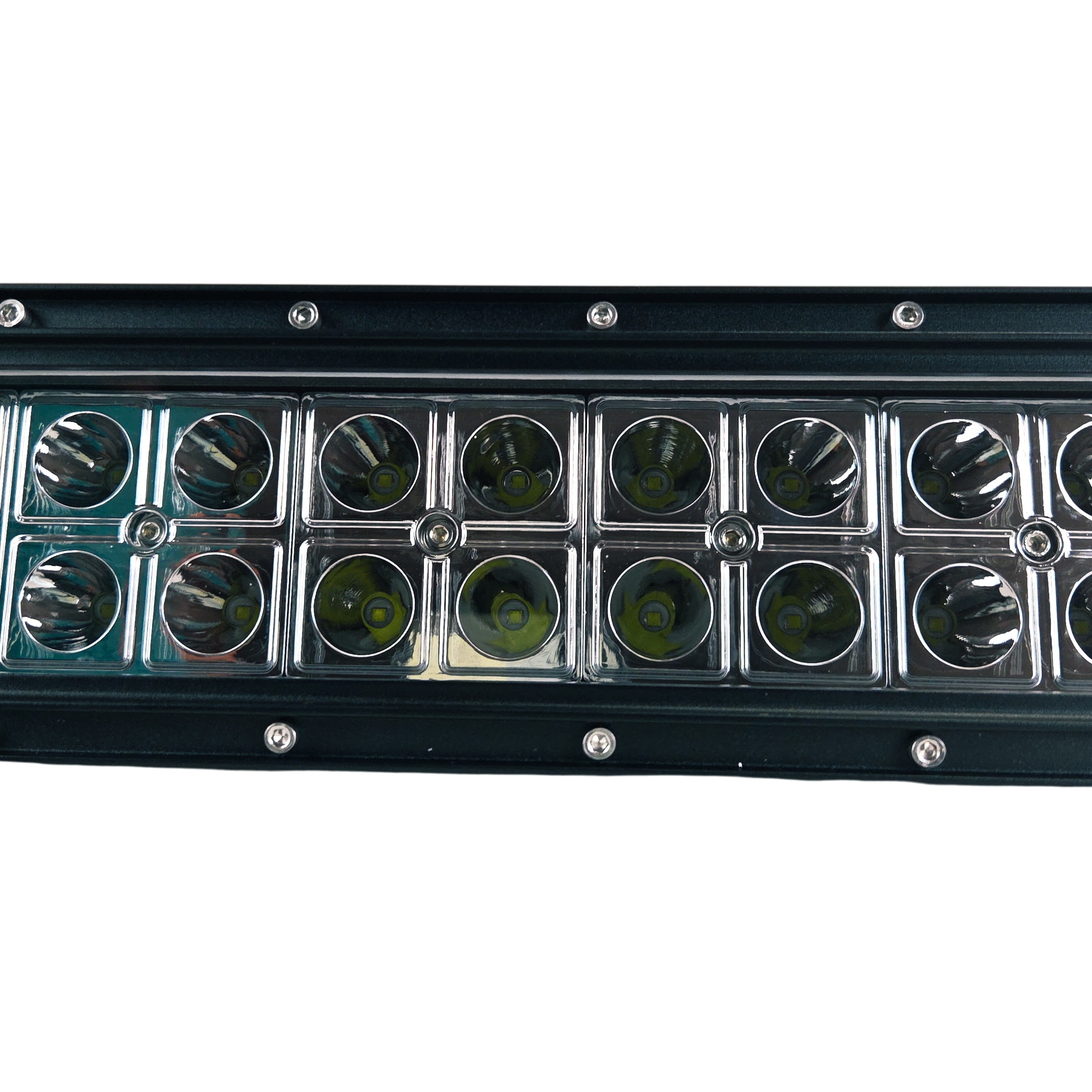

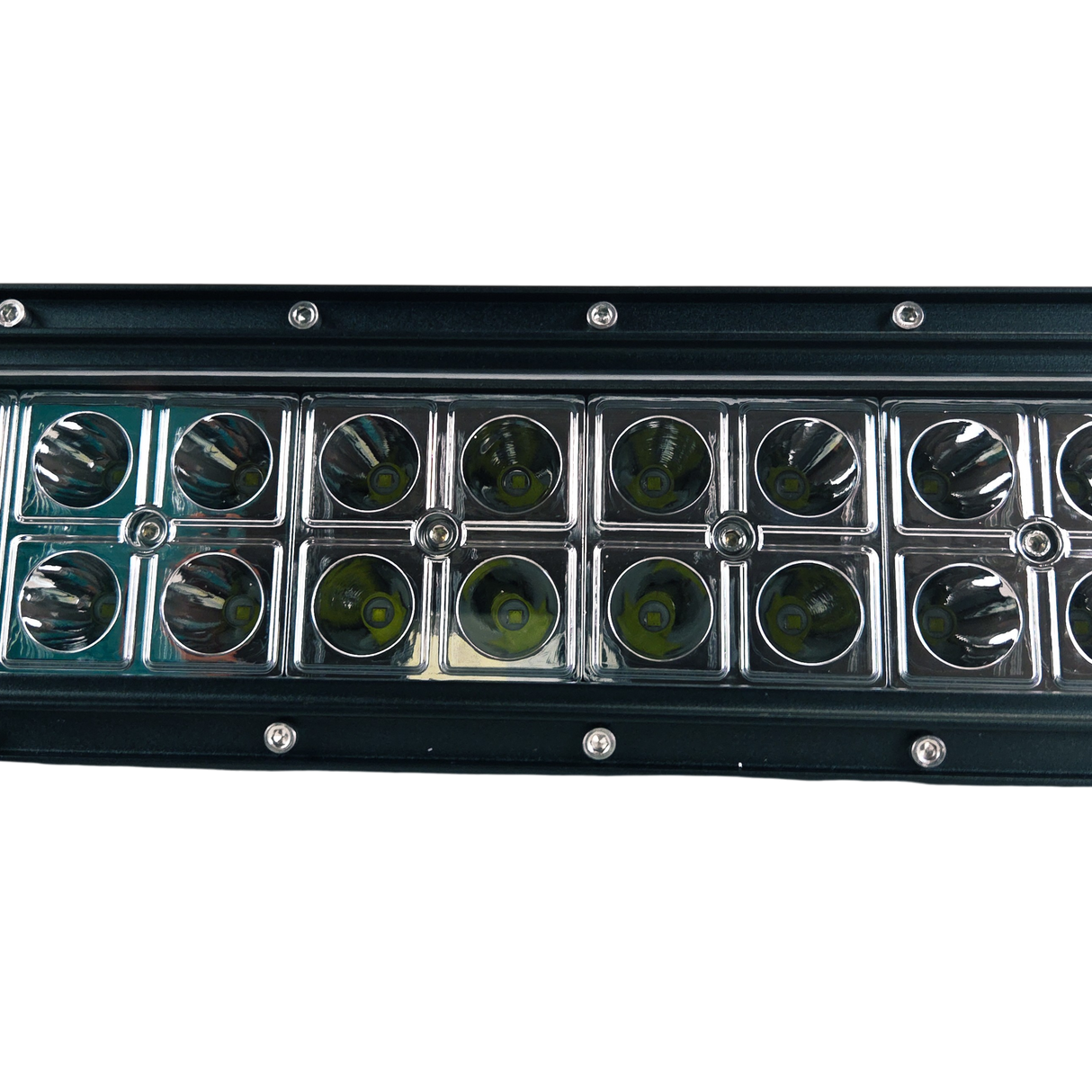

• LED configuration: 4 flood + 32 spot + 4 flood LEDs
• Colour temperature: 6000–6500 K
• Dimensions: 628 × 90 × 120 mm
• Protection rating: IP67
• Operating temperature: −40 °C to +80 °C
• Housing material: aluminium
• Lens material: polycarbonate
• Cable length: 60 cm

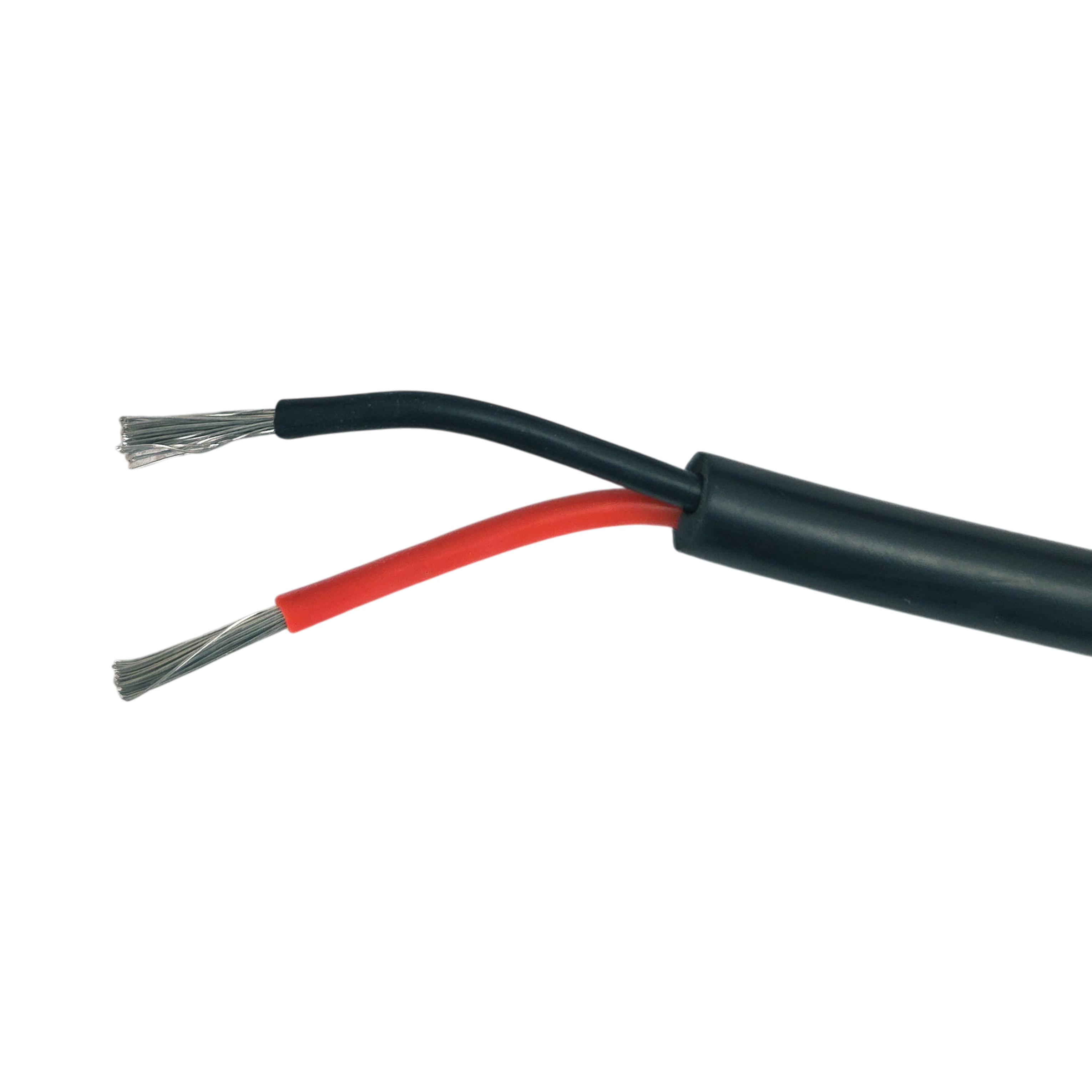

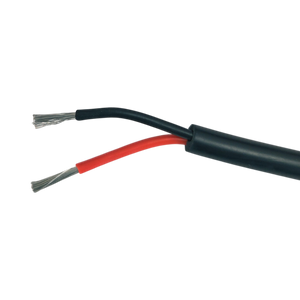

• Connection: bare-ended cable
• Markings/certifications: CE, RoHS, FCC, IP67, E9

Használati útmutató

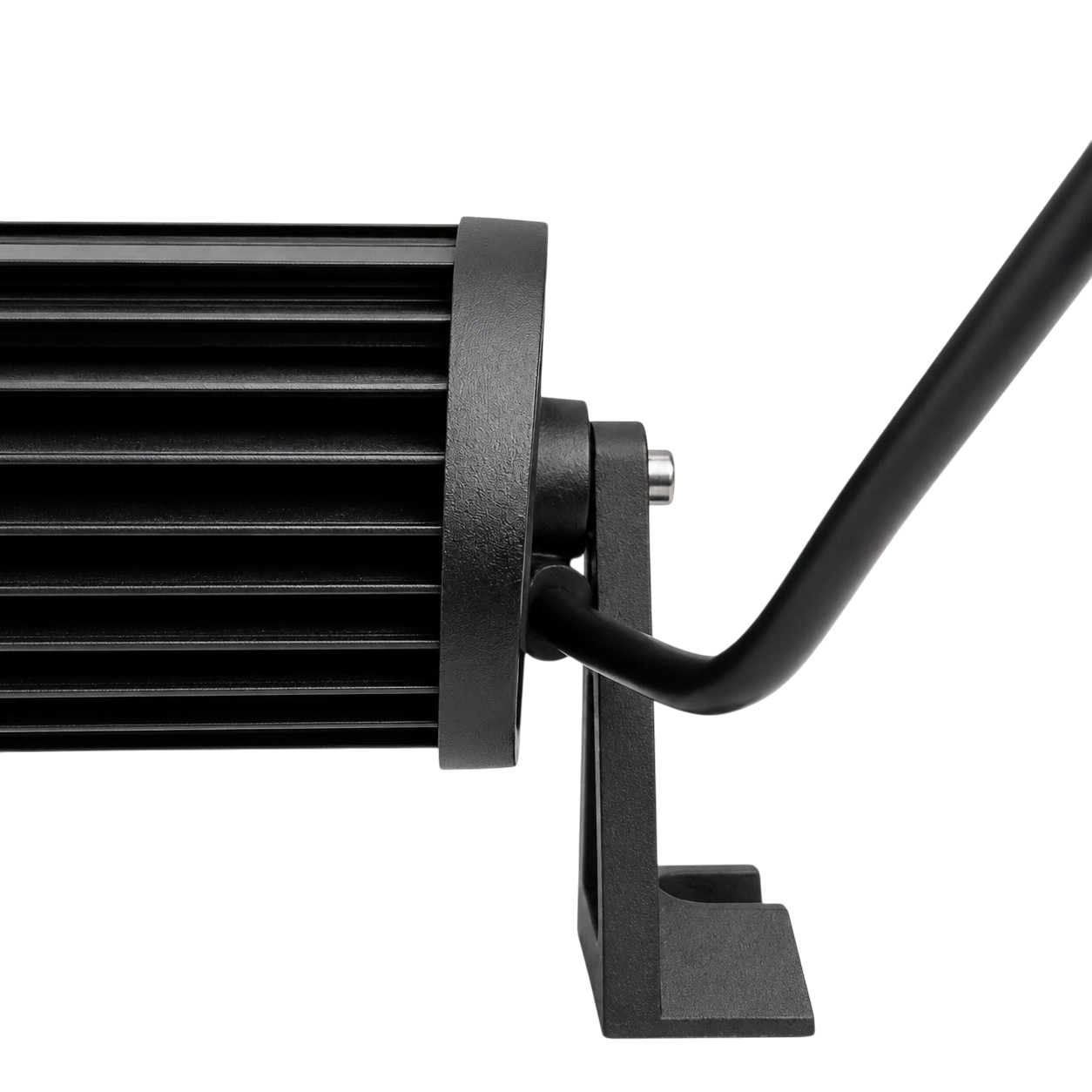

1. Secure the LED Light Bar using the supplied mounting bracket and screws.
2. Connect the 60 cm bare-ended cable to the appropriate 12 V or 24 V vehicle electrical system.
3. Before use, check that the light is securely mounted and the electrical connection is correct.

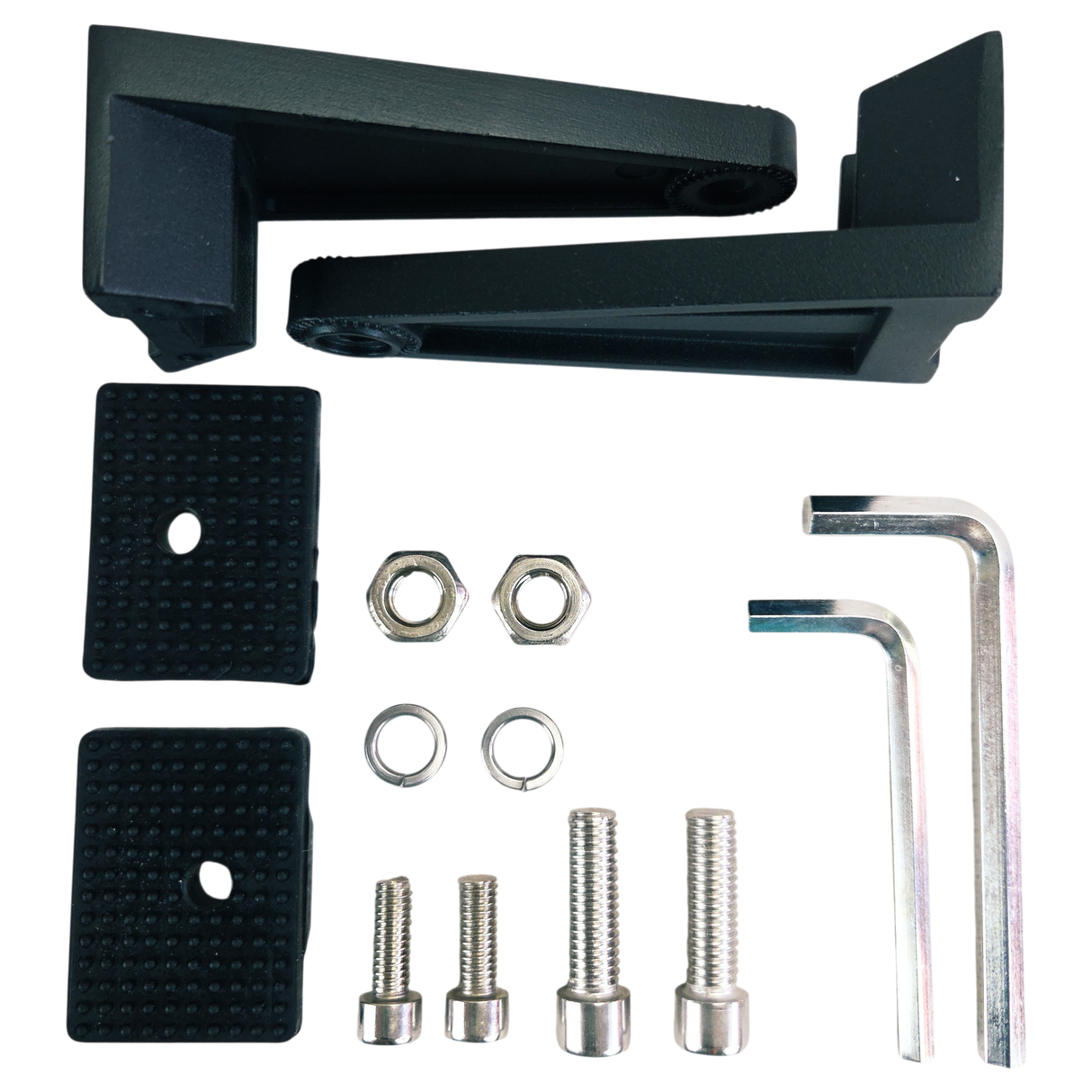

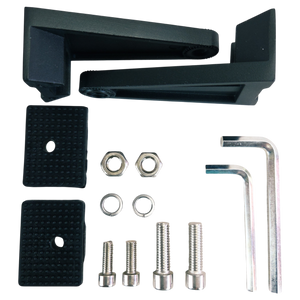

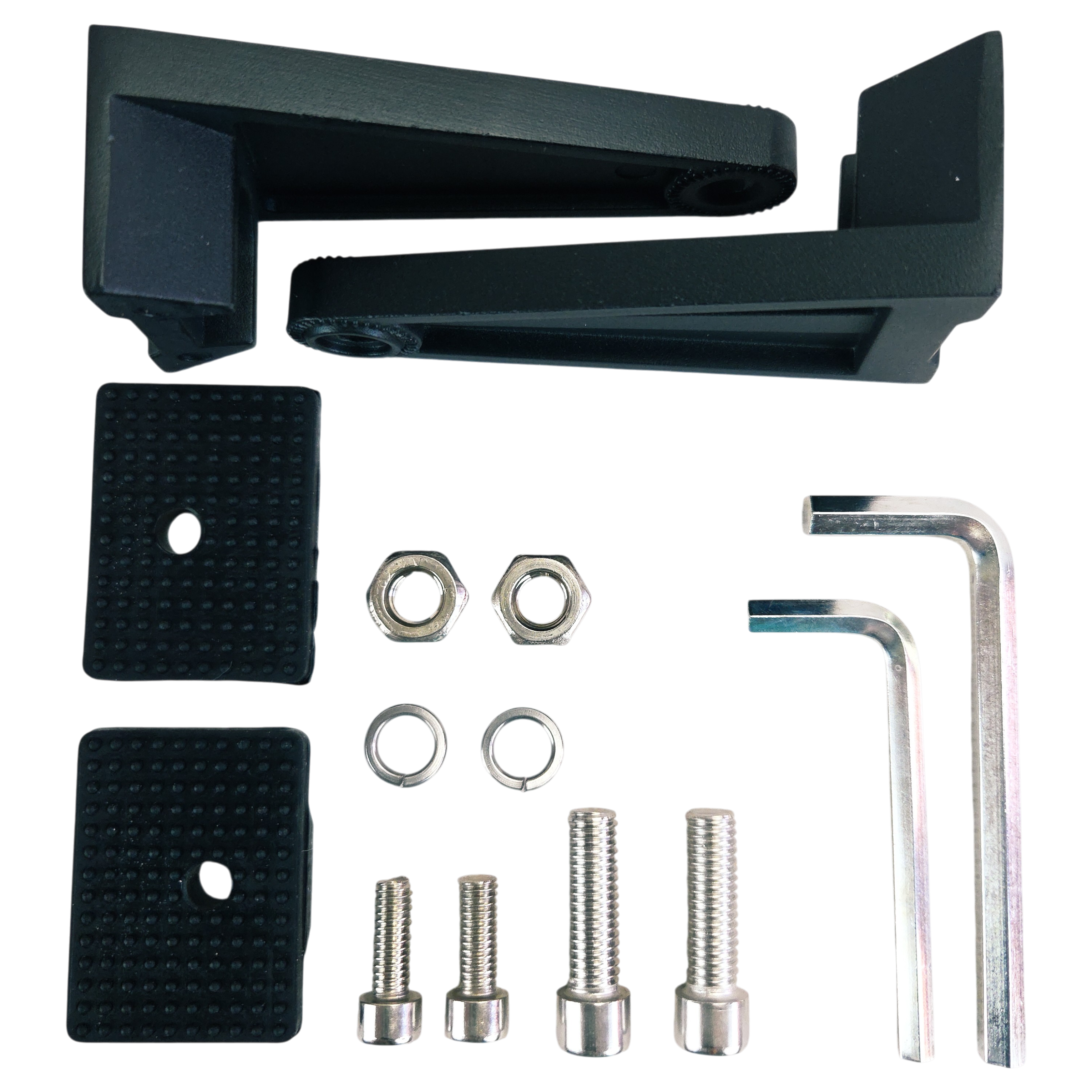

A csomag tartalma

• 1 × 120 W dual-row LED work light
• Mounting bracket
• Mounting screws

Fontos tudnivalók

• The LED Light Bar operates within a 9–32 V DC voltage range.
• Electrical connection is made using a 60 cm bare-ended cable.
• The specified operating temperature range is −40 °C to +80 °C.
• The product has an IP67 protection rating.

Choose the Truck Comfort 120 W LED Light Bar for powerful 7200 lm illumination, a combined flood and spot beam, and compatibility with 12/24 V vehicle electrical systems.
