LED Work Light with Wide Flood Beam for Tractors and Vehicles

Truck Comfort LED Work Light – Wide Flood Beam and Reliable Work Area Illumination

Get clear, powerful illumination around your vehicle when daylight is not enough. The Truck Comfort LED Work Light is designed to provide a wide flood beam, helping illuminate a broader working area around vehicles, machinery and equipment.

With four available versions, you can choose the light output that best matches your application. The range starts with a compact 1100-lumen model and extends up to a powerful 5760-lumen version, giving you practical options for different vehicles, mounting locations and lighting requirements.

Every version operates within a 9–32V DC range, making the lights suitable for both 12V and 24V electrical systems. This makes the range a practical choice for trucks, tractors, agricultural vehicles, commercial vehicles, off-road vehicles and machinery where additional work area illumination is required.

Unlike a narrow concentrated beam, the flood beam is designed to spread light across a wider area. This makes it particularly useful when you need to illuminate the space immediately around a vehicle or machine during work in dark or poorly lit conditions.

Durability is supported by an aluminium housing and polycarbonate lens. Depending on the selected version, the light is rated IP67 or IP68, providing a robust lighting solution for demanding vehicle and machinery applications.

Key Benefits

• Wide flood beam: spreads the light across a broader area, making it practical for illuminating working areas around vehicles and machinery.
• Four light output options: choose between versions delivering 1100, 2200, 3200 or 5760 lumens according to your lighting requirements.
• 12V and 24V compatible: all four versions operate within a 9–32V DC range for use with compatible 12V and 24V electrical systems.
• Robust construction: aluminium housing and a polycarbonate lens provide a durable design for vehicle and machinery applications.
• IP67 or IP68 protection: the protection rating depends on the selected version, with the 80W model featuring IP68 protection.
• Versatile work lighting: suitable for trucks, tractors, agricultural vehicles, commercial vehicles, machinery and off-road vehicles.

Applications

The Truck Comfort LED Work Light range is intended for applications where additional illumination is needed around a vehicle, machine or working area. The flood beam makes these lights particularly useful where illuminating a wider area is more important than producing a narrow, concentrated beam.

The choice of four versions also makes it easier to match the light to the intended application. A smaller model can be selected where a more compact light is required, while the higher-output versions provide substantially greater light output for applications requiring more illumination.

• Trucks: additional work area illumination around the vehicle when operating in dark or poorly lit locations.

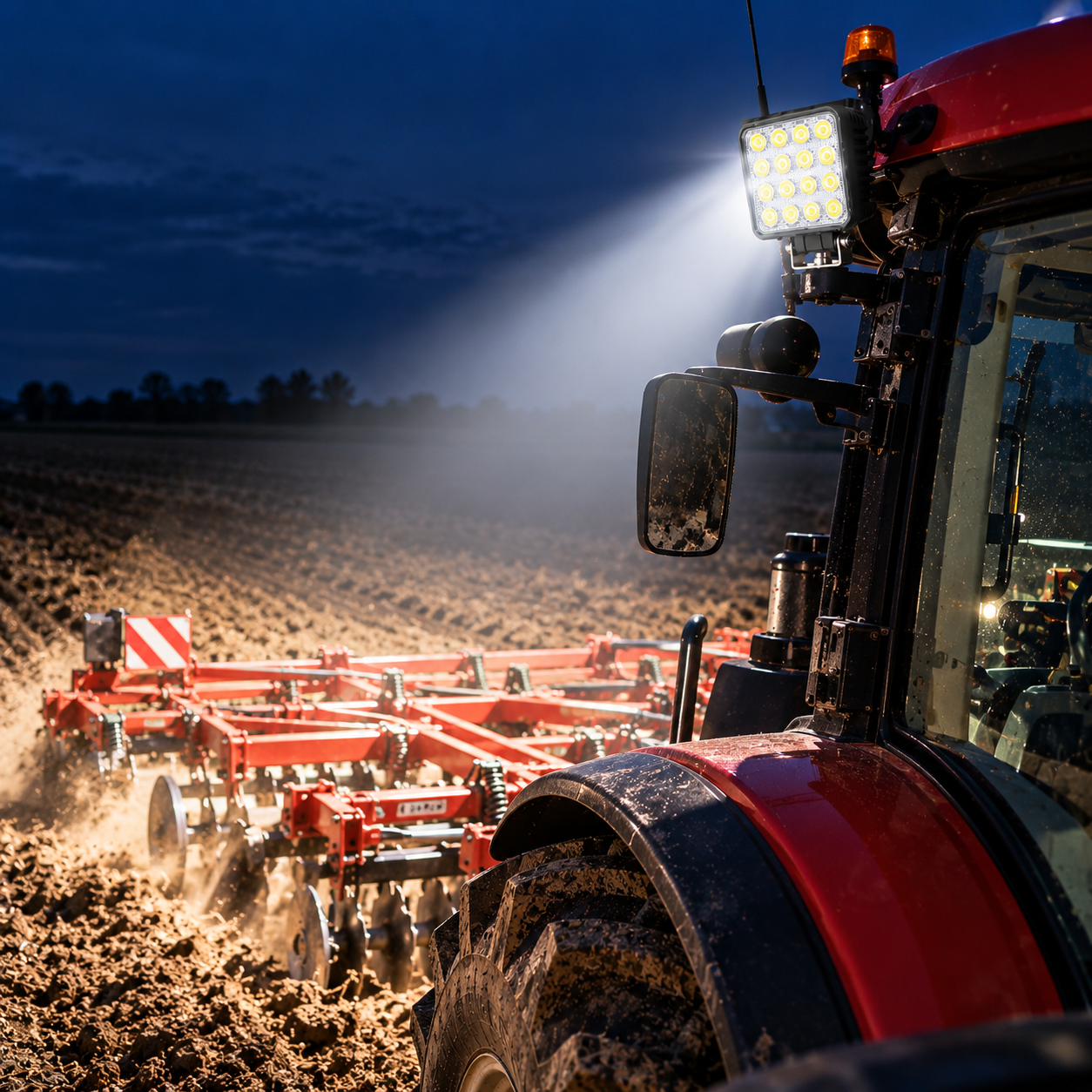

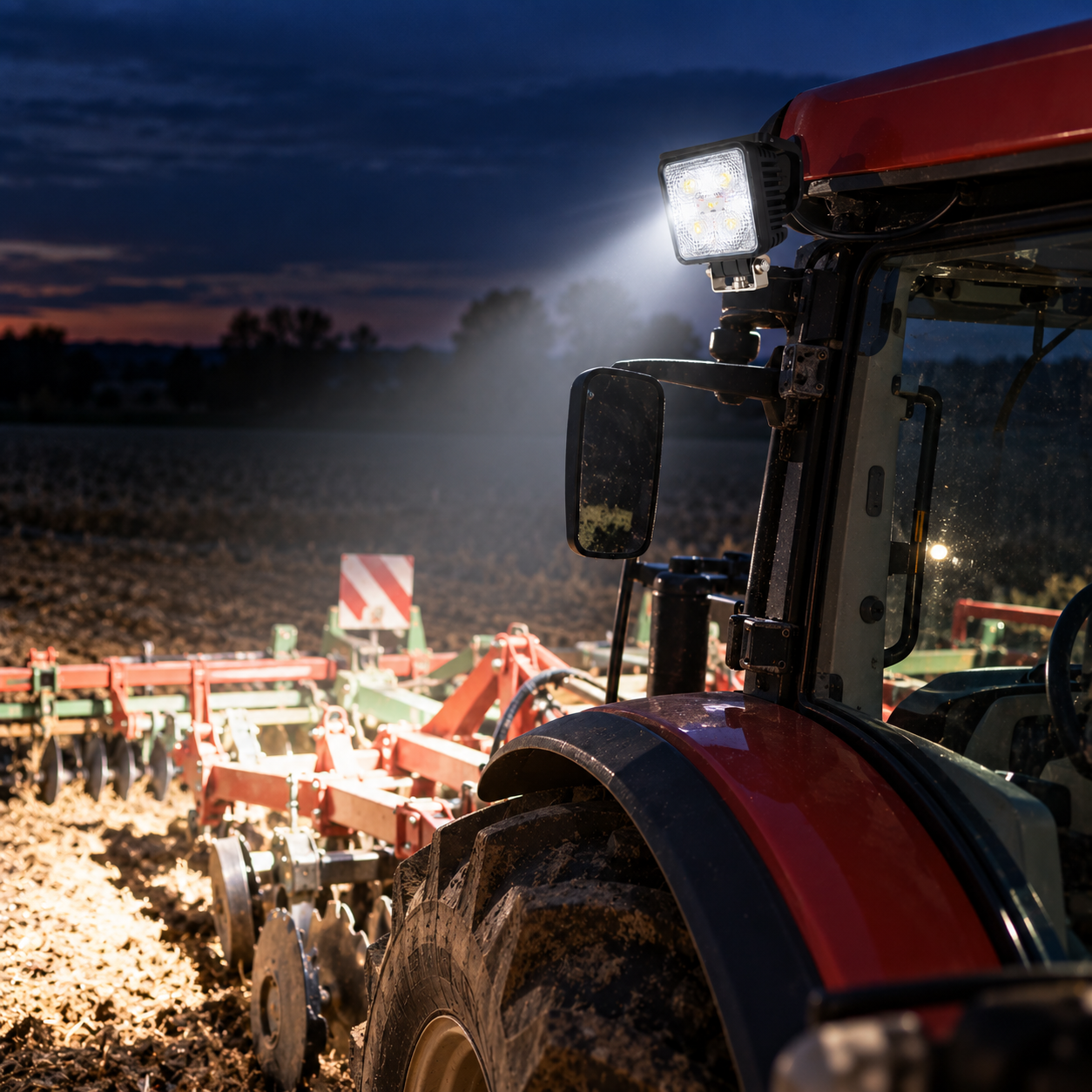

• Tractors: supplementary lighting for agricultural work where additional illumination is required.
• Agricultural vehicles: wide-area lighting for work carried out in low-light conditions.
• Commercial vehicles: additional illumination around the vehicle during work.

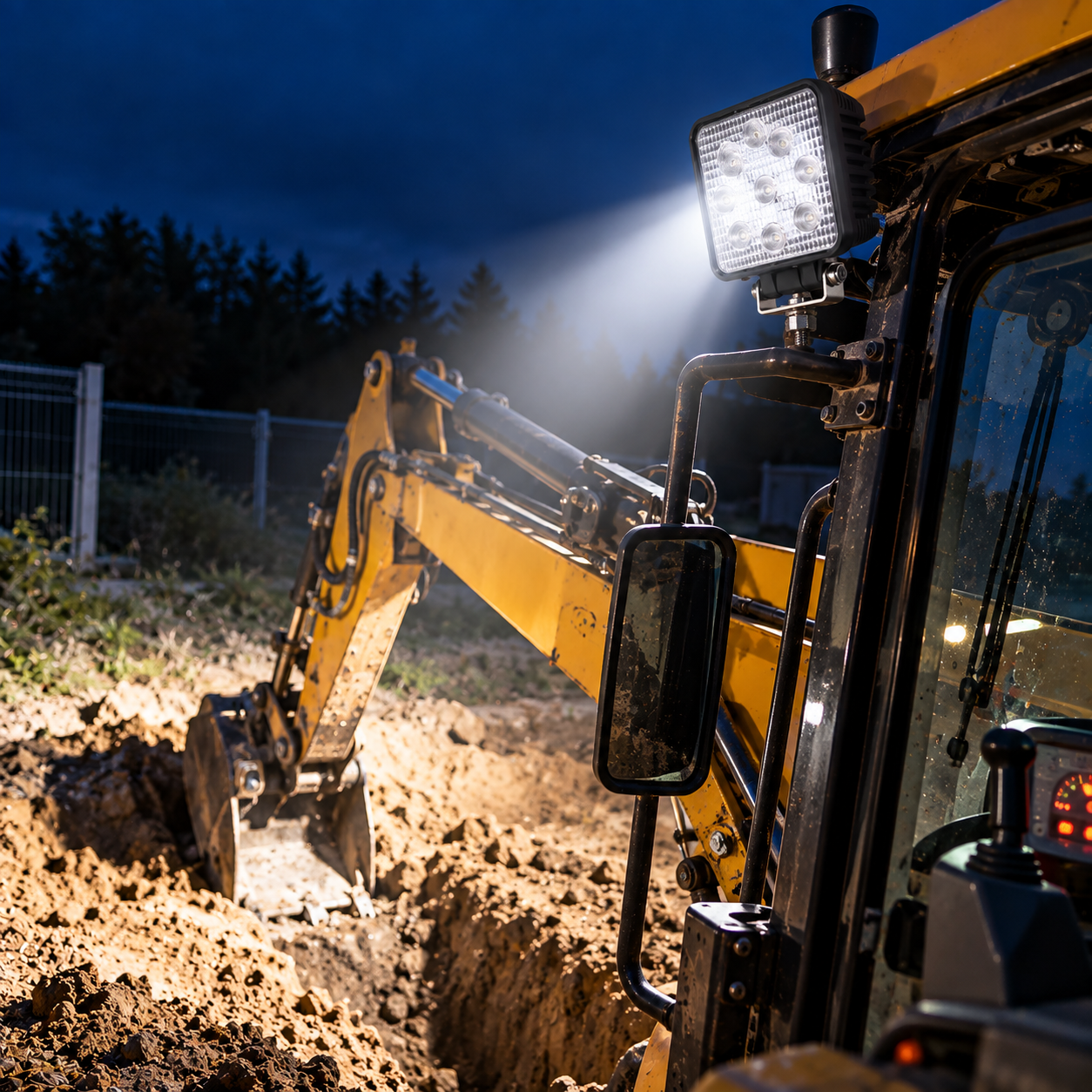

• Machinery: supplementary lighting for the immediate area around the machine.
• Off-road vehicles: additional work lighting for compatible 12V or 24V electrical systems.

Technical Specifications

• Brand: Truck Comfort
• Product type: LED work light
• Available versions: 15W, 27W, 48W and 80W
• Operating voltage: 9–32V DC
• Nominal application: 12V / 24V

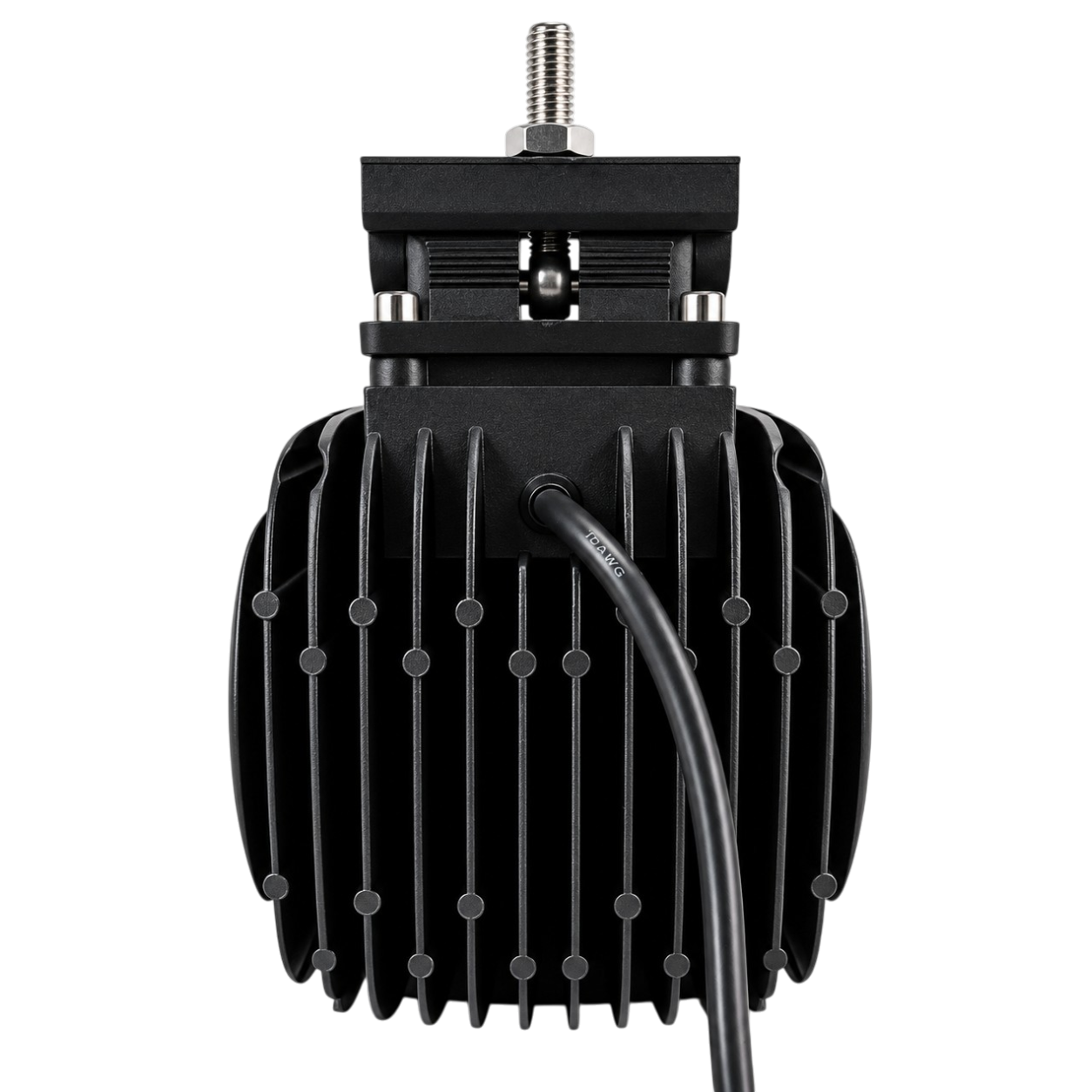

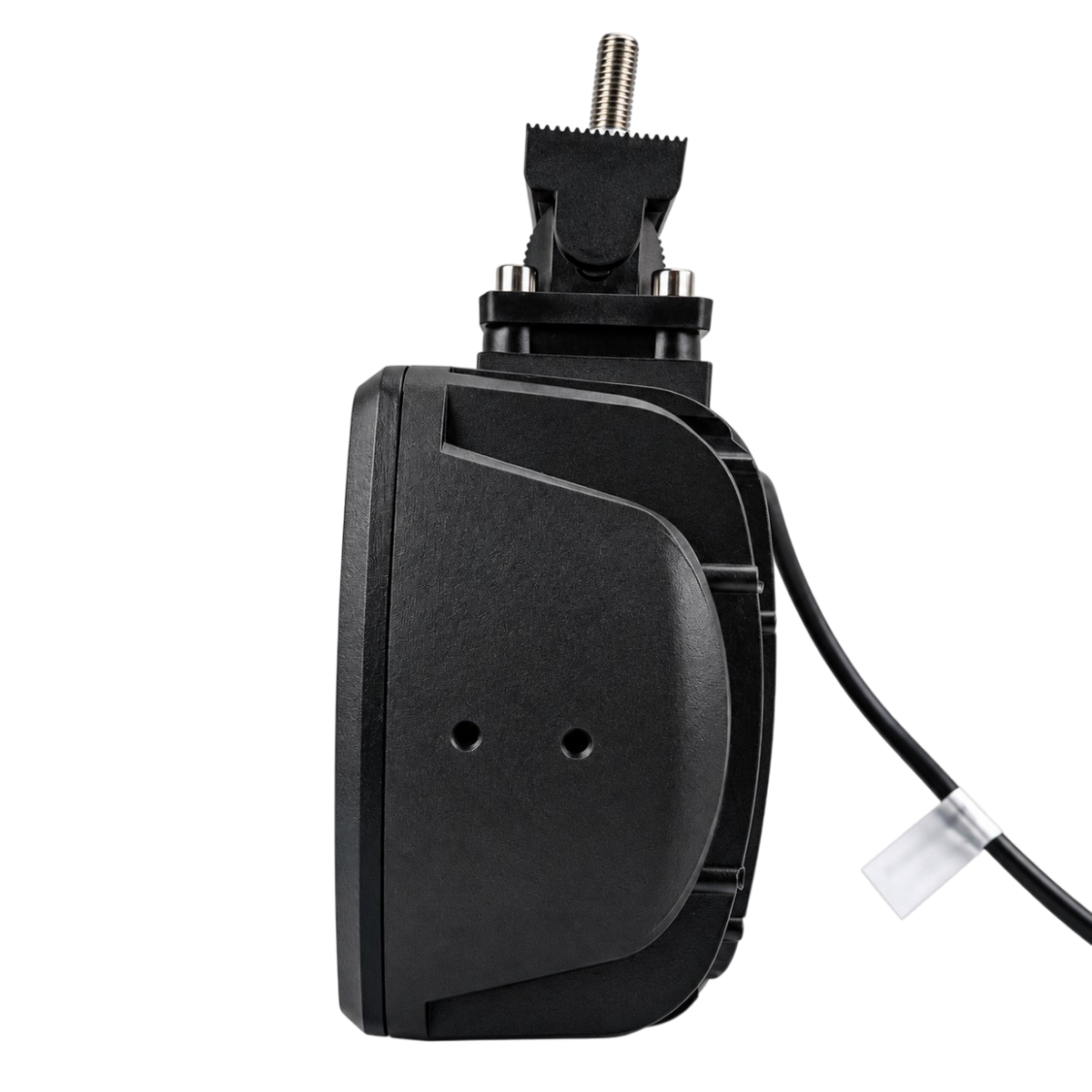

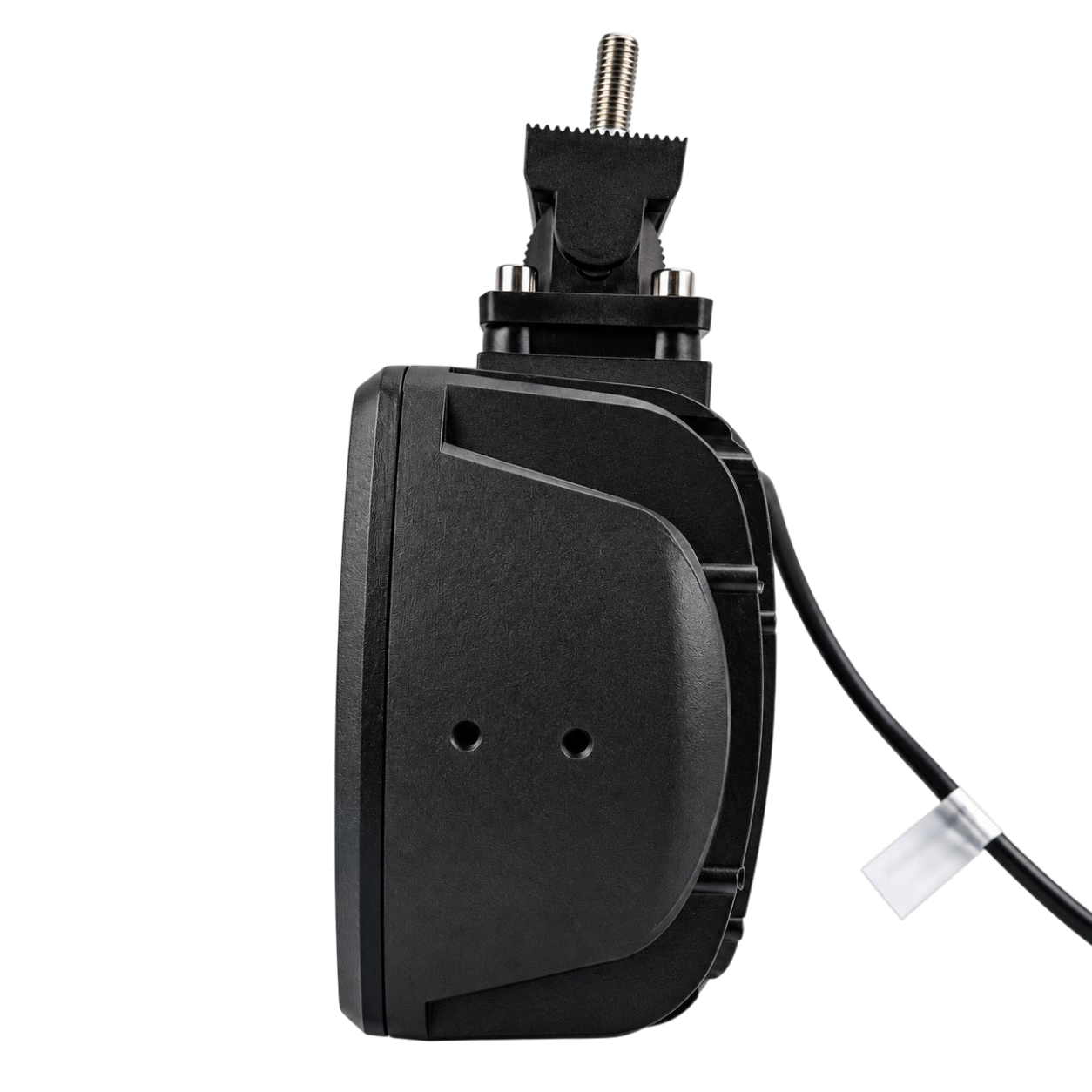

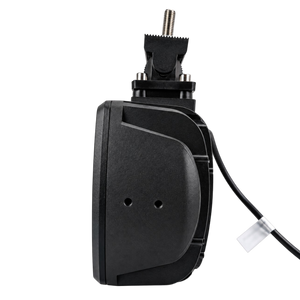

• Housing material: aluminium
• Lens material: polycarbonate
• Cable length: 40 cm

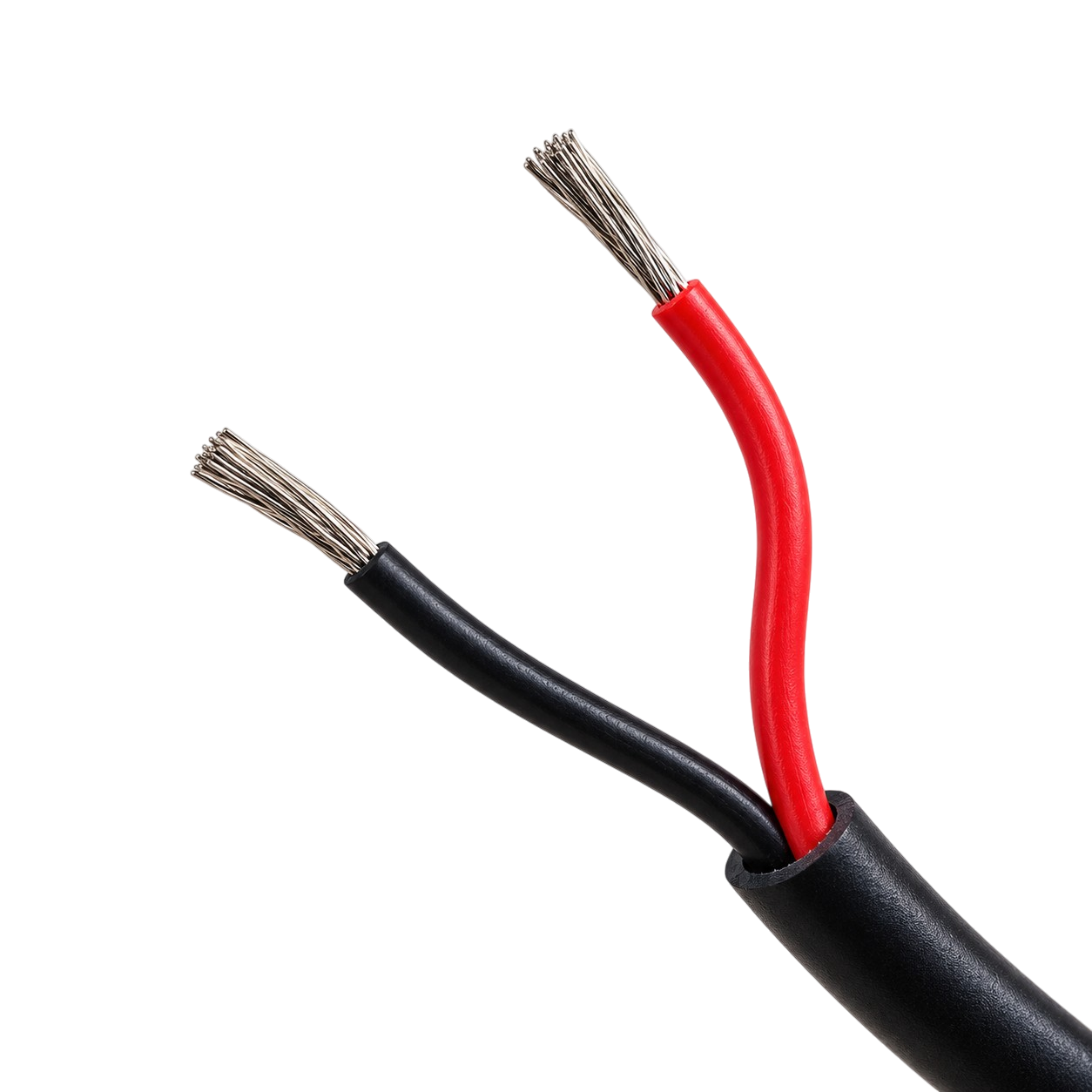

• Connection: bare wire ends

15W Version

• Power: 15W
• LED configuration: 5 × 3W LED
• Light output: 1100 lumens
• Beam type: flood beam
• Protection rating: IP67
• Dimensions: 110 × 51 × 135 mm
• Mounting hardware material: stainless steel
• Marking: E-mark
• Cable length: 40 cm

27W Version

• Power: 27W
• LED configuration: 9 × 3W LED
• Light output: 2200 lumens
• Colour temperature: 6000–6500 K
• Beam type: flood beam
• Protection rating: IP67
• Dimensions: 110 × 62 × 135 mm
• Operating temperature: -40°C to +80°C
• Cable length: 40 cm
• Listed markings and certifications: CE, RoHS, FCC, E9

48W Version

• Power: 48W
• LED configuration: 16 × 3W LED
• Light output: 3200 lumens
• Colour temperature: 6000–6500 K
• Protection rating: IP67
• Dimensions: 110 × 110 × 72 mm
• Operating temperature: -40°C to +80°C
• Cable length: 40 cm
• Listed markings and certifications: CE, RoHS, FCC, E9

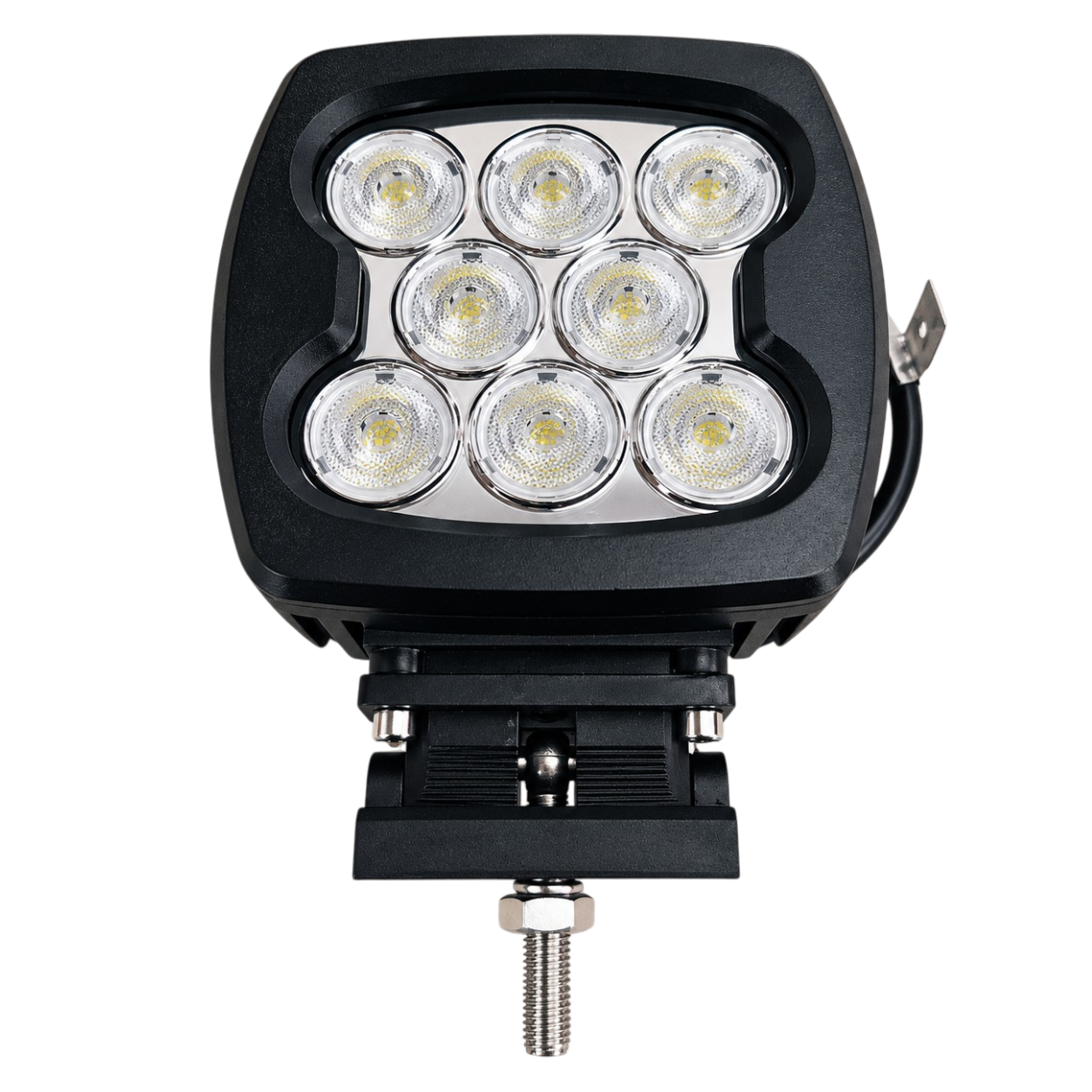

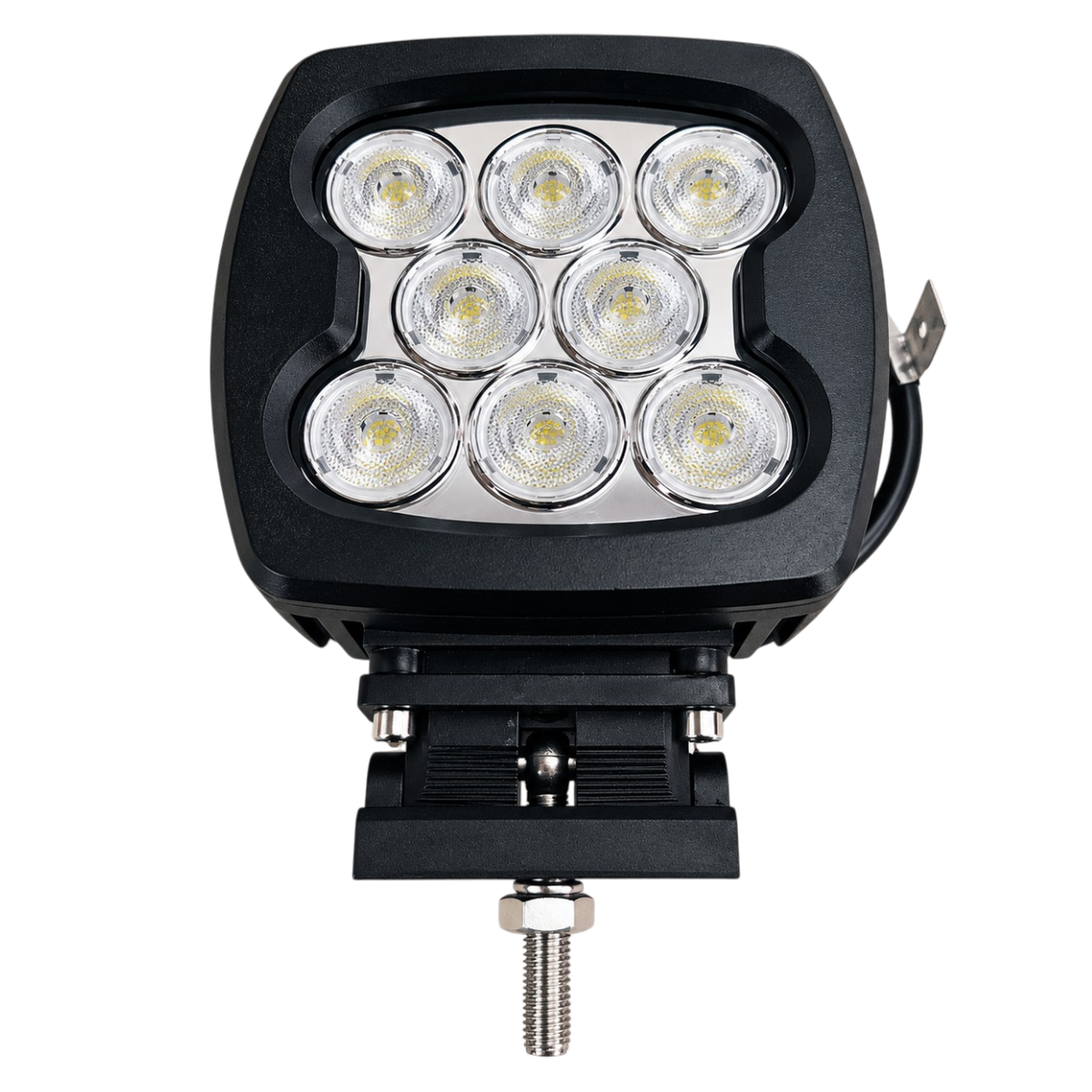

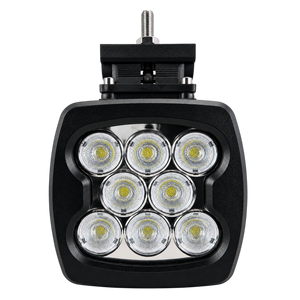

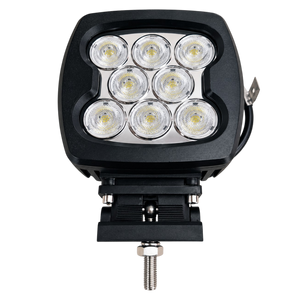

80W Version

• Power: 80W

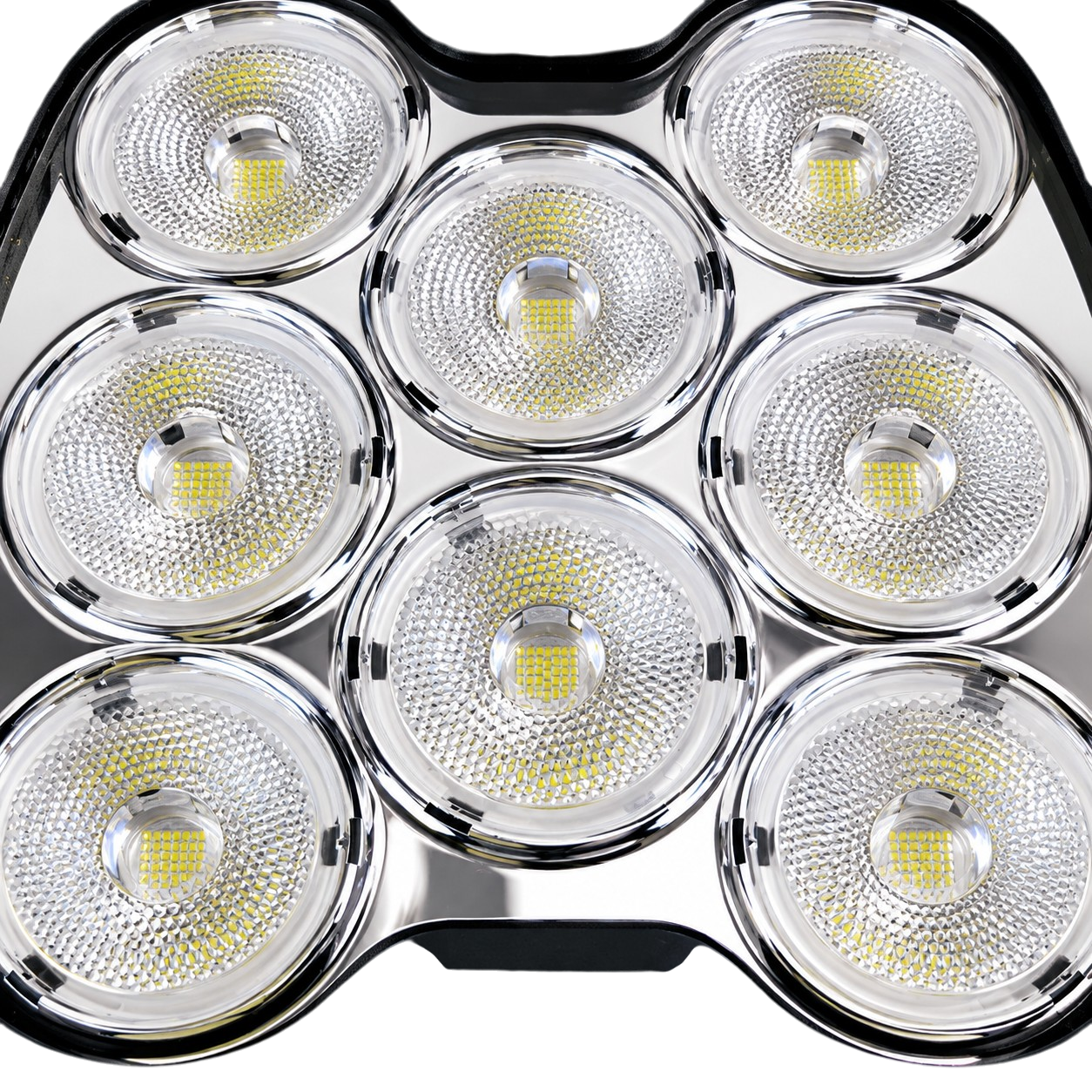

• LED configuration: 8 × 10W CREE LED
• Light output: 5760 lumens
• Colour temperature: 6000 K
• Beam type: flood beam
• Protection rating: IP68
• Dimensions: 140 × 140 × 91 mm
• Operating temperature: -45°C to +60°C
• Cable length: 40 cm
• Stated service life: more than 50,000 hours
• Listed certifications: CE, EMC, FCC, RoHS

Choosing the Right Version

Choose the model according to the amount of illumination required and the available mounting space. The four versions differ in dimensions, LED configuration, light output and protection rating.

• 1100 lumen version: the lowest-output option in the range, with a 15W rating and 5 × 3W LED configuration.
• 2200 lumen version: a 27W model with 9 × 3W LEDs and 6000–6500 K colour temperature.
• 3200 lumen version: a 48W model with 16 × 3W LEDs and 6000–6500 K colour temperature.

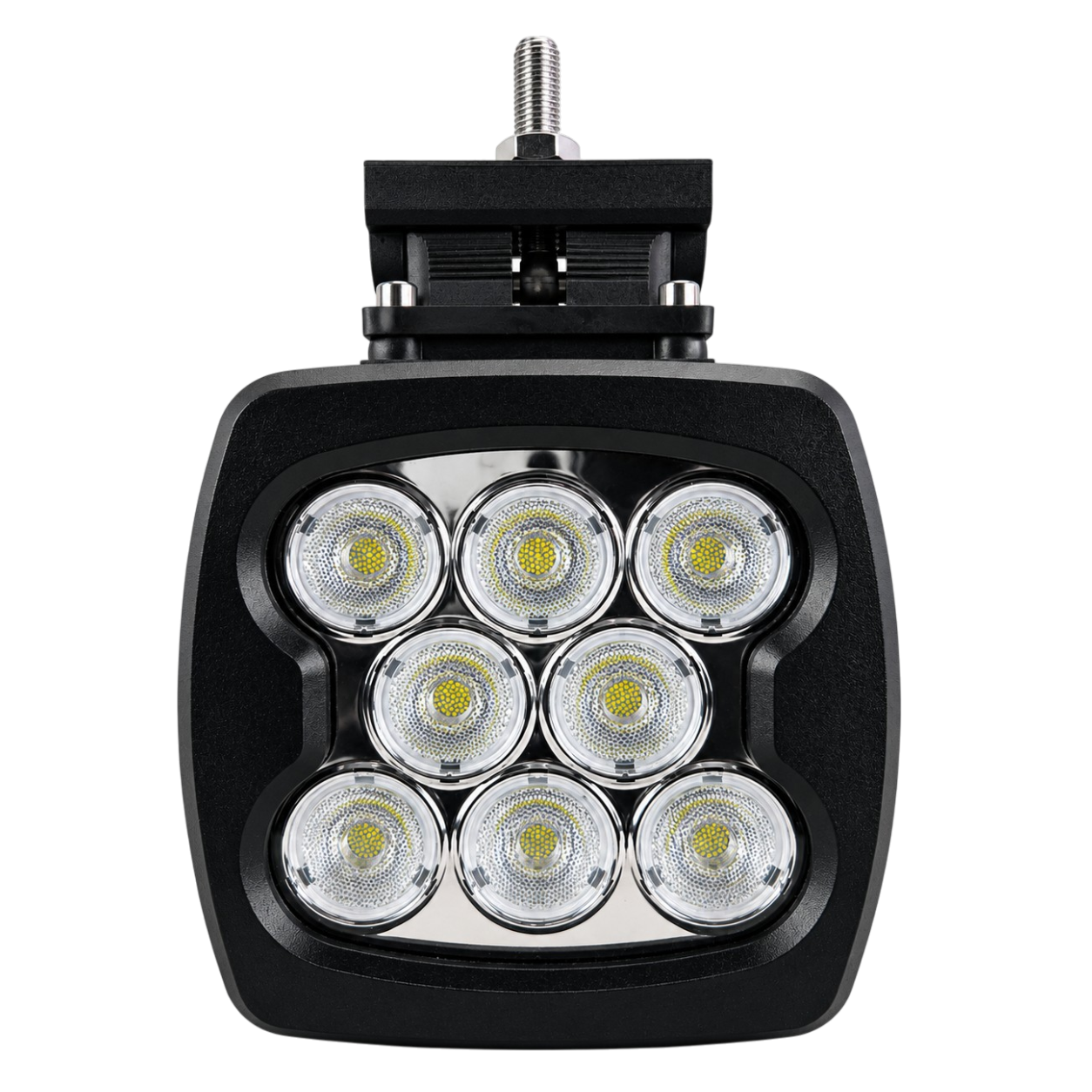

• 5760 lumen version: the highest-output option in the range, featuring 8 × 10W CREE LEDs, 6000 K colour temperature and IP68 protection.

Because the dimensions also vary between models, check both the required light output and the available installation space before choosing your LED work light.

How to Use

1. Select the required version according to your lighting needs and available installation space.
2. Check that the vehicle or machine electrical system is compatible with the 9–32V DC operating range.
3. Choose a suitable mounting location where the work light can illuminate the required area.

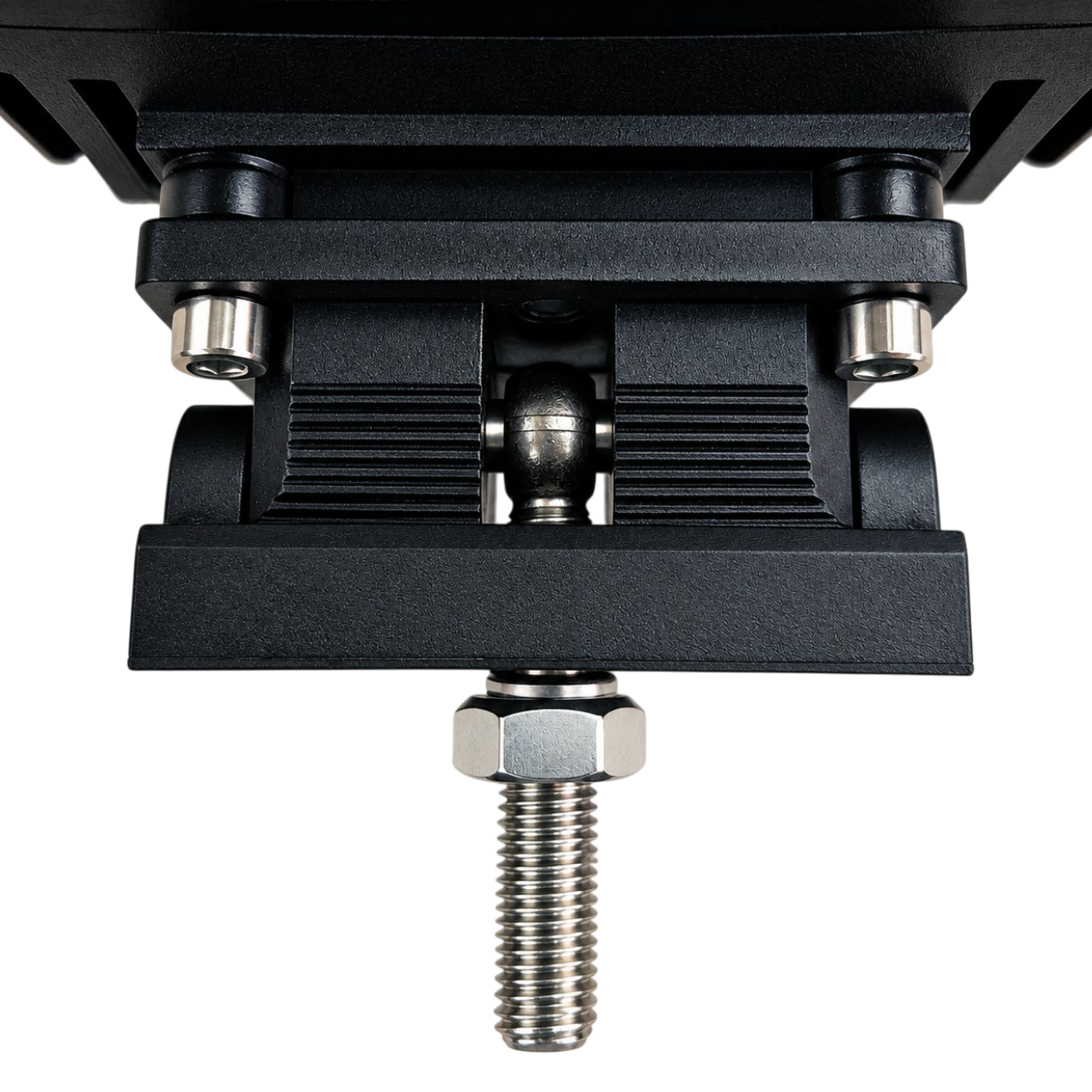

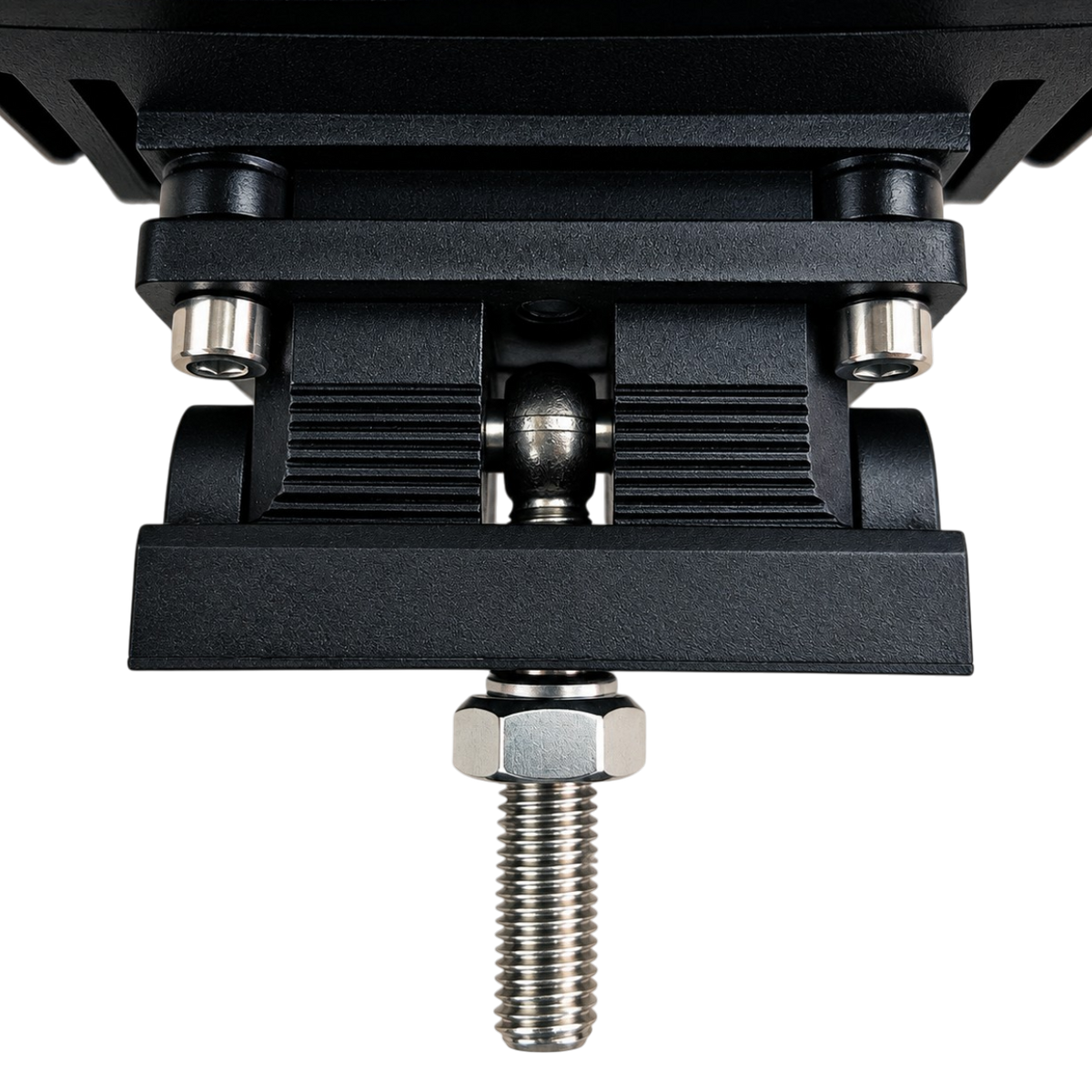

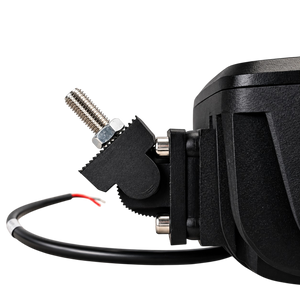

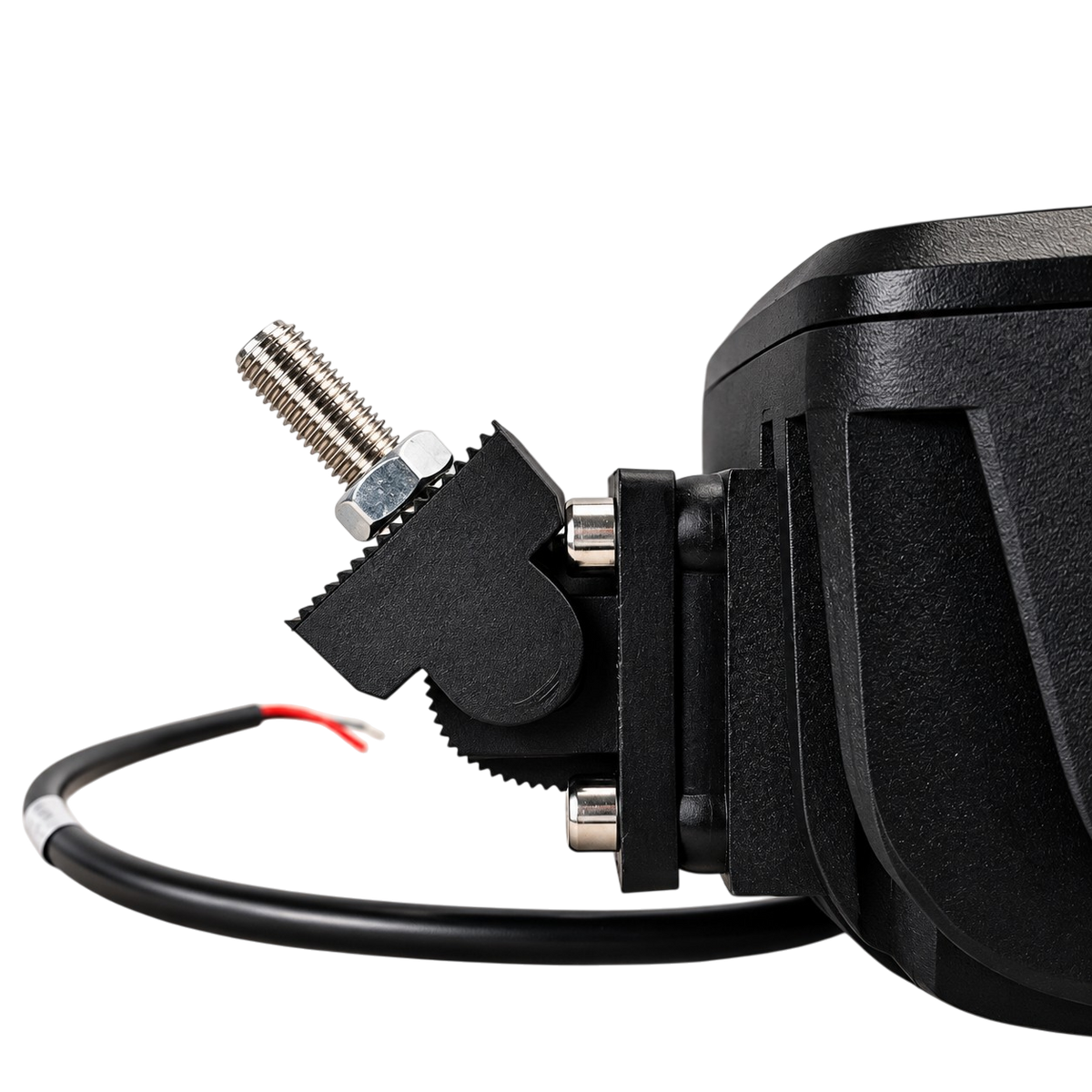

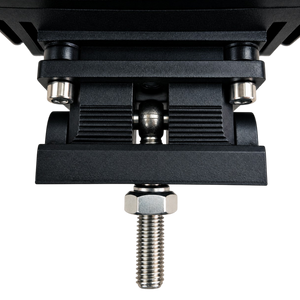

4. Secure the light using the supplied mounting bracket and appropriate fixing hardware.
5. Adjust the position of the light so that the flood beam is directed towards the required working area.
6. Connect the 40 cm cable with bare wire ends to the appropriate electrical system.
7. Check the installation and make sure the light is securely mounted before use.
8. After connection, check that the LED work light operates correctly and illuminates the intended area.

Package Contents

• 1 × Truck Comfort LED Work Light in the selected version

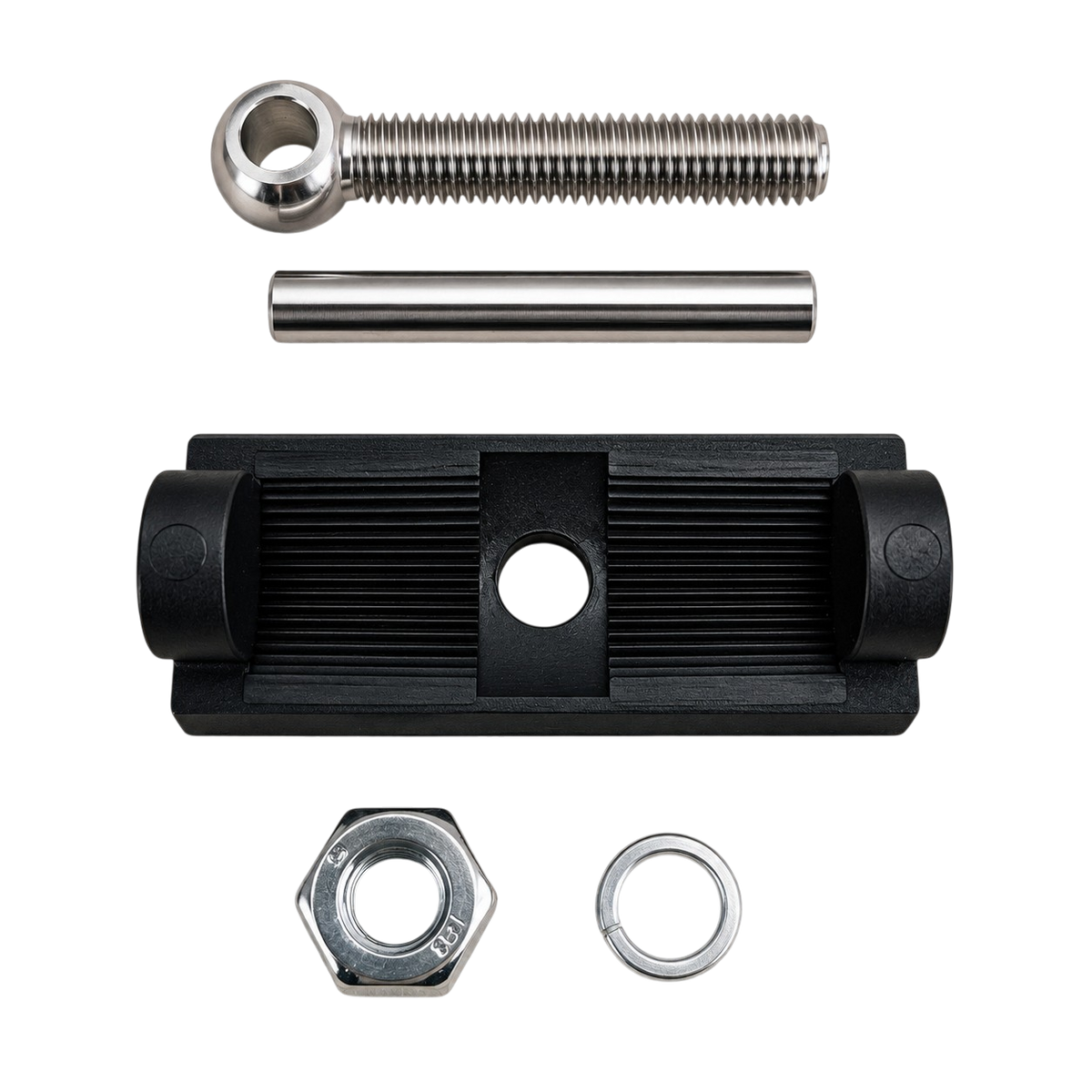

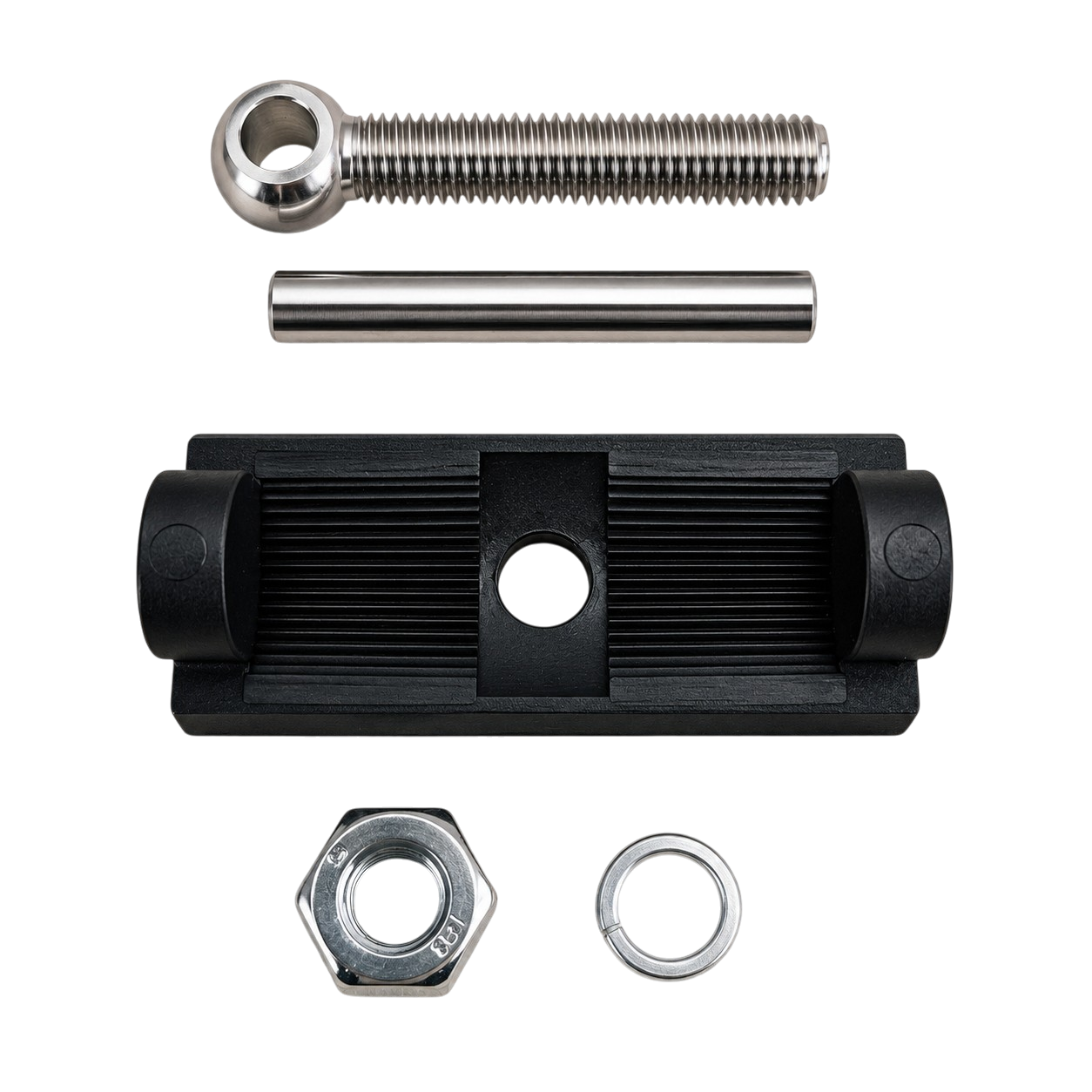

• 1 × mounting bracket
• Mounting hardware supplied with the selected model

Important Information

The four available models belong to the same LED work light range but do not have identical specifications. Power, light output, LED configuration, dimensions, colour temperature, protection rating, operating temperature and listed certifications or markings vary between versions.

The 15W version delivers 1100 lumens, the 27W version delivers 2200 lumens, the 48W version delivers 3200 lumens and the 80W version delivers 5760 lumens. Check the specifications of the selected model before ordering to ensure that its characteristics match your requirements.

The 15W, 27W and 48W versions are rated IP67, while the 80W version is rated IP68. The certifications and markings shown for each model also differ, so the specifications of one version should not be assumed to apply to the other versions.

All four versions have a 9–32V DC operating range and are intended for compatible 12V and 24V electrical systems. Installation should be carried out with attention to the electrical requirements and the supplied bare-wire connection.

Bring clear, wide-area illumination to the places where you actually need to work. Choose the Truck Comfort LED Work Light that matches your required light output and installation space, and add practical flood-beam illumination to your truck, tractor, commercial vehicle or machinery.
