Refractometer for Antifreeze, Battery Fluid, Screenwash and AdBlue

ATC Refractometer 4 in 1 for Fast Fluid Testing and Easy Readings

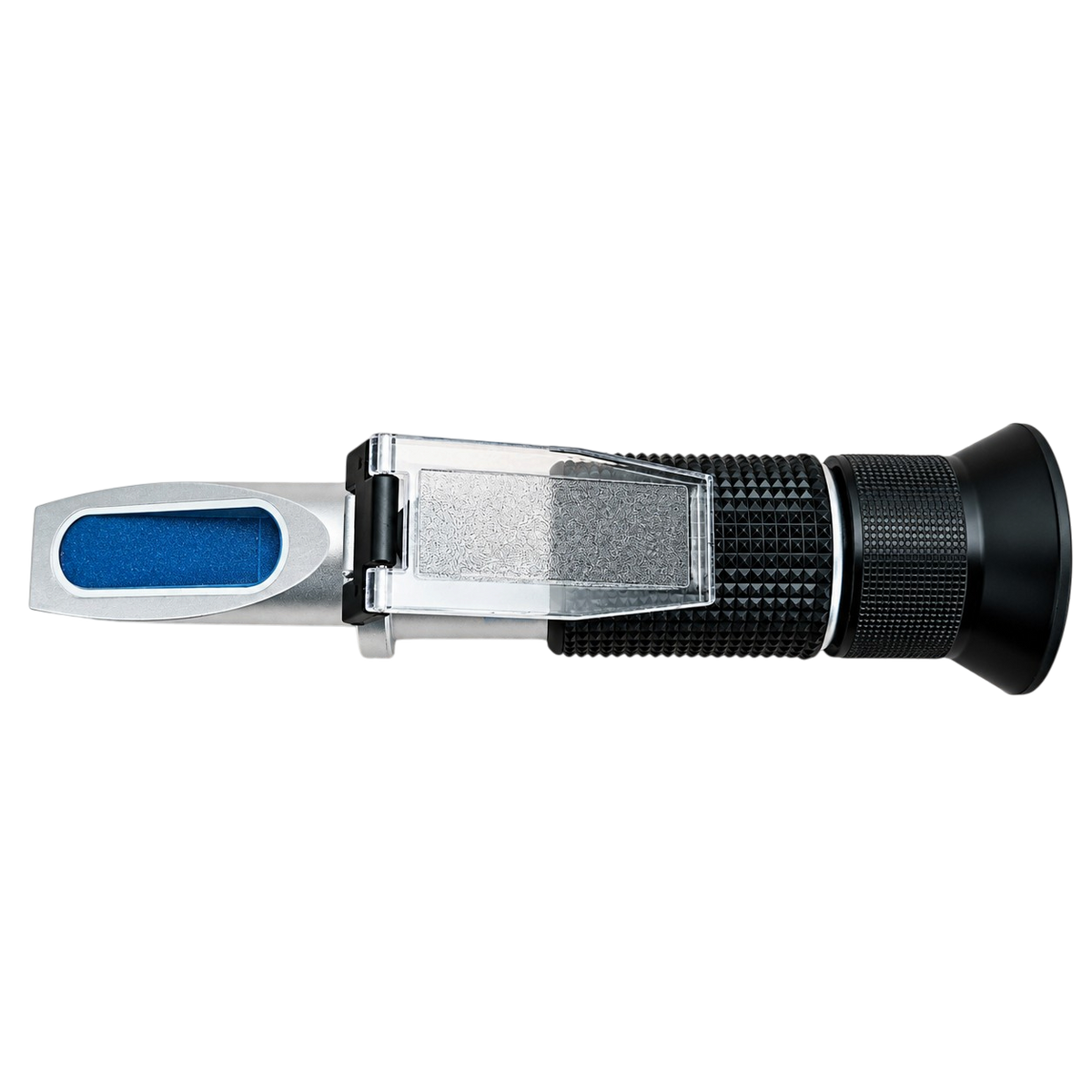

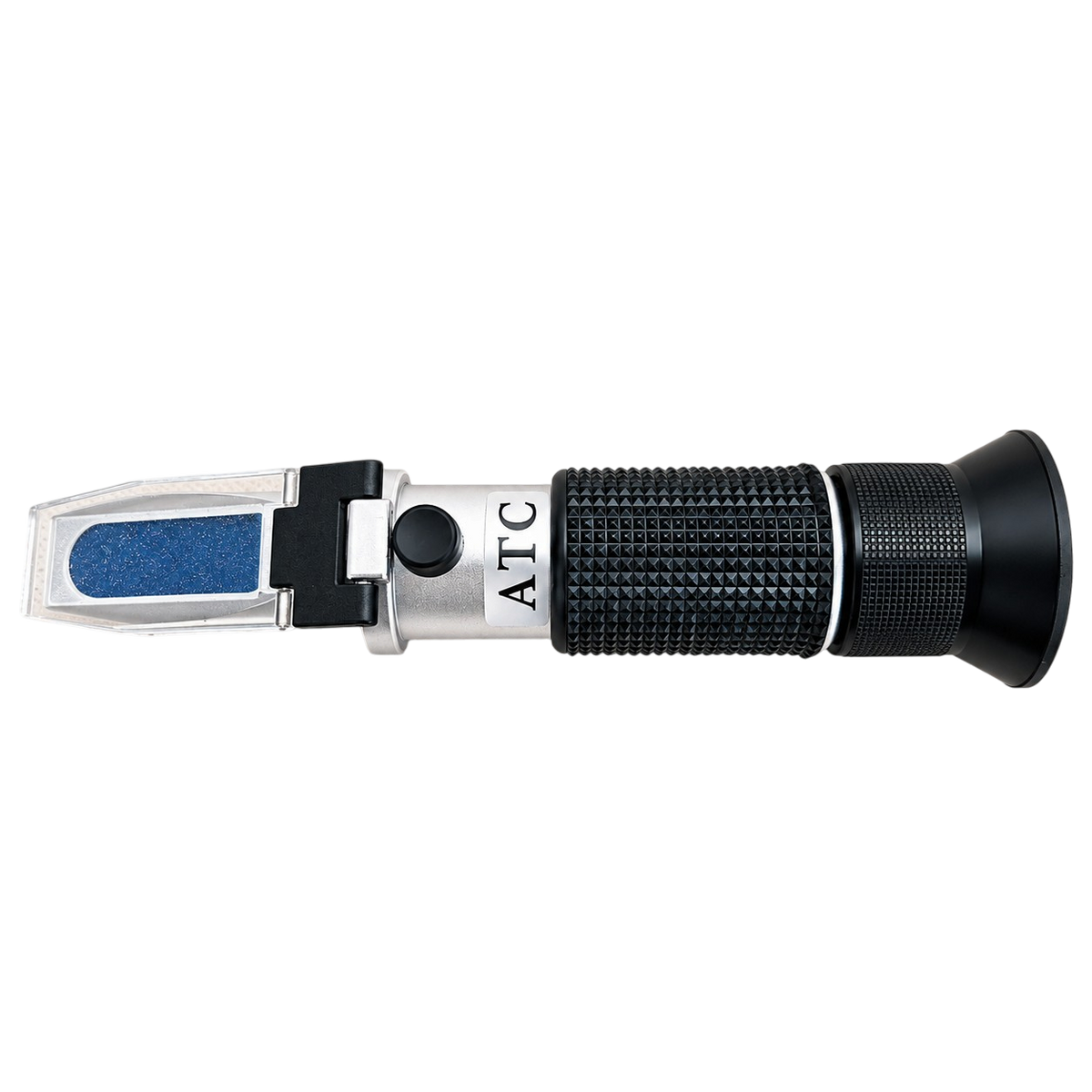

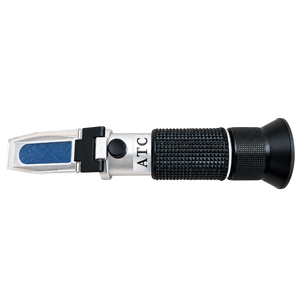

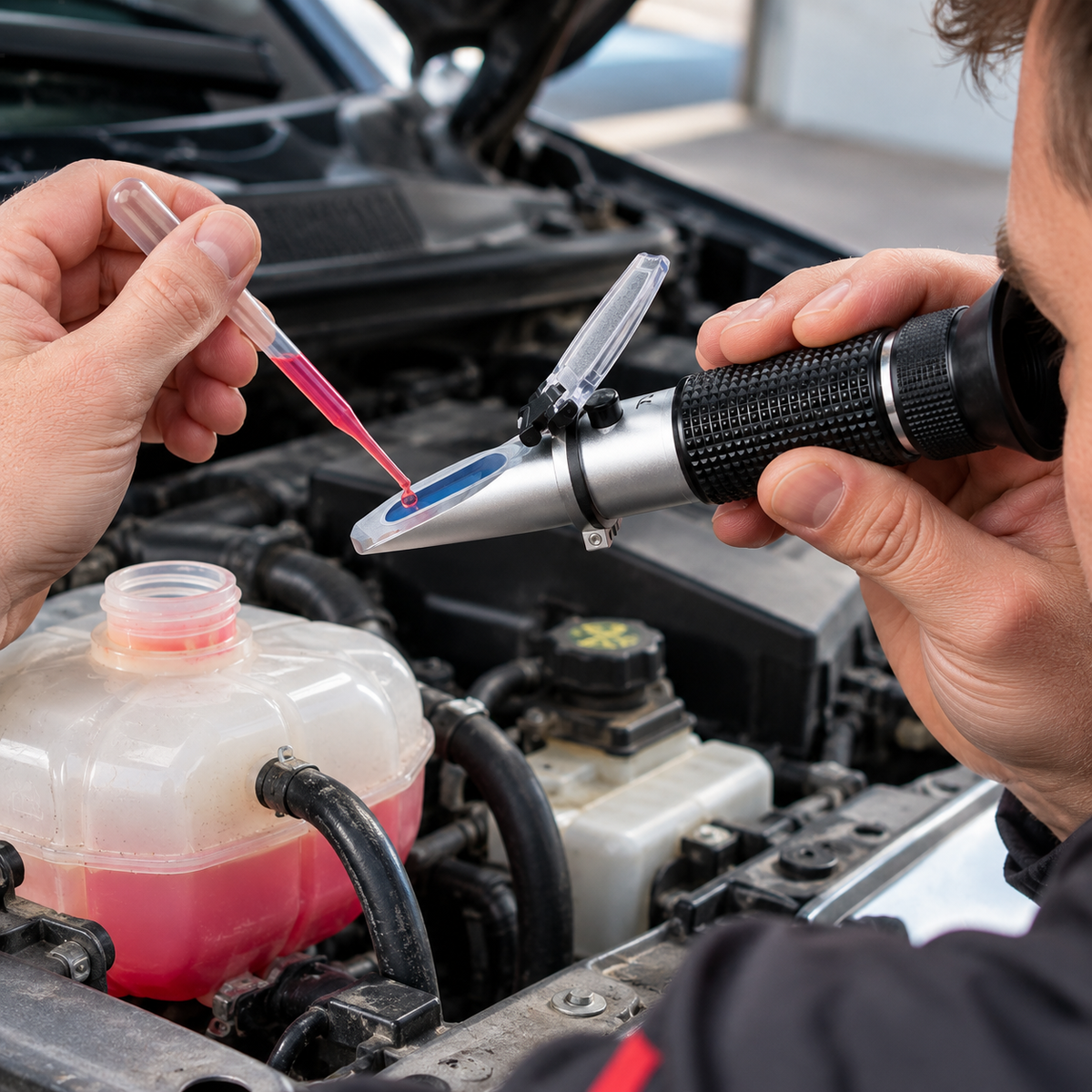

Check four important vehicle fluids with one compact optical instrument. This Refractometer is designed for testing antifreeze coolant, screenwash, battery fluid and AdBlue, making it a practical addition to vehicle maintenance equipment.

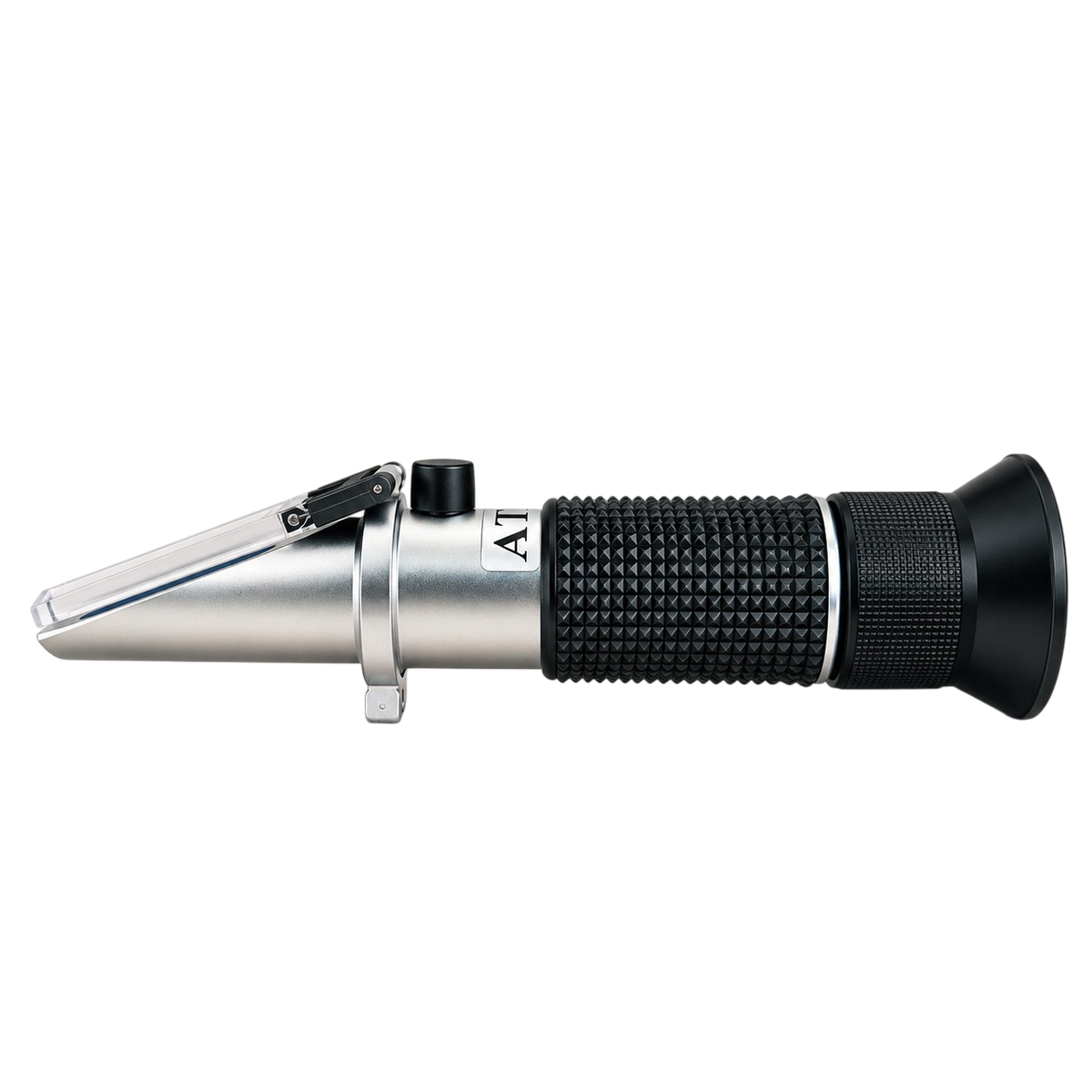

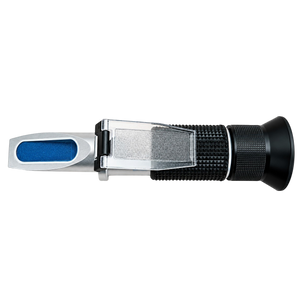

Separate scales allow you to read the relevant value for each supported fluid, while the adjustable eyepiece helps bring the scale into clear focus. At just 16 cm long and 92 g, the instrument is compact, lightweight and supplied with useful accessories for testing and storage.

Key Benefits

• 4 in 1 testing: suitable for checking antifreeze coolant, screenwash, battery fluid and AdBlue with one instrument.
• Quick testing from a small sample: only 2–3 drops of the fluid are required on the main prism.
• Dedicated measurement scales: different scales allow the relevant results to be read directly through the eyepiece.

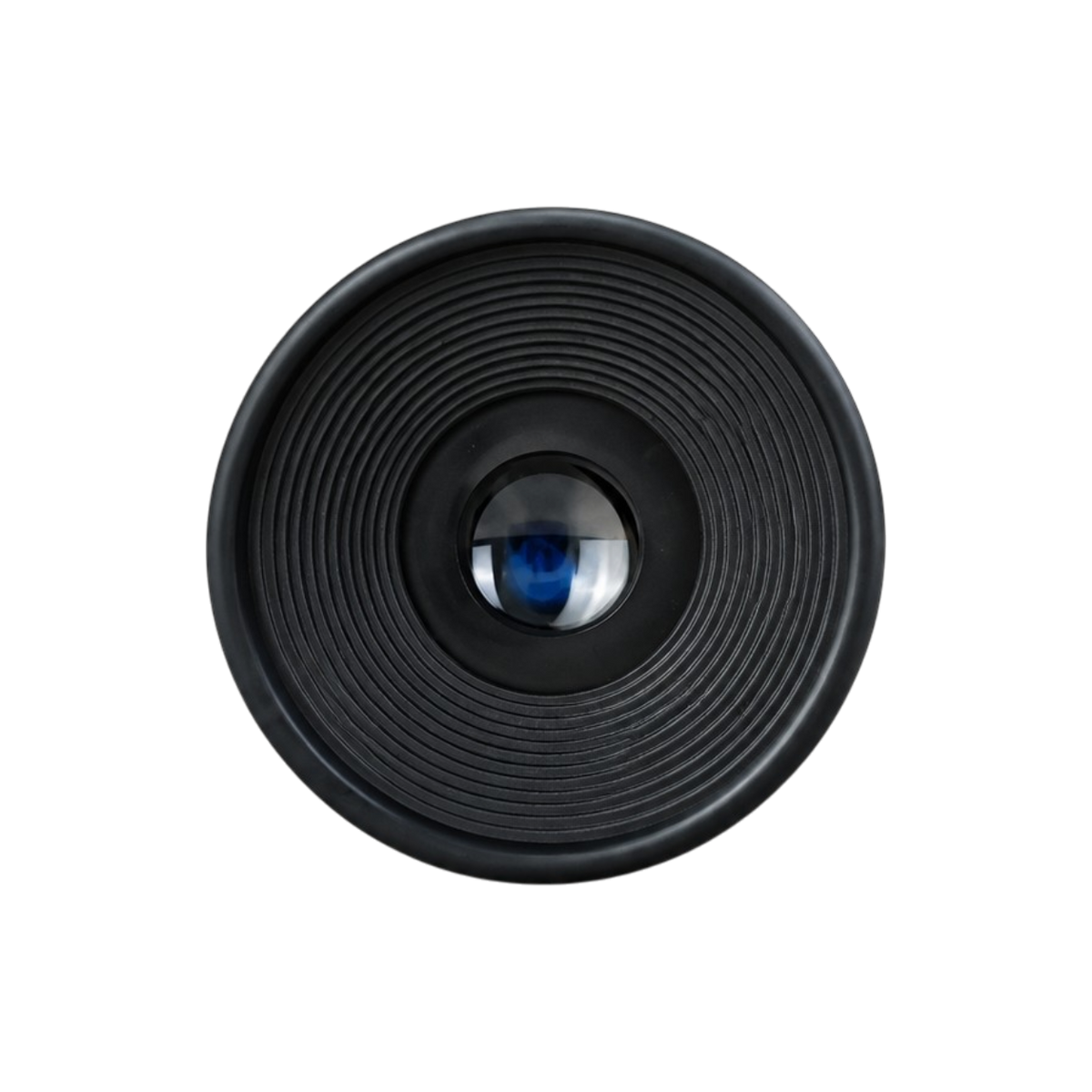

• Adjustable focus: the eyepiece can be adjusted to provide a clear view of the measurement scale.
• Compact and lightweight: the 16 cm instrument weighs only 92 g for convenient handling and storage.
• Complete practical set: supplied with a pipette, calibration screwdriver, cleaning cloth and protective plastic storage case.

Applications

• Antifreeze coolant: for checking the freezing point of propylene glycol and ethylene glycol based antifreeze fluids.
• Screenwash: for checking the freezing point of ethanol/water and isopropanol/water based screenwash mixtures.
• Battery fluid: for checking battery fluid using the kg/l scale.
• AdBlue: for checking AdBlue concentration, with the nominal 32.5% value indicated on the scale.
• Vehicle maintenance: suitable for supported fluid checks in cars, trucks, lorries and other commercial vehicles.

Technical Specifications

• Brand: ATC
• Product type: handheld optical refractometer
• Design: 4 in 1
• Antifreeze: propylene glycol and ethylene glycol based fluids
• Screenwash: ethanol/water and isopropanol/water based mixtures
• Battery fluid scale: kg/l
• AdBlue: concentration check
• Displayed units: kg/l, °C and %

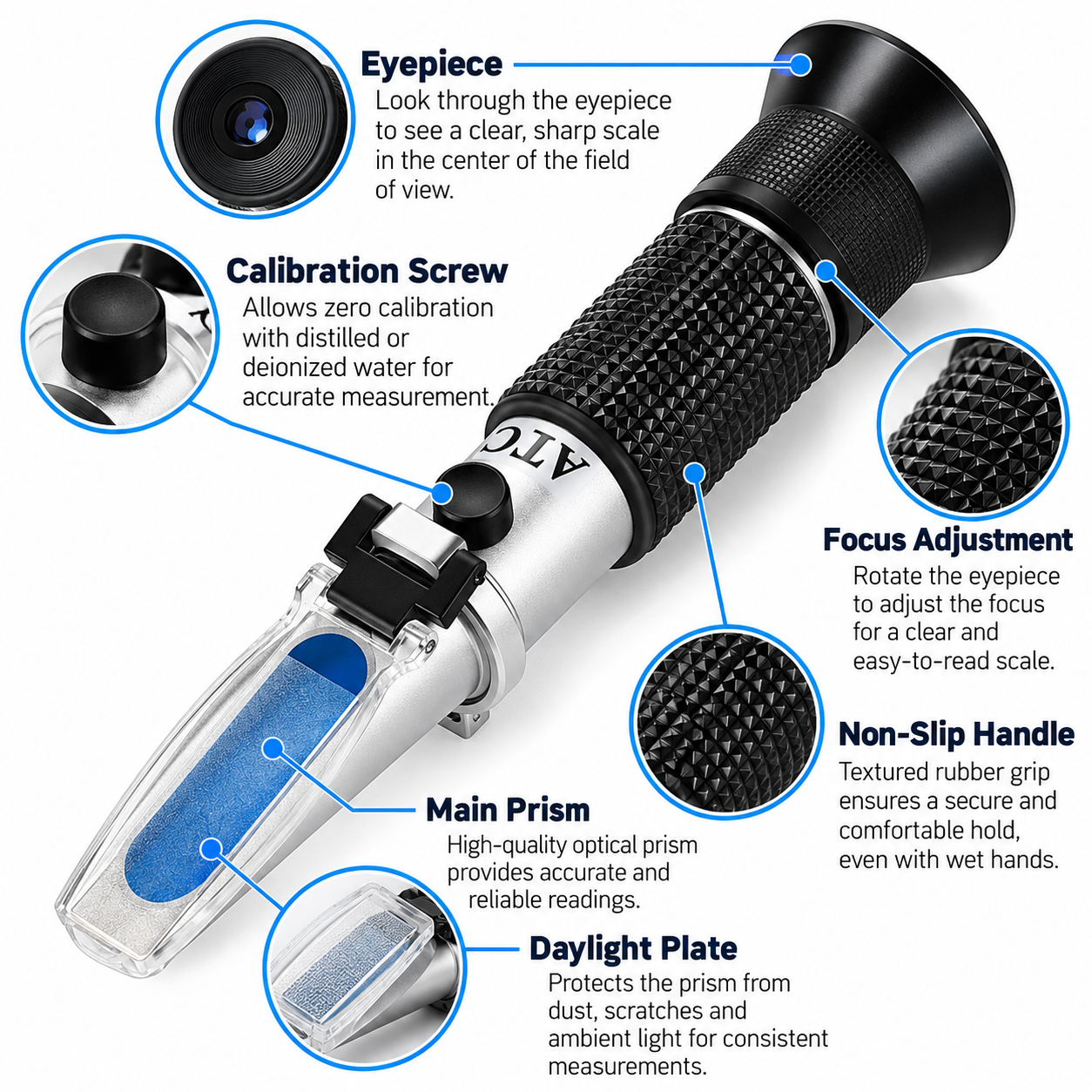

• Focus: adjustable
• Calibration: calibration screw
• Body: aluminium
• Grip: rubberised non-slip design
• Length: 16 cm
• Weight: 92 g

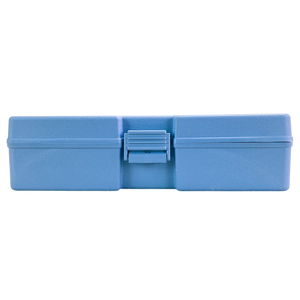

• Storage: plastic storage case

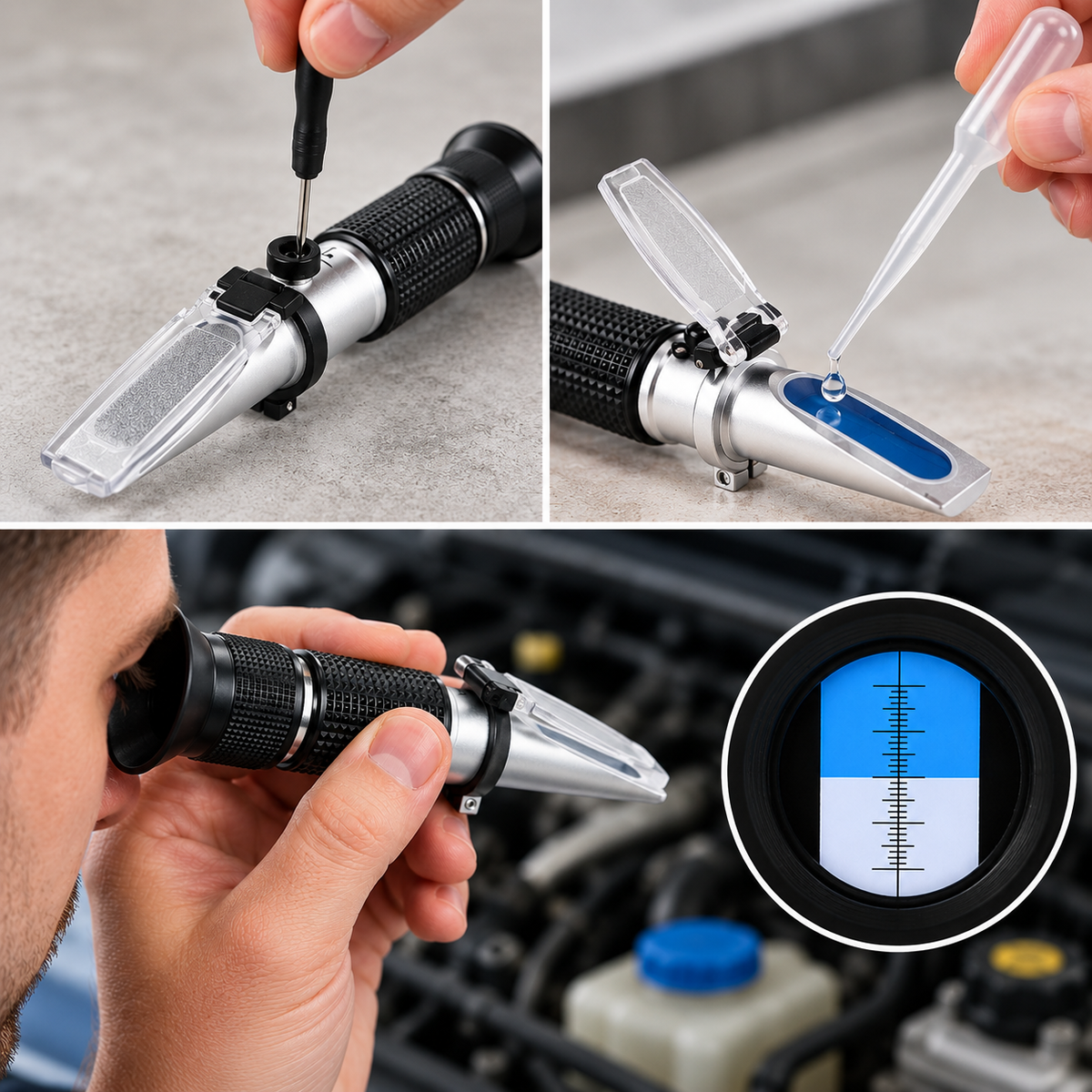

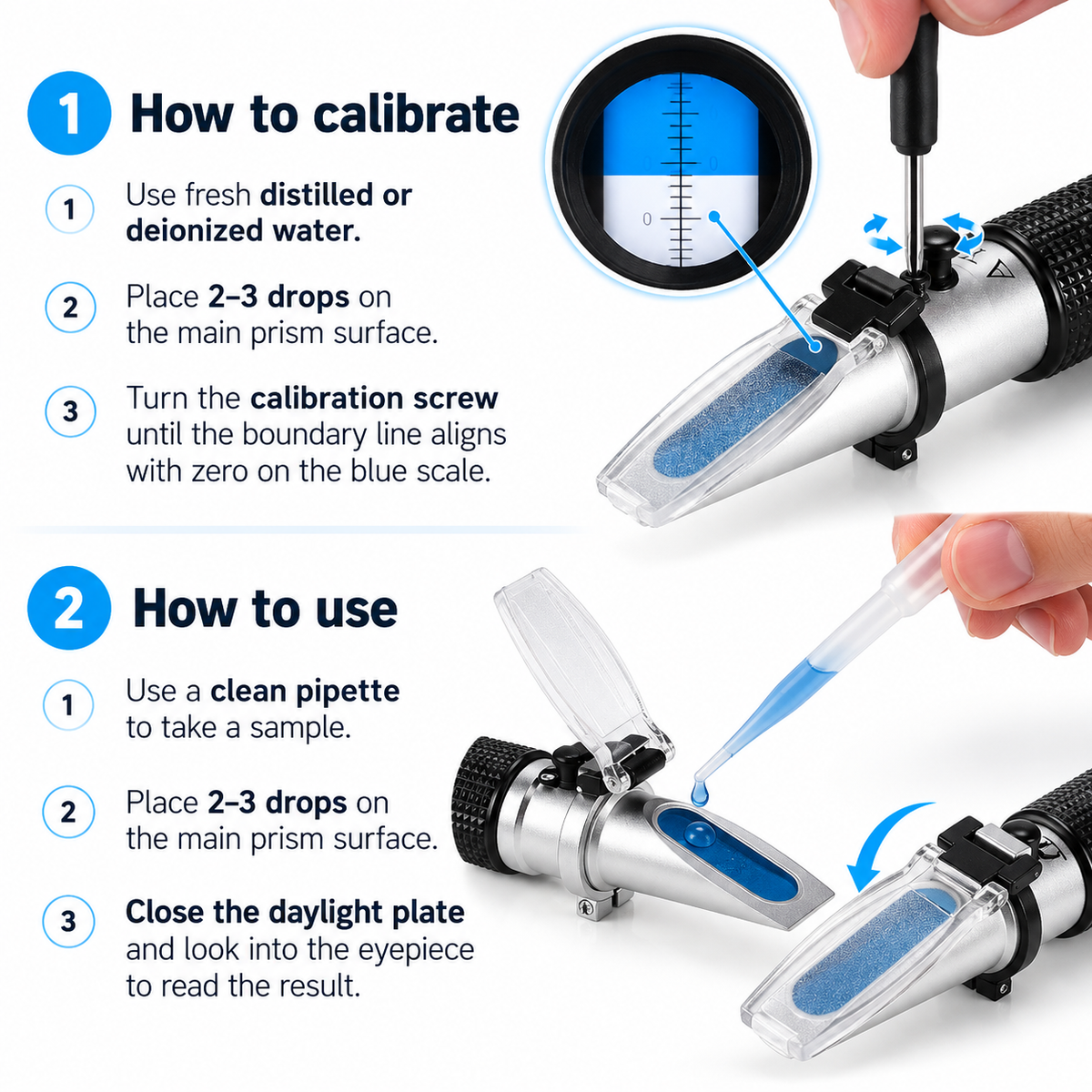

How to Use

1. Before first use, calibrate the instrument with distilled water according to the supplied instructions.
2. Open the daylight plate and place 2–3 drops of the fluid to be tested onto the main prism using the supplied pipette.
3. Close the daylight plate over the sample.

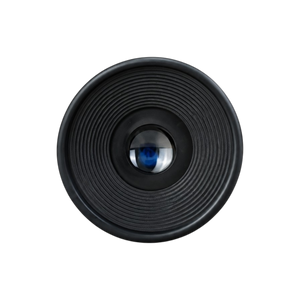

4. Look through the eyepiece and adjust the focus until the scale is clearly visible.
5. Read the result from the appropriate scale for the fluid being tested.
6. After testing, clean and dry the instrument according to the supplied instructions.

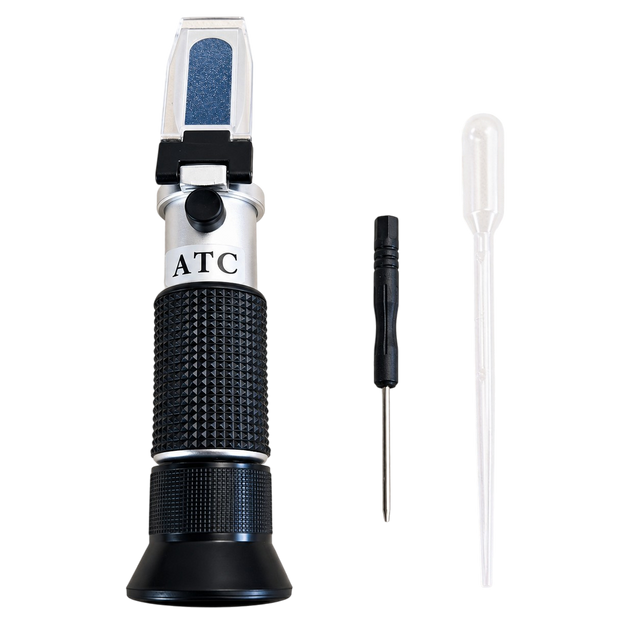

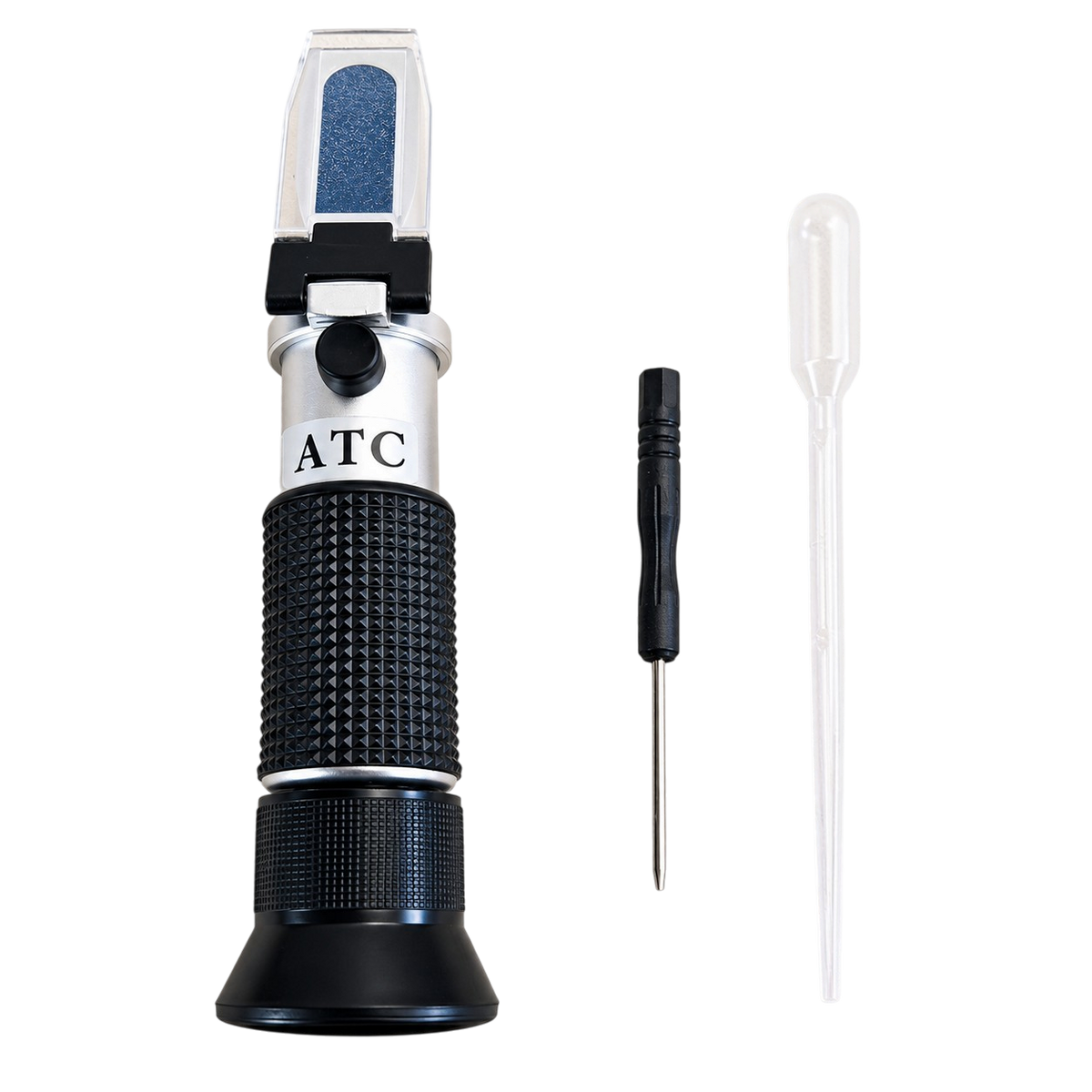

Package Contents

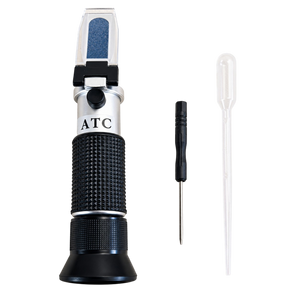

• 1 x ATC optical refractometer

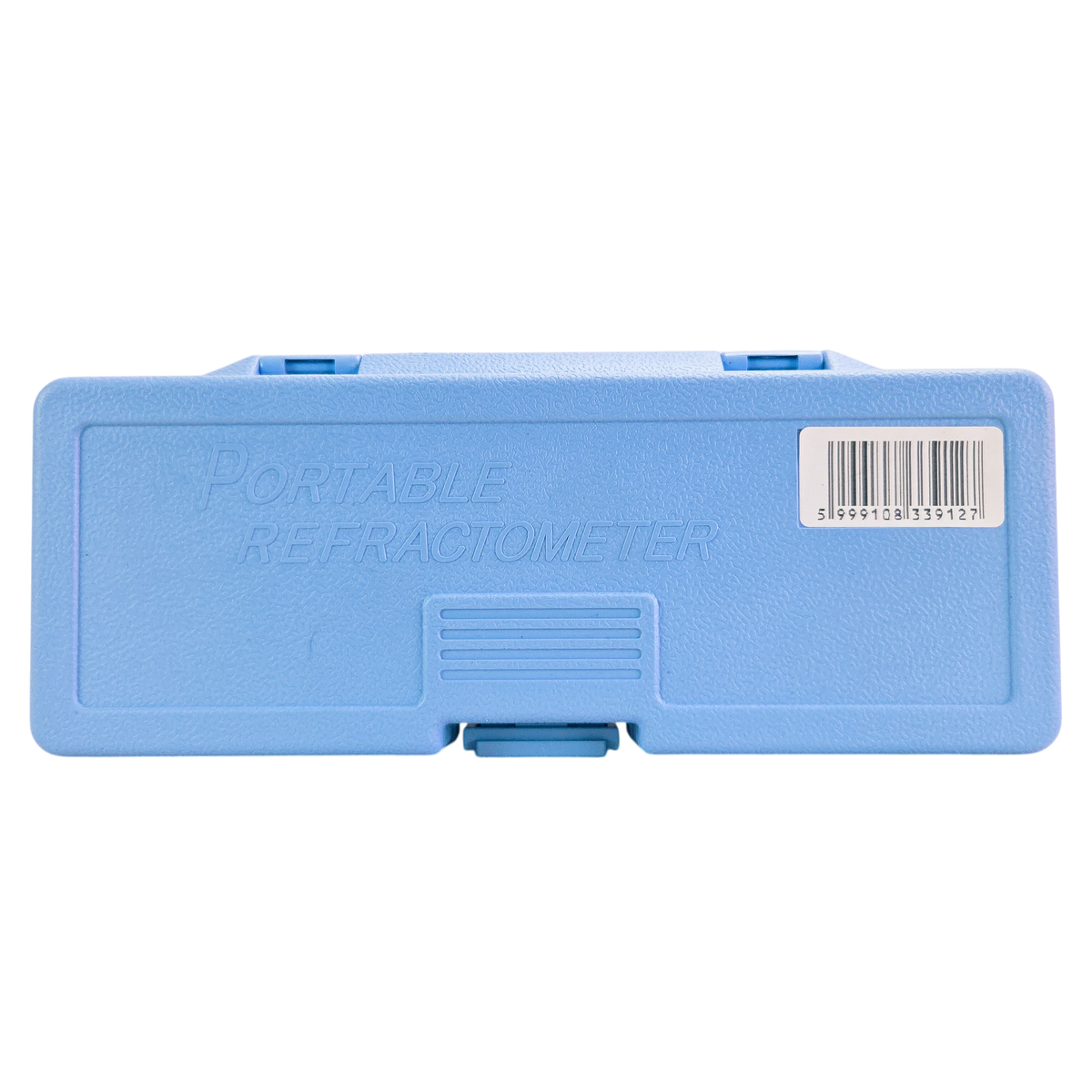

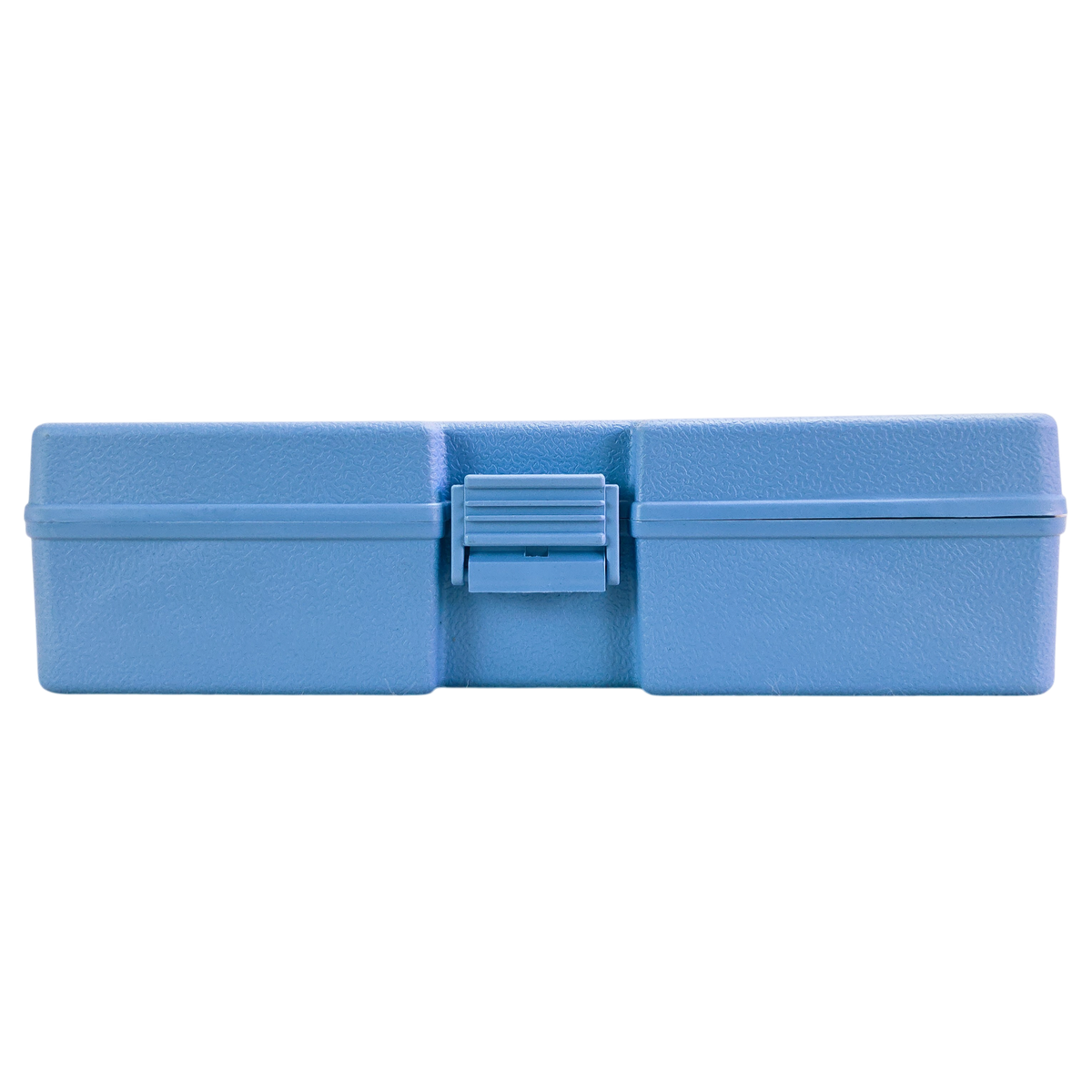

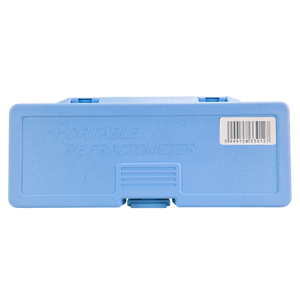

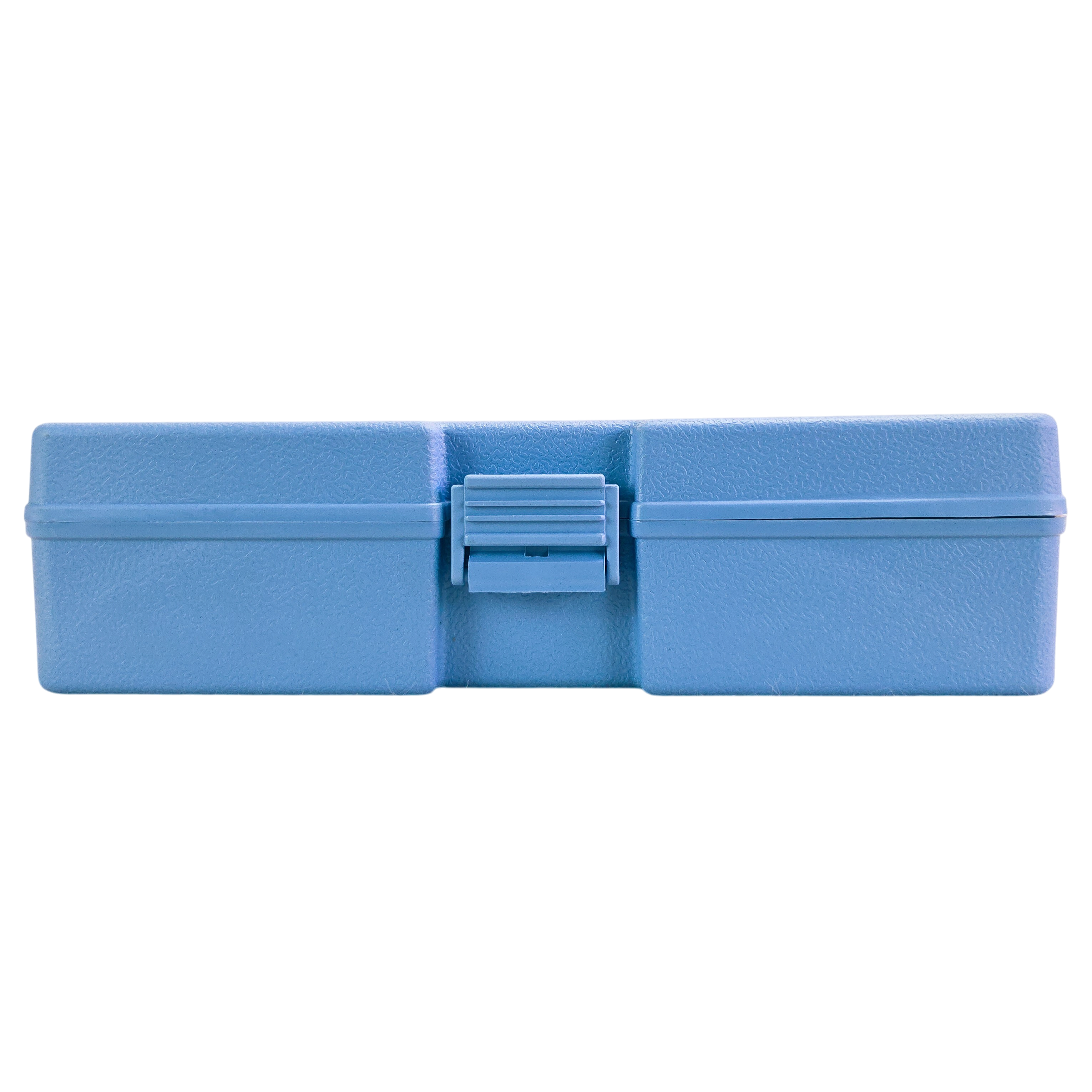

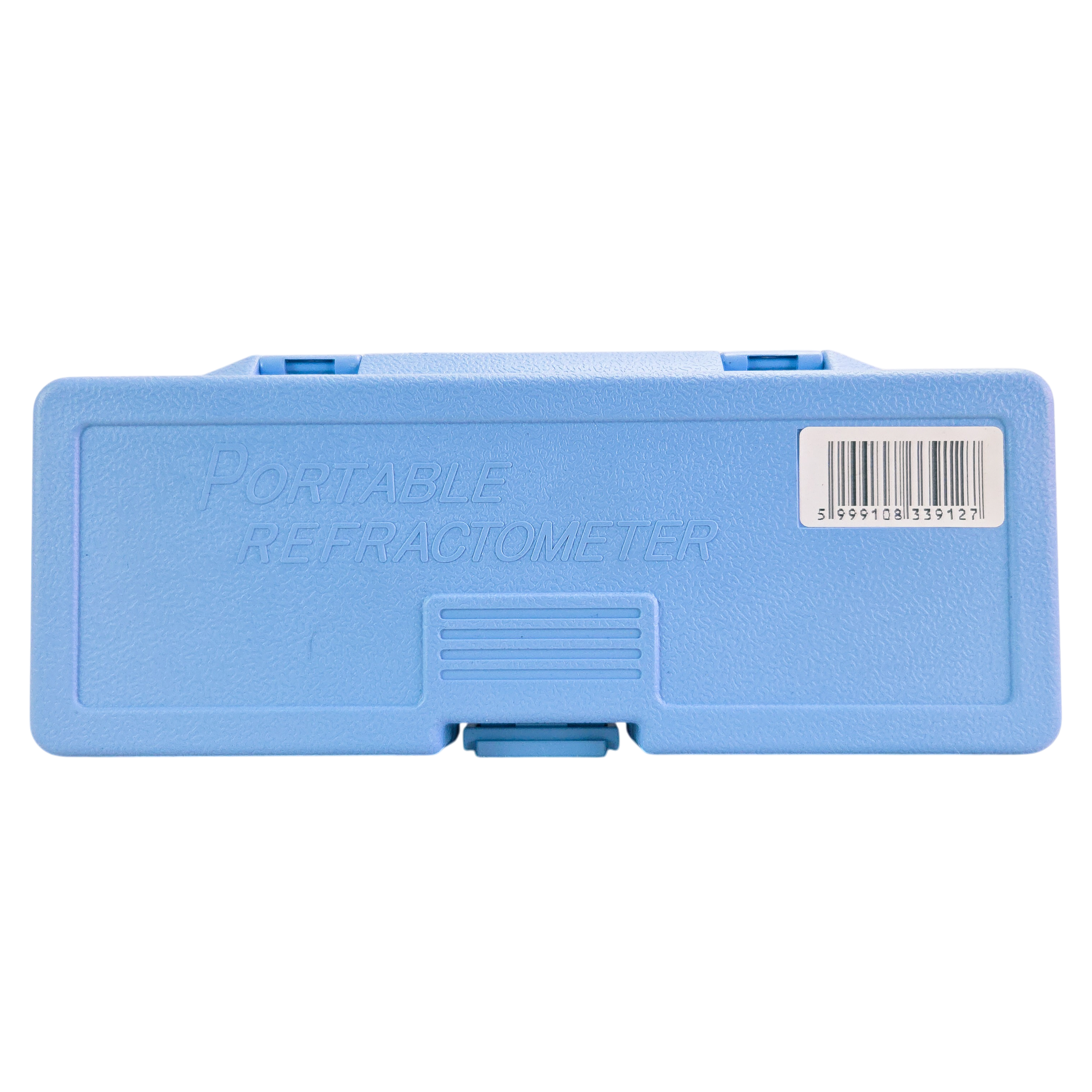

• 1 x plastic storage case
• 1 x calibration screwdriver
• 1 x pipette
• 1 x cleaning cloth

Important Information

The instrument should be calibrated before first use according to the supplied instructions. Always select and read the correct scale for the fluid being tested.

The supplied product information does not specify the complete measuring range or measurement accuracy of each individual scale. These values have therefore not been stated. Automatic temperature compensation is also not confirmed in the supplied documentation and is not claimed as a product feature.

For workshops, garages and routine vehicle checks, this 4 in 1 Refractometer provides a convenient way to check four supported automotive fluids using one compact optical instrument.
