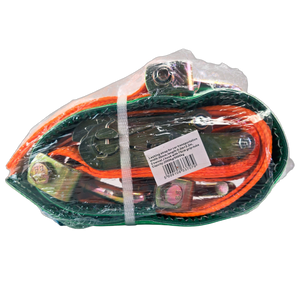

Wheel Straps for Car Transporters 3 Point Tie Down 2.5m

Truck Comfort Wheel Straps for Car Transporters – Secure 3 Point Restraint and Reinforced Wheel Contact

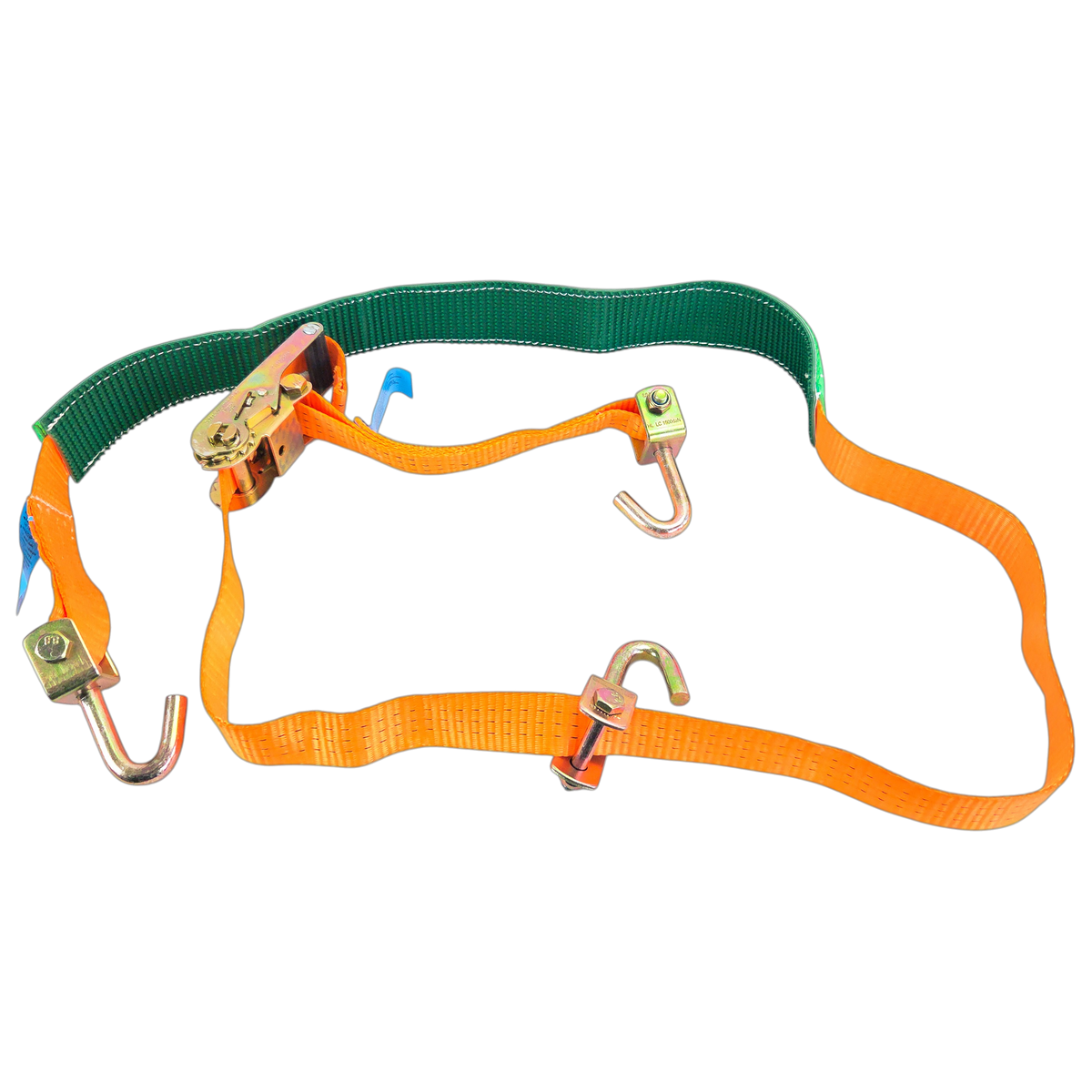

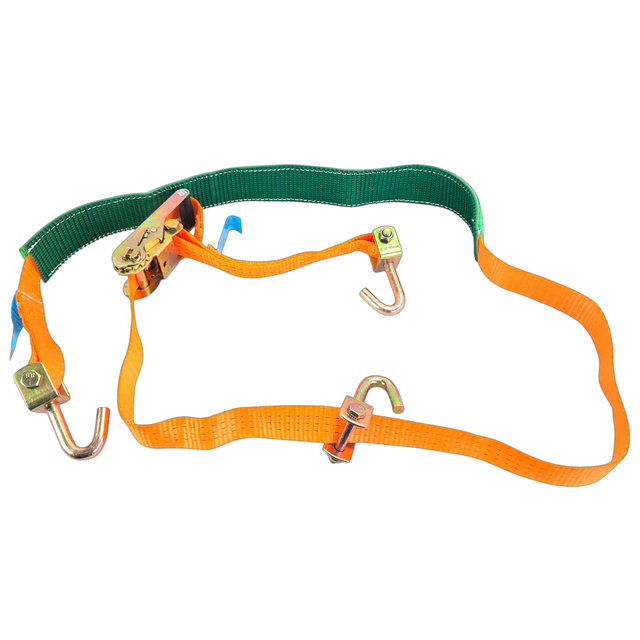

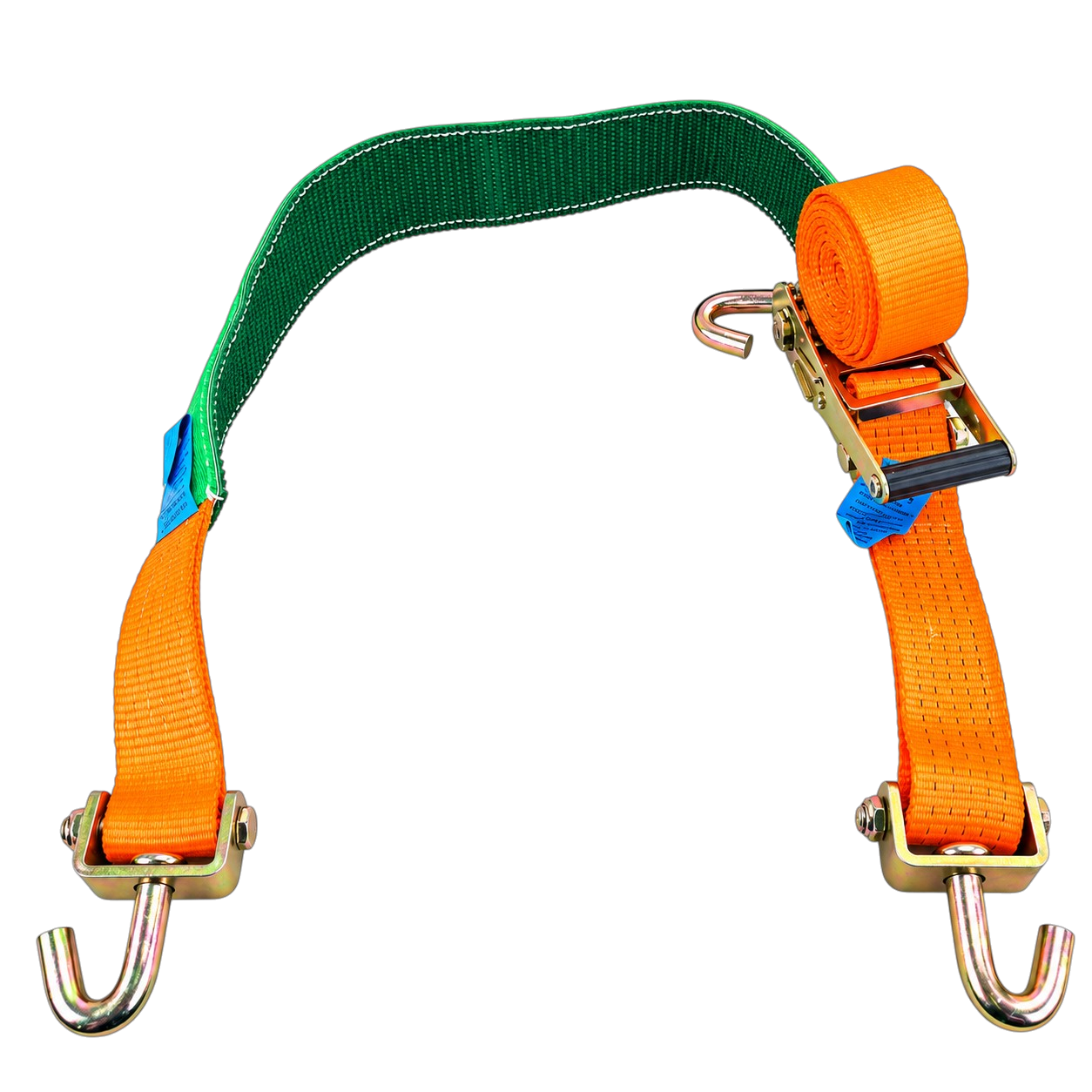

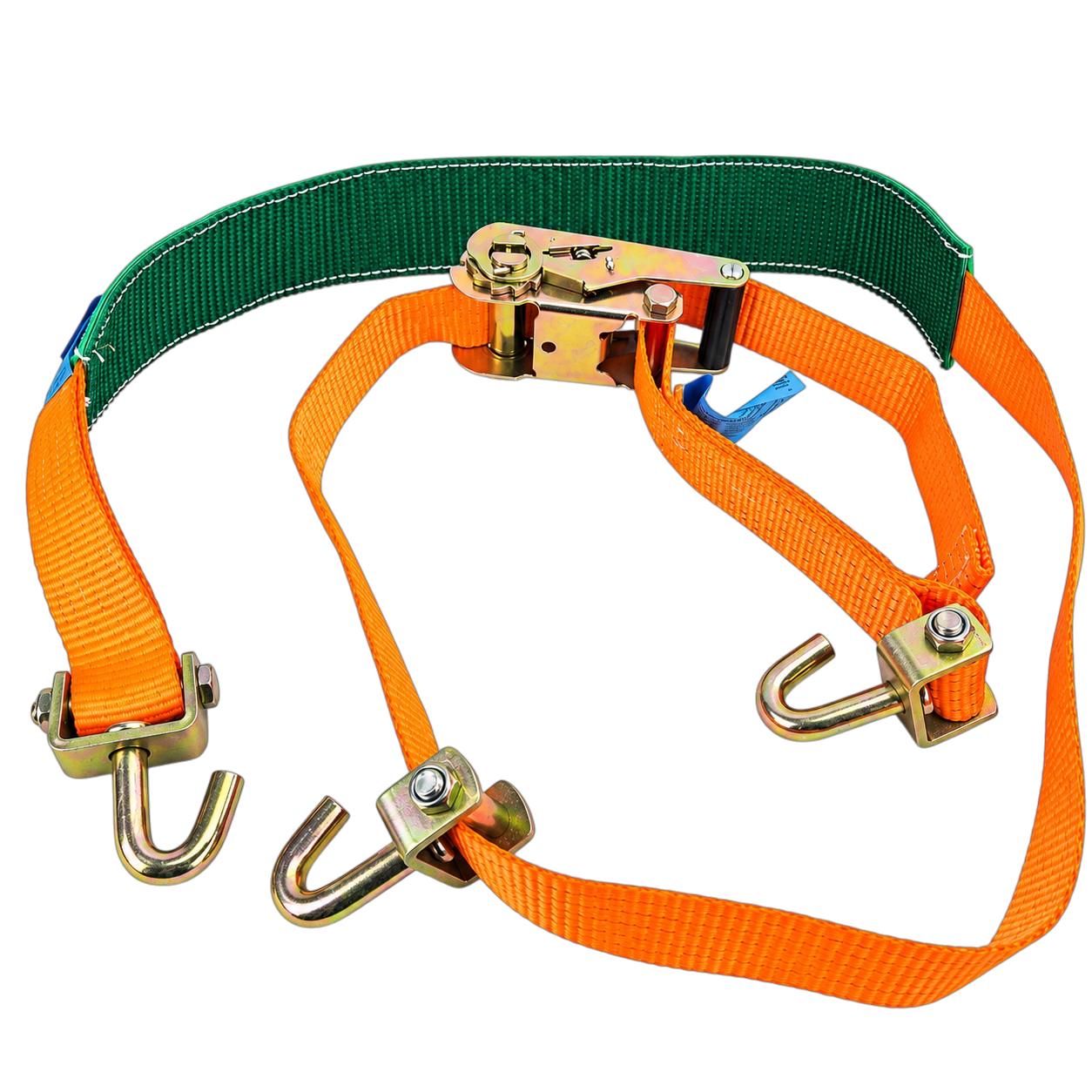

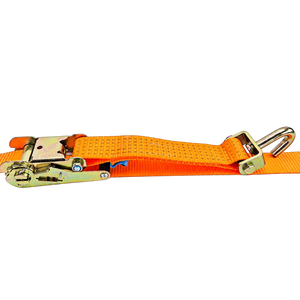

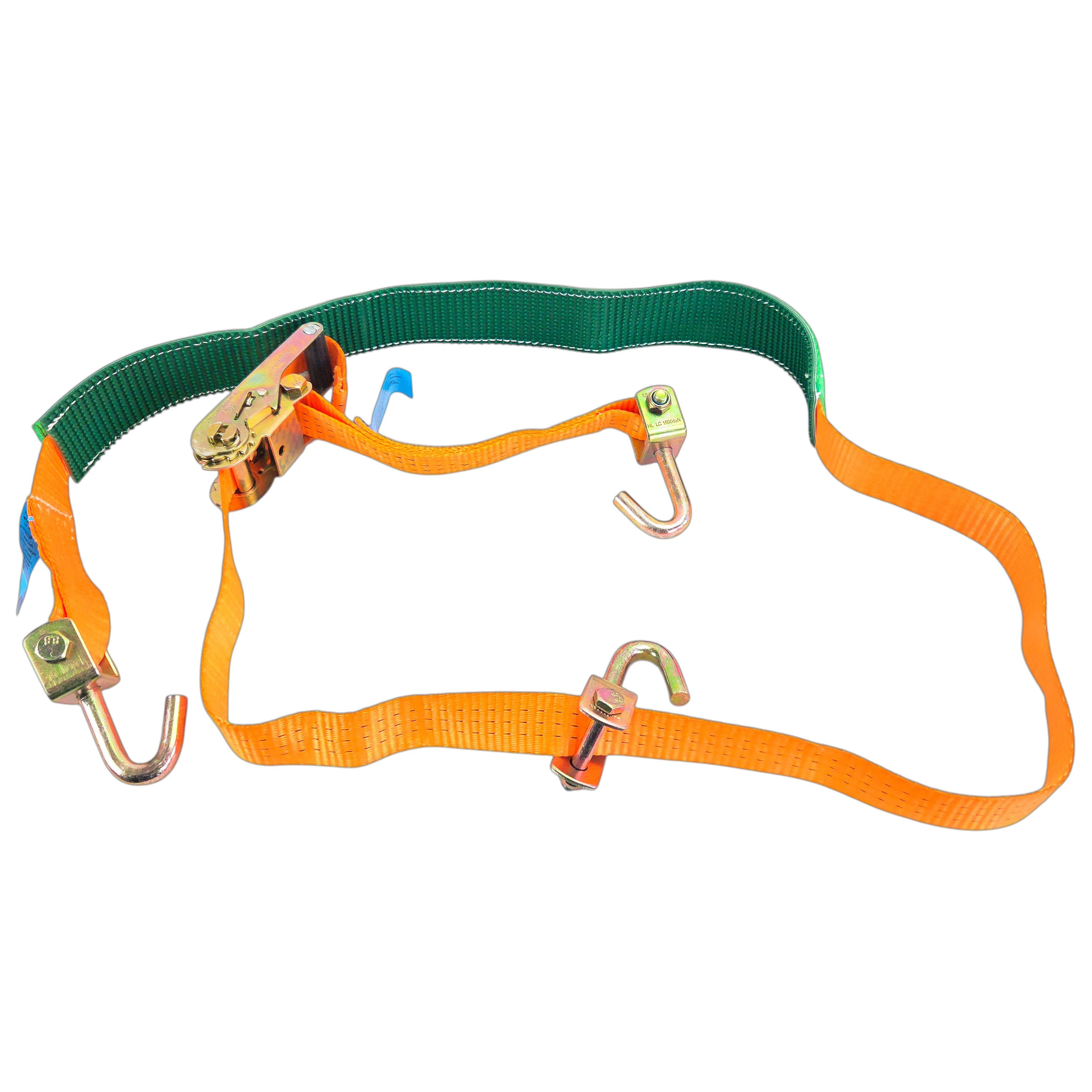

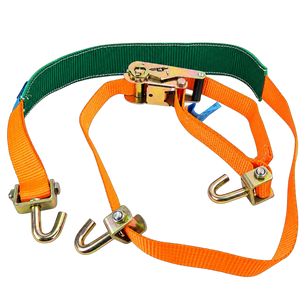

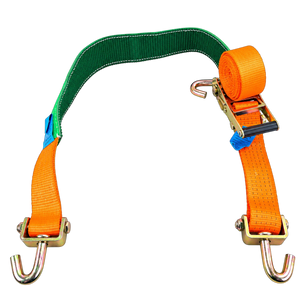

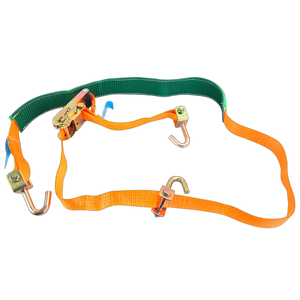

Secure vehicle wheels with a purpose-built restraint system designed for controlled, reliable tensioning. These Wheel Straps combine three swivel-head hooks, a ratchet tensioner and a wide reinforced wheel section in one complete 3 point assembly.

Available in 3T and 5T versions, both options have a total length of 2.5 m. The 3T version uses 35 mm webbing with a 60 mm wheel section, while the 5T version increases this to 50 mm webbing and a wider 75 mm reinforced wheel section.

Key Benefits

• Purpose-built for wheel restraint: designed specifically for securing vehicle wheels rather than general cargo.

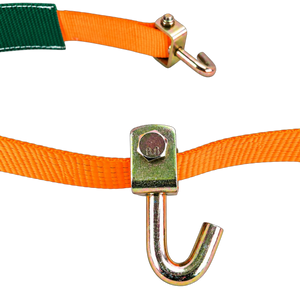

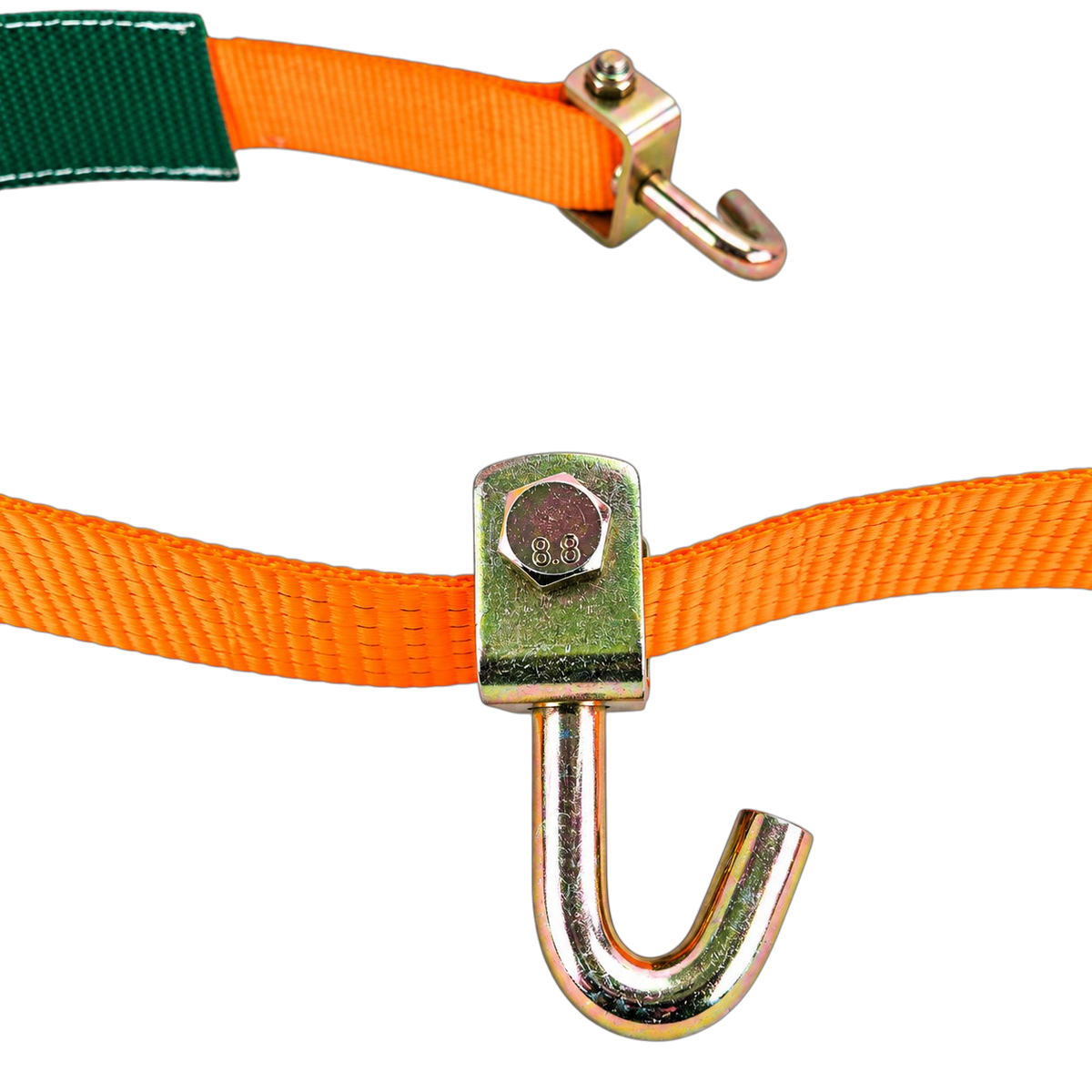

• Secure 3 point design: three swivel-head hooks provide three attachment points around the wheel restraint system.

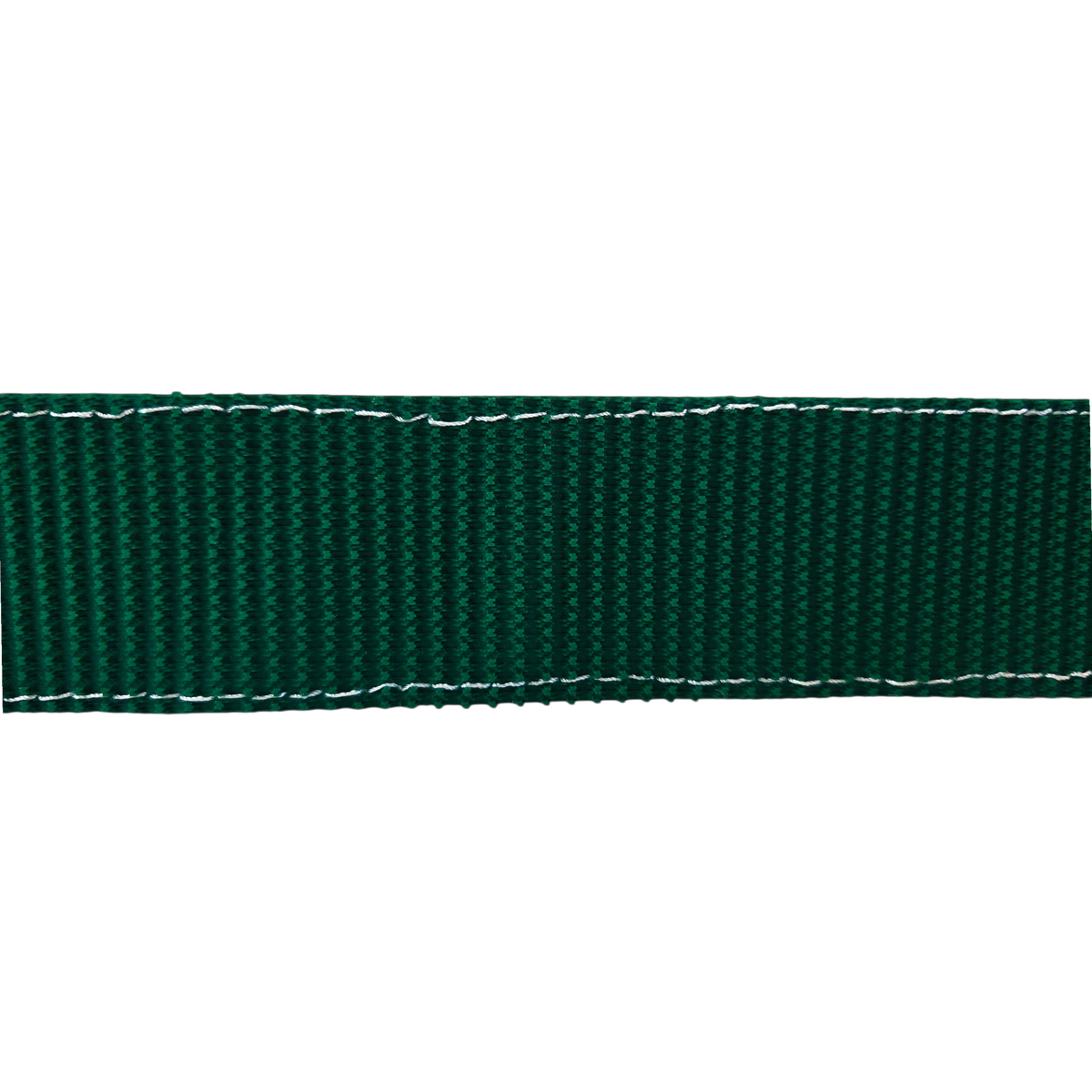

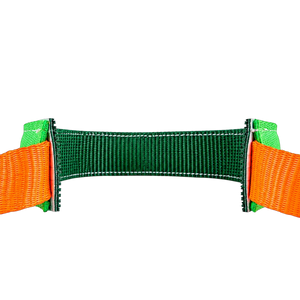

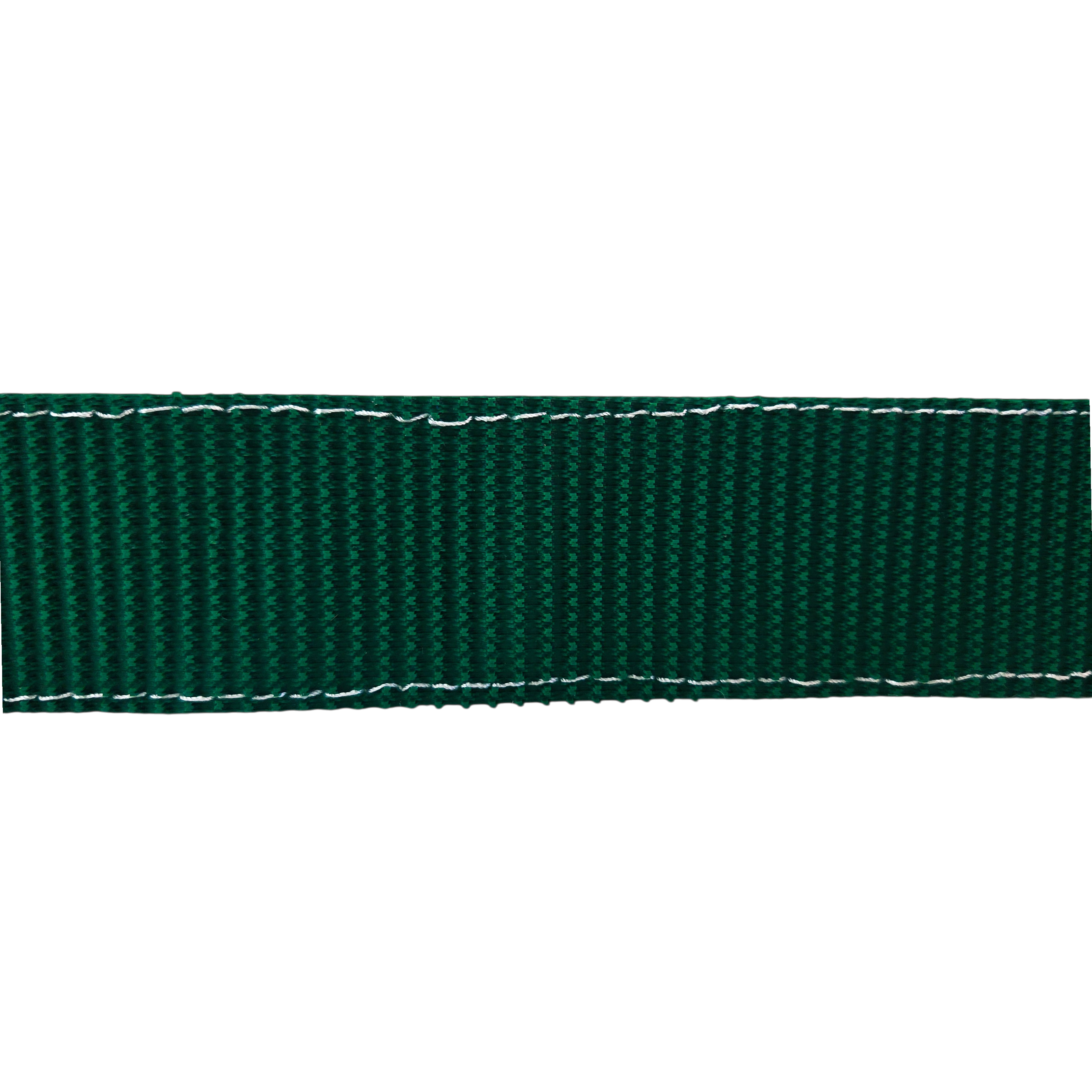

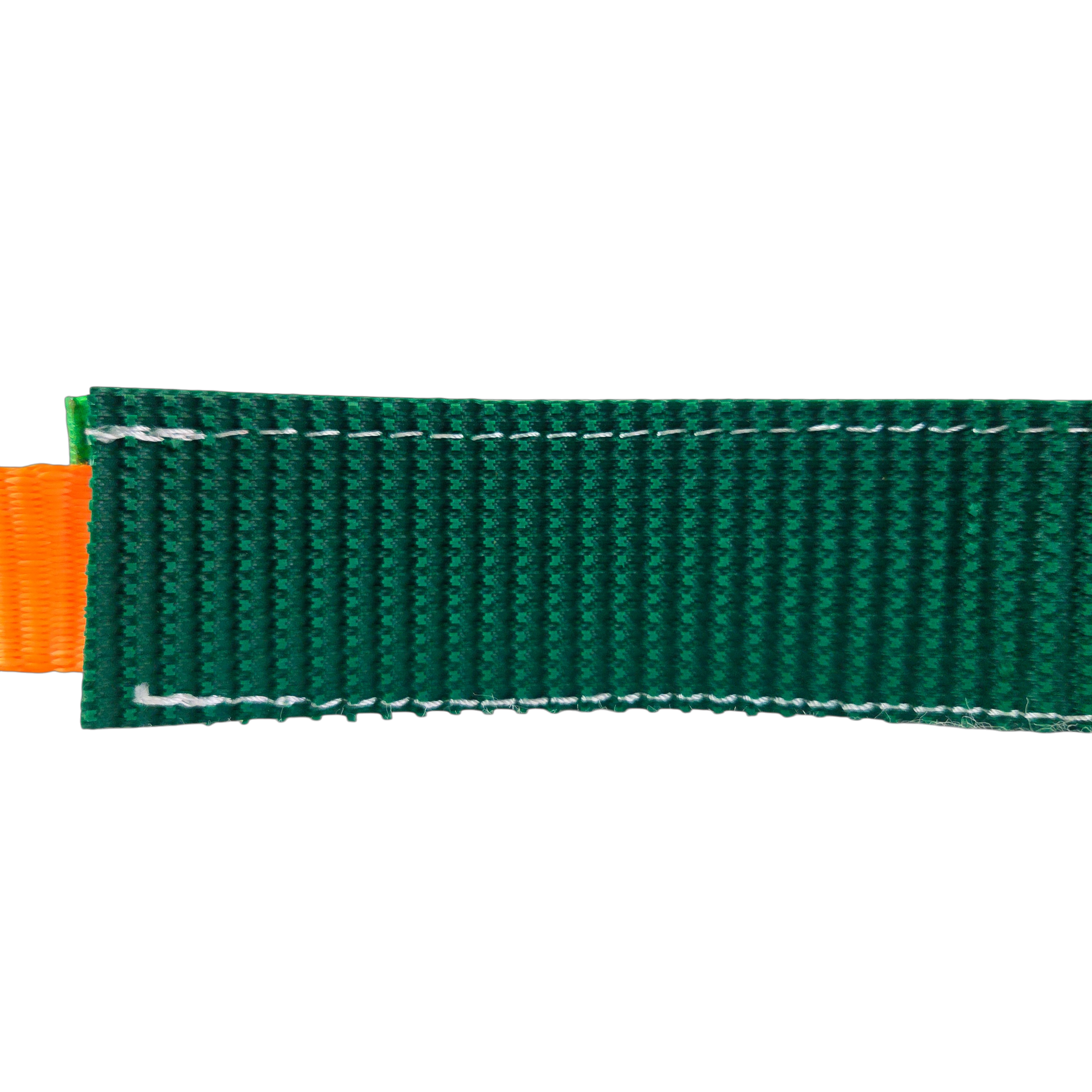

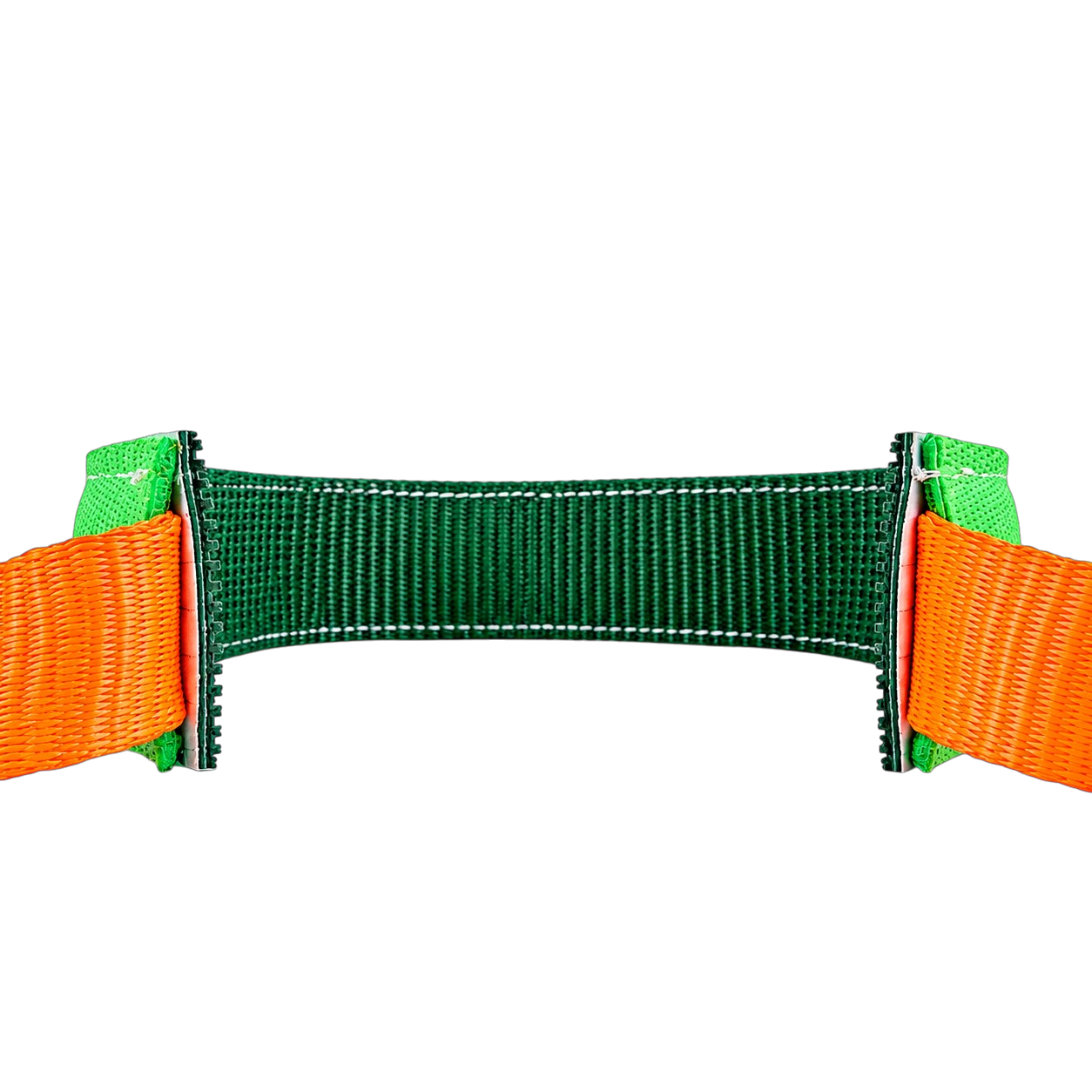

• Reinforced ribbed wheel section: the wide contact area sits directly over the tyre and helps maintain stable positioning.

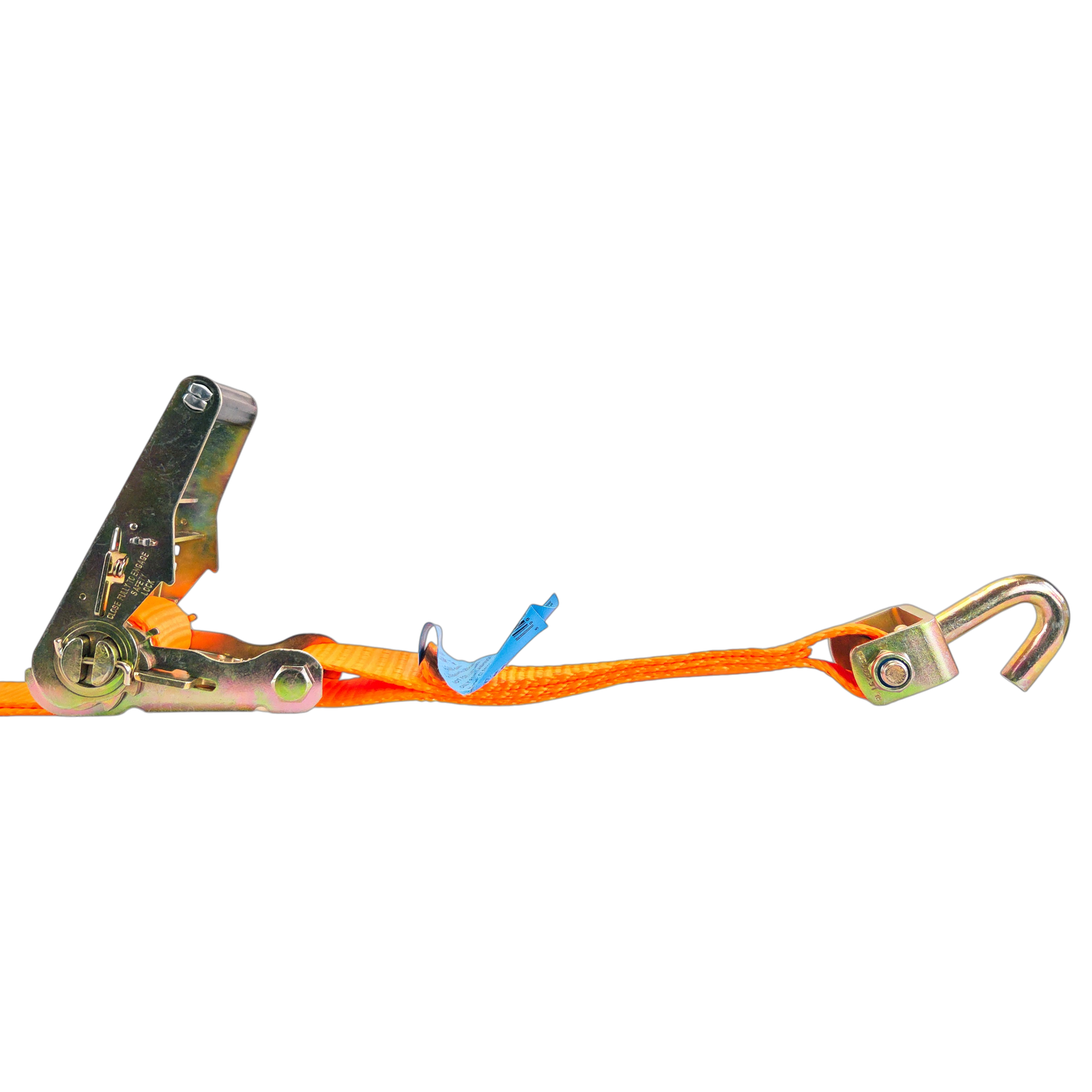

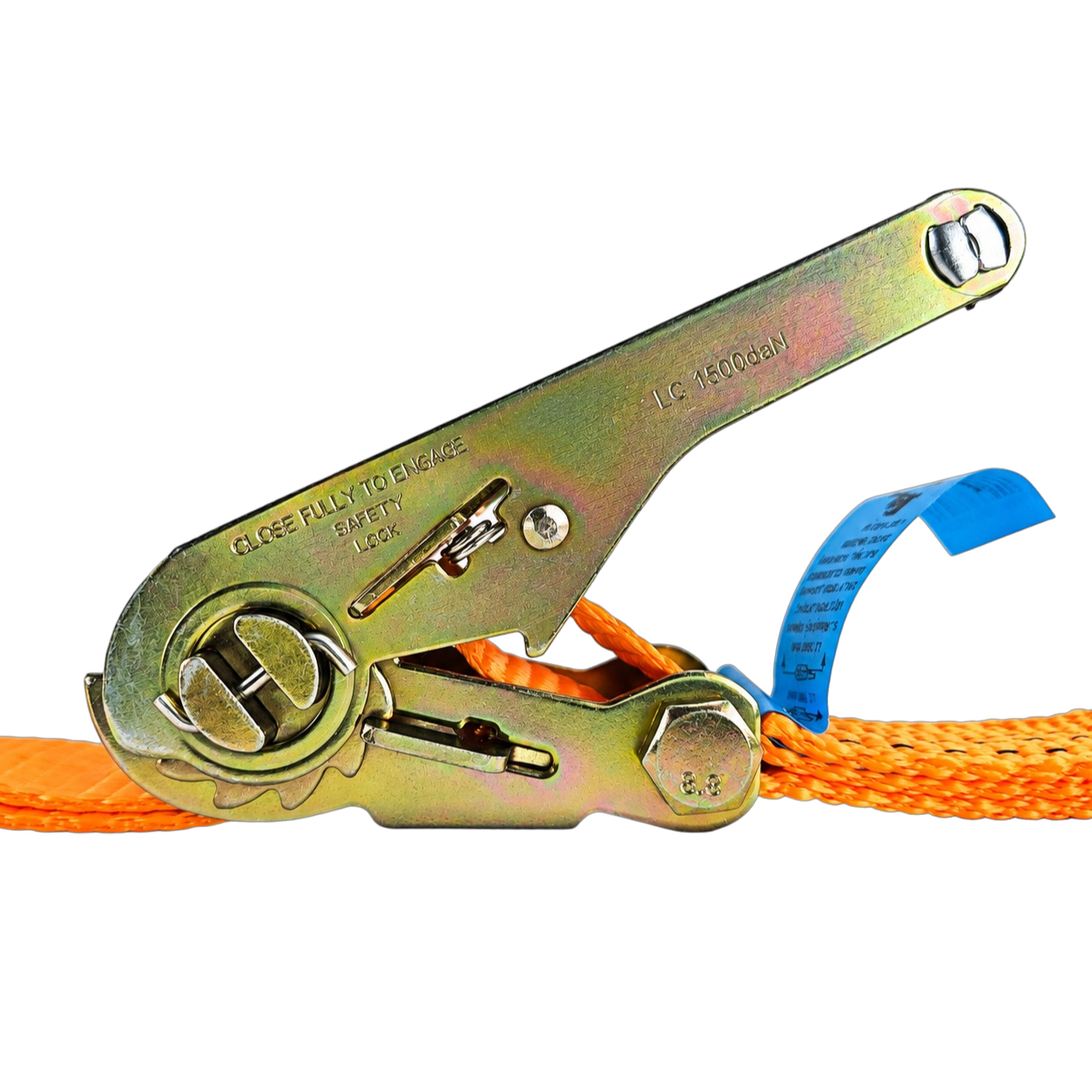

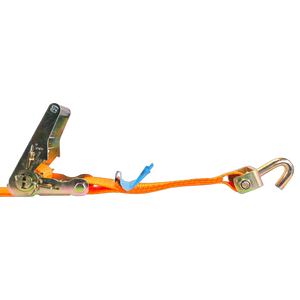

• Controlled ratchet tensioning: tighten the webbing progressively for a secure fit around the wheel.
• Choose 3T or 5T: two versions allow you to select the webbing and wheel-section dimensions required for the job.
• Built for load securing: PES polyester webbing is combined with galvanised steel ratchet and hook components.

3T or 5T Which Version Should You Choose?

3T Version – 35 mm Webbing and 60 mm Wheel Section

The 3T version combines a 35 mm ratchet-section webbing width with a 60 mm reinforced wheel section. It has a total length of 2.5 m and weighs 2 kg.

• Total length: 2.5 m (2.2 m + 0.3 m)
• Webbing width at ratchet section: 35 mm
• Reinforced wheel section: 60 mm wide
• LC: 1500 daN / 3000 daN according to the securing configuration indicated on the label
• STF: 150 daN
• SHF: 50 daN
• Weight: 2 kg

5T Version – 50 mm Webbing and 75 mm Wheel Section

The 5T version features 50 mm webbing and a wider 75 mm reinforced ribbed wheel section. It has the same 2.5 m overall length and weighs 3 kg.

• Total length: 2.5 m (2.2 m + 0.3 m)
• Webbing width: 50 mm
• Reinforced ribbed wheel section: 75 mm wide
• LC straight pull: 1500 daN
• LC loop configuration: 3000 daN
• STF: 150 daN
• SHF: 50 daN
• Weight: 3 kg
• Maximum operating temperature: 100°C

Applications

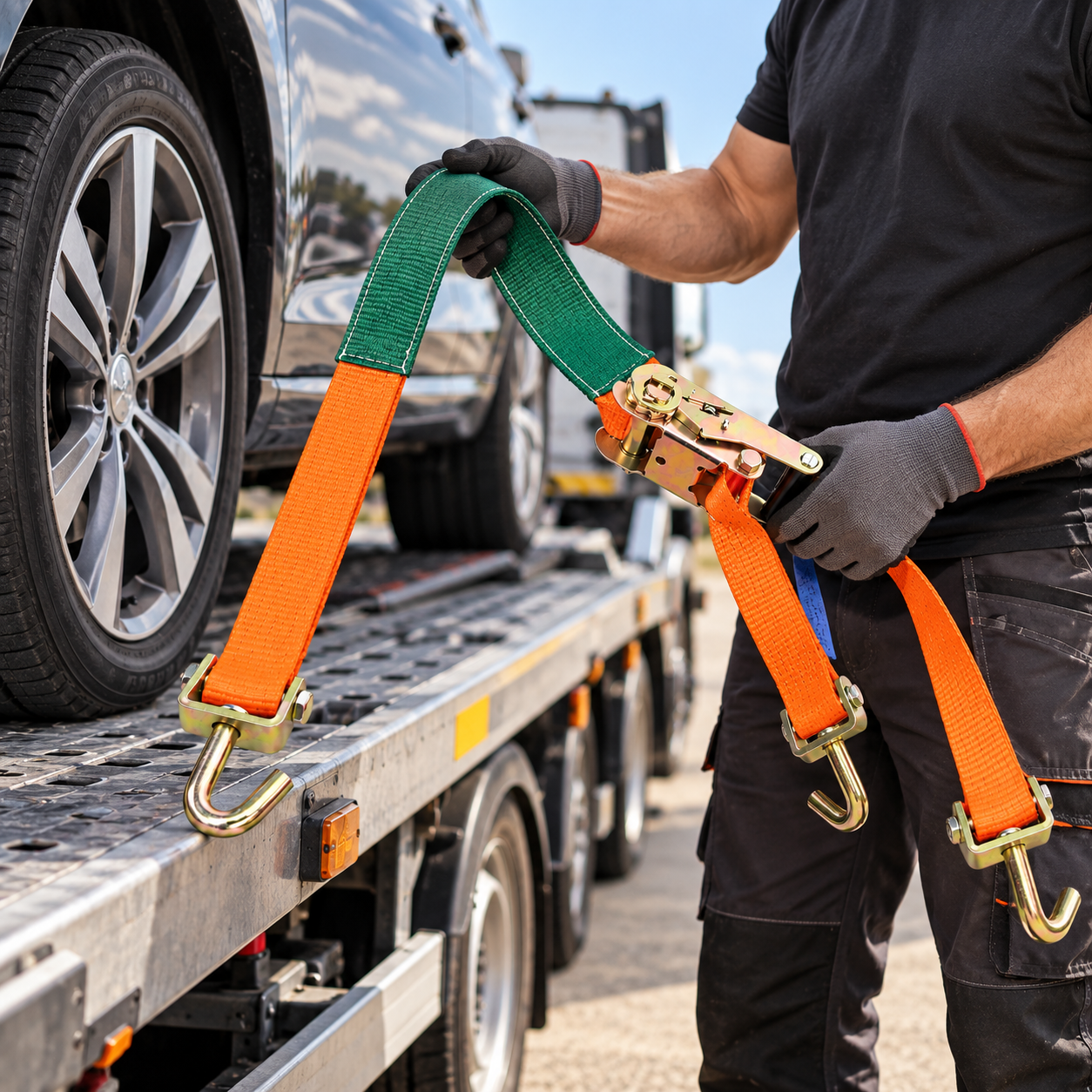

These Wheel Straps are designed for securing vehicle wheels during load restraint. The reinforced section is positioned over the tyre, while the three swivel-head hooks connect the assembly to suitable securing points.

The system is suitable for outdoor use and provides a complete ratchet-operated solution where a 3 point wheel restraint is required.

Technical Specifications

• Product type: 3 point wheel restraint strap
• Available versions: 3T and 5T
• Total length: 2.5 m (2.2 m + 0.3 m)
• Webbing material: PES polyester

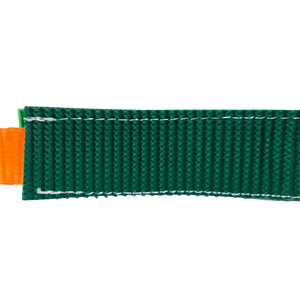

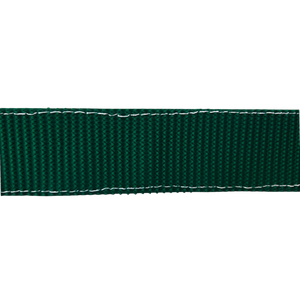

• Wheel section: reinforced ribbed design
• Number of attachment points: 3

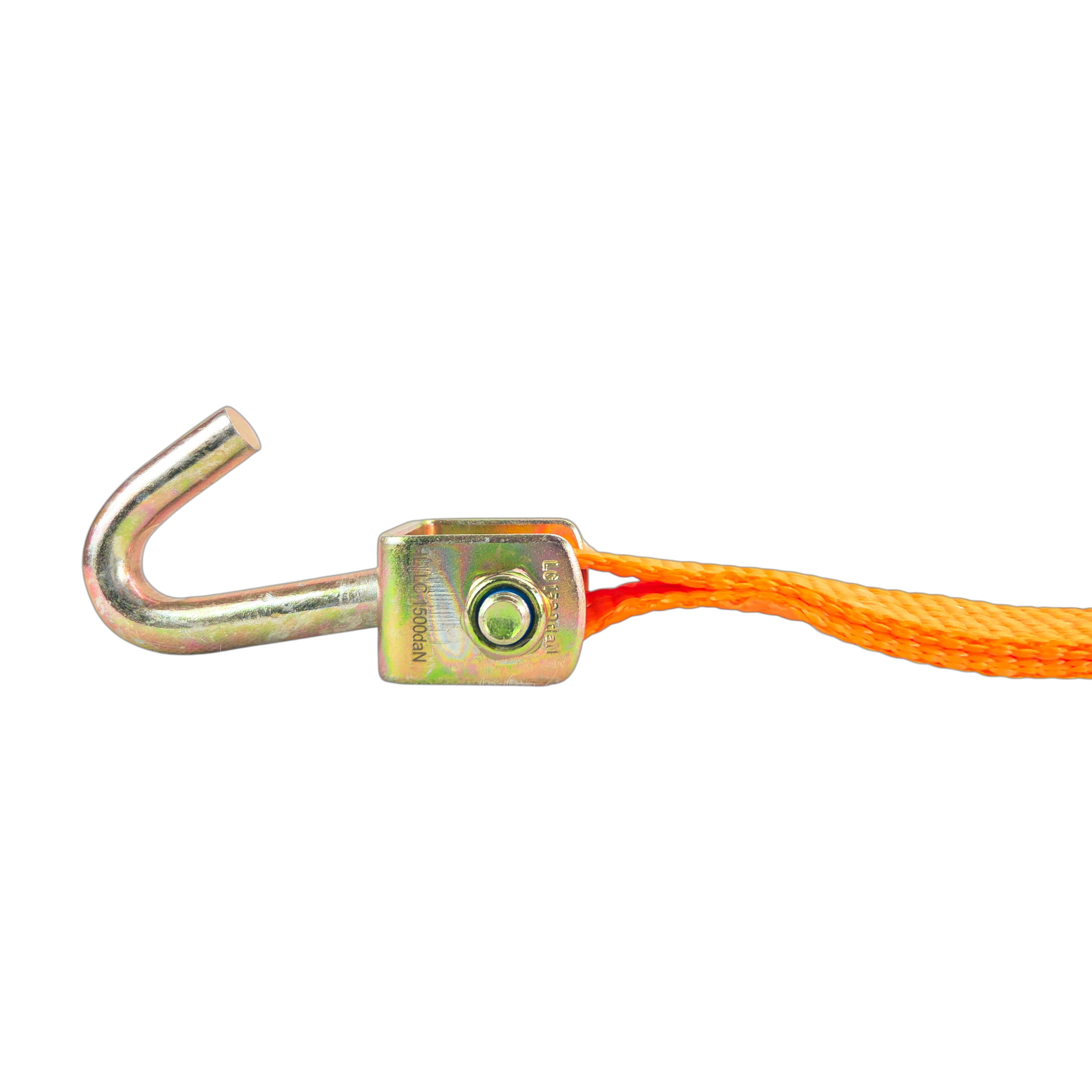

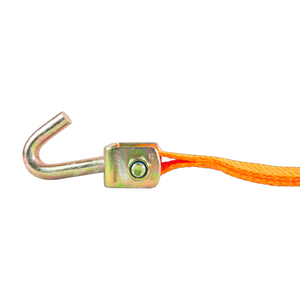

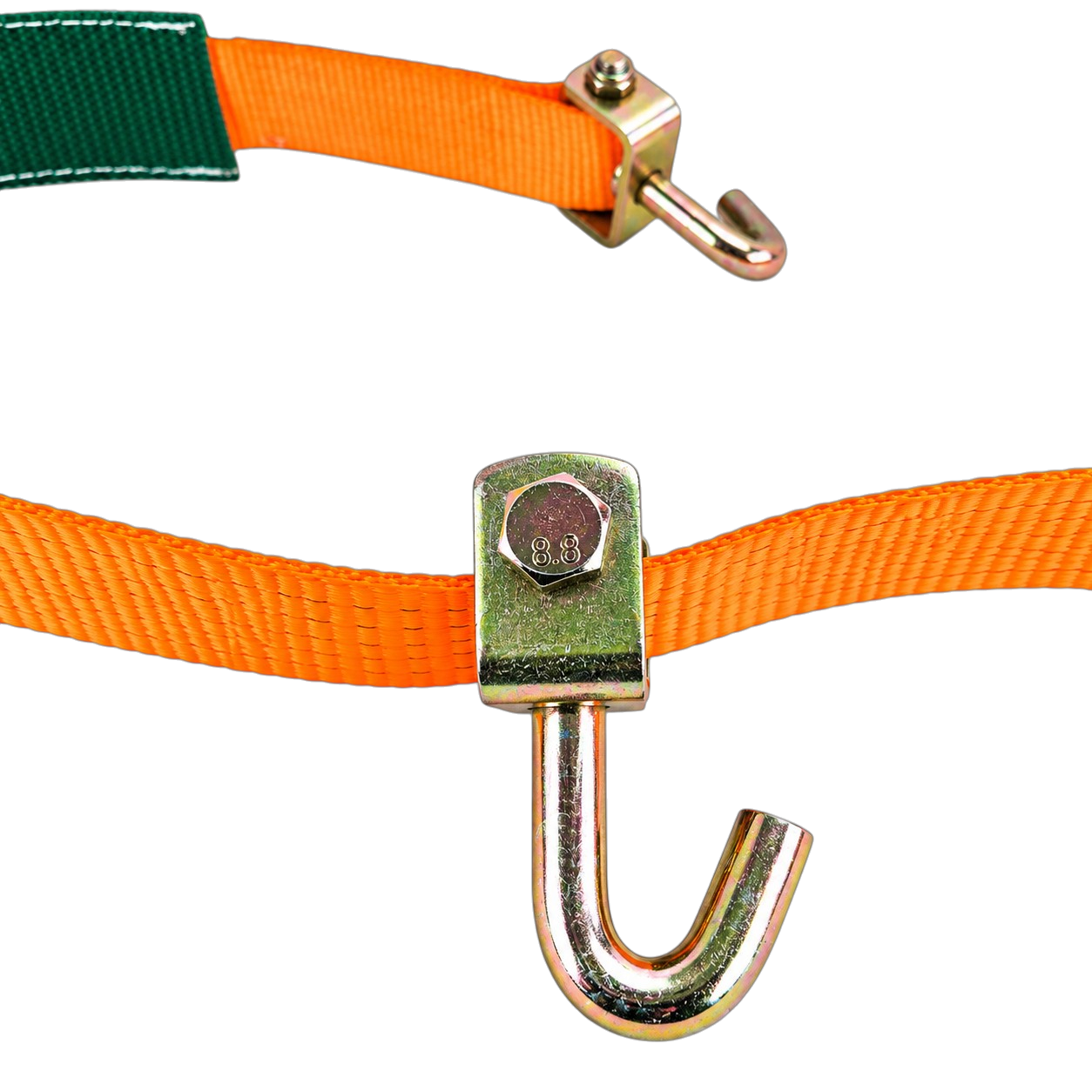

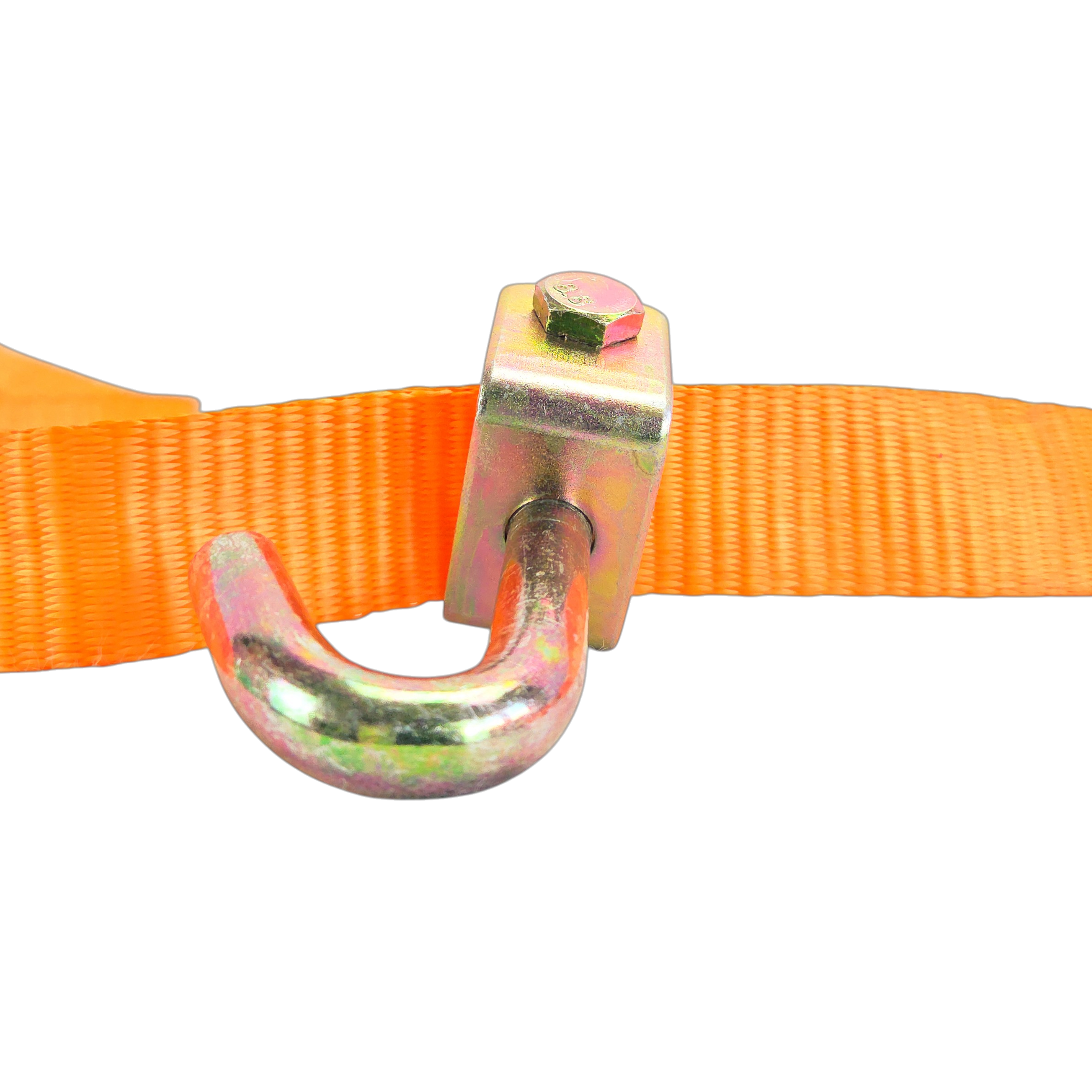

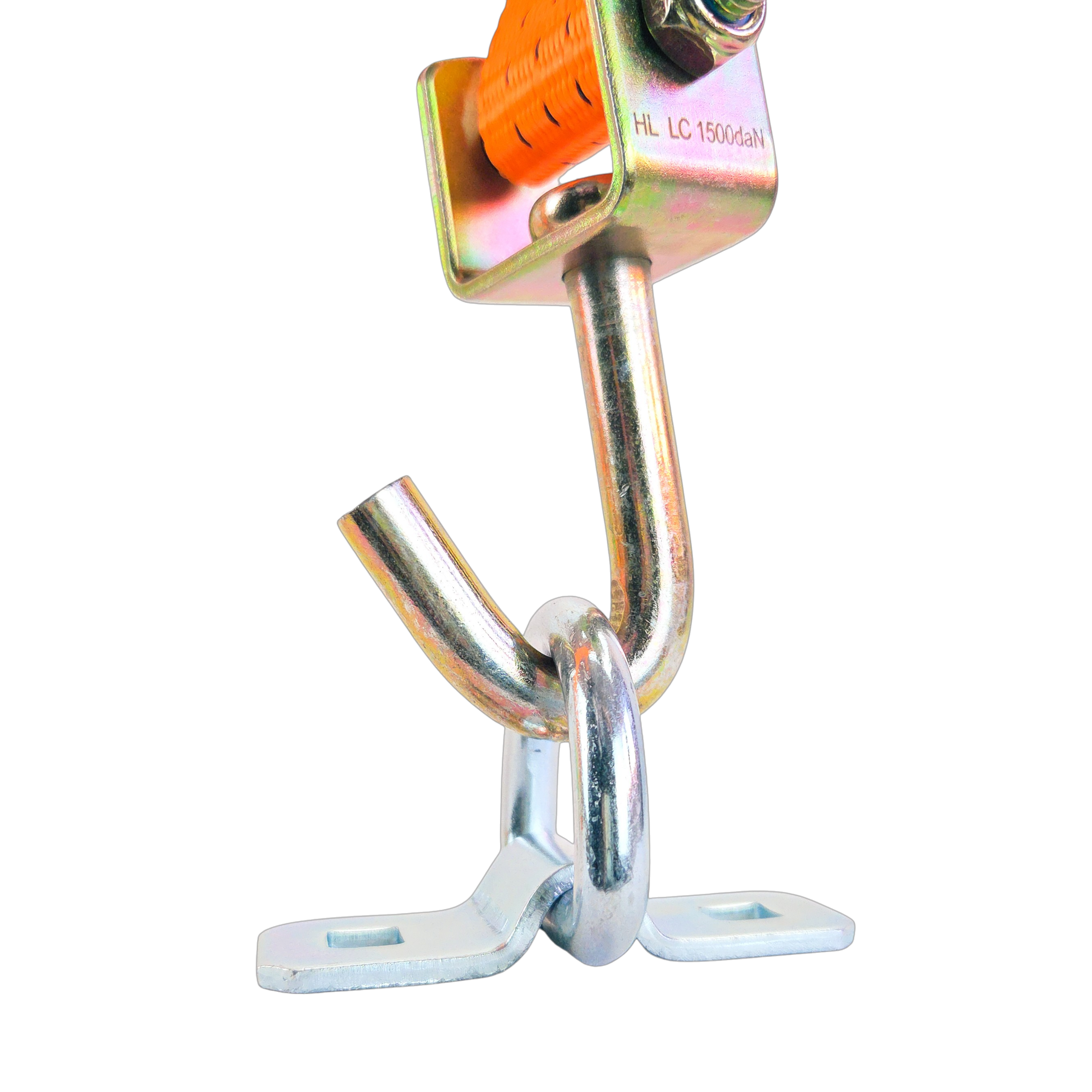

• Hooks: 3 swivel-head hooks

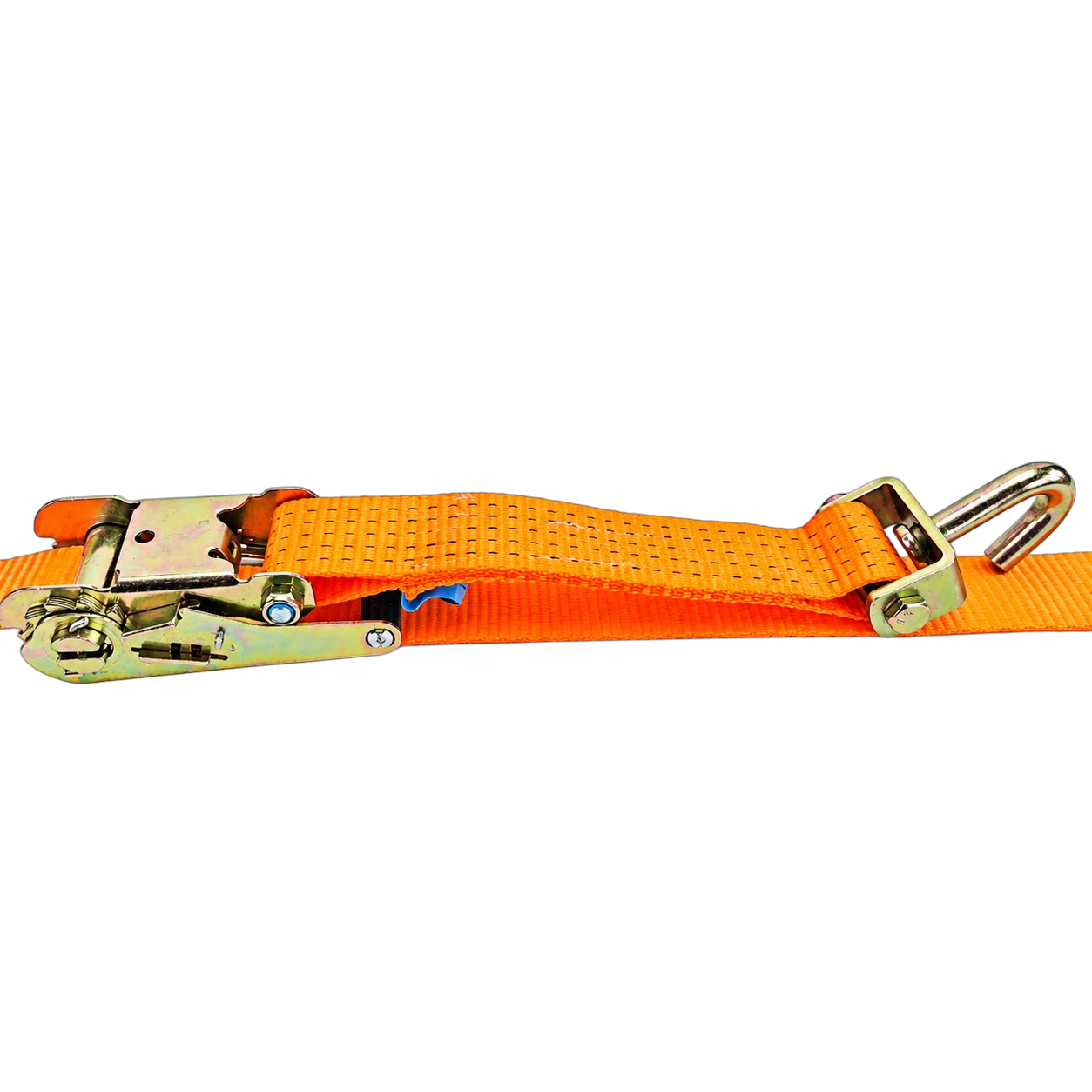

• Ratchet and hooks: galvanised steel
• 3T webbing width: 35 mm at ratchet section
• 3T wheel section width: 60 mm
• 5T webbing width: 50 mm
• 5T wheel section width: 75 mm
• STF: 150 daN
• SHF: 50 daN
• Elongation: <4%
• Standard marking: EN 12195-2
• Use: load securing only

How to Use

1. Inspect the strap, ratchet, hooks and securing points before every use.
2. Position the reinforced ribbed section correctly over the vehicle tyre.

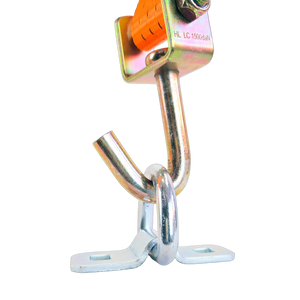

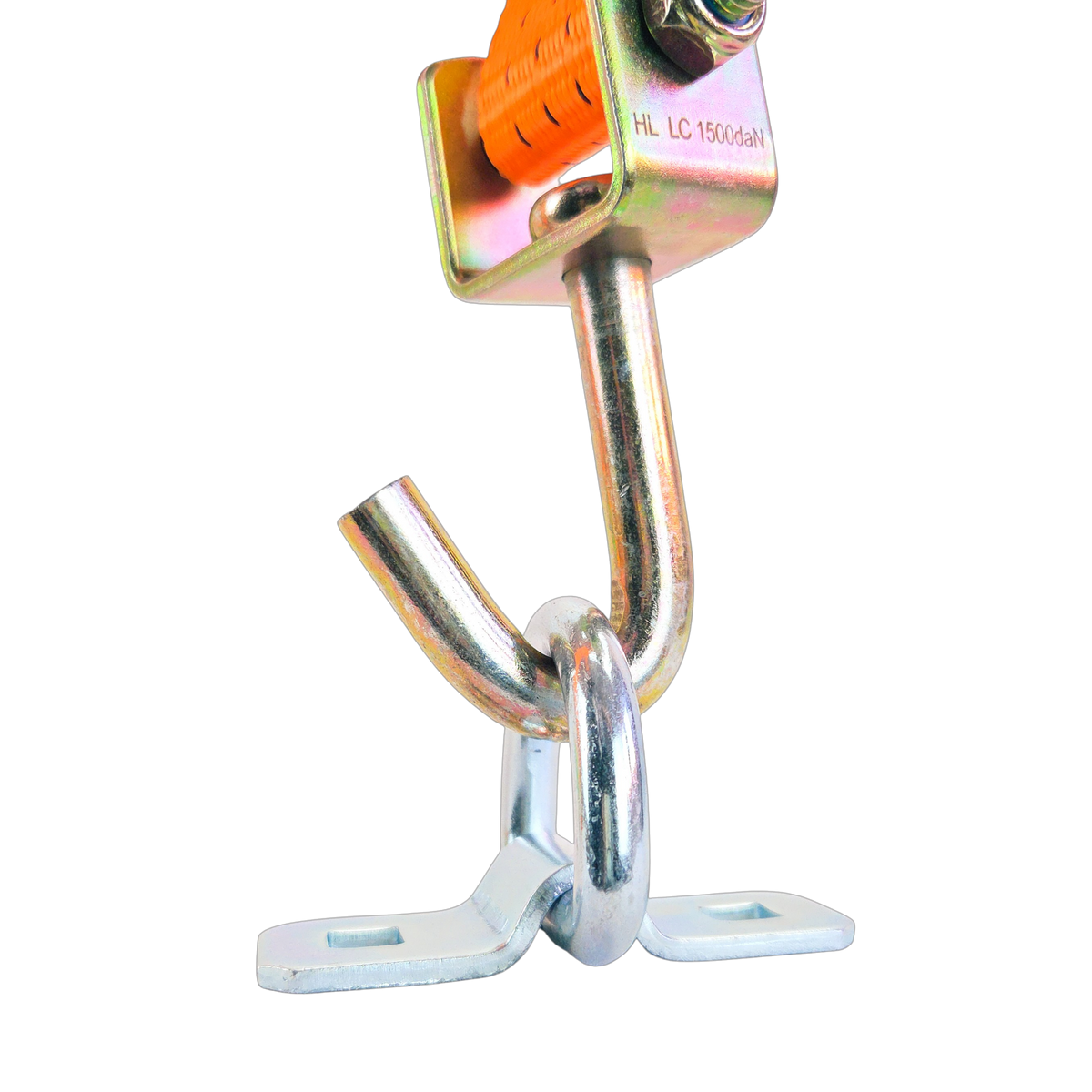

3. Connect all three swivel-head hooks to suitable securing points.
4. Check that the webbing is correctly positioned and is not twisted.

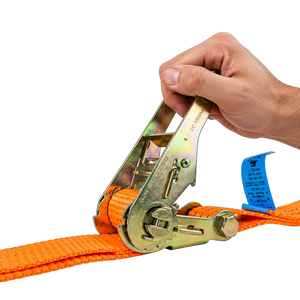

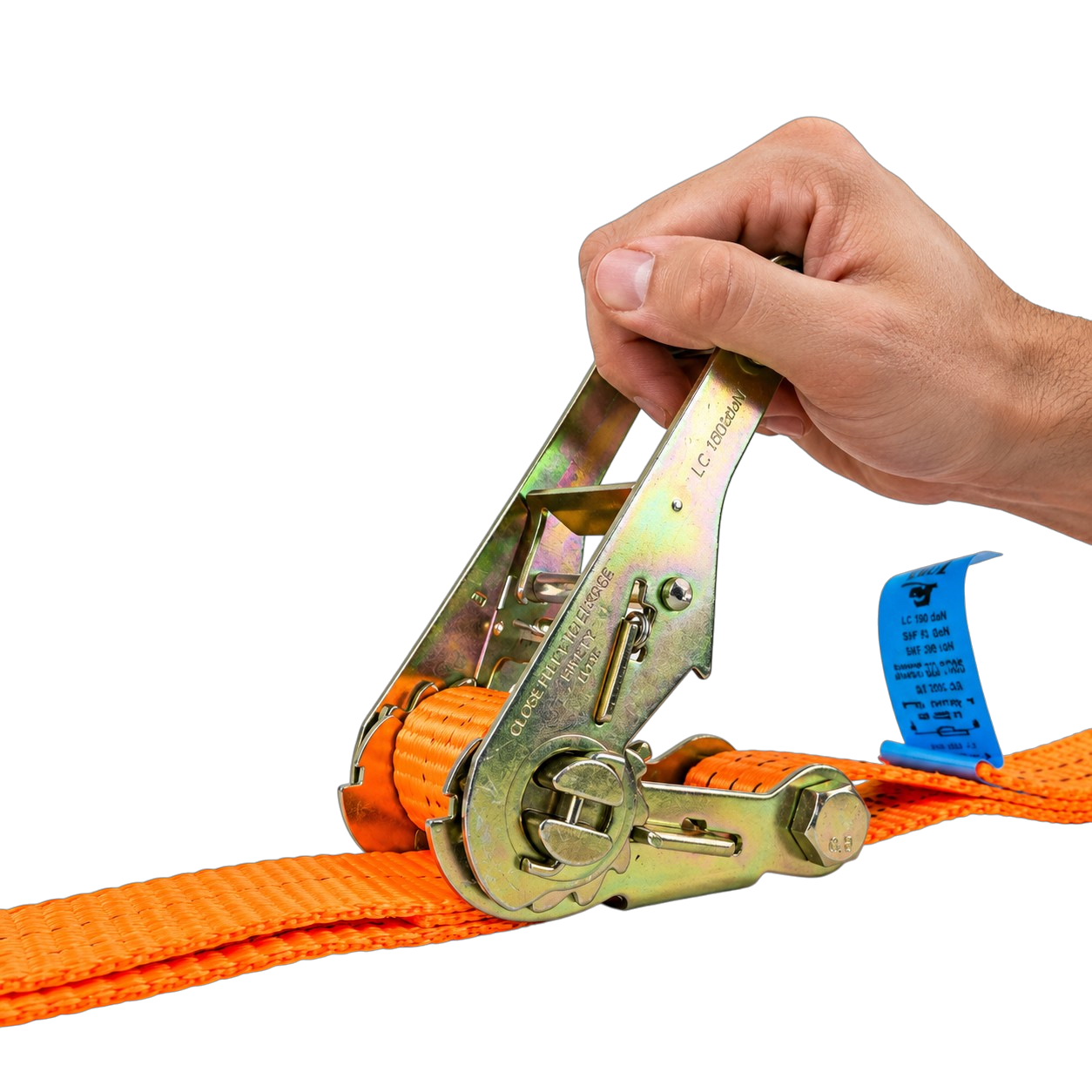

5. Operate the ratchet progressively until the strap is correctly tensioned.
6. Check the wheel section, all three hooks and the ratchet again before transport.

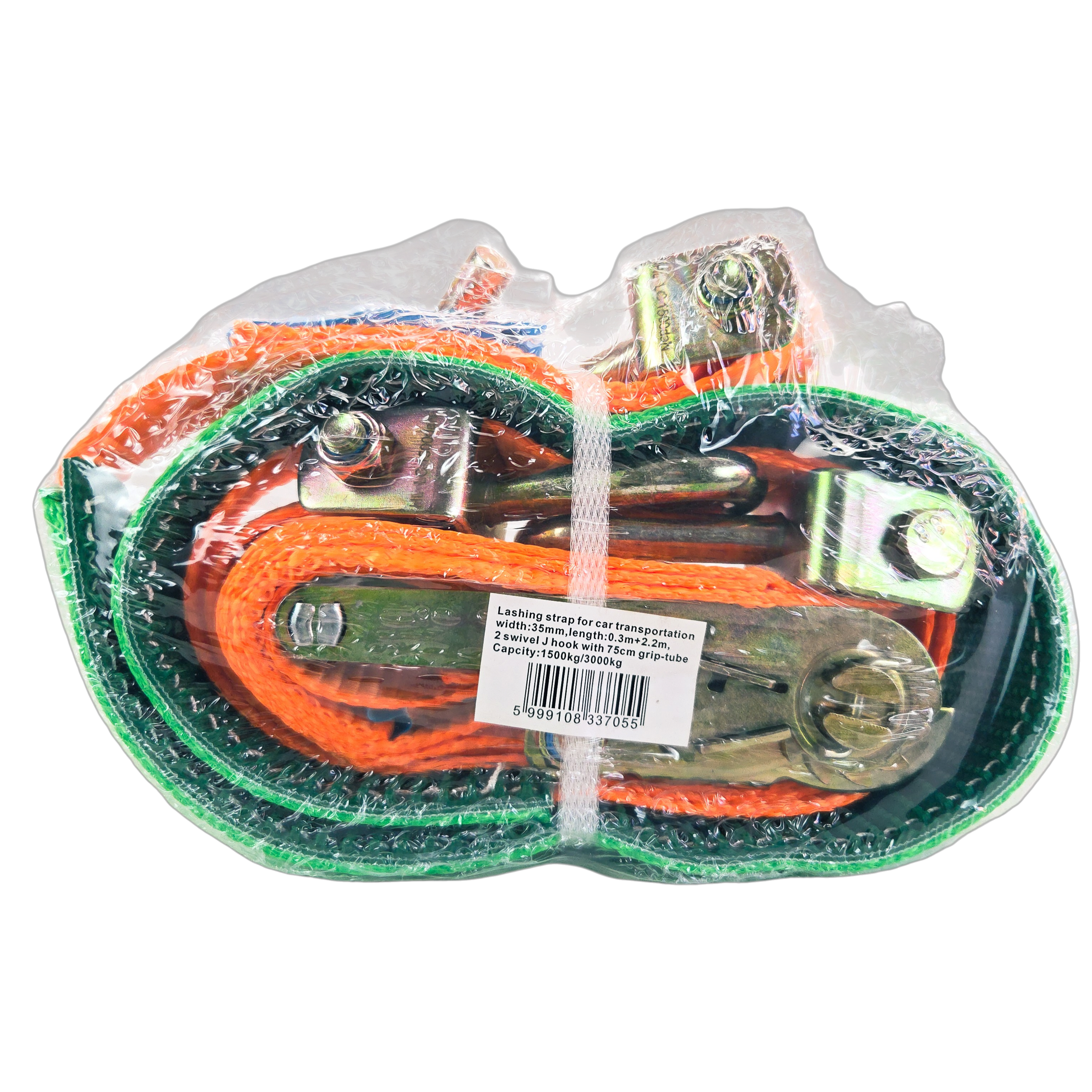

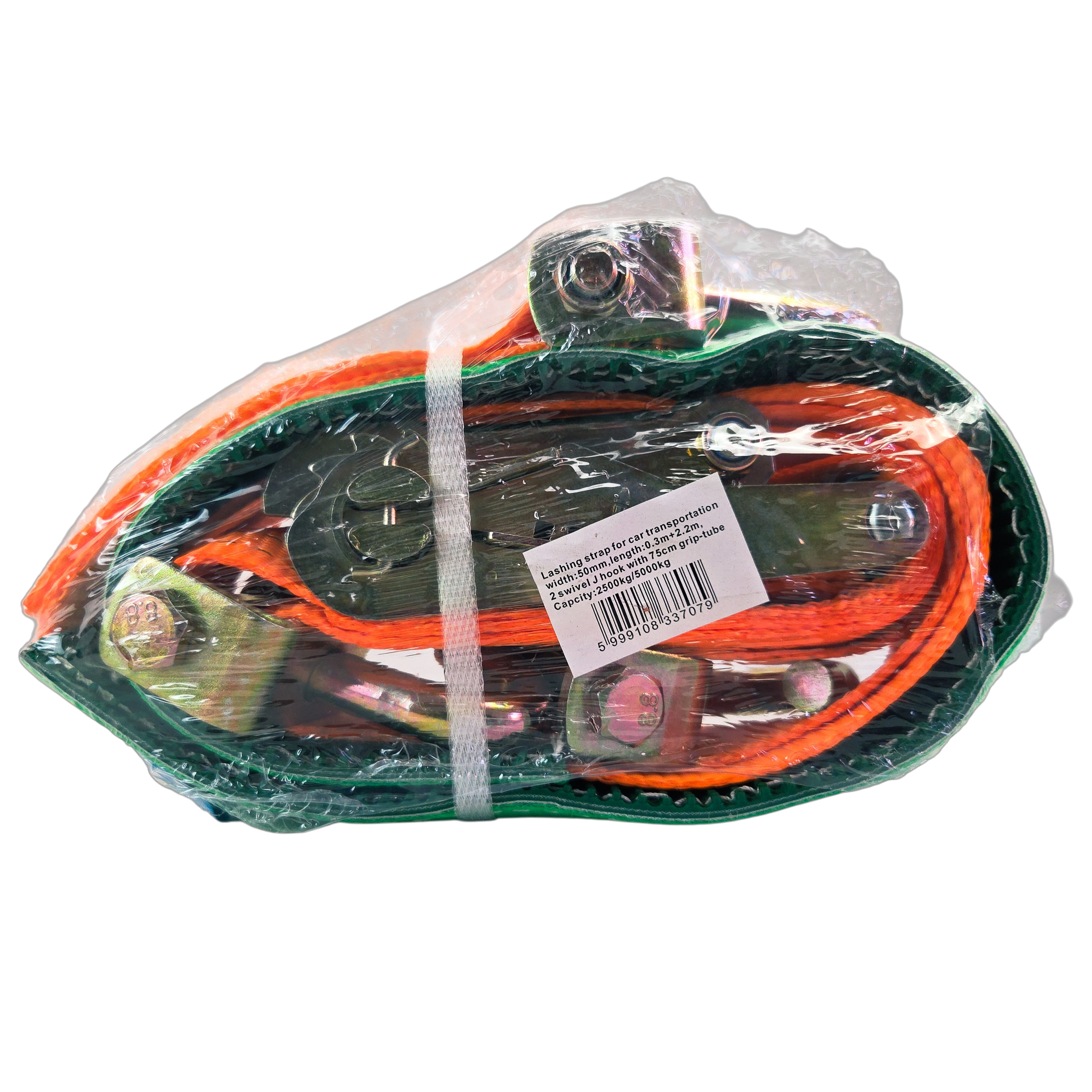

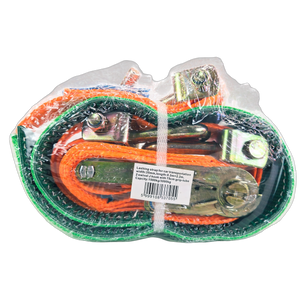

Package Contents

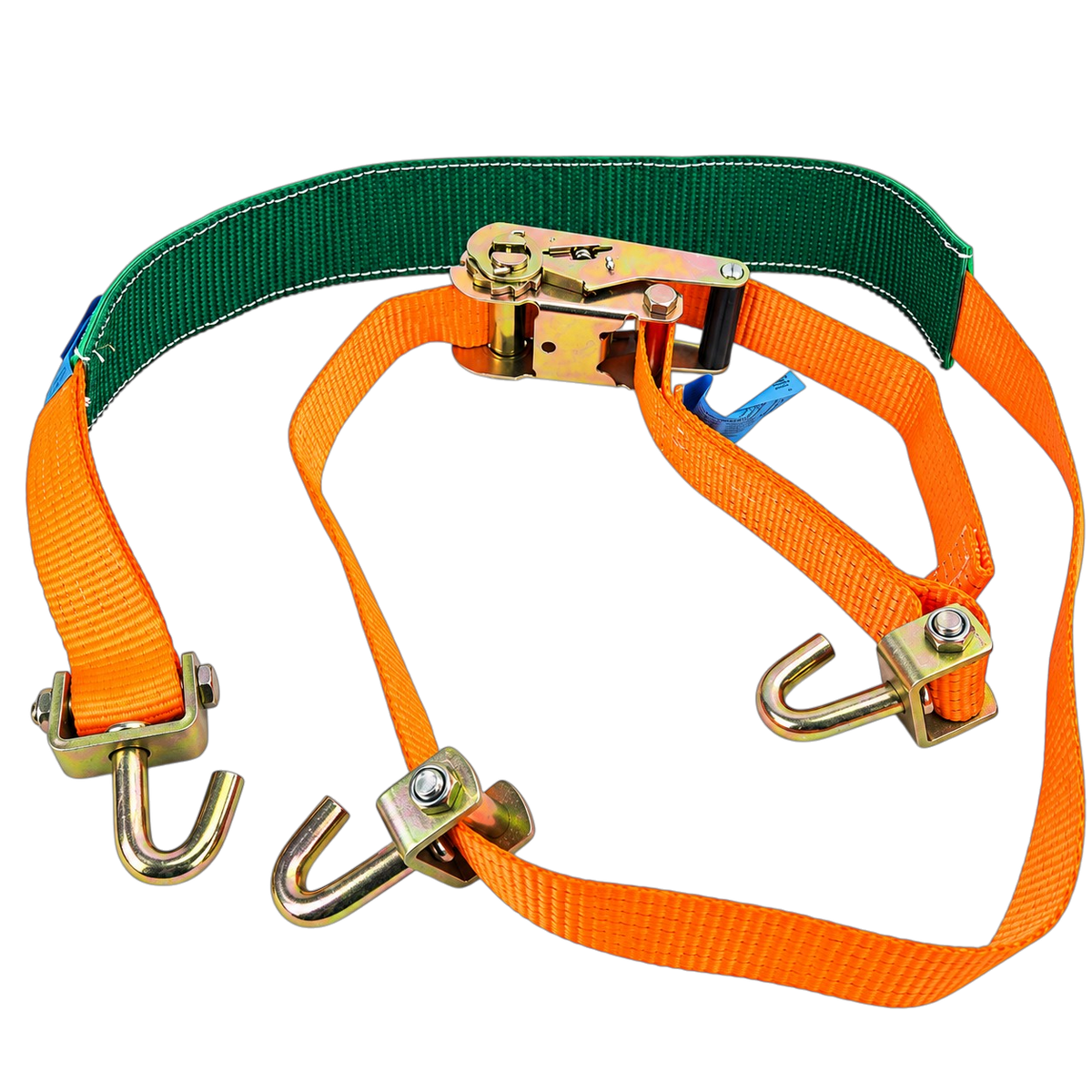

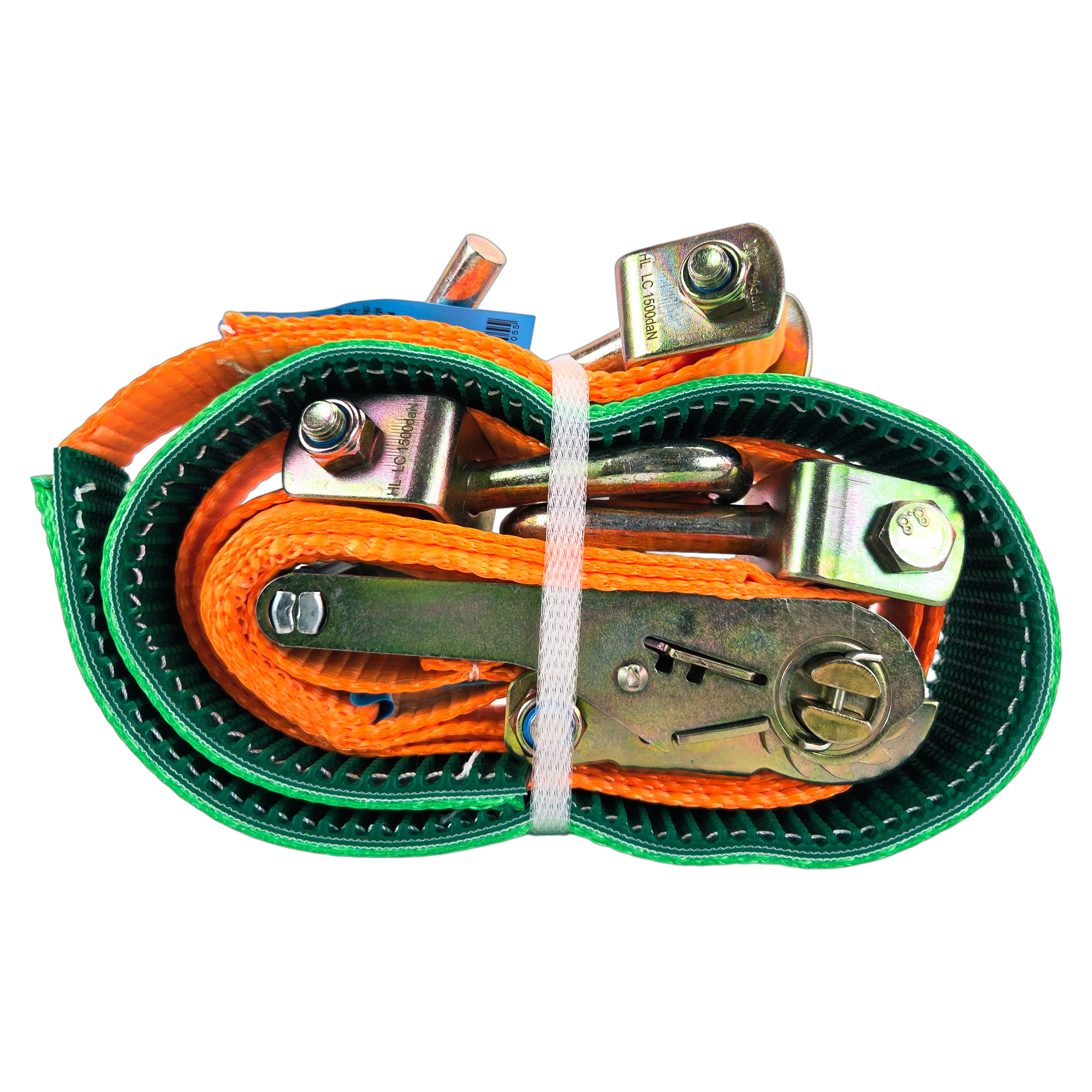

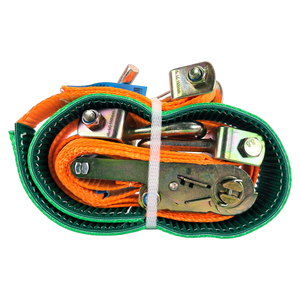

• 1 complete 3 point wheel restraint assembly
• 1 ratchet tensioner
• 3 swivel-head hooks
• 1 reinforced ribbed wheel section

Important Information

• 3T and 5T are different versions: webbing width, wheel-section width and product weight differ between the two options.
• Select the required version according to its stated technical specifications.
• LC values must always be interpreted according to the securing configuration shown on the product label.
• Inspect the webbing, ratchet, hooks and securing points before use.
• Do not use the product if any load-bearing component is damaged.
• Designed exclusively for load securing.
• Not for lifting.

For vehicle transport where secure wheel restraint matters, choose the Wheel Straps that match your requirements. With a reinforced tyre contact section, three swivel-head hooks and ratchet tensioning in one complete assembly, both versions provide a practical, purpose-built solution for securing vehicle wheels.
