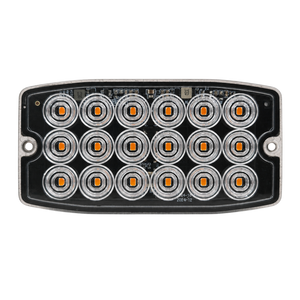

LED Work Light – Slim LED Warning Module with 2-Row & 3-Row Options, 36 Flash Patterns

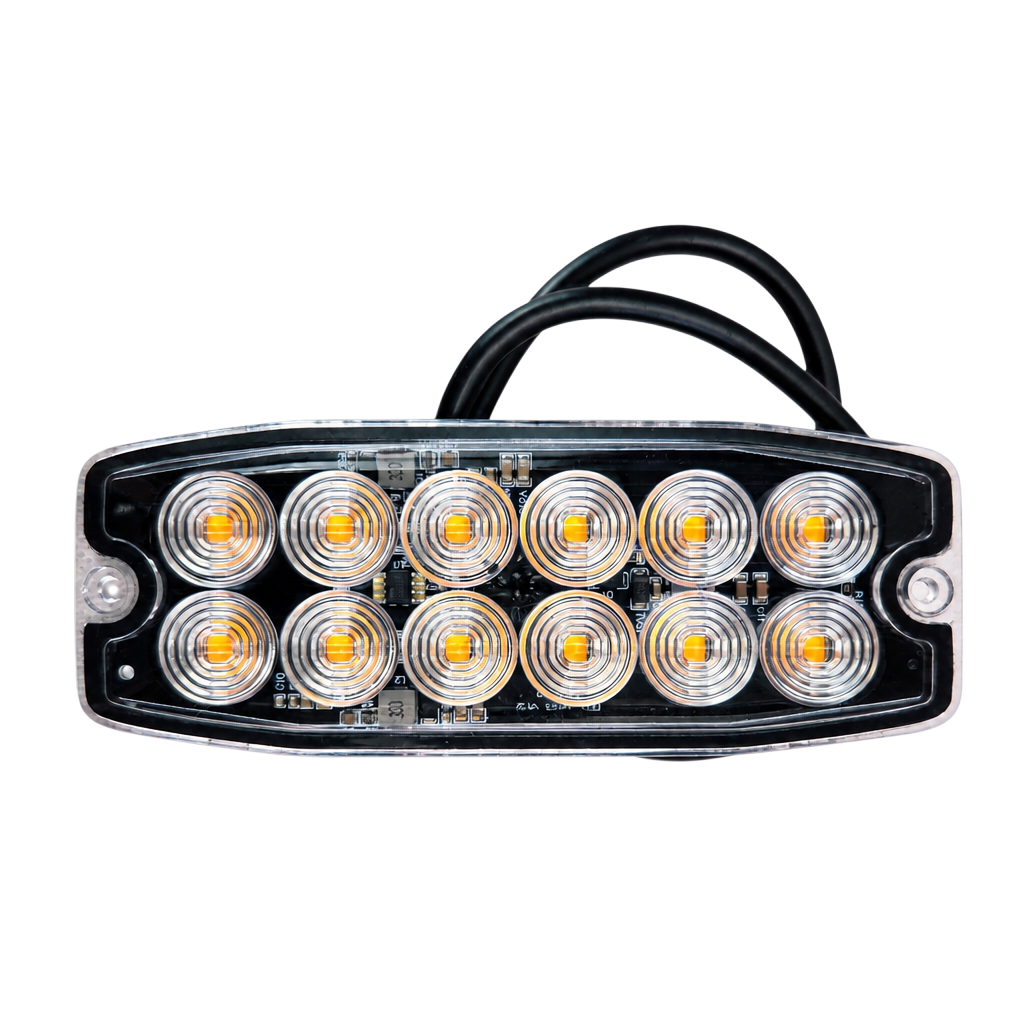

The LED Work Light is a professional slim LED warning module designed for trucks, lorries, trailers, construction equipment and other 12V/24V vehicles. Available in both 2-row (12 LED) and 3-row (18 LED) versions, it delivers outstanding amber visibility while maintaining a compact, low-profile design for easy installation.
Featuring 36 selectable flash patterns, synchronization capability, memory function and favourite pattern recall, this LED Work Light is ideal for creating reliable multi-light warning systems. Built with a durable aluminium housing and impact-resistant polycarbonate lens, it is engineered for demanding professional environments.
With an IP67 waterproof rating, operating temperature from -20°C to +50°C, and certifications including CE, UKCA, RoHS, ECE R65 and ECE R10, this LED Work Light offers dependable performance in all weather conditions for commercial and industrial vehicles.
Highlights

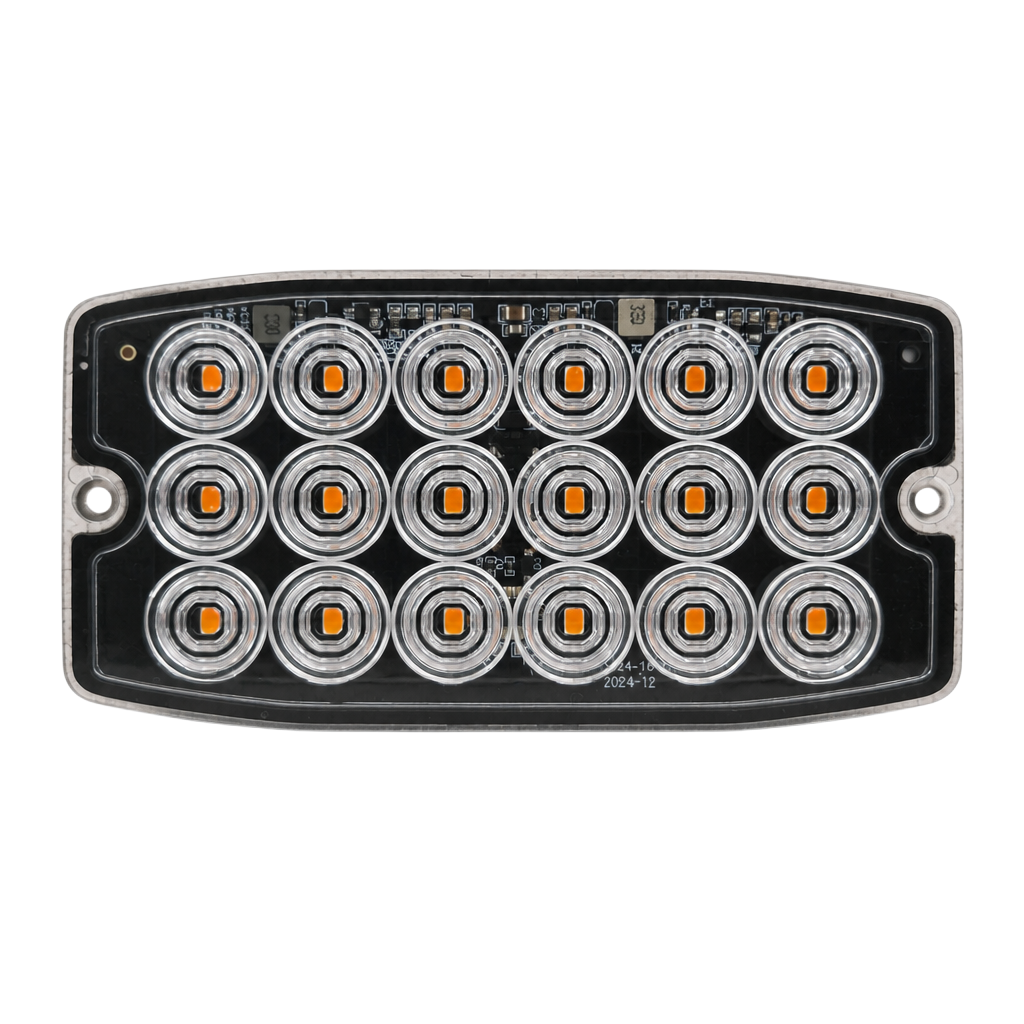

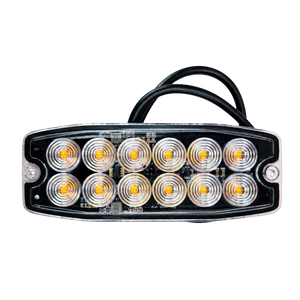

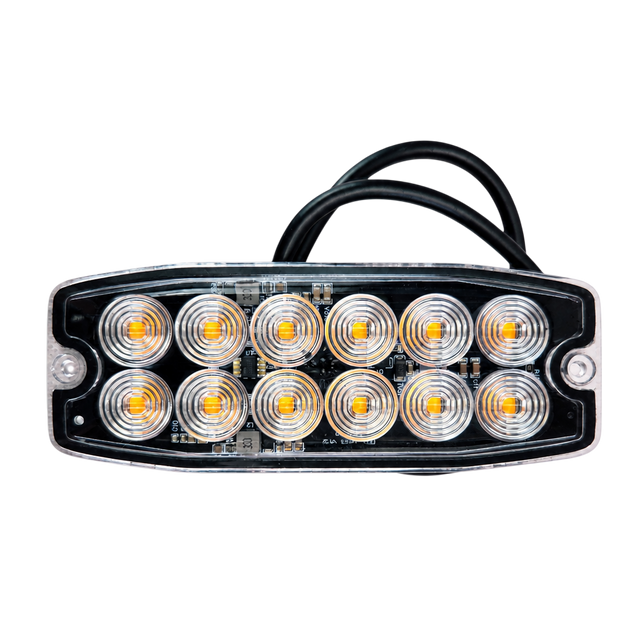

- Available in 2-row (12 LED) and 3-row (18 LED) versions
- 36 selectable flashing patterns
- Favourite flash pattern memory and quick recall
- Synchronises with multiple warning modules
- Supports alternating and synchronous flashing modes
- 12V/24V DC compatible
- IP67 waterproof aluminium housing
- Impact-resistant polycarbonate lens

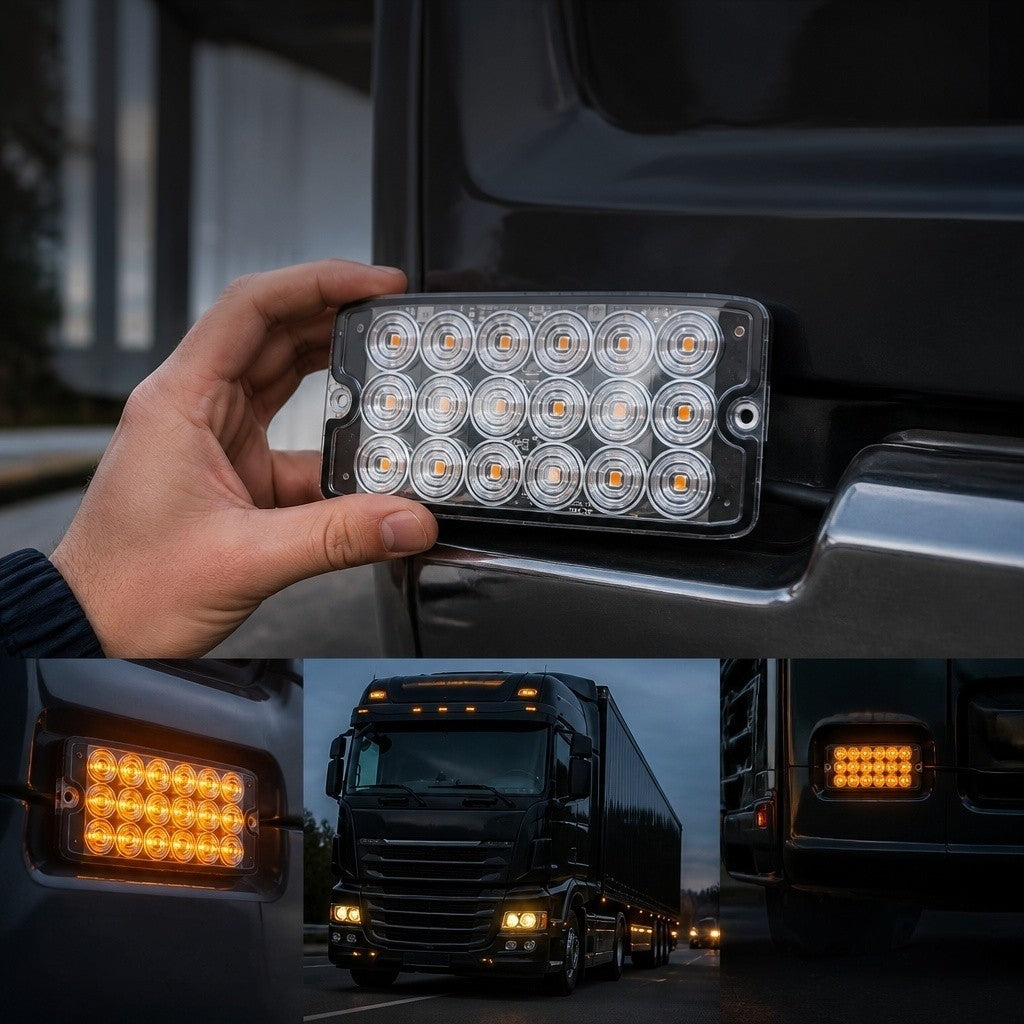

Applications
- Trucks
- Lorries
- Trailers
- Construction machinery
- Agricultural equipment
- Commercial vehicles
- Service and utility vehicles
Technical Specifications
- Operating Voltage: DC 12V/24V
- Light Colour: Amber
- Flash Patterns: 36
- Lens Material: Polycarbonate (PC)
- Housing Material: Aluminium
- Protection Rating: IP67
- Operating Temperature: -20°C to +50°C

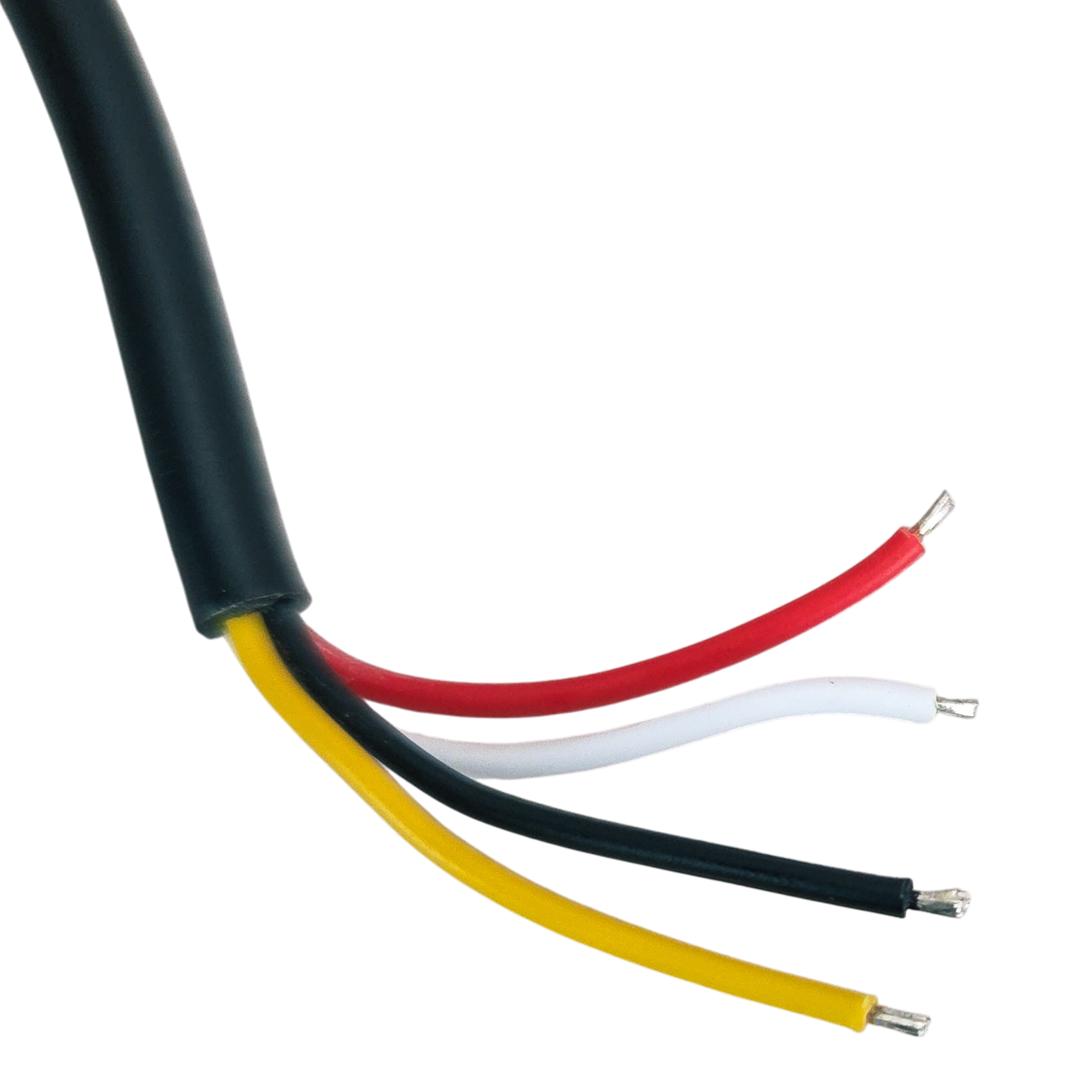

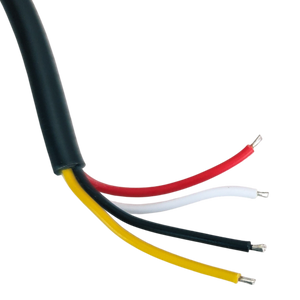

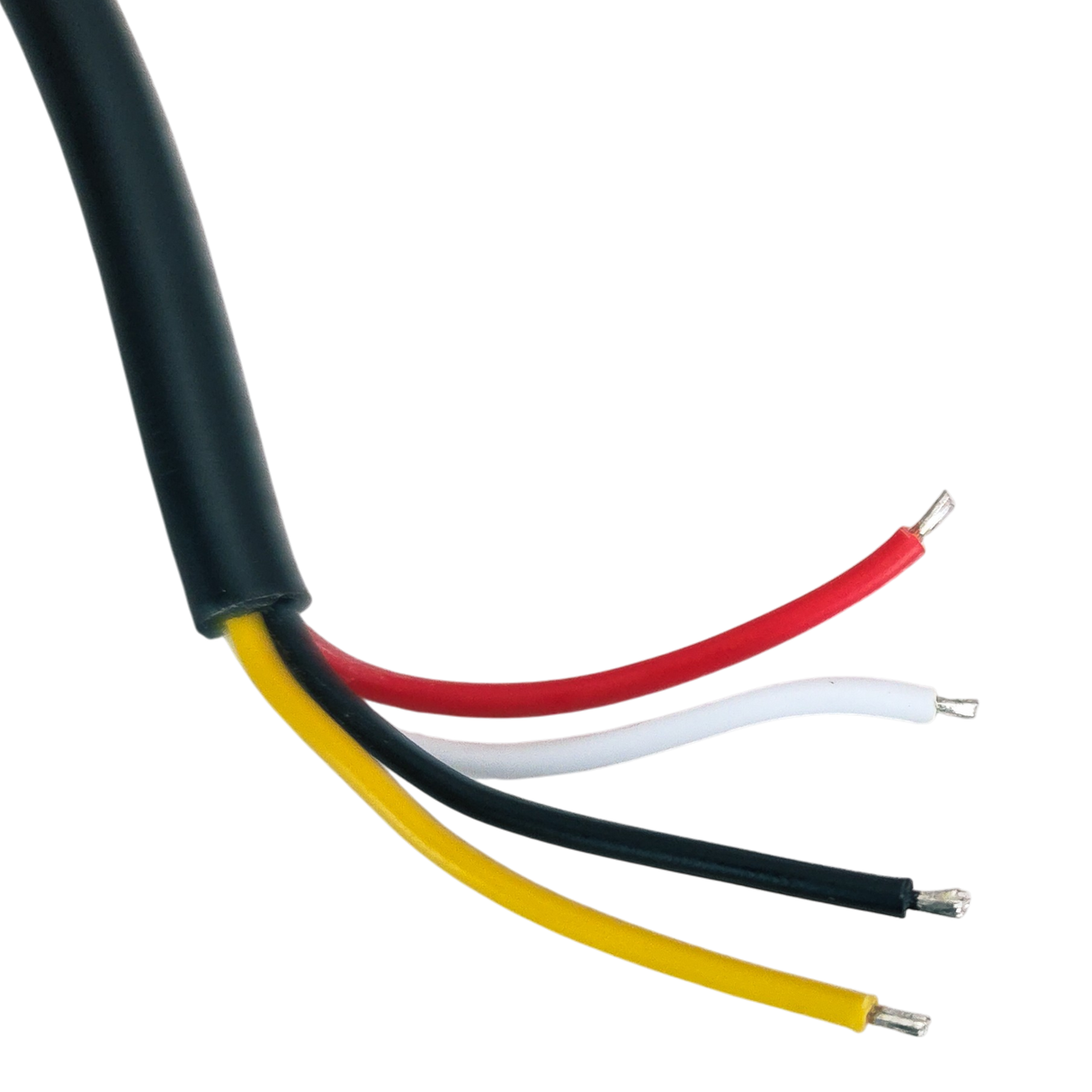

- 4-wire connection:
- Red: +12/24V
- Black: Ground (-)
- White: Synchronisation
- Yellow: Flash Pattern Selection

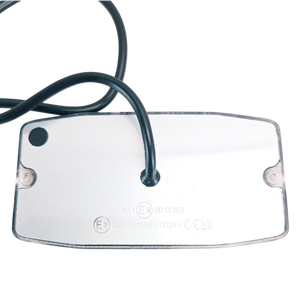

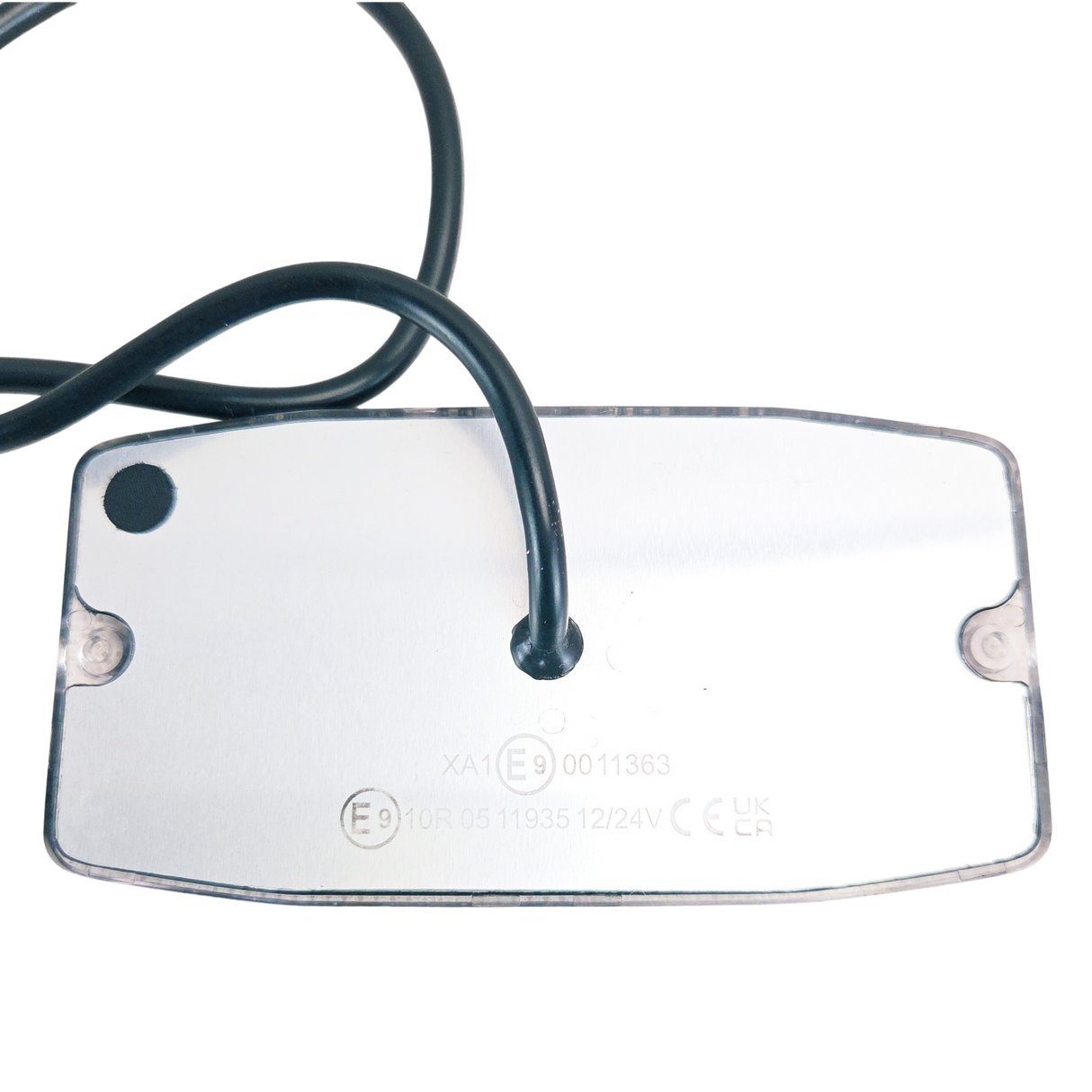

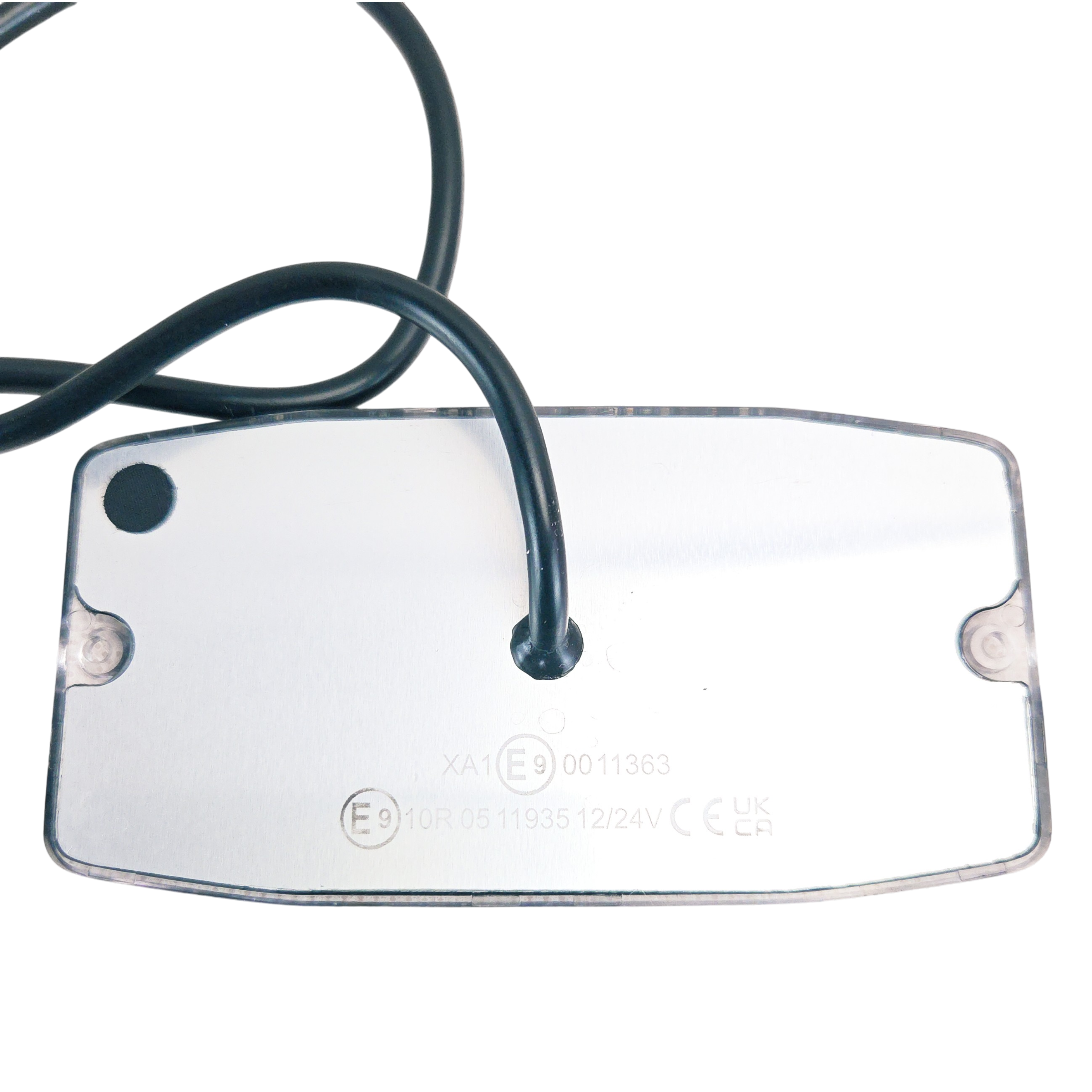

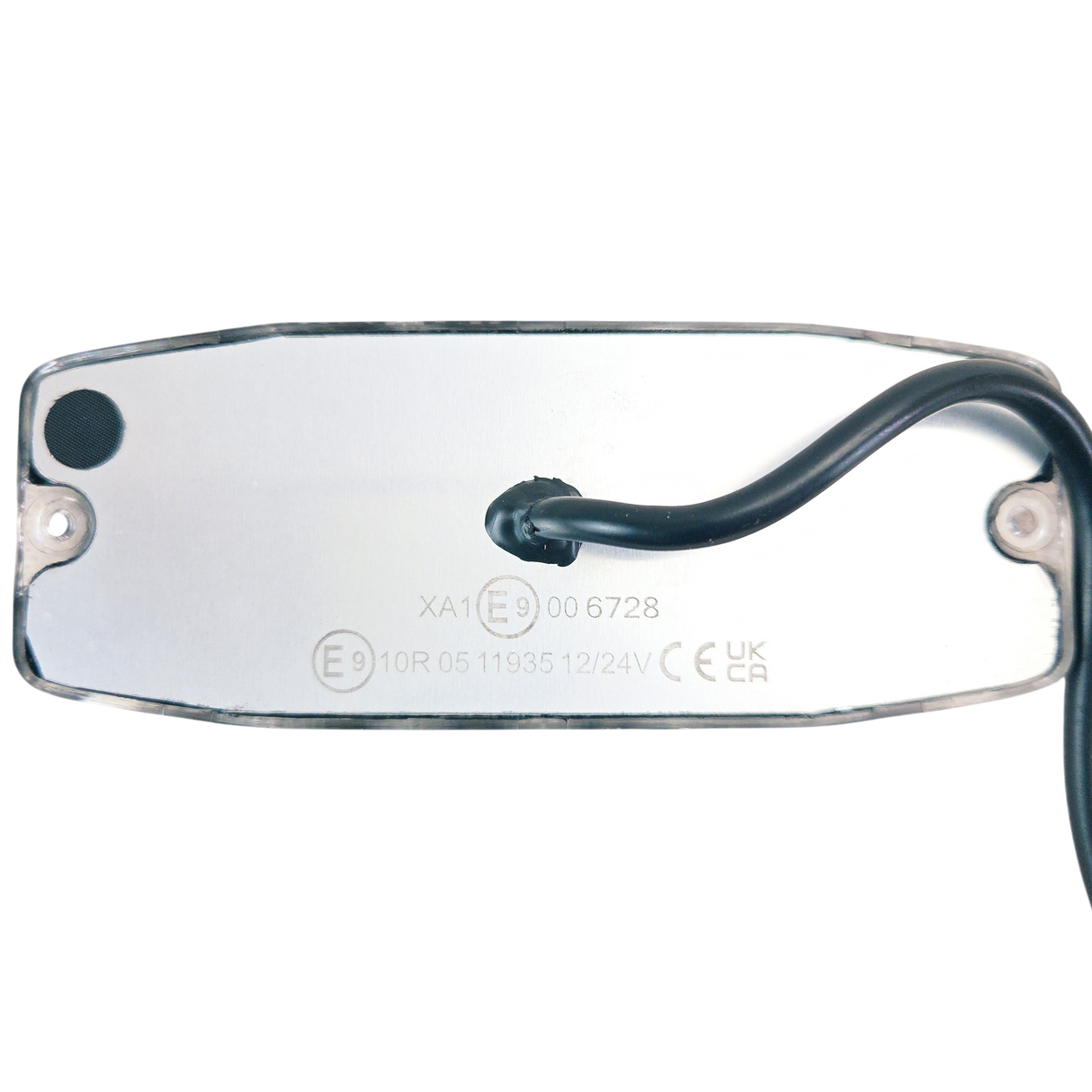

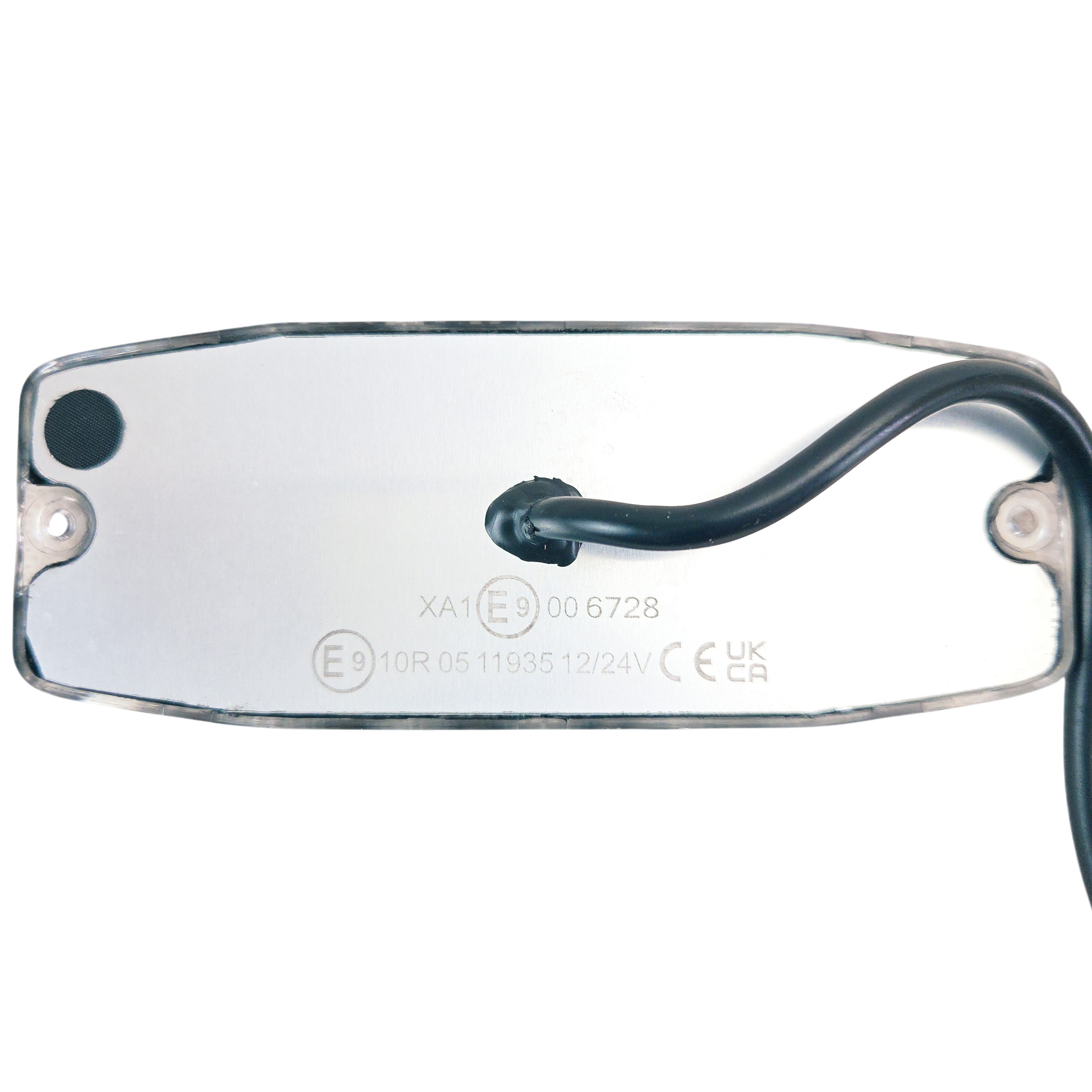

- Certifications: CE, UKCA, RoHS, ECE R65, ECE R10
Variant Comparison
| Specification | 2-Row Version | 3-Row Version |
|---|---|---|
| LED Quantity | 12 High-Power LEDs | 18 High-Power LEDs |
| Operating Voltage | DC 12V/24V | DC 12V/24V |
| Flash Patterns | 36 | 36 |
| Light Colour | Amber | Amber |
| Cable Length | 40 cm | 40 cm |
| Synchronisation | Yes | Yes |
| Memory Function | Yes | Yes |
| Favourite Pattern Save | Yes | Yes |
| Protection Rating | IP67 | IP67 |
| Lens Material | Polycarbonate (PC) | Polycarbonate (PC) |
| Housing Material | Aluminium | Aluminium |
| Operating Temperature | -20°C to +50°C | -20°C to +50°C |
| Dimensions | 130.5 × 50.6 × 6.6 mm | 130 × 67.5 × 15 mm |
| Mounting Hole Spacing | 120 mm | 120 mm |

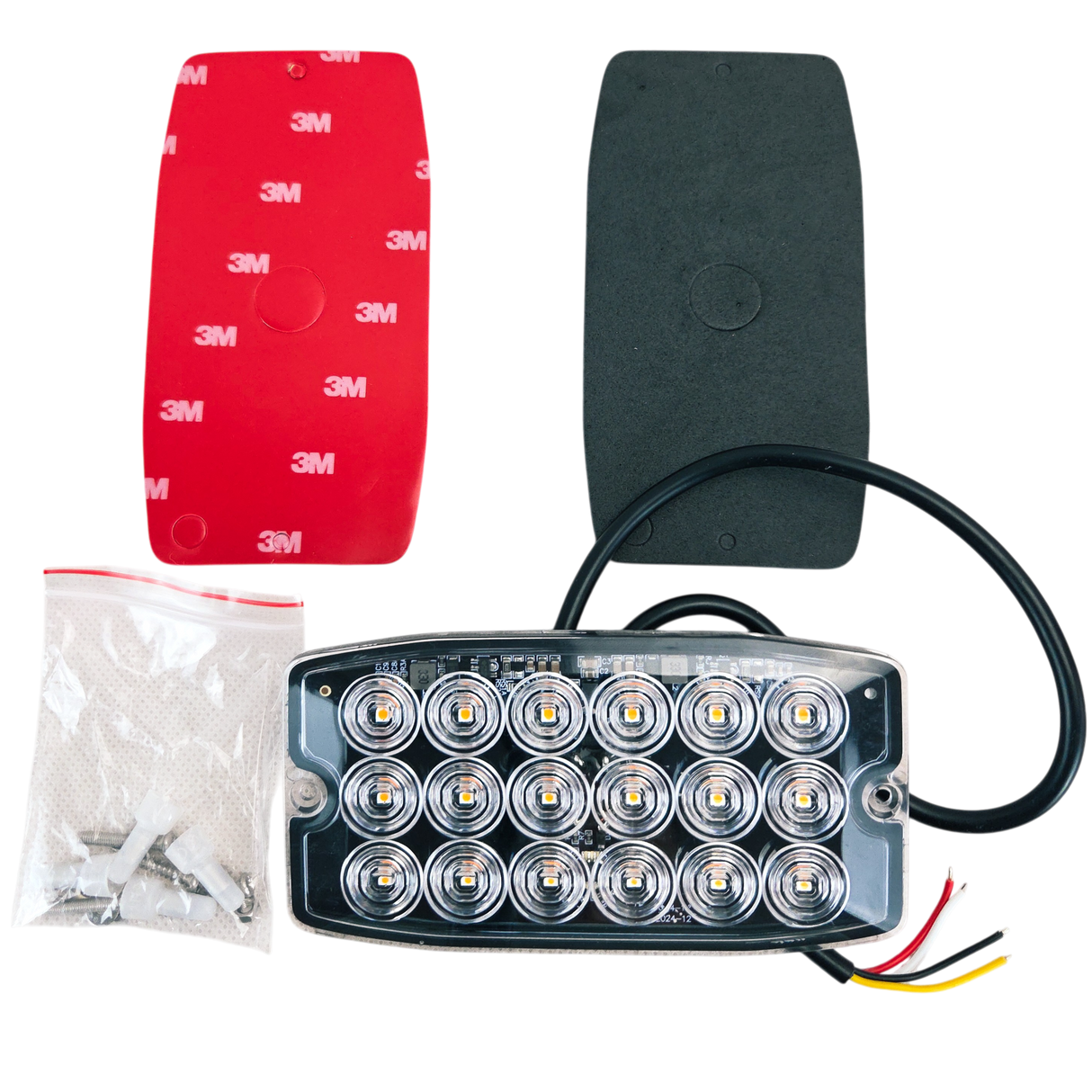

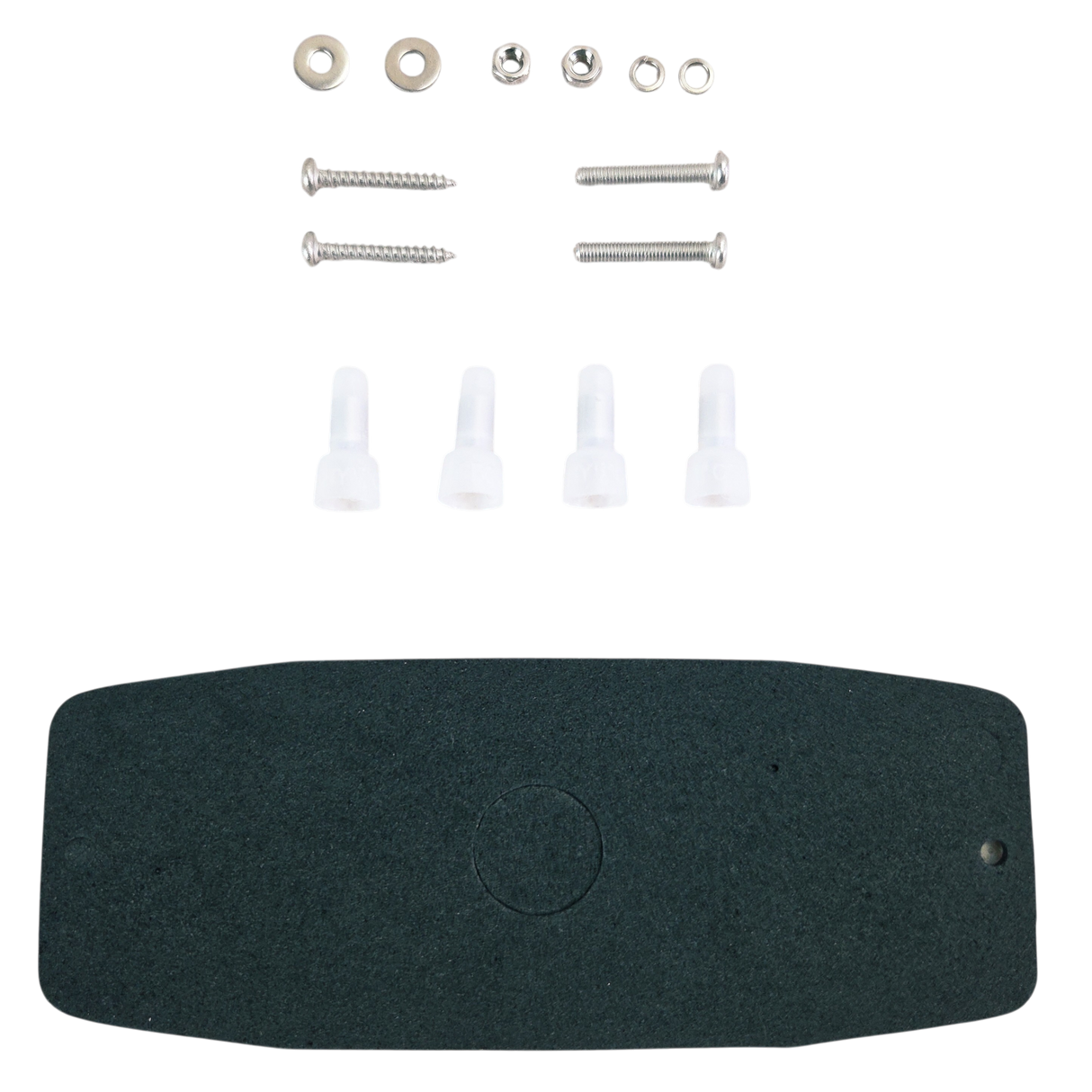

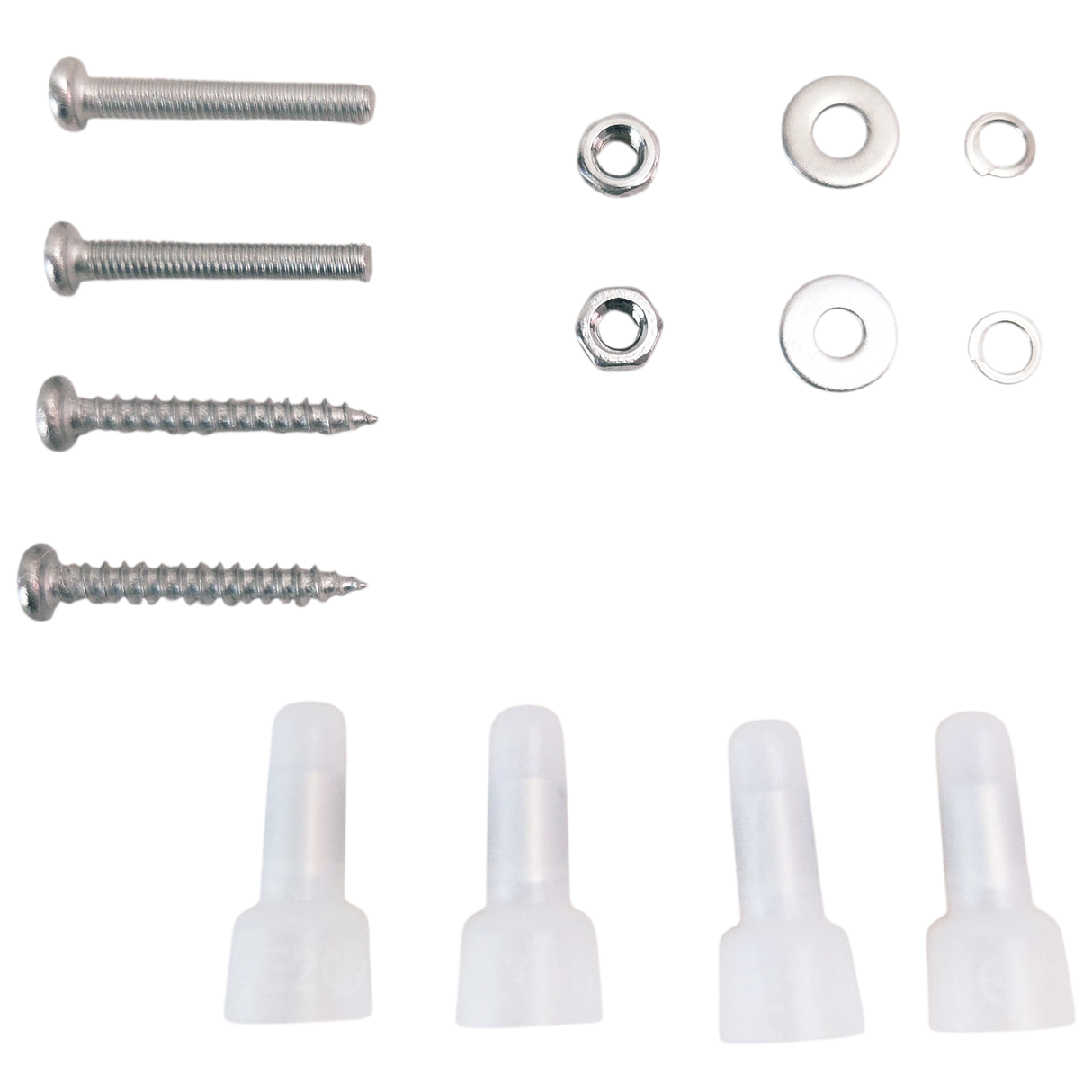

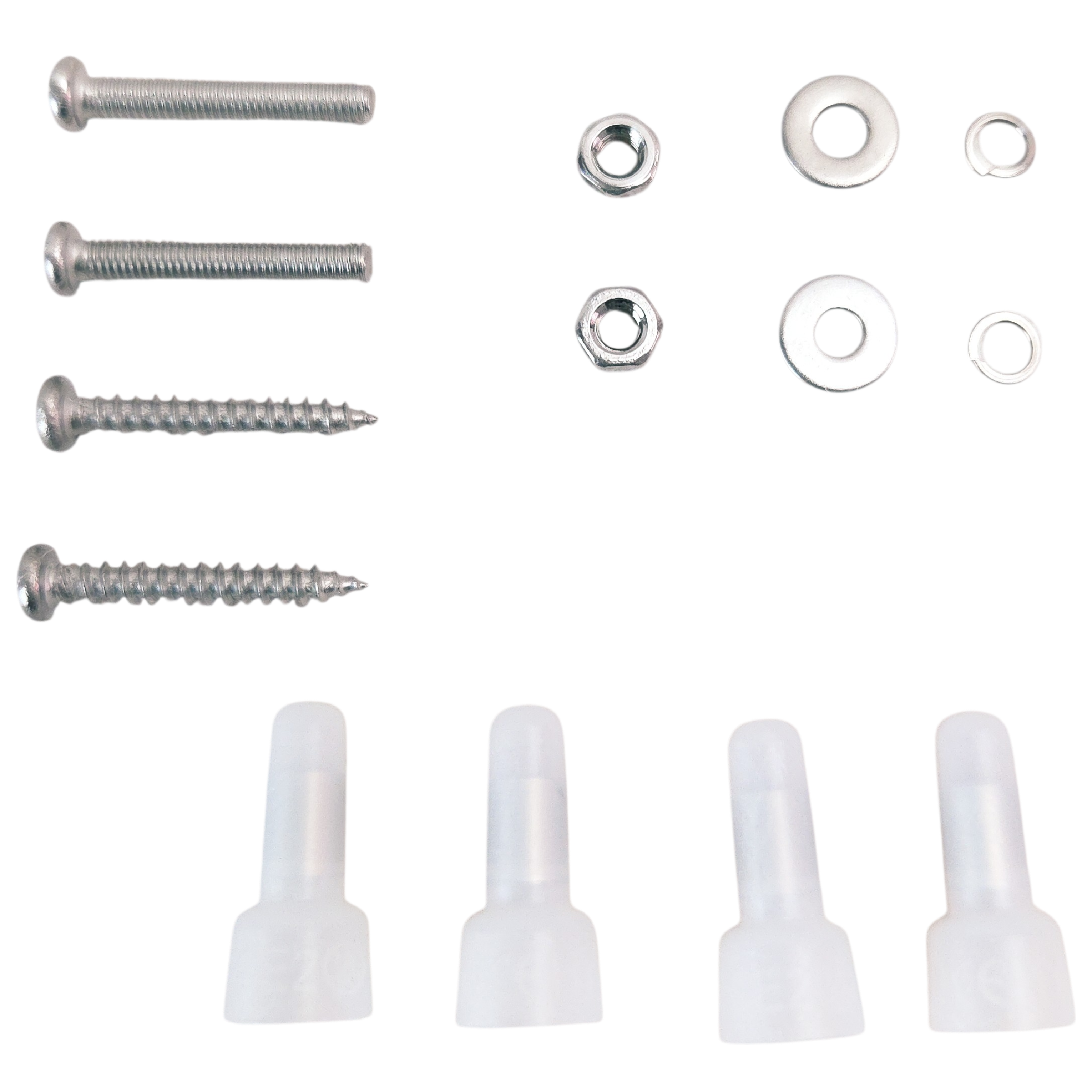

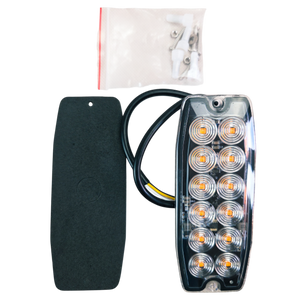

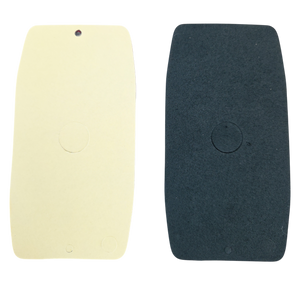

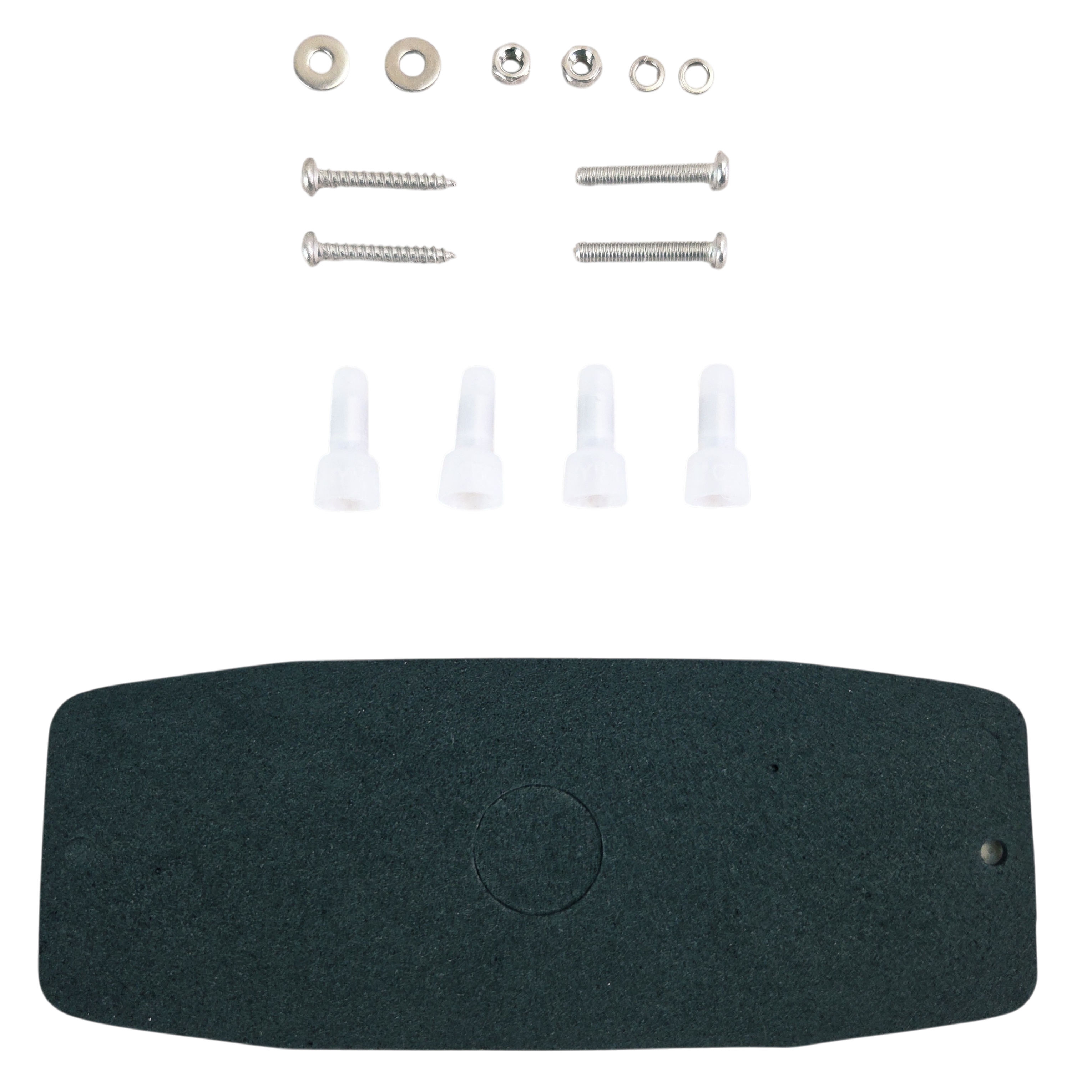

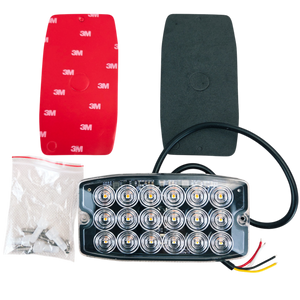

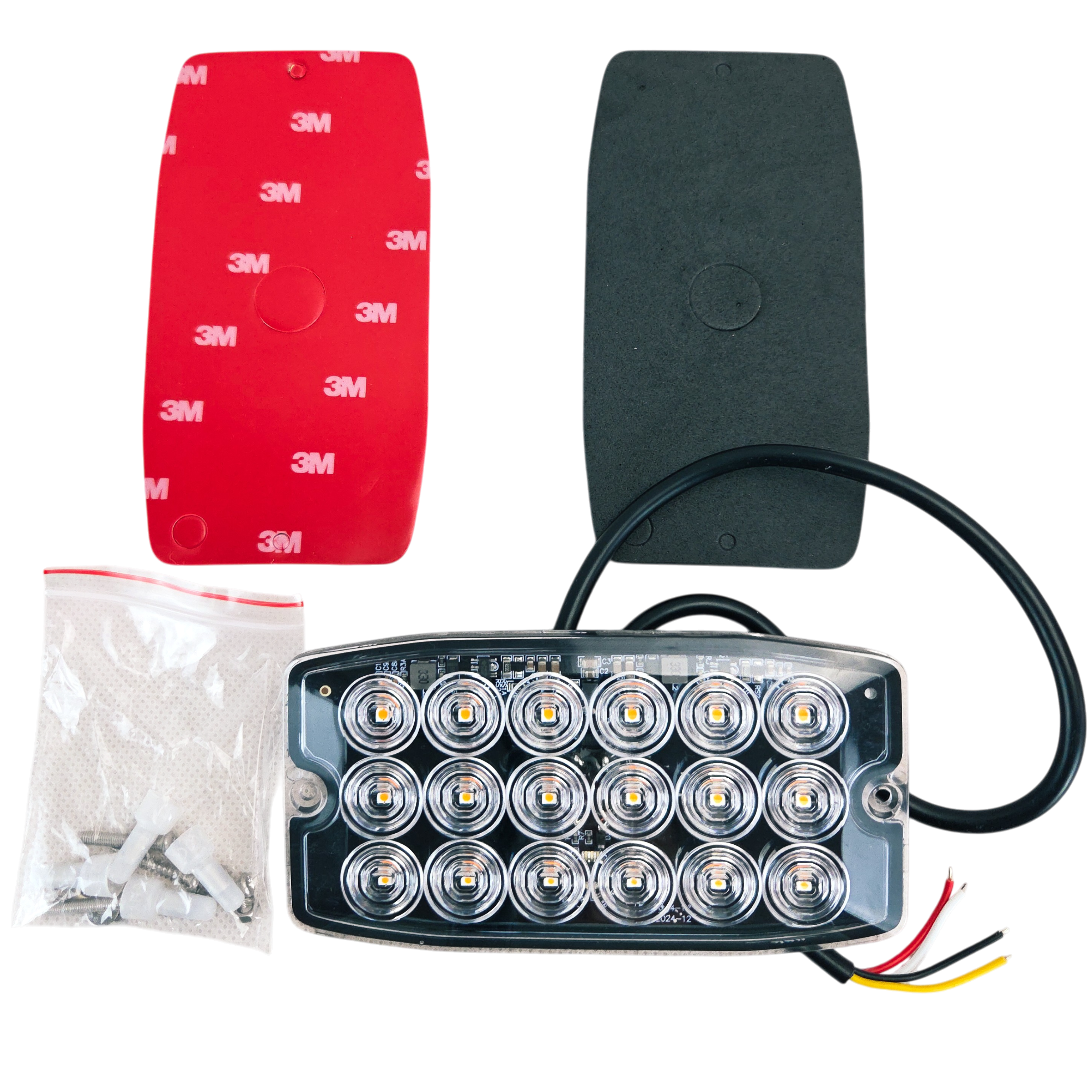

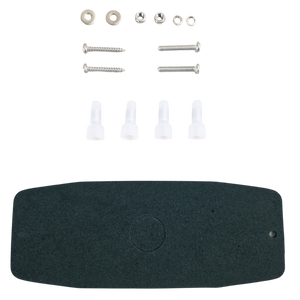

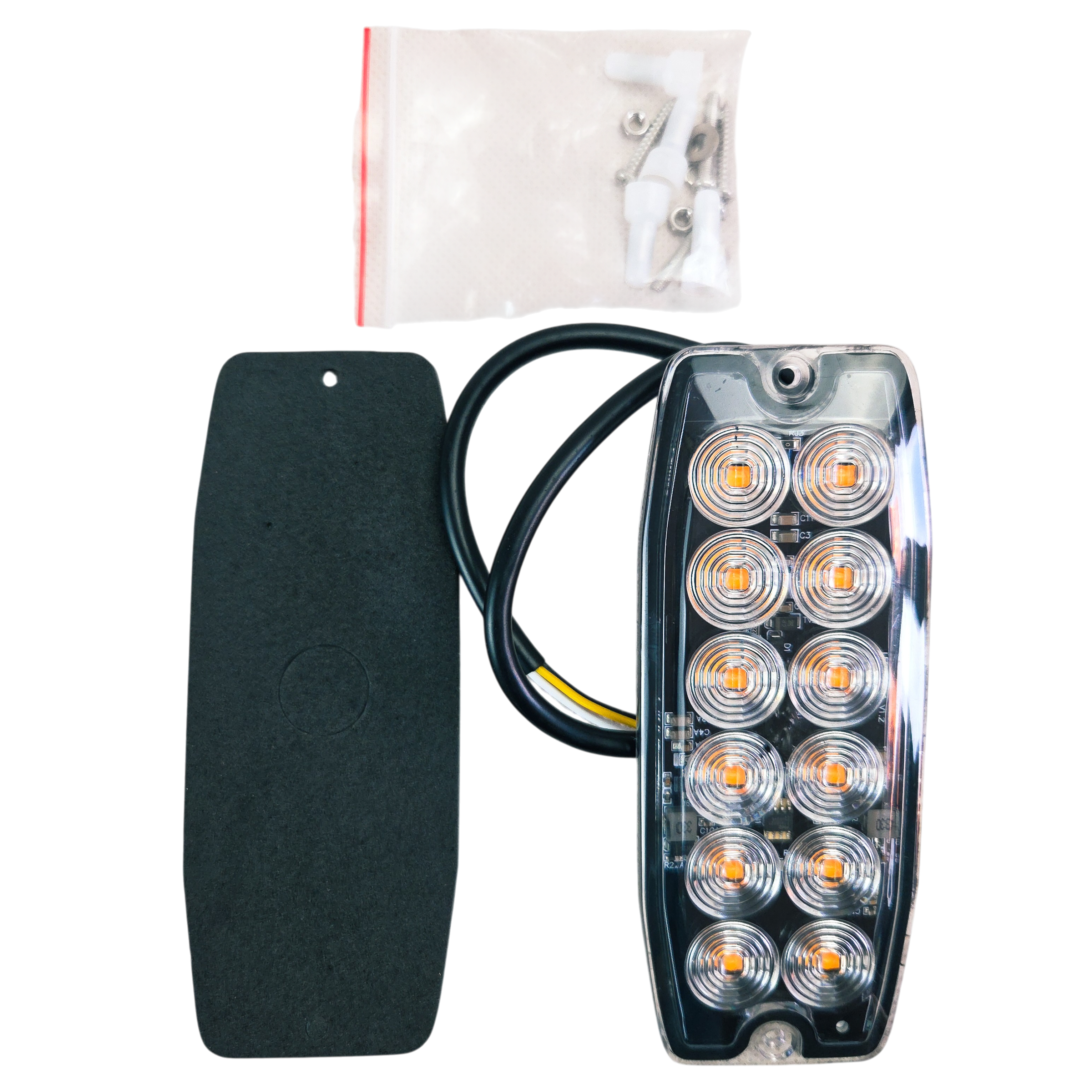

Package Contents
- 1 × LED warning module (2-row or 3-row version)

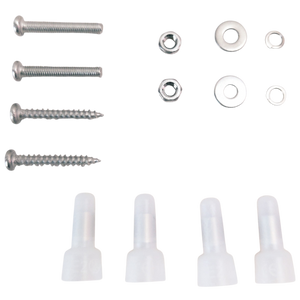

- Mounting screws
- Washers (variant dependent)
- Wire ferrules
